TECHNOLOGY

tlantic

Models 221 LR, 223 C, and 224 SR

System 220

High Performance Loudspeaker System

Welcome to Atlantic Technology’s world of excellence in sound reproduction. Your new

speaker system is precision crafted to give you years of enjoyable trouble free service.

This manual covers the Atlantic Technology System 220 series of speakers for

home theater. It will show you how to incorporate the following System 220 compo-

nents into your present system as well as how to set up a complete system. (Except the

Model 222 PBM. It is covered in a separate manual.)

The Model 221 LR Front Channel Speakers are two-way systems for use with a

quality subwoofer such as the Atlantic Technology Powered Bass Modules. Each speaker

contains a 4" polypropylene long-throw woofer and a 1/2" ferrofluid cooled tweeter in

an acoustically inert MDF cabinet.

The Model 223 C Center Channel Speaker with ariable Cinema EQ contains

two high power 3-1/2" polypropylene woofers and a 1/2" ferrofluid cooled tweeter. It is

designed for use in home theater systems that use a Dolby Pro Logic decoder.

The Model 224 SR On-Wall/In-Wall Surround Speaker is intended for use in

audio/video sound systems with a Dolby Pro Logic receiver (or a Dolby Pro Logic

decoder and a surround amplifier). Each speaker has two 3-1/2" polypropylene drivers

that are angled and phased to produce ambience without localization for movie

surround sound tracks.

Although the speakers in the Atlantic Technology System 220 are acoustically and

cosmetically matched to each other they may also be used with a wide variety of other

speaker systems.

Note: The 224 SR is not intended for use as a regular right and left front channel stereo

speaker or satellite. Its spatial perfor ance characteristics are not designed for this purpose.

In the Atlantic Technology 220 Series of co ponents, the Model 221 LR fills this role.

Connection

We recommend that you connect your new System 220 speaker components using high

quality stranded wire of 18 gauge or larger for lengths up to 25 feet. Use 16 gauge or

larger for longer runs of wire. Contact your local audio/video specialist for more specific

information.

Warning: To prevent risk of electrical shock or da age to your equip ent, always switch off

the a plifier or receiver when aking connections to the speaker.

All manuals and user guides at all-guides.com

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Models 221 LR, 223 C, and 224 SR

You can connect your System 220 speakers by using

spade lugs or “banana” connectors, or by removing 1/2"

of insulation from eac wire end, twisting t e strands

of wire toget er, placing t e wire t roug one of t e

post oles and screwing down t e nut tig tly.

It is important to observe polarity w ile making speaker

connections: red (+) terminals on t e amplifier to red

(+) on t e speaker, black (-) on t e amplifier to black (-)

on t e speaker. Look carefully at t e wires you are using and note t at one of t e wires

in eac pair is marked by eit er a different color, printing, ridges, or a t read inter-

twined wit t e wire strands. Conventionally, t e marked wire is connected to t e

red (+) terminal.

–

+–

+–+–+–

+–

Center Front Speaker

Left Front Speaker Right Front Speaker

Right Surround SpeakerLeft Surround Speaker

Dolby Pro Logic

Amplifier or Receiver Left

Front

Center

Front

Right

Front

Left

Rear

Right

Rear

+–

+–+–

W et er your are connecting a complete System 220, or adding one speaker compo-

nent to your present system, t e wiring s ould look like t e diagram in Figure 2. Before

turning on t e amplifier, be certain t at no stray wire strands are touc ing across t e

two terminals as t is mig t damage your amplifier.

Finally, c eck t e polarity of your front speakers by listening to some music. If t e

sound seems ollow, spread out and as weak bass, rec eck your connections for proper

polarity and reverse t e connections if necessary.

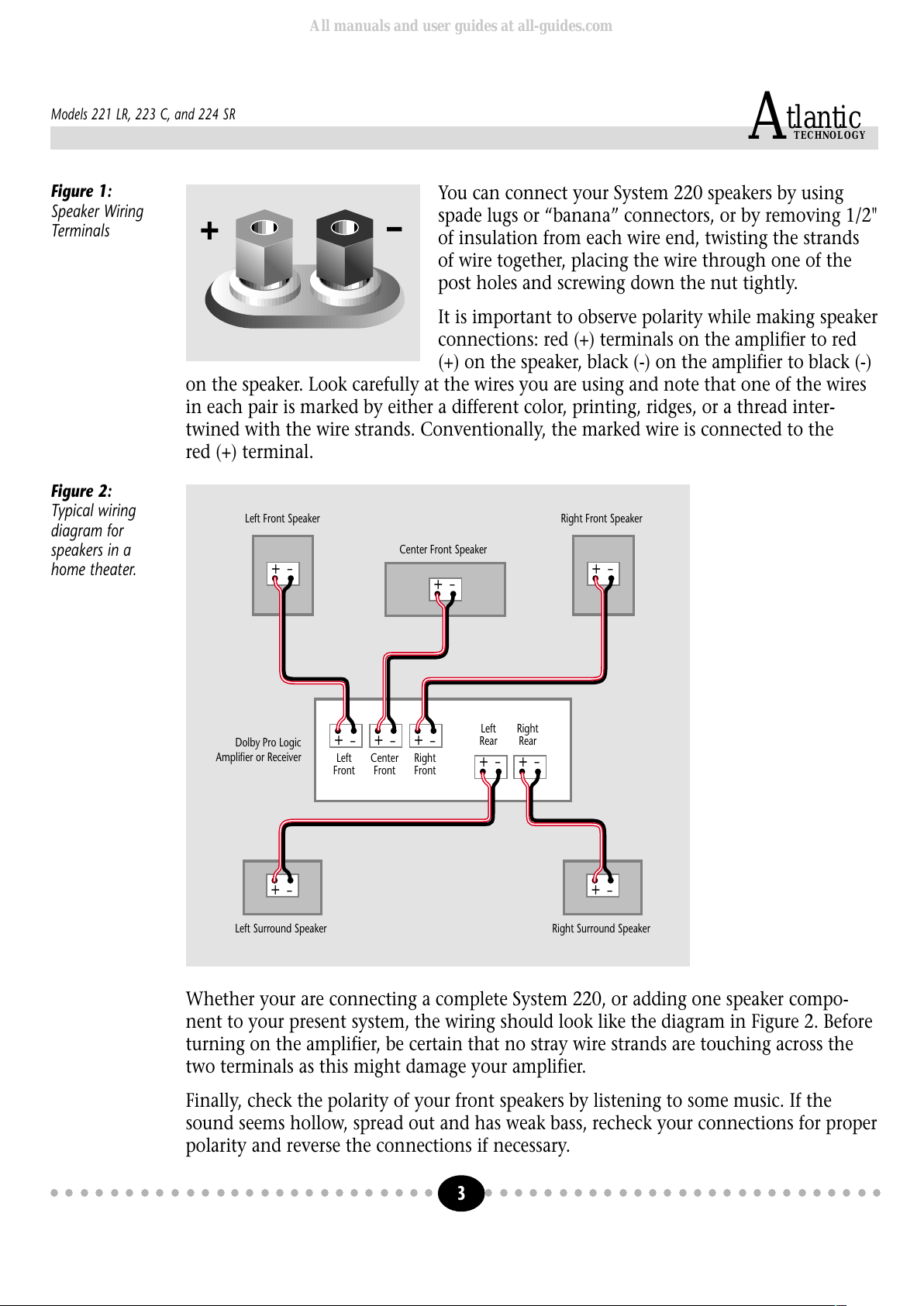

Figure 1:

Speaker Wiring

Terminals

Figure 2:

Typical wiring

diagram for

speakers in a

home hea er.

All manuals and user guides at all-guides.com

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Models 221 LR, 223 C, and 224 SR

Placement

The design of the System 220 provides you with maximum flexibility when creating a

large, seamless, acoustically accurate soundfield for your home theater or music system.

The best placement of the various components will vary from system to system. Use the

following placement guidelines and Figure as a starting point. Feel free to experiment.

Home Theater

For a home theater system, place your Model 221 LR speakers on either side of the

television. All of the System 220 speakers (except the Model 222 PBM Powered Bass

Module) are magnetically shielded so that they will not interfere with your television

picture. The left front and right front speakers should be far enough apart that you get a

good stereo image, but not so far apart that the sound seems to come directly from the

speakers, distracting you from the picture. If you are using a center channel speaker, a

wider separation of the left and right front speakers is usually possible.

The Model 22 C should be placed directly on or under your television. Place the

speaker base so that the foot cutouts are facing forward. Then, set the speaker on its

base and tilt the speaker so that it points directly at the listener.

The 224 SR’s size and shape allows greater flexibility in placement than most conven-

tional surround loudspeakers. Due to their spatial characteristics, it is possible to place

the speakers virtually anywhere, but usually the best location is nearly straight out to

the sides of the primary listening area, either at ear level or 1-2 feet above.

Figure 3:

Typical arrange-

ment for speakers

in a home theater

For best results,

place the surround

speakers within the

shaded areas

All manuals and user guides at all-guides.com

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Models 221 LR, 223 C, and 224 SR

Music Only System (Model 221 LR only)

If you are setting up a music only system, begin with these general guidelines:

●

The distance between your speakers should be about one-half their distance from

your favorite listening position.

●

The front of the speakers should point straight at you.

●

The distance from each speaker to its three closest room surfaces should be

different.

●

In most rooms, you should not place your speakers in the corners.

Next, be creative Try placing your speakers along the long wall instead of the short one.

Toe the speakers in or point them straight ahead. Pull them away from the wall or push

them close. Don’t be timid. You will find that moving your speakers, even a few inches,

can greatly change their sound.

Finally, remember that the best place for your speakers is the one that satisfies you both

visually and sonically.

Cinema EQ Adjustments (Model 223 C only)

The home theater experience is best enjoyed when sounds remain consistent in tonal

balance when panned across the soundstage. For that reason, the Atlantic Technology

System 220 was designed with acoustically matching drivers.

To help achieve this goal when using front speakers from another manufacturer, we

have provided a control on the rear of the 223 C enabling you to adjust its tonal

characteristics to emulate those of your front left and right speakers.

Begin the adjustment procedure by turning the control knob to the 1 o’clock position.

This approximates the Atlantic Technology 221 LR speakers. Next, use your Dolby Pro

Logic receiver/decoder’s “test” mode to generate “hiss” from each speaker and adjust

the 223’s control for the closest match.

Although a perfect match is not usually possible, fine tuning the EQ control while

watching high quality movies will generally yield excellent results. If most of your

listening is Dolby Stereo movies, you may wish to adjust the Cinema EQ control to

compensate for the natural brightness of many movie soundtracks.

Note Some Dolby Pro Logic decoders and receivers offer a choice of “normal or

“wide-band modes for the center channel. The Model 223 C was designed to be used in

the “normal mode.

All manuals and user guides at all-guides.com

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Models 221 LR, 223 C, and 224 SR

Mounting

The 221 LR and the 224 SR speakers can be mounted in a variety of ways:

On speaker stands. Atlantic Technolo y 156 ST speaker stands provide an ideal hei ht

(29" above the floor) and fit for most rooms. They are available in black or white.

On the wall. For reatest flexibility, use Atlantic Technolo y 157 WB wall brackets

with their pivotin ball-and-socket joint.

To flush mount your speakers, we have provided metal key-hole brackets. Simply place

the bracket over the oval recess on the rear of the speaker and fasten it usin the

enclosed #6 x 1" screws. Pilot holes are provided for both brackets.

For safety, please use suitably secured wall anchors (such as molly-bolts), or screws

driven into wall studs.

Note: The 224 SR speakers hang upside-down, so you will need to remo e and in ert

the grilles.

On a bookshelf. Adhesive rubber feet are included.

In the wall. The Atlantic Technolo y 254 INRF in-wall kit includes all the necessary

hardware and trim. (224 SR only)

Listening Levels and Power Handling

The power recommendation for these speaker components assumes that you will not

operate your amplifier/receiver in a way that produces distortion. Even ru ed speakers

like System 220 can be dama ed by a moderately powered system if it is producin

distortion.

If you hear a harsh or ritty noise comin from your speakers, turn down the volume.

Prolon ed or repeated operation with a distorted si nal from your amplifier/receiver

can cause dama e to your speakers that is not covered by the warranty.

Care of our Speakers

Clean your speaker cabinets usin a soft cloth and a mild, non-abrasive household

cleaner bein careful not to wet the individual drivers or the ed es of the cabinet. After

carefully removin them from the speakers, clean the rilles with warm water and a

mild dish deter ent, and dry with a soft, lint-free cloth.

Avoid placin your speakers in direct sunli ht that may, over time, fade the finish.

All manuals and user guides at all-guides.com

all-guides.com

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Models 221 LR, 223 C, and 224 SR

System 220 Specifications

Atlantic

Technology

224 SR

Surround

Speaker

Atlantic

Technology

221 LR Front

Channel

Speaker

Atlantic

Technology

223 C Center

Channel

Speaker

Description 221 LR 223 C 224 SR

Type Sealed-box, 2-way Sealed-box, 2-way, Sealed-box, spatially-enhanced

Adjustable Cinema EQ surround speaker

Drivers ( ) 4" polypropylene (2) 3.5" polypropylene (2) 3.5" polypropylene

( ) 0.5" dome tweeter ( ) 0.5" dome tweeter

Frequency 80Hz – 20kHz 80Hz – 20kHz 80Hz – 2kHz

Response (±3dB)

Nominal 8

Ω

Impedance

Sensitivity 90dB 90dB 90dB

Recommended 0 – 20W 0 – 20W 0 – 20W

mplifier Power

Size (W x H x D) 5.86 x 9.5 x 7.25in 3.0 x 4.25 x 6.5in 9.5 x 6.63 x 6.0in

(5.5in H with base)

50 x 240 x 85mm 330 x 08 x 60mm 24 x 70 x 50mm

( 40mm H with base)

Weight (each) 5.8 lbs; 2.63kg 7. 5lbs; 3.24kg 5.4lbs; 2.45kg

Specifications are those in effect at the time of printing. Atlantic Technology reser es the right to change

specifications or designs at any time without notice.

Dolby Stereo and Dolby Pro Logic are trademarks of Dolby Laboratories Licensing Corporation.

All manuals and user guides at all-guides.com

TECHNOLOGY

tlantic

343 Vanderbilt Avenue

Norwood, MA 02062

(617) 762-6300

For Future Reference

Record our speaker(s) serial number(s) and date of purchase here:

Model Number Serial Number Date of Purchase

The serial number is found on the back of the speaker near the connecting terminals.

010-1221

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

All manuals and user guides at all-guides.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Oradores de Atlantic Technology

Atlantic Technology

Atlantic Technology FS-3200 C Manual de usuario

Atlantic Technology

Atlantic Technology 6200e Manual de usuario

Atlantic Technology

Atlantic Technology IWTS-6 CMS Manual de usuario

Atlantic Technology

Atlantic Technology 4400 LR Manual de usuario

Atlantic Technology

Atlantic Technology 6200C Manual de usuario

Atlantic Technology

Atlantic Technology ICTS-6.2e Manual de usuario

Atlantic Technology

Atlantic Technology IW Series Manual de usuario

Atlantic Technology

Atlantic Technology AT-1-S-GLF Manual de usuario

Atlantic Technology

Atlantic Technology IWTS-14 LCR Manual de usuario

Atlantic Technology

Atlantic Technology In-Ceiling Theater Systems ICTS-6.2 Manual de funcionamiento

Atlantic Technology

Atlantic Technology AT-2 Manual de usuario

Atlantic Technology

Atlantic Technology FS-252 Manual de usuario

Atlantic Technology

Atlantic Technology IWTS-30 LCR Manual de funcionamiento

Atlantic Technology

Atlantic Technology THX ULTRA 2 IWTS-155 Manual de usuario

Atlantic Technology

Atlantic Technology ICTS 6.3e Manual de funcionamiento

Atlantic Technology

Atlantic Technology AW-5 Manual de usuario

Atlantic Technology

Atlantic Technology 251.1 LR Manual de usuario

Atlantic Technology

Atlantic Technology IC Series Manual de usuario

Atlantic Technology

Atlantic Technology 1400 LR S Manual de usuario

Atlantic Technology

Atlantic Technology ICTS-6.1 Manual de usuario

Atlantic Technology

Atlantic Technology In-Wall Loudspeakers Manual de usuario

Atlantic Technology

Atlantic Technology IWTS-155 LCR Manual de usuario

Atlantic Technology

Atlantic Technology Atlantic FS-4000 Manual de usuario

Atlantic Technology

Atlantic Technology 3.1 HSB Manual de usuario

Manuales populares de Oradores de otras marcas

argon audio

argon audio IE20 Manual de usuario

Denon

Denon SC-N7 Manual de usuario

Gemline

Gemline Ace 3952 Manual de usuario

Focal

Focal ON WALL 300 Manual de instrucciones

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manual de usuario

SoundLogic

SoundLogic BCCS-6/6395 Manual de usuario

Peavey

Peavey DTH 218 Manual de usuario

Avantree

Avantree Pluto Air Manual de usuario

Morel

Morel Integra Series INTEGRA OVATION 4 Manual de usuario

Oppo

Oppo SONICA Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Rocksteady

Rocksteady Stadium Manual de usuario

Bowers & Wilkins

Bowers & Wilkins 4 Manual de usuario

Sonance

Sonance SONOS OUTDOOR Series Manual de usuario

Electro-Voice

Electro-Voice EVID FM4.2 Manual de usuario

Pioneer

Pioneer XW-HTD630 Manual de usuario

Onn

Onn BWA16AA002 Manual de usuario

HP GL313AA - USB Speakers PC Multimedia Manual de usuario
