ATD Tools ATD-8116F Manual de usuario

MANUAL

Please read and understand all safety advisories and operating

instruction in this manual to ensure safe and productive operation

of your new Topside Creeper.

Foldable Topside Creeper

Model ATD-8116F

Safety First

WARNING: Failure to follow these safety requirements could result

in personal injury.

This product is a tool to reach what are normally hard to reach places, such as the topside of an

engine compartment for mechanics.

Always inspect the product for damage before each use. Do not use if damage is detected.

Make sure all nuts and bolts are secure before each use.

Always engage the caster locks before using the Topside Creeper.

Always make sure the angle adjustment bar is secure in one of the three position slots before

using.

Always face the Topside Creeper when climbing up or down. Use both hands and keep your

body centered between the rails.

DO NOT USE THE PRODUCT if you tire easily or are subject to fainting spells or disorientation.

DO NOT USE THE PRODUCT if you are taking medication that could impair judgement.

DO NOT USE THE PRODUCT if you are under the inuence of drugs or alcohol.

DO NOT USE THE PRODUCT if you are physically challenged.

DO NOT sit or stand on the chest pad.

DO NOT overload the product. The maximum capacity is 400 lbs (180 kg) which includes body

weight, tools and torque applied to tools.

DO NOT use the Topside Creeper over a running engine.

Operating Instructions

Using the adjustable angle lean-in feature

There are three dierent lean-in angles that allow the user to adjust positioning. This helps the

user to maximize safety and productivity. To adjust angle lean-in:

1. Lock casters (A2) by pressing the lock tab with your foot on each of the locking casters.

2. Push back on the climbing section (O).

3. Move angle adjustment to one of the three notches located on the base.

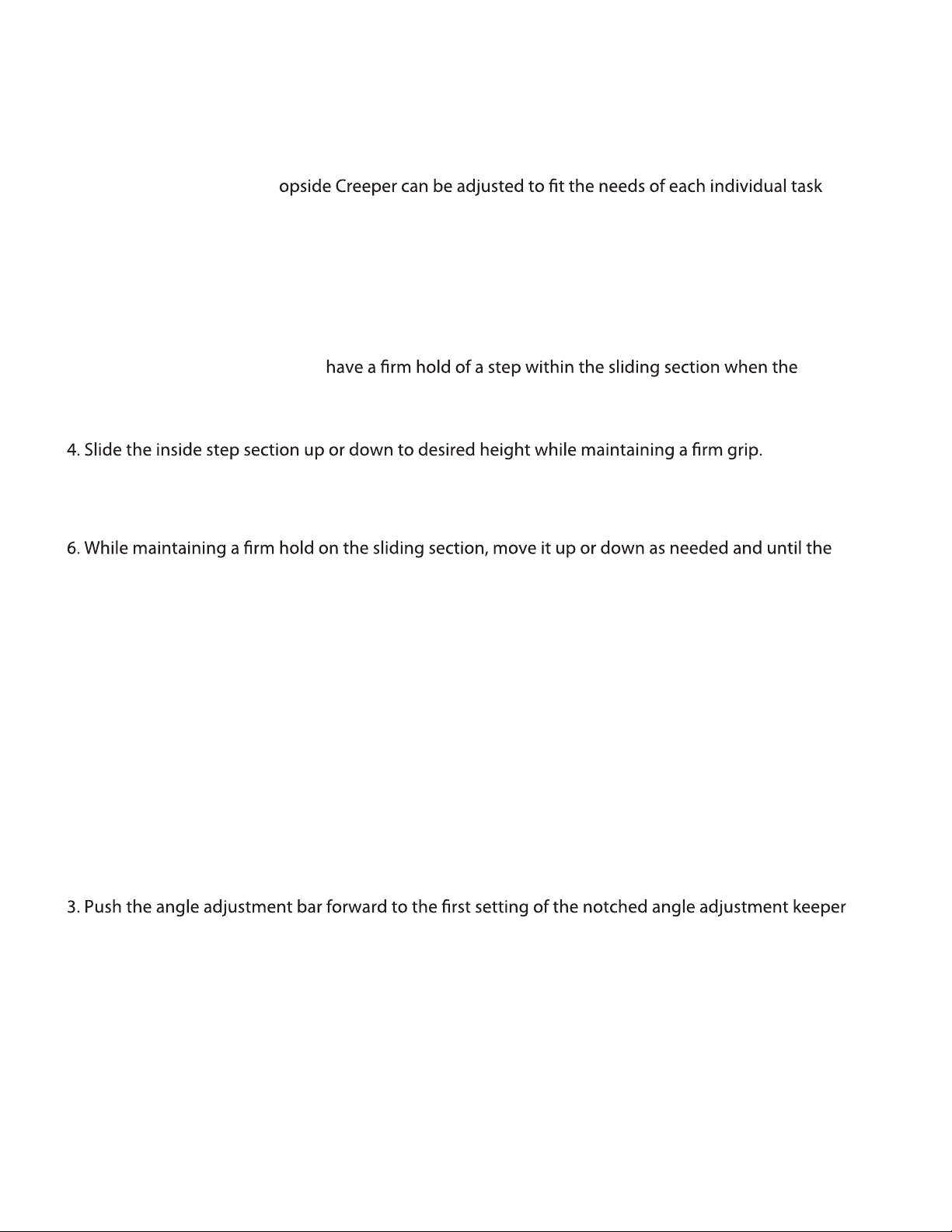

Changing Working Height

The working height of the T

from 44” (110cm) to 68” (172cm) in height. To change the working height:

1. Lock casters (A2) by pressing the lock tab with your foot on each of the locking casters.

2. Grasp a step within the sliding section with one hand while using the other hand to pull one of the

spring loaded locking pins outward. Rotate the pin so it does not slide back into the locking slot.

3. Repeat step 2 on the other side of the sliding section to remove the second spring loaded locking

pin. IMPORTANT: one hand MUST

second spring loaded locking pin is removed from the locked position. This prevents the sliding

section from free falling which could cause serious personal injury.

5. While holding a step within the sliding section with one hand guide one of the spring loaded

locking pins into its corresponding hole in the outside rail.

spring loaded locking pin springs into one of the oval shaped height adjustment holes located in the

side rails of the sliding section.

7. Guide and insert the second spring loaded locking pin through both the outside rail and oval

shaped hole of the inside sliding section rail.

Folding the base section

The foldable Topside Creeper features a folding base section to allow for convenient and compact

storage. To fold the Topside Creeper:

1. Lock casters (A2) by pressing the lock tab with your foot on each of the locking casters.

2. Remove two locking pins from the assembled base section.

on the Topside Creeper base.

4. Grasp each of the two legs (M1 and M2) and raise up to the climbing section.

5. Replace the pins back into their holes for safekeeping.

10mm

1/2Ó x 10mm Bolt x4

18mm

19mm

14mm

14mm Bolt

A1 - Front Caster x 2

(ATD-10238R)

A2 - Locking Caster x 2

(ATD-10237)

B - 18mm Flange Nut x 4

C - 19mm Lock Nut x 4

D - 8mm Lock Nut x 8 8

E - 10mm Lock Nut x 6

F - 2.5”x 19mm Bolt x 4

G1 - 3”x 14mm Bolt x 2

G2 - 9/16”x 14mm Bolt x 6

G3 - 1/2”x 10mm Bolt x4

H - 5/8”x 6mm Phillips Screw x 4

I - Pin x 2

J - Square Tube

M1 - Right Leg

M2 - Left Leg

K - Base

O - Step Section

N - Angle Adjustment Keeper x 2

L - Chest Pad Frame

P - Chest Pad

(910993)

S - Pouch Bracket

R - Pouch

U - Bumper Pad x 3

Q - Washer x 2

Parts And Hardware
