AT&T TL76008 Manual de usuario

User’s manual

TL76008

5.8 GHz expansion handset

for use with AT&T model

TL76108

Congratulations

on your purchase

of this AT&T product.

Please read this user’s manual for the information

necessary to install your new AT&T product.

For complete instructions, please refer to the manual

provided with your TL

76108

telephone. For customer

service or product information, please visit our website

at www.telephones.att.com

or call 1 (800) 222-3111.

In Canada, dial 1 (866) 288-4268.

Model #: TL76008

Type: 5.8 GHz expansion handset

Serial #:

(found on the bottom of the charger)

Purchase date:

Place of purchase:

AT&T and the AT&T logo are trademarks of AT&T Intellectual Property II, L.P. d/b/a

AT&T Intellectual Property licensed to Advanced American Telephones.

Printed in China.

Save your sales receipt and original packaging in case it is necessary

to return your telephone for warranty service.

User’s manual

TL76008

5.8 GHz expansion handset for use

with AT&T model TL76108

User's manual

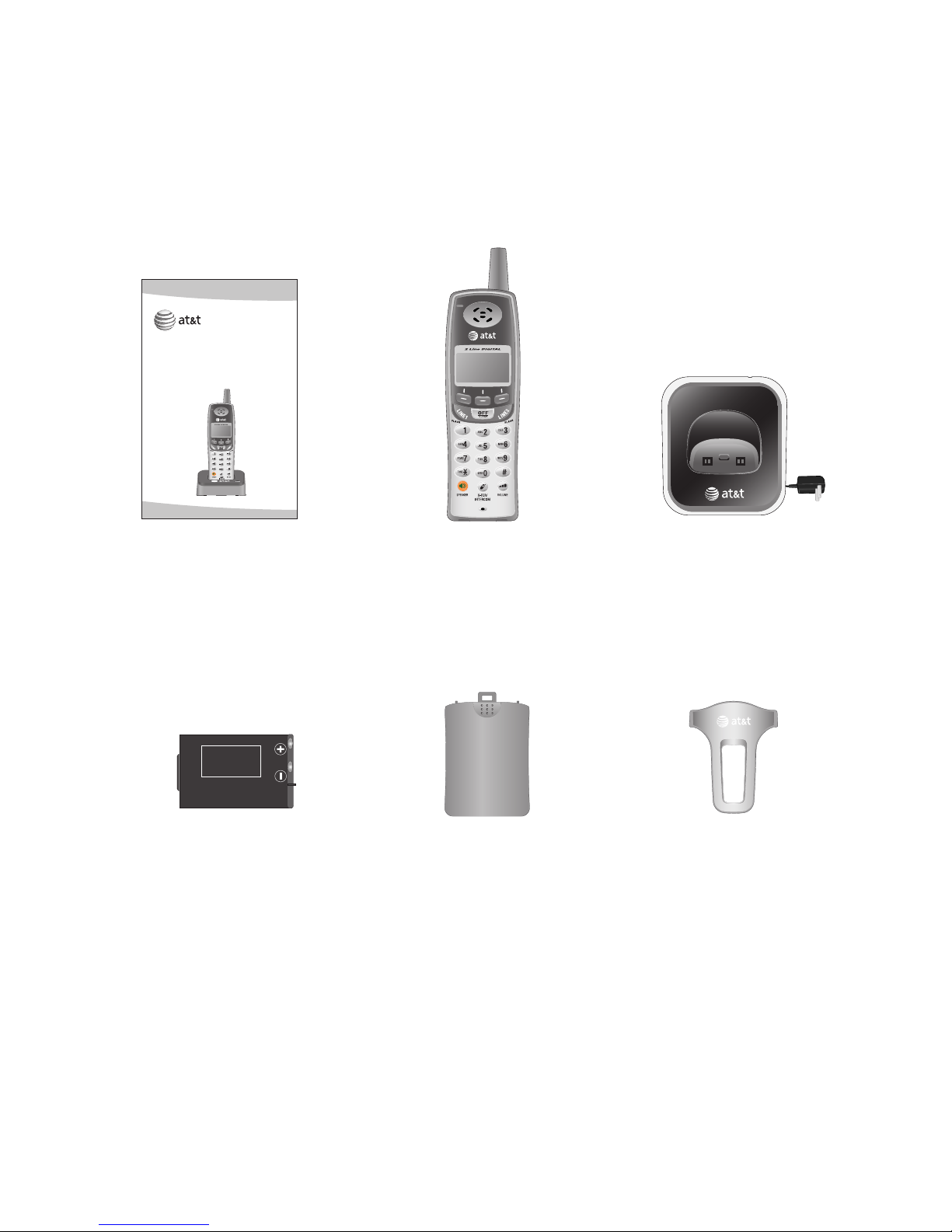

Parts checklist

Belt clip for

cordless handset

Battery

compartment

cover

Battery for cordless

handset

Charger for cordless

handset with power

adapter installed

Cordless handset

BATTERY PACK

89-1324-00-00

MODEL 102

Save your sales receipt and original packaging in case it is

necessary to ship your telephone for warranty service.

Your telephone package contains the following items.

User’s manual

TL76008

5.8 GHz expansion handset

for use with AT&T model

TL76108

Table of contents

Getting started

Quick reference guide ...............2

Installation preparation.............4

Charger installation.....................5

Battery installation &

charging......................................6

Adding & registering

handsets .....................................8

Replacing a handset................ 10

Belt clip & optional

headset .................................... 12

Appendix A,

Maintenance .......................... 13

Appendix B, Important

safety information .............. 14

Appendix C, FCC Part 68

and ACTA ................................ 18

Appendix D,

FCC Part 15............................ 21

Appendix E, Limited

warranty................................... 23

Appendix F, Technical

specifications ........................ 27

Appendix G,

Troubleshooting................... 28

Getting started

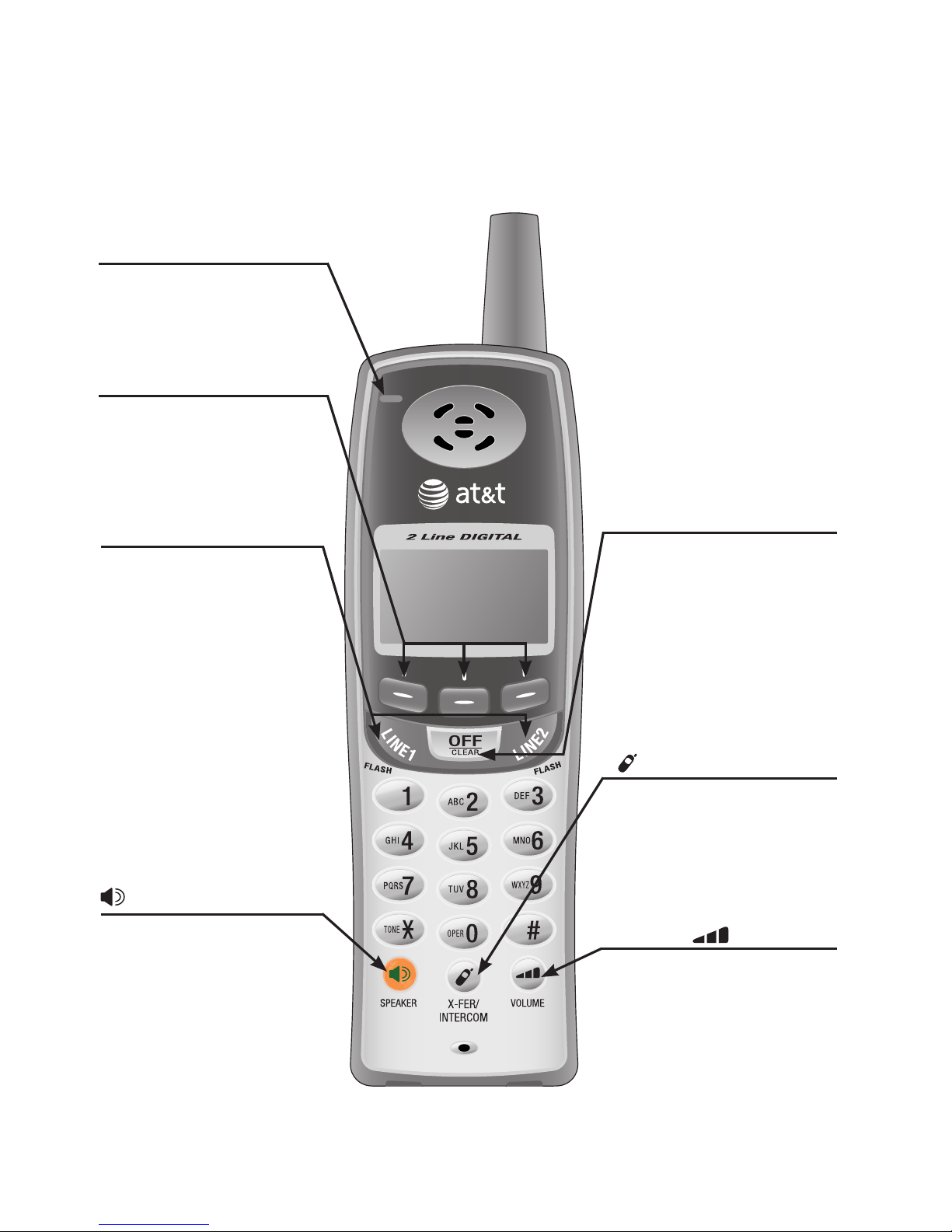

Quick reference guide

SPEAKER

Press to turn on the

handset speakerphone.

Press again to resume

normal handset use.

/X-FER/INTERCOM

Press to begin an

intercom conversation or

to transfer a call.

LINE1/FLASH,

LINE2/FLASH

Press LINE1/FLASH

to make or answer a

call on line 1. During a

call, press to receive an

incoming call on line 1 if

call waiting is activated.

Press LINE2/FLASH to

make or answer a call

on line 2. During a call,

press to receive an

incoming call on line 2 if

call waiting is activated.

OFF/CLEAR

During a call, press to

hang up.

While using menus, press

to cancel an operation,

back up to the previous

menu, or exit the menu

display.

/VOLUME

Press to adjust listening

volume when on a call.

New message

indicator

Flashes when there is

a new message in the

mailbox.

Softkeys

Press to select an item

displayed above the key.

Getting started

Feature menu

DIRECTORY

MAILBOXES

SETUP HANDSET

RINGERS

LOW BATT TONE

KEYPAD TONE

CONTRAST

RENAME

Caller ID

Redial

RDL MENU CID

HANDSET I

Quick reference guide

For complete instructions, please refer to the user’s manual. If

you are unable to find your manual, please visit

www.telephones.att.com to read and/or download the

manual.

Getting started

Avoid placing the telephone base too close to:

• Communication devices such as: television sets, VCRs, or other

cordless telephones.

• Excessive heat sources.

• Noise sources such as a window with traffic outside, motors,

microwave ovens, refrigerators, or fluorescent lighting.

• Excessive dust sources such as a workshop or garage.

• Excessive moisture.

• Extremely low temperature.

• Mechanical vibration or shock such as on top of the washing

machine or work bench.

Installation preparation

Your product may be shipped with a protective sticker covering the

handset display - remove it before use.

For customer service or product information, visit our website at

www.telephones.att.com or call 1 (800) 222-3111. In

Canada, dial 1 (866) 288-4268.

See pages 6-7

for easy instructions.

You must install and

charge the battery

before using the

telephone.

STOP!

Getting started

IMPORTANT INFORMATION

Use only the power adapter(s) supplied with this product. To order a

replacement power adapter, visit our website at

www.telephones.att.com, or call 1 (800) 222-3111.

In Canada, dial 1 (866) 288-4268.

The power adapters are intended to be correctly oriented in a vertical

or floor mount position. The prongs are not designed to hold the

plug in place if it is plugged into a ceiling, under-the-table or cabinet

outlet.

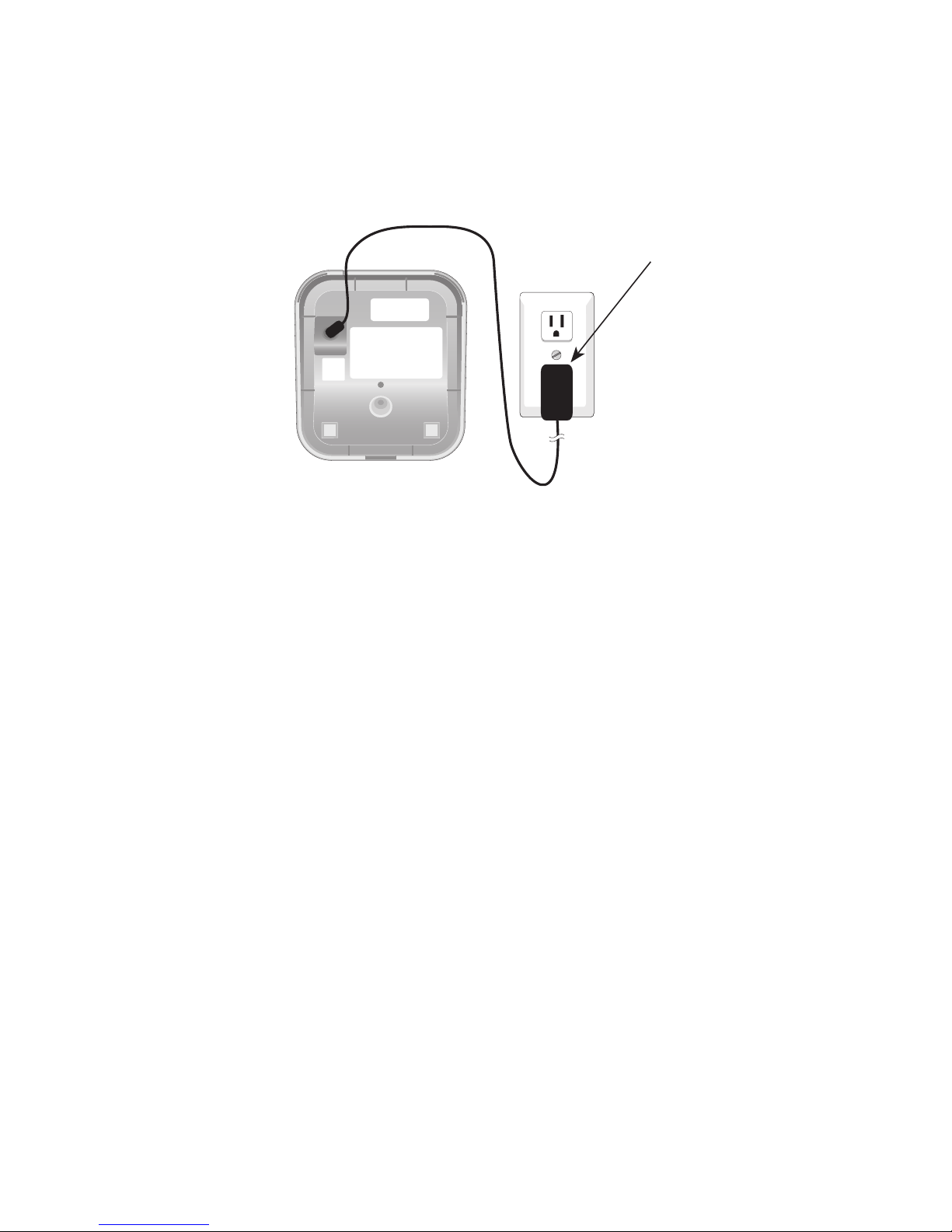

Charger installation

Plug the power

adapter into an

electrical outlet not

controlled by a wall

switch.

Getting started

Handset battery installation & charging

Install the battery as shown below. After installing the battery,

you can make and receive short calls, but replace the handset

in the telephone base or charger when the handset is not being

used. For optimal performance, charge the handset battery for

at least 16 hours before use. When fully charged, the handset

battery provides up to approximately eight hours of talk time or

four days of standby time.

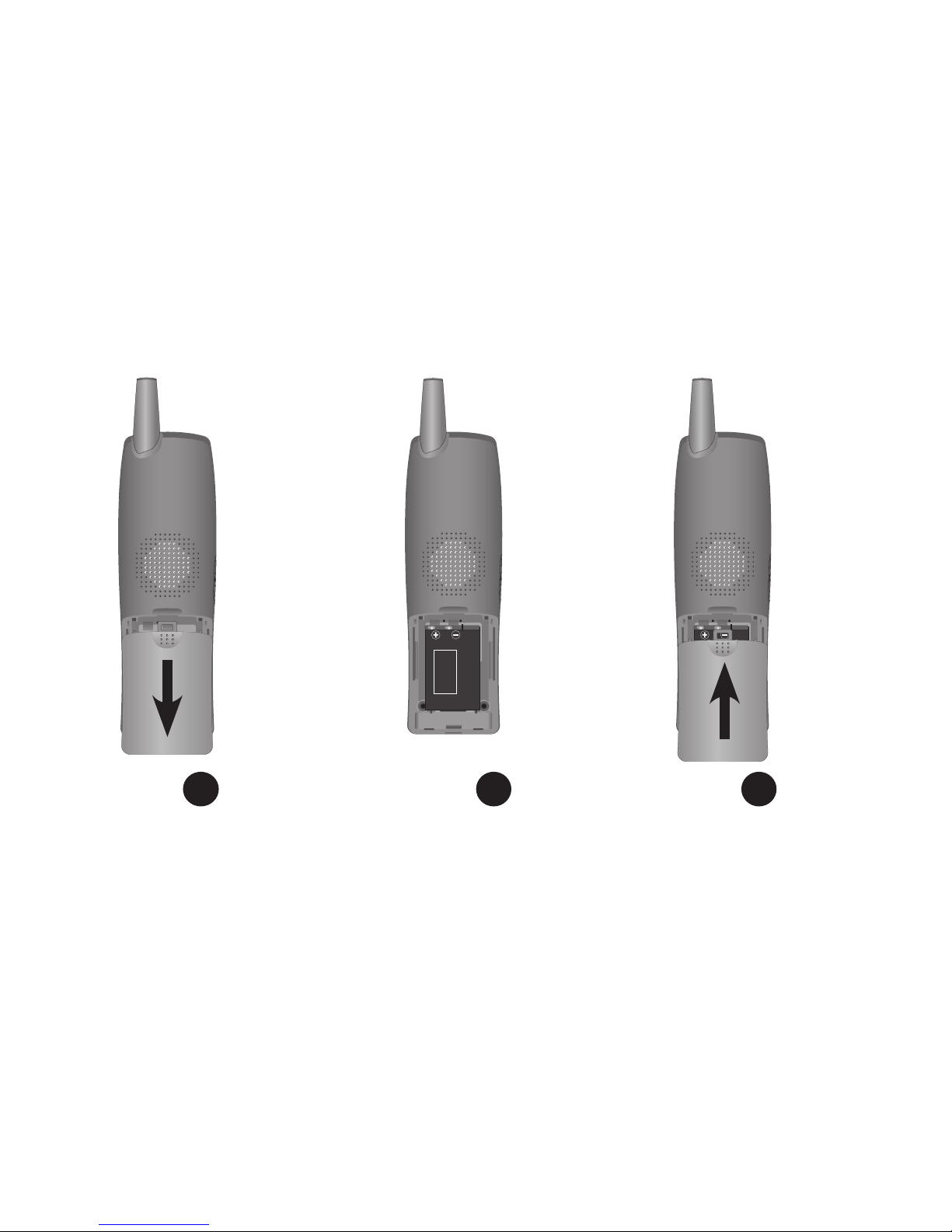

Press the tab and

slide the battery

compartment

cover downwards.

Insert the supplied

battery as indicated.

Insert the top (on

contacts and tab)

in first, then push

downwards on the

lower portion of the

battery.

Align the cover flat

against the battery

compartment, then

slide it upwards

until it clicks into

place.

Step 3Step 2Step 1

BATTERY PACK

89-1324-00-00

MODEL 102

BATTERY PACK

89-1324-00-00

MODEL 102

Getting started

IMPORTANT INFORMATION

Use only the battery supplied with this product. To order a replacement

or spare battery (AT&T model 102, part number 89-1324-00-00) or

equivalent, visit our website at www.telephones.att.com, or

call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

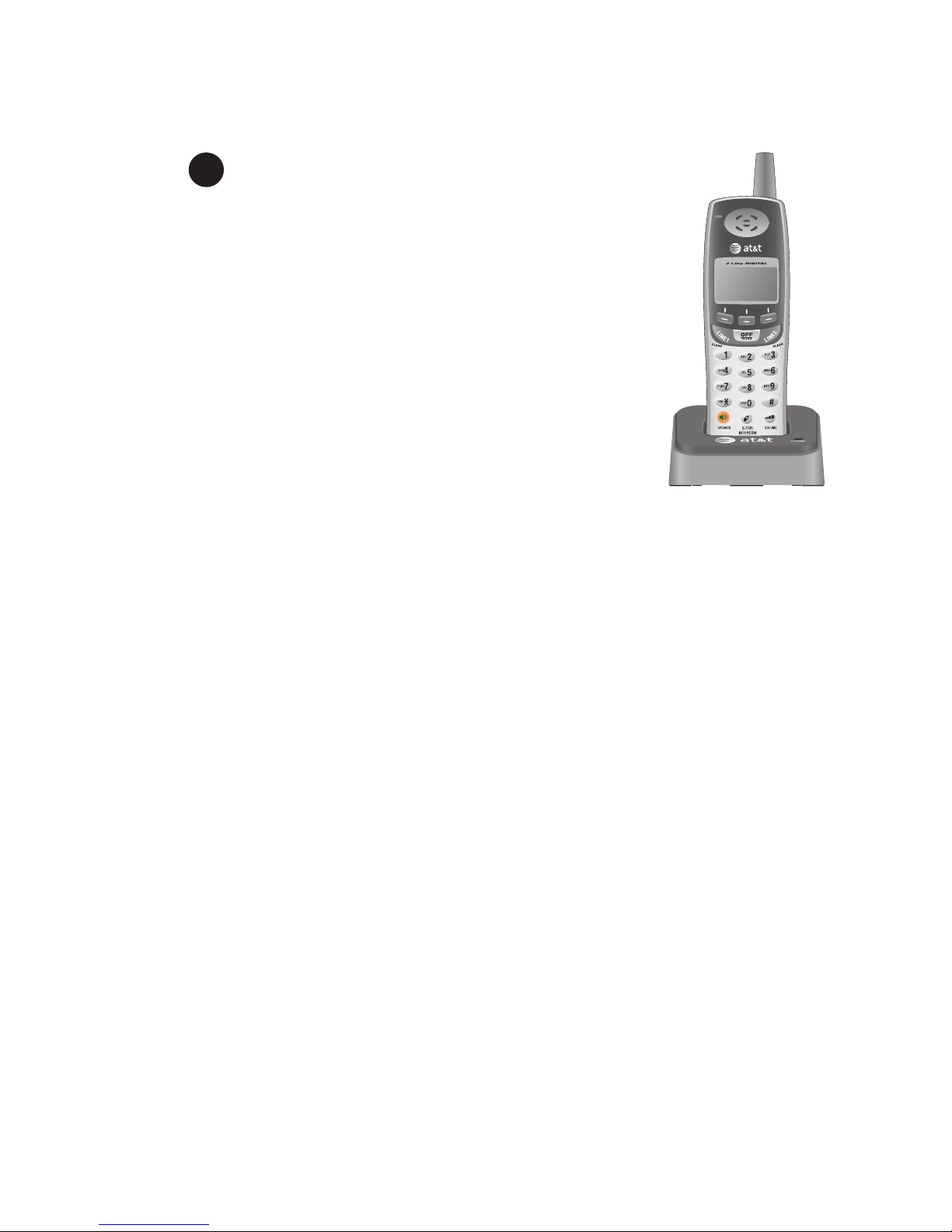

Charge the handset by placing it facing the

front in the charger. The CHARGE light will be

on when the handset is charging.

Handset battery installation & charging

Step 4
