User manual ATAG iC, iS and iR-Range
2
Contents
1. Introduction ....................................................................................3
2. Safety .............................................................................................5
3. Boiler description............................................................................6
4. Display and functions .....................................................................6
4.1 DHW and Heating program....................................................7
4.2 Boiler information ...................................................................8
4.3 Pump function / Boiler frost protection .................................10
5. Filling the heating system.............................................................11
6. Error codes...................................................................................13
7. Maintenance.................................................................................14
8. Warranty.......................................................................................14
9. Disposal of the product ................................................................14
Important!
It is in your own interest that we should know that you have an ATAG
boiler. Please ll out the warranty card completely and send it back to us.
Then we can be fully at your service.
User manual ATAG iC, iS and iR-Range
3
1 Introduction
These operating instructions describe the functioning and the operating of the ATAG
i-Range boilers. This manual is for the end user. For installation and servicing there is an
installation & servicing instructions manual for the installer.
Read this manual fully before operating the boiler. In case of doubt or errors contact your
installer.
ATAG Heating Technology Ltd reserves the right to change the specications and
dimensions without prior notice.
Work on the boiler must be carried out by a competent person, (Ref: Gas Safe Register)
using correctly calibrated instruments with current test certication.
When replacing parts use only ATAG Service parts.
Contact details for ATAG Heating Technology Ltd can be found on the back page of this
manual.
User manual ATAG iC, iS and iR-Range
4
The Benchmark Scheme
ATAG Heating Technology Ltd is a licensed member of the Benchmark Scheme which aims
to improve the standards of installation and commissioning of domestic heating and hot
water systems in the UK and to encourage regular servicing to optimise safety, eciency
and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry Council. For
more information visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside
back pages of the installation instructions supplied with the product and that you have
signed it to say that you have received a full and clear explanation of its operation. The
installer is legally required to complete a commissioning checklist as a means of complying
with the appropriate Building Regulations (England and Wales).
All installations must be notied to Local Area Building Control either directly or through
a Competent Persons Scheme. A Building Regulations Compliance Certicate will then
be issued to the customer who should, on receipt, write the Notication Number on the
Benchmark Checklist.
This product should be serviced regularly to optimise its safety, eciency and performance.
The service engineer should complete the relevant Service Record on the Benchmark
Checklist after each service.
The Benchmark Checklist may be required in the event of any warranty work and as
supporting documentation relating to home improvements in the optional documents
section of the Home Information Pack.
User manual ATAG iC, iS and iR-Range
5
2 Safety
Work on the installation should only be carried out by qualied personnel with calibrated
equipment. When replacing parts, only ATAG Service components may be used.
The device may be operated only by authorized persons who have been
instructed on the operation and use of the device. Improper use may cause
damage to the device and / or to the connected installation.
The appliance is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction.
Children being supervised not to play with the appliance.
If you smell gas:
- No naked ames! No smoking!
- Do not switch lights on or o or use other electrical switches.
- Do not use the phone
- Close the gas mains
- Open windows and doors
- Warn the occupants and leave the building
- Only call the gas company or installer once you are outside the building.
Corrosion protection
Do not use sprays, chlorine-containing cleaning products, solvents, paints etc. in the
vicinity of the device or its air supply. These substances have an adverse impact on the
device and can lead to corrosion that may result in failures.
Checking the heating water
Always use potable water for lling the installation.
Adding chemical agents such as frost and corrosion inhibitors are only to be added by your
installer.
If in doubt, check with your installer or ATAG Heating Technology Ltd.
User manual ATAG iC, iS and iR-Range
6
3 Boiler description
The ATAG i-Range boiler is a closed, condensing and modulating heating boiler which
meets the European standard (CE).
A declaration of conformity can be obtained from the manufacturer.
The efficiency of the boiler is very high and the radiation convection and standby
losses very low. The emission of noxious substances is far below the fixed standards
so the boiler is >88% Ecient SEDBUK 2009 rated.
4 Screen and functions
The boiler is equipped with a door at the front. For opening the door just pull at the door
handle.
After opening the ap you will nd on the inside of the ap a brief overview of the meaning
of all the buttons and icons. These are described hereafter.
The Control unit has a 'sleep mode' if no key is operated within a certain time.
Activation occurs by any key operation.
Explanation of the buttons
1. Selector Wheel Turn the wheel left or right to scroll through available menu
options
2. OK button Press to select/conrm an item
3. BACK button Press to go back one screen
4. RESET button Press to reset a fault code
5. Commissioning Press to enter into service mode which allows adjustment of
button high re/low re and CO2settings (Do not use. For service
purposes only)
2
45
31
User manual ATAG iC, iS and iR-Range
7
4.1 DHW and Heating program
Change the Central Heating Setpoint Temperature
1. From the Home screen, press OK.
2. Turn the selector wheel to highlight Complete Menu. Press OK.
3. CH Settings is highlighted. Press OK.
4. CH Setpoint Temp is highlighted. Press OK.
5. T set Z1 is highlighted. Press OK.
Note: T set Z2 and T set Z3 are inactive functions.
6. Turn the selector wheel until the desired temperature appears on the screen.
Press OK.
7. Press the Back button until the Home screen appears.
Change the DHW Setpoint Temperature
1. From the Home screen, press OK.
2. Turn the selector wheel to highlight Complete Menu. Press OK.
3. Turn the selector wheel to highlight DHW Settings. Press OK.
4. Option DHW Comfort Setpoint Temp is highlighted. Press OK.
5. The current DHW comfort Setpoint temperature is displayed. Press OK.
6. Turn the selector wheel until the desired temperature appears on the screen.
Press OK.
7. Press the Back button until the Home screen appears.
Outdoor temperature (if connected)
Maintenance warning present
Pump continuous/frost protection
Burner on
DHW status symbol. A box around
the tap symbol indicates DHW is in
operation
Central heating status symbol.
A box around the radiator symbol
indicates central heating is in
operation
Hot water is not preheated
Hot water is pre-heated and kept
hot
ECO
COMFORT
User manual ATAG iC, iS and iR-Range
8
4.2 Boiler information
To gain access to the Boiler information, proceed as follows:
The Boiler information is accessable through a code.
1 From the controller Home screen, press the BACK
and OK buttons at the same time for 7 seconds.
2 Turn the selector wheel to highlight 007 as the
Technical Code.
Press OK.
3 Turn the selector wheel to highlight Complete Menu.
Press OK.
It is now loading the menu.
As an example we take the CH Flow Set T.
4 Turn the selector wheel to highlight 8 Service
Parameters.
Press OK.
4 Option 8.3 Boiler Temperature is highlighted.
Press OK.
5 Option 8.3.0 CH Flow Set T is highlighted.
Press OK.
The screen left appears.
User manual ATAG iC, iS and iR-Range
9
A list of the most common Boiler information can be found in the table below
8.2.2 Fan Speed in Rpm
8.2.5 DHW Flow Rate in l/min
8.2.8 Gas Power in kW
8.2.9 Heating circuit pressure in bar
8.3.0 CH Flow Set T in °C
8.3.1 CH Flow T in °C
8.3.2 CH Return T in °C
8.3.3 DHW Flow T in °C
8.3.5 Outdoor T (only if an outside sensor is connected) in °C
8.7.5 Ionization current in µA
User manual ATAG iC, iS and iR-Range
10
4.3 Pump function
By default the boiler is set in such a manner that the pump will switch on in case of a heat
request for CH or
DHW. Switching on and o is managed entirely by the control system.
Danger of frost
If there is danger of frost damage to the CH installation, it is advisable to let the pump run
continuously, proceed as follows:

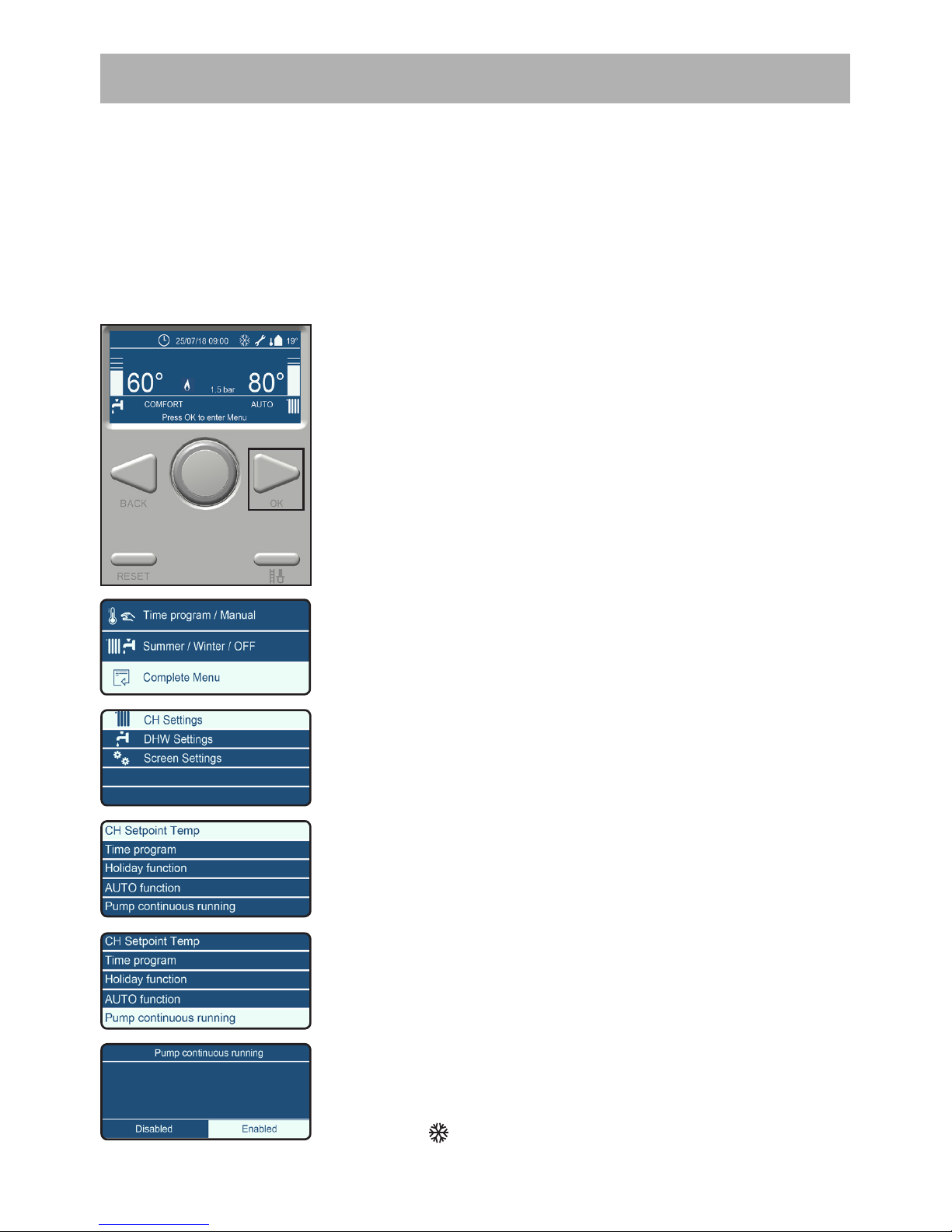

1 From the controller Home screen, press OK.
2 Turn the selector wheel to highlight Complete Menu.
Press OK.
3 CH Settings is highlighted.
Press OK.
4 Option CH Setpoint Temp is highlighted.
Press OK.
5 Turn the selector wheel to highlight Pump
continuous running.
Press OK.
7 Turn the selector wheel to highlight Enable.
Press OK.
If the pump is set to continuously this is displayed
by .
