Asus DSL-N55U Manual de usuario
Quick Start Guide
DSL-N55U
Dual-band WiFi ADSL Modem Router
NOTE / <INDONESIAN> / <THAI>
• For more details, refer to the user manual included in the
support CD.
• Untuk rincian lebih lanjut, lihat panduan pengguna yang
disertakan dalam CD dukungan.
• สำหรับรายละเอียดเพิ่มเติม ให้ดูคู่มือผู้ใช้ที่ให้มาในแผ่น
CD สนับสนุน
Table of contents
A6894 / First Edition / October 2011
English................................................................................................4
Bahasa Indonesia............................................................................9
ไทย
.....................................................................................................14
4
A quick look
2
1
3
4
5
6
8
7
9
10
11 12 13
1) Power LED 6) ADSL port 11) WPS button
2) ADSL LED 7) Power (DC-In) port 12) LAN 1~4 ports
3) WAN LED 8) Power switch 13) Reset button
4) LAN LED 9) WiFi switch
5) 2.4GHz &
5GHz LEDs 10) USB 2.0 ports
English
5
NOTES:
• USB External HDD/Flash disk:
• The wireless router works with most USB HDDs/Flash
disks and supports read-write access for FAT16, FAT32,
EXT2, EXT3, and NTFS.
• To safely remove the USB disk, launch the web GUI
(http://192.168.1.1), click the USB icon in the Network
Map page’s middle part, and click Remove in the
Safely Remove disk eld on the right side of the
Network Map page.
• Incorrect removal of the USB disk, such as during
video/music streaming or le downloading, may cause
data corruption.
• For the list of le system and hard disk partitions that
the wireless router supports, visit
http://event.asus.com/networks/disksupport
• For the list of printers that the wireless router supports,
visit http://event.asus.com/2009/networks/
printersupport/dsl-n55u.htm
Package contents
DSL-N55U Warranty card
Network cable Quick Start Guide
AC adapter Support CD (User Manual/utilities)
Phone cable Splitter (varies with regions)
NOTE: If any of the items is damaged or missing, contact
your retailer.
English
6
Positioning your wireless router
For the best wireless signal transmission between the wireless router
and the network devices connected to it, ensure that you:
• Place the wireless router in a centralized area for a maximum
wireless coverage for the network devices.
• Keep the device away from metal obstructions and away from direct
sunlight.
• Keep the device away from 802.11g or 20MHz only Wi-Fi devices,
2.4GHz computer peripherals, Bluetooth devices, cordless phones,
transformers, heavy-duty motors, uorescent lights, microwave
ovens, refrigerators, and other industrial equipment to prevent
signal interference or loss.
• To ensure the best wireless signal, orient the three detachable
antennas as shown in the drawing below.
• For optimum performance, adjust the internal cooling system. Refer
to the user manual for details.
• Always update to the latest rmware. Visit the ASUS website at
http://www.asus.com to get the latest rmware updates.
450
450
900
English
7
Before you proceed
English
1. Connect your devices.
2. Before starting ADSL setting procedure, ensure that the ADSL
indicator on DSL-N55U front panel become solid.
Network
cable
Wall power outlet
8
English

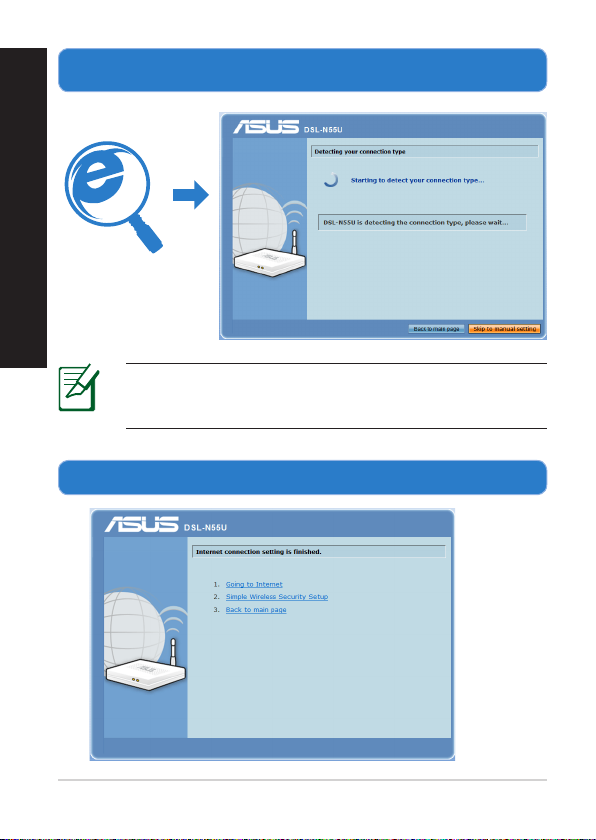

4. Launch the web browser and follow the Quick Internet Setup
(QIS) steps.
NOTE: If the QIS web page does not appear after you
launched the web browser, disable the proxy settings on
the web browser.
5. Setup is completed.
9
Info singkat
2
1
3
4
5
6
8
7
9
10
11 12 13
1) LED Daya 6) Port ADSL 11) Tombol WPS
2) LED ADSL 7) Port daya (DC-In) 12) Port LAN 1~4
3) LED WAN 8) saklar daya 13) Tombol atur ulang
4) LED LAN 9) Tombol WiFi
5) 2.4GHz &
5GHz LED 10) Port USB 2.0
Bahasa Indonesia
10
CATATAN:
• HDD Eksternal USB/Flash disk:
• Router nirkabel berfungsi dengan sebagian besar
HDD USB/Flash disk yang serta mendukung akses
baca-tulis untuk FAT16, FAT32, EXT2, EXT3, dan NTFS.
• Untuk melepas disk USB dengan aman, jalankan GUI
Web (http://192.168.1.1), klik ikon USB di bagian
tengah halaman Network Map (Peta Jaringan), lalu klik
Remove (Lepas) dalam kolom Safely Remove disk
(Lepas Disk Dengan Aman) di sisi kanan halaman
Network Map (Peta Jaringan).
• Melepas disk USB di saat yang tidak tepat, misalnya
saat streaming video/musik maupun download le
berlangsung, dapat menyebabkan kerusakan data.
• Untuk mengetahui daftar partisi hard disk dan sistem
le yang didukung router nirkabel, kunjungi
http://event.asus.com/networks/disksupport
• Untuk mengetahui daftar printer yang didukung router
nirkabel, kunjungi http://event.asus.com/2009/
networks/printersupport/dsl-n55u.htm
Isi kemasan
DSL-N55U Kartu jaminan
Kabel jaringan Panduan Ringkas
Adaptor AC
CD Dukungan (Panduan Pengguna/utilitas)
Kabel telepon
Pembagi jalur (beragam menurut wilayah)
CATATAN: Jika salah satu item tersebut rusak atau tidak
ada, hubungi peritel.
Bahasa Indonesia
