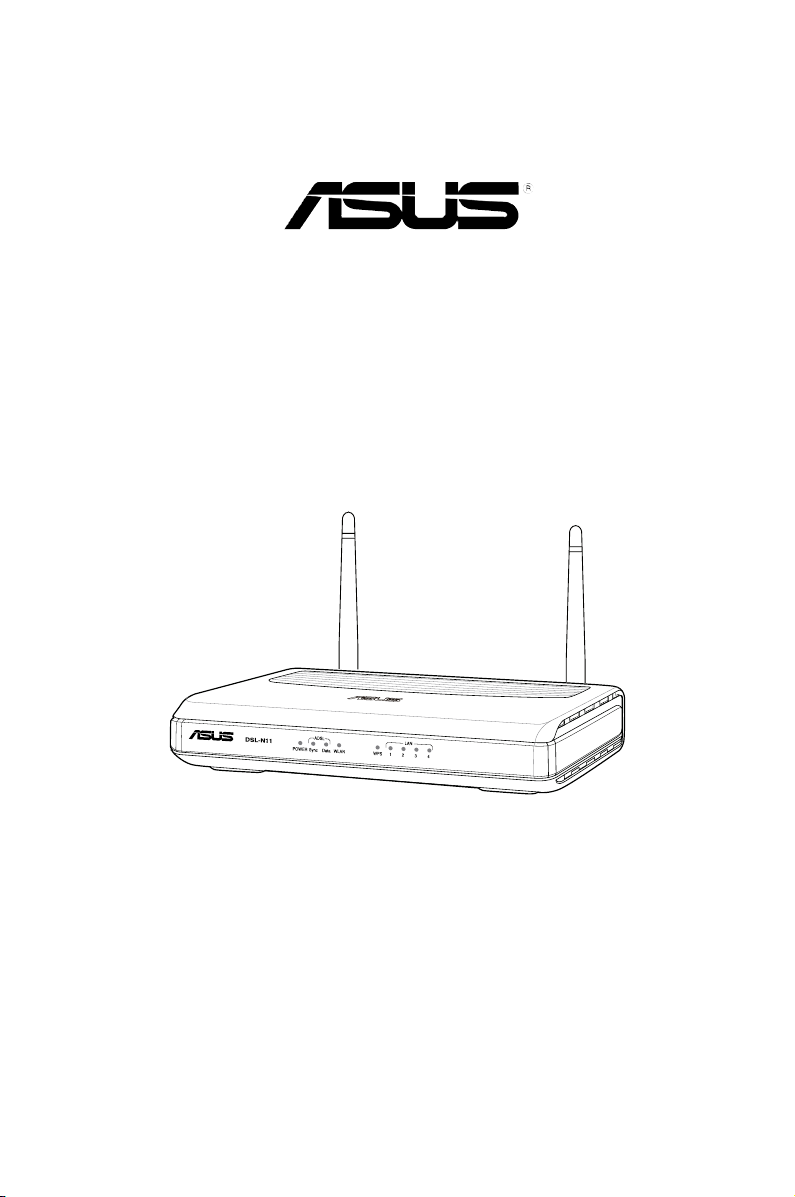

Asus DSL-N11 Manual de usuario

11n Wireless ADSL Modem Router

(For ASUS EZ User Interface)

User Manual

No part of this manual, including the products and software described in it, may be

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language in any form or by any means, except documentation kept by the purchaser for

backup purposes, without the express written permission of ASUSTeK Computer Inc.

(“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or

altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)

the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES

OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE

LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE

OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR

ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED

FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME

WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY

ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR

INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS

AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identication or

explanation and to the owners’ benet, without intent to infringe.

E4549

First Edition

March 2009

Table of contents

About this guide .................................................................................... 4

How this guide is organized .............................................................. 4

Conventions used in this guide ......................................................... 5

Chapter 1: Knowing your wireless router

Package contents .................................................................................. 6

System requirements ............................................................................ 6

Before you proceed............................................................................... 6

Hardware features ................................................................................. 7

Front panel ........................................................................................ 7

Rear panel......................................................................................... 8

Product features................................................................................ 8

Bottom panel ..................................................................................... 9

Mounting options................................................................................. 10

Setting up the wireless router .............................................................11

Setting up a wired connection..........................................................11

Chapter 2: Setting up the hardware

Setting up a wireless connection..................................................... 12

Chapter 3: Conguring the network clients

Accessing the wireless router............................................................ 13

Setting an IP address for wired or wireless client ........................... 13

Chapter 4: Conguring via the web GUI

Conguring via the web GUI............................................................... 21

Using the Network Map....................................................................... 22

Setting up WAN using the Quick Internet Setup (QIS).................... 23

Manually setting up your Internet connection.................................. 23

Managing EzQoS bandwidth .............................................................. 25

Upgrading the rmware ...................................................................... 26

Restoring/Saving/Uploading settings................................................ 27

Chapter 5: Troubleshooting

Troubleshooting................................................................................... 28

ASUS DDNS Service............................................................................ 31

Frequently Asked Questions (FAQs)............................................... 31

Table of contents

About this guide

This user guide contains information that you need to install and congure the

ASUS Wireless Router.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Knowing your wireless router

This chapter provides information on the package contents, system

requirements, hardware features, and LED indicators of the ASUS Wireless

Router.

• Chapter 2: Setting up the hardware

This chapter provides instructions on setting up, accessing, and conguring the

ASUS Wireless Router.

• Chapter 3: Conguring the network clients

This chapter provides instructions on setting up the clients in your network to

work with your ASUS Wireless Router.

• Chapter 4: Conguring via the web GUI

This chapter provides instructions on conguring the ASUS Wireless Router

using its web graphics user interface (web GUI).

Appendices

Notices.................................................................................................. 33

GNU General Public License .............................................................. 35

ASUS Contact information.................................................................. 41

• Chapter 5: Troubleshooting

This chapter provides you with a troubleshooting guide for solving common

problems you may encounter when using the ASUS Wireless Router.

• Appendices

This chapter provides you with the regulatory Notices and Safety Statements.

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when

trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

6DSL-N11 Chapter 1: Knowing your wireless router

Knowing your

wireless router

Package contents

Check the following items in your ASUS Wireless Router package.

DSL-N11 11nWiFi ADSL Router

AC Power adapter (type varies by region)

Category 5 (CAT5) Ethernet cable

RJ-11 cable

Support CD (manual)

Splitter (type varies by region)

Quick Start Guide

Note: If any of the items is damaged or missing, contact your retailer.

System requirements

Before installing the ASUS Wireless Router, ensure that your system/network

meets the following requirements:

•An Ethernet RJ-45 port (10Base-T/100Base-TX)

• At least one IEEE 802.11b/g/n device with wireless capability

• An installed TCP/IP and Internet browser

Before you proceed

Take note of the following guidelines before installing the ASUS Wireless Router:

• The length of the Ethernet cable that connects the device to the network (hub,

ADSL/cable modem, router, wall patch) must not exceed 100 meters.

• Place the device on a at, stable surface as far from the ground as possible.

• Keep the device clear from metal obstructions and away from direct sunlight.

• Keep the device away from transformers, heavy-duty motors, uorescent lights,

microwave ovens, refrigerators, and other industrial equipment to prevent

signal loss.

•Install the device in a central area to provide ideal coverage for all wireless

mobile devices.

Chapter 1: Knowing your wireless router DSL-N11

DSL-N11

ADSL

POWER Sync Data WLAN WPS 1 2 3 4

LAN

Status indicators

LED Status Indication

Power Solid Green Power on, normal operation

Off Power off or failure

ADSL SYNC Solid Green ADSL link is established

Flashing

(Green) Unable to establish an ADSL link

Off No ADSL link

ADSL Data Flashing

(Green) Sending/receiving data

Off No data transfer

WLAN Flashing

(Green) Establishing WLAN connection

Off No wireless connection

WPS Flashing In process

Flashing (Red) Fail

Green Success

Off No connection

LAN1-LAN4 Solid Green Has physical connection to a network via

Ethernet cables

Flashing

(Green) Sending or receiving data

Off No power or no physical connection

•Install the device at least 20cms from a person to ensure that the product is

operated in accordance with the RF Guidelines for Human Exposure adopted

by the Federal Communications Commission.

Hardware features

Front panel

The DSL-N11 11nWiFi ADSL Router front panel contains LED indicators which

shows the status of DSL-N11.

8DSL-N11 Chapter 1: Knowing your wireless router

ADSL LAN1-LAN4 Reset Power On/Off

WPS

Rear panel

Item Description

ADSL Connect an RJ-11 cable to the bundled splitter

LAN1-LAN4 Connect RJ-45 Ethernet cables to these ports to

establish LAN connection.

RESET This button restores the system to its factory default

settings.

POWER Insert the AC adapter into this port to connect your

router to a power source

ON/OFF Press this button to turn the power on/off

WPS This button launches the WPS function.

Product features

The Wireless Router provides the following features:

Built-in ADSL modem

Built-in rewall

IEEE802.11n standard-based wireless network, backward compatible with

802.11b/g devices

ASUS New UI - An objective & task-oriented web-based conguration

interface.

Quick Internet Setup (QIS) for ADSL connection, wireless, and security

congurations.

Network Map for straight-forward network information & management

EZQoS for application-based bandwidth management, with intuitive control

interface.

•

Chapter 1: Knowing your wireless router DSL-N11

Bottom panel

Item Description

1Mounting hooks

Use the mounting hooks to mount your router on concrete or

wooden surfaces using two roundhead screws.

2Air vents

These vents provide ventilation to your router.

Note: For details on mounting your router on a wall or ceiling, refer to the section Mounting

options on the next page of this user manual.

1 1

10 DSL-N11 Chapter 1: Knowing your wireless router

Mounting options

Out of the box, the ASUS Wireless Router is designed to sit on a raised at surface

like a le cabinet or book shelf. The unit may also be converted for mounting to a

wall or ceiling.

To mount the ASUS Wireless Router:

1. Look on the underside for the two mounting

hooks.

2. Mark two upper holes in a at surface.

3. Tighten two screws until only 1/4'' is

showing.

4. Latch the hooks of the ASUS Wireless

Router onto the screws.

Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the screws or if

it is too loose.

Otros manuales para DSL-N11

Tabla de contenidos

Otros manuales de Enrutador inalámbrico de Asus

Asus

Asus WL-500W SuperSpeed N Manual de usuario

Asus

Asus PCE-N10 Manual de usuario

Asus

Asus RT-N56U Manual de usuario

Asus

Asus RT-AC1200G Manual de usuario

Asus

Asus RT-AC1200GE Manual de usuario

Asus

Asus Lyra Trio MAP-AC1750 Manual de usuario

Asus

Asus DSL-N10S Manual de usuario

Asus

Asus ExpertWiFi EBM68 Manual de usuario

Asus

Asus APAC10332 Manual de usuario

Asus

Asus RT-N13U - Wireless Router Manual de usuario

Asus

Asus ZenWiFi XD6 Manual de usuario

Asus

Asus RT-AX55 Manual de usuario

Asus

Asus DSL-N16U Series Manual de usuario

Asus

Asus RT-N12 Series Manual de usuario

Asus

Asus WL-500W SuperSpeed N Manual de usuario

Asus

Asus TM-AC1900 Manual de usuario

Asus

Asus WL520GC - Wireless Router Manual de usuario

Asus

Asus WL-500gP V2 Manual de usuario

Asus

Asus WL-320gP - Wireless Access Point Manual de usuario

Asus

Asus WL 520GU - Wireless Router Manual de usuario

Asus

Asus RT-AC59U Manual de usuario

Asus

Asus RT-AC1200G+ Manual de usuario

Asus

Asus 4G-AC68U Manual de usuario

Asus

Asus RT-N12 Series Manual de usuario

Manuales populares de Enrutador inalámbrico de otras marcas

Milesight

Milesight UG67 Manual de usuario

Airlogic

Airlogic AirSync Class 1 Manual del propietario

Samsung

Samsung WCH730B Manual de usuario

TELEFONICA

TELEFONICA USB Adapter Manual de usuario

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manual de usuario

Askey

Askey RAC2V1K Manual de usuario

Alloy

Alloy WLF2454AP-S Manual de usuario

TP-Link

TP-Link TL-WR542G Manual de usuario

NETGEAR

NETGEAR WNR2000v4 Manual de usuario

Hama

Hama 53120 Manual de usuario

Intellinet

Intellinet 524582 Manual de usuario

D-Link

D-Link DIR-506L Manual de usuario

Sapido

Sapido GR297n Manual de usuario

AMTC

AMTC WR7502 Manual de usuario

Compaq

Compaq CP-2W - iPAQ Connection Point Manual de usuario

SMC Networks

SMC Networks WBR14-N2 FICHE Manual de usuario

Draytek

Draytek Vigor2120 Series Manual de usuario

Sitecom

Sitecom WLR-4000 Manual de usuario
