USER MANUAL
E8711
ASUS Tablet
E8711_ME373CG_User_Manual.indd 1 26/9/13 9:03:18 AM
Charging your device
Ensure to fully charge your ASUS Tablet before using it in
battery mode for extended periods. Remember that the power
adapter charges your ASUS Tablet as long as it is plugged into
an AC power source. Be aware that it takes much longer to
charge the ASUS Tablet when it is in use.
IMPORTANT! Do not leave the ASUS Tablet connected to
the power supply once it is fully charged. ASUS Tablet is not
designed to be left connected to the power supply for extended
periods of time.
Airplane precautions
Contact your airline provider to learn about related inight
services that can be used and restrictions that must be followed
when using your ASUS Tablet in-ight.
IMPORTANT! You can send your ASUS Tablet through x-ray
machines (used on items placed on conveyor belts), but do not
expose them from magnetic detectors and wands.
Safety precautions
This ASUS Tablet should only be used in enviroments with
ambient temperatures between 0°C (32°F) and 35°C (95°F).
Long time exposure to extremely high or low temperature
may quickly deplete and shorten the battery life. To ensure the
battery’s optimal performance, ensure that it is exposed within
the recommended environment temperature.
E8711_ME373CG_User_Manual.indd 2 26/9/13 9:03:18 AM
ASUS Tablet
3
Package contents
NOTES:
• If any of the items is damaged or missing, contact your
retailer.
• The bundled power adapter varies with country or region.
Power adapter
ASUS Tablet Micro SIM card tray eject pin
Micro USB cable Technical documentations and
warranty card
E8711_ME373CG_User_Manual.indd 3 26/9/13 9:03:19 AM
ASUS Tablet
4
Your ASUS Tablet
Front view
Front camera
Touch screen
panel
Audio speaker
Audio speaker Ambient light sensor
Proximity sensor
E8711_ME373CG_User_Manual.indd 4 26/9/13 9:03:20 AM
ASUS Tablet
5
Rear view
Micro USB 2.0 port
Volume button
Power button
MicroSD card slot*
Speaker/Headset port
Rear camera
Microphone
* The microSD card slot supports microSD, microSDHC, and microSDXC card formats.
** The micro SIM card slot supports WCDMA and GSM network bands.
MicroSIM card slot**
E8711_ME373CG_User_Manual.indd 5 26/9/13 9:03:20 AM
ASUS Tablet
6
Charging your ASUS Tablet
To charge your ASUS Tablet:
Connect the micro USB cable to the power adapter.
Plug the micro USB connector into your ASUS Tablet.
Plug the power adapter into a grounded power outlet.
Charge your ASUS Tablet for eight (8) hours before
using it in battery mode for the rst time.
E8711_ME373CG_User_Manual.indd 6 26/9/13 9:03:21 AM
ASUS Tablet
7
IMPORTANT!
• Use only the bundled power adapter and micro USB cable
to charge your ASUS Tablet. Using a dierent power adapter
may damage your ASUS Tablet.
• Peel the protective lm o from the power adapter and micro
USB cable before charging the ASUS Tablet to prevent risk or
injury.
• Ensure that you plug the power adapter to the correct power
outlet with the correct input rating. The output voltage of this
adapter is DC 5.2V, 1.35A.
• When using your ASUS Tablet while plugged-in to a power
outlet, the grounded power outlet must be near the unit and
easily accessible.
• Do not place objects on top of your ASUS Tablet.
NOTES:
• Your ASUS Tablet can be charged via the USB port on a
computer only when it is in sleep mode (screen o) or turned
o.
• Charging through a USB port of a computer may take longer
time to complete.
• If your computer does not provide enough power for
charging your ASUS Tablet, charge your ASUS Tablet via the
grounded power outlet instead.
E8711_ME373CG_User_Manual.indd 7 26/9/13 9:03:22 AM
ASUS Tablet
8

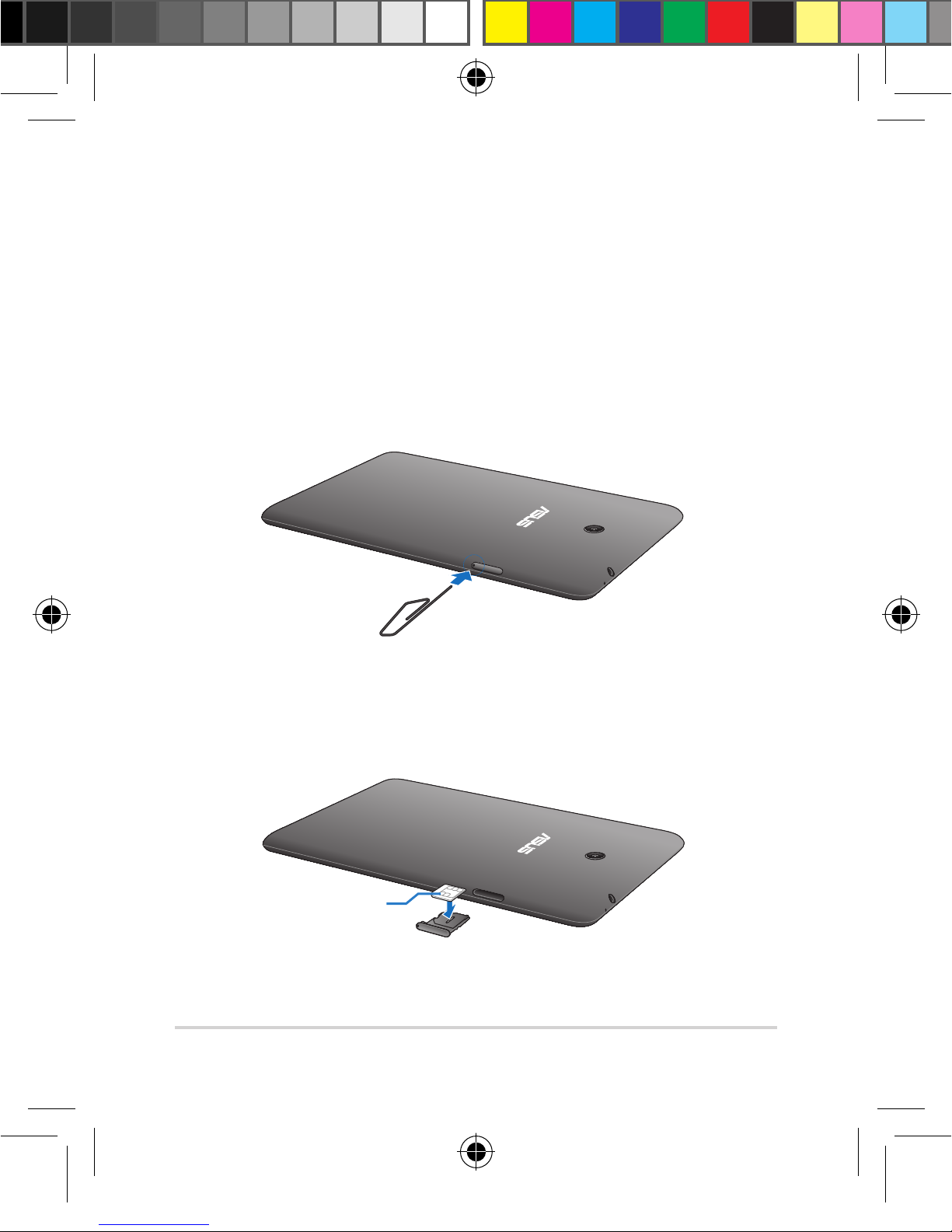

Installing a micro SIM card
Before you can make calls, send text messages, or connect to a
mobile broadband network using your ASUS Tablet, you need
to install a micro SIM (Subscriber Identity Module) card.
To install a micro SIM card:
1. Insert the tip of the bundled micro SIM card tray eject pin to
eject the micro SIM card tray.
2. Pull out the micro SIM card tray and place the micro SIM
card on the tray with the metal contacts facing up, as
shown.
Metal contacts
E8711_ME373CG_User_Manual.indd 8 26/9/13 9:03:22 AM
ASUS Tablet
9
3. Align and insert the micro SIM card tray back to the slot.
E8711_ME373CG_User_Manual.indd 9 26/9/13 9:03:22 AM
ASUS Tablet
10
Appendices
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003,
RSS-210, and CAN ICES-3(B)/NMB-3(B).
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device. The IC ID for this device is
3568A-K00E.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below
the Industry Canada (IC) radio frequency exposure limits. The
Wireless Device should be used in such a manner such that
the potential for human contact during normal operation is
minimized.
This device has been evaluated for and shown compliant with
the IC Specic Absorption Rate (“SAR”) limits when installed
in specic host products operated in portable exposure
conditions.
Canada’s REL (Radio Equipment List) can be found at the
following web address:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.
do?lang=eng
E8711_ME373CG_User_Manual.indd 10 26/9/13 9:03:22 AM
