P/E-P55T2P4D Motherboard

USER'S MANUAL

P/E-P55T2P4D User's Manual

USER'S NOTICE

Product Name: P/E-P55T2P4D

Product Rev: 2.0

Manual Rev: 2.0

BIOS Version: #401A0-0103 or later

Release Date: August 1996

No part of this product, including the product and software may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any lan-

guageinanyformbyanymeanswithouttheexpresswrittenpermissionofASUSTeK

COMPUTER INC. (hereinafter referred to as ASUS) except documentation kept

by the purchaser for backup purposes.

ASUS provides this manual "as is" without warranty of any kind, either express or

implied, including but not limited to the implied warranties or conditions of mer-

chantability or fitness for a particular purpose. In no event shallASUS be liable for

any loss or profits, loss of business, loss of use or data, interruption of business, or

for indirect, special, incidental, or consequential damages of any kind, even ifASUS

has been advised of the possibility of such damages arising from any defect or error

in this manual or product. ASUS may revise this manual from time to time without

notice. For updated BIOS, drivers, or product release information you may visit

ASUSTeK's home page at: http://www.asus.com.tw/

Products mentioned in this manual are mentioned for identification purposes only.

Product names appearing in this manual may or may not be registered trademarks

or copyrights of their respective companies.

The product name and revision number are both printed on the motherboard itself.

Manual revisions are released for each design represented by the digit before the

period and for additions or corrections represented by the digit after the period.

The BIOS version noted below represents the current release during this manual

revision.

P/E-P55T2P4D User's Manual III

P/E-P55T2P4D User's Manual

CONTENTS

I. INTRODUCTION........................................................1

How this manual is organized..........................................................1

Item Checklist ..................................................................................1

II. FEATURES .................................................................2

Features of This Motherboard..........................................................2

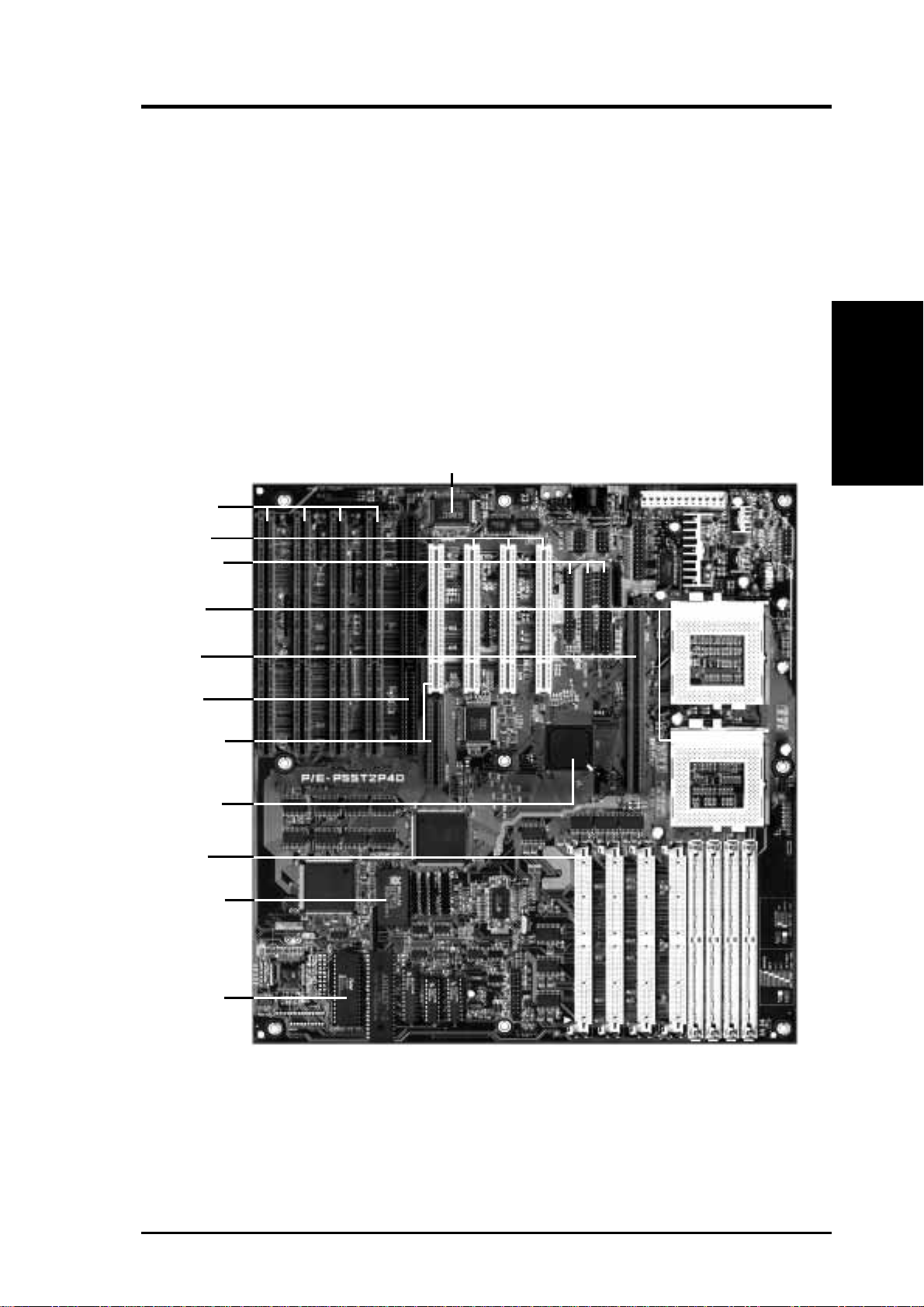

Parts of the Motherboard .................................................................3

III. INSTALLATION .......................................................4

Map of the Motherboard ..................................................................4

Jumpers.................................................................................5

Expansion Slots ....................................................................5

Connectors ............................................................................5

Installation Steps..............................................................................6

1. Jumpers ........................................................................................6

Jumper Settings ....................................................................7

2. System Memory (DRAM & SRAM)........................................14

DRAM Installation Procedures: .........................................15

Static RAM (SRAM) for Level 2 (External) Cache.................16

Compatible Cache Modules for this Motherboard .............16

3. Central Processing Unit (CPU).................................................17

4. Expansion Cards .......................................................................18

Expansion Card Installation Procedure: .............................18

Assigning IRQs for Expansion Cards.................................18

Assigning DMA Channels for ISA Cards...........................19

ASUS MediaBus Card........................................................20

5. External Connectors..................................................................21

Power Connection Procedures............................................27

IV. BIOS SOFTWARE ..................................................28

6. BIOS Setup ...............................................................................28

Standard CMOS Setup .............................................................29

Details of Standard CMOS Setup:......................................30

P/E-P55T2P4D User's Manual V

CONTENTS

BIOS Features Setup ................................................................33

Details of BIOS Features Setup:.........................................33

Chipset Features Setup .............................................................36

Power Management Setup........................................................39

Details of Power Management Setup: ................................39

PNP and PCI Setup ..................................................................41

Load BIOS Defaults .................................................................43

Load Setup Defaults .................................................................43

Supervisor Password and User Password ................................44

IDE HDD Auto Detection ........................................................45

Save and Exit Setup .................................................................46

Exit Without Saving .................................................................46

Flash Memory Writer Utility .........................................................47

The Flash Memory Writer Utility Screen:..........................48

V. DESKTOP MANAGEMENT...................................51

Desktop Management Interface (DMI)..........................................51

Introducing the DMI utility ................................................51

System Requirements .........................................................51

Using the DMI utility .........................................................52

Notes:..................................................................................52

VI. PCI-SC200 SCSI Card............................................55

NCR SCSI BIOS and Drivers ........................................................55

The PCI-SC200 SCSI Interface Card ............................................56

Setting Up the PCI-SC200 .......................................................56

Setting the INTAssignment .....................................................57

Terminator Settings ..................................................................57

P/E-P55T2P4D User's Manual

FCC & DOC COMPLIANCE

FederalCommunications CommissionStatement

This device complies with FCC Rules Part 15. Operation is subject to the following

two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with manufacturer's instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the inter-

ference by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING: Theuseof shielded cables for connection of the monitor to the graphics

card is required to assure compliance with FCC regulations. Changes or modifica-

tions to this unit not expressly approved by the party responsible for compliance

could void the user's authority to operate this equipment.

CanadianDepartment ofCommunications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions

from digital apparatus set out in the Radio Interference Regulations of the Cana-

dian Department of Communications.

P/E-P55T2P4D User’s Manual 1

I. INTRODUCTION

How this manual is organized

This manual is divided into the following sections:

I. Introduction: Manual information and checklist

II. Features: Information and specifications concerning this product

III. Installation: Instructions on setting up the motherboard

IV. BIOS Setup: BIOS software setup information

V. DMI Utility: BIOS supported Desktop Management Interface

VI. PCI-SC200: Installation of an optional SCSI card

Item Checklist

Please check that your package is complete. If you discover damaged or missing

items, please contact your retailer.

√The P/E-P55T2P4D motherboard

√2 serial port ribbon cables attached to a mounting bracket

√1 parallel ribbon cable with mounting bracket

√1 IDE ribbon cable

√1 floppy ribbon cable

√1 diskette containing support software as follows:

• Flash Memory Writer utility to update motherboard BIOS

• Binary file containing a BIOS version

• Desktop Management Interface (DMI) software

• System Configuration Utility (SCU)

• Readme files give instructions on use of the files

√1 diskette containing:

• Onboard enhanced IDE driver

√1 diskette containing:

• EISA Configuration Utility

√This user's manual

ASUS 256/512KB Pipelined Burst Cache Module with TAG RAM

Optional PS/2 mouse cable with mounting bracket

Optional infrared module

Optional PCI-SC200 Fast-SCSI card

I. INTRODUCTION

(Manual / Checklist)

2 P/E-P55T2P4D User’s Manual

II. FEATURES

Features of This Motherboard

The P/E-P55T2P4D is carefully designed for the demanding corporate PC user who

wants a high performance server motherboard that:

•Easy Installation: Is equipped with BIOS that supports auto

detection of hard drives and Plug and Play to make setup of hard drives and

expansion cards virtually automatic.

•Multi-Processor/Multi-Speed Support: Supports two Pentium CPU (75-

200MHz). (See page 17)

•Intel Chipset: Features Intel's 430HX PCIset with EISA I/O subsystems.

•Error Checking and Correcting (ECC): Using Intel's 430HX PCIset to-

gether with parity DRAM modules can detect multi-bit memory

errors and correct 1-bit memory errors.

•DesktopManagementInterface (DMI): Supports DMI through BIOS which

allows hardware to communicate within a standard protocol

creating a higher level of compatibility (see section V).

•L2 Cache: This motherboard has 0KB cache onboard and uses a Pipelined

Burst Sychronous cache module to upgrade to 256KB or 512KB (See page

16 for compatible cache modules)

•Versatile DRAM Memory Support: Supports eight 72-pin SIMMs of 4MB,

8MB,16MB, 32MB, or 64MB to formamemory size between 8MB to 512MB.

SupportsbothFastPageMode(FPM)and Extended Data Output (EDO) SIMMs

(see page 14).

•EISA, ISA, and PCI Expansion Slots: Provides four 32-bit EISA slots, one

16-bit ISA slot, three 32-bit PCI slots, and one PCI/MediaBus 2.0 which al-

lows the use of either a standard PCI card or the ASUS MediaBus Card.

•ASUS MediaBus Rev 2.0: Features an expansion slot extension shared with

PCI Slot 4 for an optional high-performance expansion card which includes

two functions in one easy-to-install card. (For revision

compatibility information, please refer to page 20.)

•Super Multi-I/O: Provides two high-speed UART compatible serial ports

and one parallel port with EPP and ECP capabilities. UART2 can also be

directed from COM2 to the Infrared Module for wireless connections. Two

floppy drives of either 5.25" or 3.5" (1.44MB or 2.88MB) are also supported

without an external card. The Japanese "Floppy 3 mode" (3.5" 1.2MB)

floppy standard is also supported.

•NCR SCSI BIOS: This motherboard has firmware that supports the optional

ASUS PCI-SC200 SCSI controller cards. (see section VI)

(Features)

II. FEATURES

P/E-P55T2P4D User’s Manual 3

II. FEATURES

•PCI Bus Master IDE Controller: Comes with an onboard PCI Bus Master

IDE controller with two connectors that supports four IDE

devices in two channels, provides faster data transfer rates, and

supports Enhanced IDE devices such as CD-ROM drives. This controller sup-

ports PIO Modes 3 & 4 and Bus Master IDE DMA Mode 2. BIOS supports

IDE CD-ROM drive bootup.

•Optional IrDA and PS/2 Mouse Connector: This motherboard

supports an optional infrared port module for wireless interface and a PS/2

mouse cable set for connecting a PS/2 mouse.

Parts of the Motherboard

II. FEATURES

(Parts of Board)

Intel's 430HX

PCIset

2 CPU ZIF

Socket 7

PCI 4 orASUS

MediaBus 2.0

3 PCI Slots

Super Multi-I/O

Programmable

Flash ROM

(8) 72-pin SIMM

Sockets

L2 Cache

Expansion Slot

4EISASlots

Self-Powered

RealTime Clock

Onboard IDE,

Floppy, Serial

1ISASlot

4 P/E-P55T2P4D User’s Manual

III. INSTALLATION

Map of the Motherboard

ISA Slot 1

PCI Slot 4 / MediaBus 2.0

PCI Slot 2

PCI Slot 1

PCI Slot 3

EISA Slot 1

Floppy Drives

Parallel Printer

Keyboard

PS/2

Mouse

COM 1

COM 2

Infrared Con.

Case Connectors (CON 3)

IDE LED

JP24

JP25

EISA Slot 2

EISA Slot 3

EISA Slot 4

JP27

JP26

JP39

JP15

JP16 JP17

JP18

FAN2

FAN1

Processor 1

CPU ZIF Socket 7

Processor 2

CPU ZIF Socket 7

JP29

JP30

JP32

Pipelined Burst Level 2 Cache Slot

SIMM Slot 1 (Bank 0)

SIMM Slot 2 (Bank 0)

SIMM Slot 3 (Bank 1)

SIMM Slot 4 (Bank 1)

SIMM Slot 5 (Bank 2)

SIMM Slot 6 (Bank 2)

SIMM Slot 7 (Bank 3)

SIMM Slot 8 (Bank 3)

Primary IDE

Secondary IDE

JP37

JP38

JP34

JP3

JP2

JP11

JP12

JP9

JP10

COM2/Infrared

ECP DMA CH1/3

256/512 L2 Cache

JP5

JP6

JP7

JP8

JP19

JP20

JP21

CPU Freq

Ratio

APIC

P54C/P55C Processor

12V Fan Pwr

Boot Block Programming

CPU External Freq

CMOS RAM Operation/Clear

Vio Voltage

Vcore Voltage

Processor Type

PCI 1 Master/Slave

(SMC37C665IR Only) (SMC37C665IR/37C669 Only)

Board Power Input

P8 P9

(Map of Board)

III. INSTALLATION

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Asus

Asus

Asus TUF B450-PRO Gaming Manual de usuario

Asus

Asus TUF GAMING B660M-PLUS WIFI Manual de usuario

Asus

Asus CS-B Manual de usuario

Asus

Asus A7N8X Series Manual de usuario

Asus

Asus PRIME B760M-A D4 Manual de usuario

Asus

Asus P5GCMX - Motherboard - Micro ATX Instrucciones de uso

Asus

Asus PRIME H510M-A R2.0 Manual de usuario

Asus

Asus M3N78 PRO - Motherboard - ATX Manual de usuario

Asus

Asus EX-H110M-V Manual de usuario

Asus

Asus ROG MAXIMUS XIII APEX Manual de usuario

Asus

Asus PRIME X470-PRO Manual de usuario

Asus

Asus P8P67 LX Manual de usuario

Asus

Asus ROG STRIX H470-I GAMING Manual de usuario

Asus

Asus A88XM-E Manual de usuario

Asus

Asus VISTA EDITION M2N-PLUS SLI Manual de usuario

Asus

Asus p4p800s Manual de usuario

Asus

Asus WMT-LX Manual de usuario

Asus

Asus Motherboard P4V800-X Manual de usuario

Asus

Asus Q8265 Manual de usuario

Asus

Asus P5Q DELUXE GREEN Manual de usuario

Asus

Asus Motherboard P4GE-V Manual de usuario

Asus

Asus M2A-MX Manual de usuario

Asus

Asus M2N68-AM SE Manual de usuario

Asus

Asus X99-PRO/USB 3.1 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

EPC

EPC EPC9147C Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario

Epson

Epson S5U13700P00C000 Manual de usuario

Gigabyte

Gigabyte GA-K8N Ultra-SLI Manual de usuario

Albatron

Albatron PX925XE Series Manual de usuario
