Asus EX-H610M-V3 D4 Manual de usuario

Motherboard

EX-H610M-V3 D4

E19506

First Edition

November 2021

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any

means, except documentation kept by the purchaser for backup purposes, without the express written

permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

iii

Contents

Safety information...................................................................................................... iv

About this guide.......................................................................................................... v

Package contents....................................................................................................... vi

EX-H610M-V3 D4 specications summary .............................................................. vi

Chapter 1 Product Introduction

1.1 Before you proceed...................................................................................... 1-1

1.2 Motherboard overview ................................................................................. 1-1

1.3 Central Processing Unit (CPU).................................................................... 1-6

1.4 System memory............................................................................................ 1-8

Chapter 2 BIOS Information

2.1 BIOS Setup program .................................................................................... 2-1

2.2 I-Cafe.............................................................................................................. 2-2

2.3 Main menu..................................................................................................... 2-3

2.4 Advanced menu............................................................................................ 2-4

2.5 Monitor menu................................................................................................ 2-6

2.6 Boot menu..................................................................................................... 2-7

2.7 Exit menu ...................................................................................................... 2-8

Appendix

Notices ..................................................................................................................... A-1

Warranty................................................................................................................... A-6

ASUS contact information...................................................................................... A-8

Service and Support ............................................................................................... A-8

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

before relocating the system.

• When adding or removing devices to or from the system, ensure that the power cables

for the devices are unplugged before the signal cables are connected. If possible,

disconnect all power cables from the existing system before you add a device.

• Before connecting or removing signal cables from the motherboard, ensure that all power

cables are unplugged.

• Seek professional assistance before using an adapter or extension cord. These devices

could interrupt the grounding circuit.

• Ensure that your power supply is set to the correct voltage in your area. If you are not

sure about the voltage of the electrical outlet you are using, contact your local power

company.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied service

technician or your retailer.

Operation safety

• Before installing the motherboard and adding components, carefully read all the manuals

that came with the package.

• Before using the product, ensure all cables are correctly connected and the power cables

are not damaged. If you detect any damage, contact your dealer immediately.

• To avoid short circuits, keep paper clips, screws, and staples away from connectors,

slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Do not place the product in any area

where it may be exposed to moisture.

• Place the product on a stable surface.

• If you encounter technical problems with the product, contact a qualied service

technician or your retailer.

• Your motherboard should only be used in environments with ambient temperatures

between 0°C and 40°C.

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product Introduction

This chapter describes the features of the motherboard and the new technology it

supports. It includes descriptions of the switches, jumpers, and connectors on the

motherboard.

• Chapter 2: BIOS Information

This chapter tells how to boot into the BIOS and upgrade BIOS using the EZ Flash

Utility.

Where to nd more information

Refer to the following sources for additional information and for product and software

updates.

1. ASUS website

The ASUS website provides updated information on ASUS hardware and software

products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the

standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used

throughout this manual.

CAUTION: Information to prevent damage to the components and injuries to

yourself when trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

CPU

Intel®Socket LGA1700 for 12th Gen Intel®Core™, Pentium®Gold and

Celeron®Processors*

Supports Intel®Turbo Boost Technology 2.0 and Intel®Turbo Boost Max

Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel®Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset Intel®H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-

ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Prole (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for

more information refer to www.asus.com for memory support list.

Graphics

1 x HDMI®port**

* Graphics specications may vary between CPU types. Please refer to www.

intel.com for any updates.

** Supports 4K@60Hz as specied in HDMI 2.1.

Expansion Slots

Intel®12th Gen Processors

1 x PCIe 4.0 x16 slot

Intel®H610 Chipset

1 x PCIe 3.0 x1 slot

Storage

Total supports 3 x SATA 6Gb/s ports

Intel®H610 Chipset

x SATA 6Gb/s ports

Ethernet 1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

(continued on the next page)

Package contents

Check your motherboard package for the following items.

Motherboard 1 x EX-H610M-V3 D4 motherboard

Cables 2 x SATA 6Gb/s cables

Miscellaneous 1 x I/O Shield

Application DVD 1 x Support DVD

Documentation 1 x User guide

If any of the above items is damaged or missing, contact your retailer.

EX-H610M-V3 D4 specications summary

vii

EX-H610M-V3 D4 specications summary

Audio

Realtek 7.1 Surround Sound High Denition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192kHz playback

Audio Features

- Audio Shielding

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1

Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x HDMI®port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O

Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

3 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

(continued on the next page)

viii

EX-H610M-V3 D4 specications summary

Special Features

Non-stop Action

- Lightning Boot

Non-stop Challenger

- ASUS iCafe labs certied

Non-stop Durability

- Anti-moisture coating

- USBGuard

BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Manageability WOL by PME, PXE

Operating System Windows®11 64-bit, Windows®10 64-bit

Form Factor mATX Form Factor

9.2 inch x 8.0 inch (23.4 cm x 20.3 cm)

Specications are subject to change without notice. Please refer to the ASUS website for the

latest specications.

ASUS EX-H610M-V3 D4 1-1

Product Introduction

1.1 Before you proceed

Take note of the following precautions before you install motherboard components or change

any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded

object or a metal object, such as the power supply case, to avoid damaging them due

to static electricity.

• Before you install or remove any component, ensure that the ATX power supply is

switched off or the power cord is detached from the power supply. Failure to do so

may cause severe damage to the motherboard, peripherals, or components.

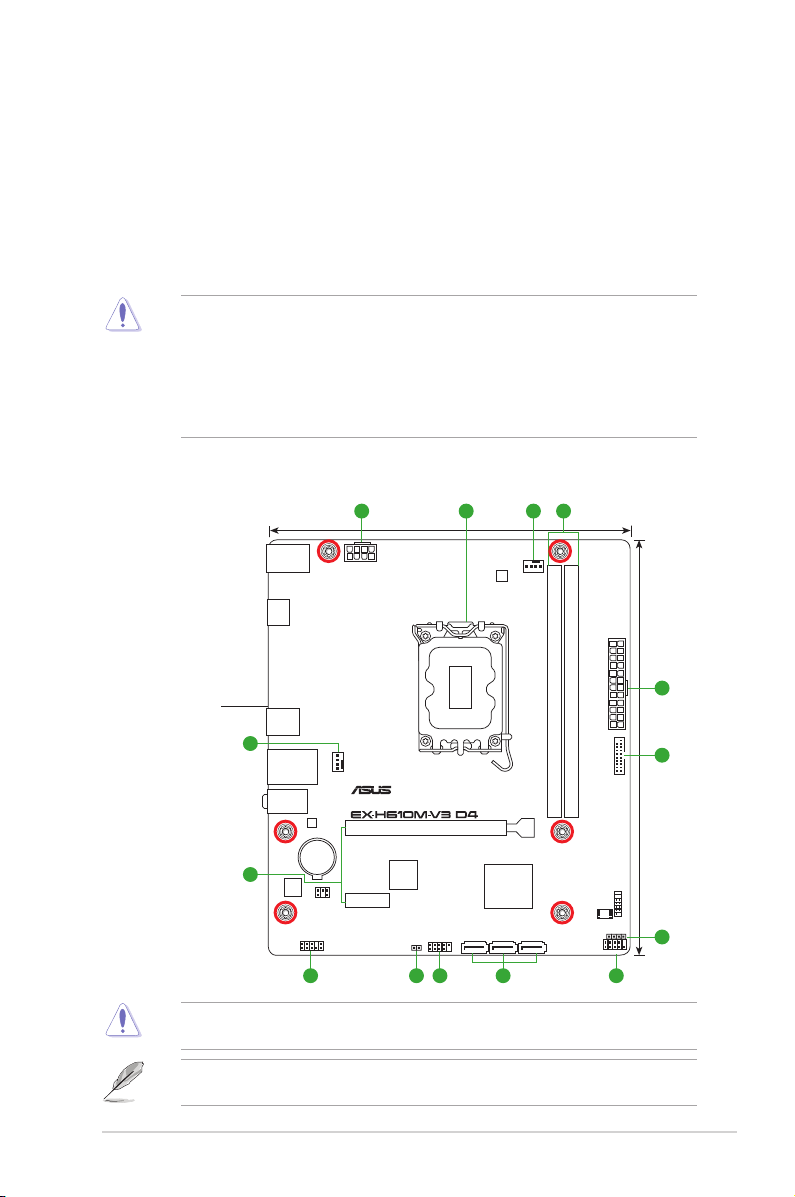

1.2 Motherboard overview

Place this

side towards

the rear of the

chassis

ATX_12V

PCIEX16(G4)

PCIEX1(G3)

SPEAKER

128Mb

BIOS

CLRTC

F_PANEL

USB_914

COM_DEBUG

U32G1_12

AAFP

ATX_PWR

CPU_FAN

BATTERY

CHA_FAN

Super

I/O

23.4cm(9.2in)

DDR4 DIMM_A1 (64bit, 288-pin module)

DDR4 DIMM_B1 (64bit, 288-pin module)

AUDIO

KBMS_USB_56

LAN_USB_78

U32G1_34

HDMI

20.3cm(8.0in)

SATA6G_1 SATA6G_2 SATA6G_3

Intel®

H610

Audio

Codec

DIGI+

VRM

LGA1700

Ethernet

5 1 2

129 610

Unplug the power cord before installing or removing the motherboard. Failure to do so can

cause you physical injury and damage motherboard components.

The pin denitions in this chapter are for reference only. The pin names depend on the

location of the header/jumper/connector.

1-2 Chapter 1: Product Introduction

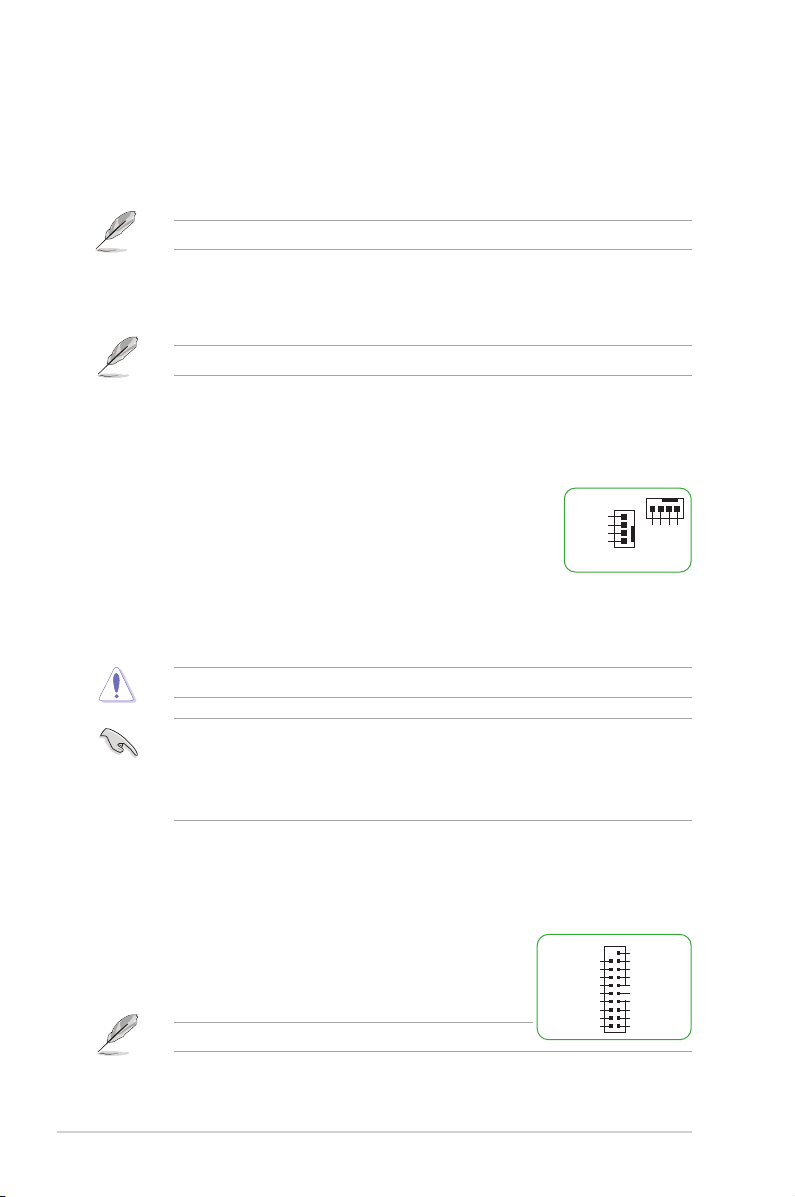

1.2.1 Layout contents

1. CPU socket

The motherboard comes with a LGA1700 Socket designed for 12th Gen Intel®Core™,

Pentium®Gold and Celeron®Processors.

For more details, refer to Central Processing Unit (CPU).

2. DDR4 DIMM slots

The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4

(Double Data Rate 4) memory modules.

For more details, refer to System memory.

3. Expansion slots

This motherboard supports one PCIe x16 graphics card and one PCIe 3.0 x1 network card,

SCSI card or other card that complies with the PCI Express specications.

4. Fan headers

The Fan headers allow you to connect fans to cool the system.

5. Power connectors

These Power connectors allow you to connect your motherboard to a power supply. The

power supply plugs are designed to t in only one orientation. Find the proper orientation and

push down rmly until the power supply plugs are fully inserted.

Ensure to connect the 8-pin power plug.

• We recommend that you use a PSU with a higher power output when conguring a

system with more power-consuming devices. The system may become unstable or

may not boot up if the power is inadequate.

• If you are uncertain about the minimum power supply requirement for your system, we

recommend you to refer to online resources for Power Supply Wattage Calculator.

6. SATA 6Gb/s ports

The SATA 6Gb/s ports allow you to connect SATA devices such as optical disc drives and

hard disk drives via SATA cables.

7. USB 3.2 Gen 1 header

The USB 3.2 Gen 1 header allows you to connect a USB 3.2 Gen

1 module for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1

header provides data transfer speed of up to 5 Gb/s.

The USB 3.2 Gen 1 module is purchased separately.

FAN PWM

FAN IN

FAN PWR

GND

FAN PWM

FAN IN

FAN PWR

GND

USB3+5V

IntA_P1_SSRX-

IntA_P1_SSRX+

GND

IntA_P1_SSTX-

IntA_P1_SSTX+

GND

IntA_P1_D-

IntA_P1_D+

GND

PIN 1

USB3+5V

IntA_P2_SSRX-

IntA_P2_SSRX+

GND

IntA_P2_SSTX-

IntA_P2_SSTX+

GND

IntA_P2_D-

IntA_P2_D+

Otros manuales para EX-H610M-V3 D4

Tabla de contenidos

Otros manuales de Placa madre de Asus

Asus

Asus Z170-P D3 Manual de usuario

Asus

Asus N3050I-CM-A Manual de usuario

Asus

Asus P7F-C/4L Manual de usuario

Asus

Asus 850E - P4 ATX 533MHzFSB USB2 LAN Manual de usuario

Asus

Asus P2Z Manual de usuario

Asus

Asus A88XM-PLUS Manual de usuario

Asus

Asus A7N8X-LA (Focus) Manual de usuario

Asus

Asus YNRC-BR Manual de usuario

Asus

Asus H61M-E Manual de usuario

Asus

Asus P5G-TVM Manual de usuario

Asus

Asus A7V8X-MX SE Manual de usuario

Asus

Asus PRIME H510M-E Manual de usuario

Asus

Asus CUSI-M Manual de usuario

Asus

Asus ROG STRIX X570-E GAMING Manual de usuario

Asus

Asus ROG STRIX B660-F Gaming WiFi Manual de usuario

Asus

Asus Pro Q470M-C Manual de usuario

Asus

Asus P I-P6RP4 Manual de usuario

Asus

Asus P5VD1-X Manual de usuario

Asus

Asus PRIME N4000T Manual de usuario

Asus

Asus P5B-MX - Motherboard - Micro ATX Manual de usuario

Asus

Asus PRIME Z370-P Manual de usuario

Asus

Asus P8Z68-M PRO Manual de usuario

Asus

Asus Rambus P3C-L Manual de usuario

Asus

Asus A320M-C Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

EPC

EPC EPC9147C Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario

Epson

Epson S5U13700P00C000 Manual de usuario

Gigabyte

Gigabyte GA-K8N Ultra-SLI Manual de usuario

Albatron

Albatron PX925XE Series Manual de usuario
