Asus YNRC-BR Manual de usuario

YNRC-BR

Checklist

Contents

P5RC-BR speciﬁcations summary ............................................................ iii

1. Motherboard layout ......................................................................... 1

2. Central Processing Unit (CPU) ...................................................... 2

2.1 Enhanced Intel SpeedStep® Technology (EIST) ............... ..... 2

2.2 Installing the CPU ..................................................................... 3

3. System memory .............................................................................. 5

3.1 Memory conﬁgurations ............................................................ 5

3.2 Installing a DDR2 DIMM ............................................................ 5

3.3 Removing a DDR2 DIMM .......................................................... 7

4. Expansion slots ............................................................................... 8

5. Jumper ............................................................................................. 9

6. Connectors.......................................... ...........................................11

6.1 Rear panel connector ..............................................................11

6.2 Internal connectors ................................................................. 13

E2453

First Edition V1

February 2006

iii

YNRC-BR speciﬁcations summary

CPU mPGA479 (Micro-FCPGA) socket for the Intel®

Pentium® M, Yonah® processor

Chipset Nortbridge: ATI RC410ME (GMCH)

Southbridge: ATI IXP460

Front Side Bus 533/667 MHz

Memory 2 x 240-pin DDR2 DIMM sockets for up to 2 GB

unbuffer non-ECC DDR2 533/667 SDRAM memory

modules

Expansion slots 1 x PCI slot

Rear panel 1 x PS/2 mouse port

1 x PS/2 keyboard port

1 x VGA port

1 x IEEE 1394a port

1 x LAN (RJ-45) port

6 x audio ports support 8-channel High Deﬁnition

Audio

8 x USB 2.0 ports support hot-plug function

1 x S/PDIF Out port

Internal connectors 1 x IDE connector

1 x 24-pin ATX Micro-Fit power connector

2 x Serial ATA connectors

1 x IEEE 1394a connector

8 x USB 2.0 connectors

1 x System fan connector

1 x Front headphone connector

1 x System panel connector

Storage Southbridge supports:

- 2 x Ultra DMA 33/66/100 hard disk drives

- 2 x Serial ATA (SATA150) ports with hot-swap

function

Audio Southbridge supports 8-channel audio conﬁguration

with Intel® Azalia Audio CODEC

Realtek® ALC883 High Deﬁnition Audio CODEC

LAN Realtek® RTL8101L 10/100Mbps Ethernet

controller

IEEE 1394 Agere LFW3226 - 2 x IEEE1394a ports (1 at mid-board,

1 on the rear panel) supports: IEEE 1394a controller

BIOS feature 4 Mb FWH EEPROM (Award)

HP BIOS with Enhanced ACPI, DMI, Green, and PnP

Features Plus

Form factor Mini-ITX form factor: 173mm x 170mm

*Speciﬁcations are subject to change without notice.

ASUS P5RC-BR 1

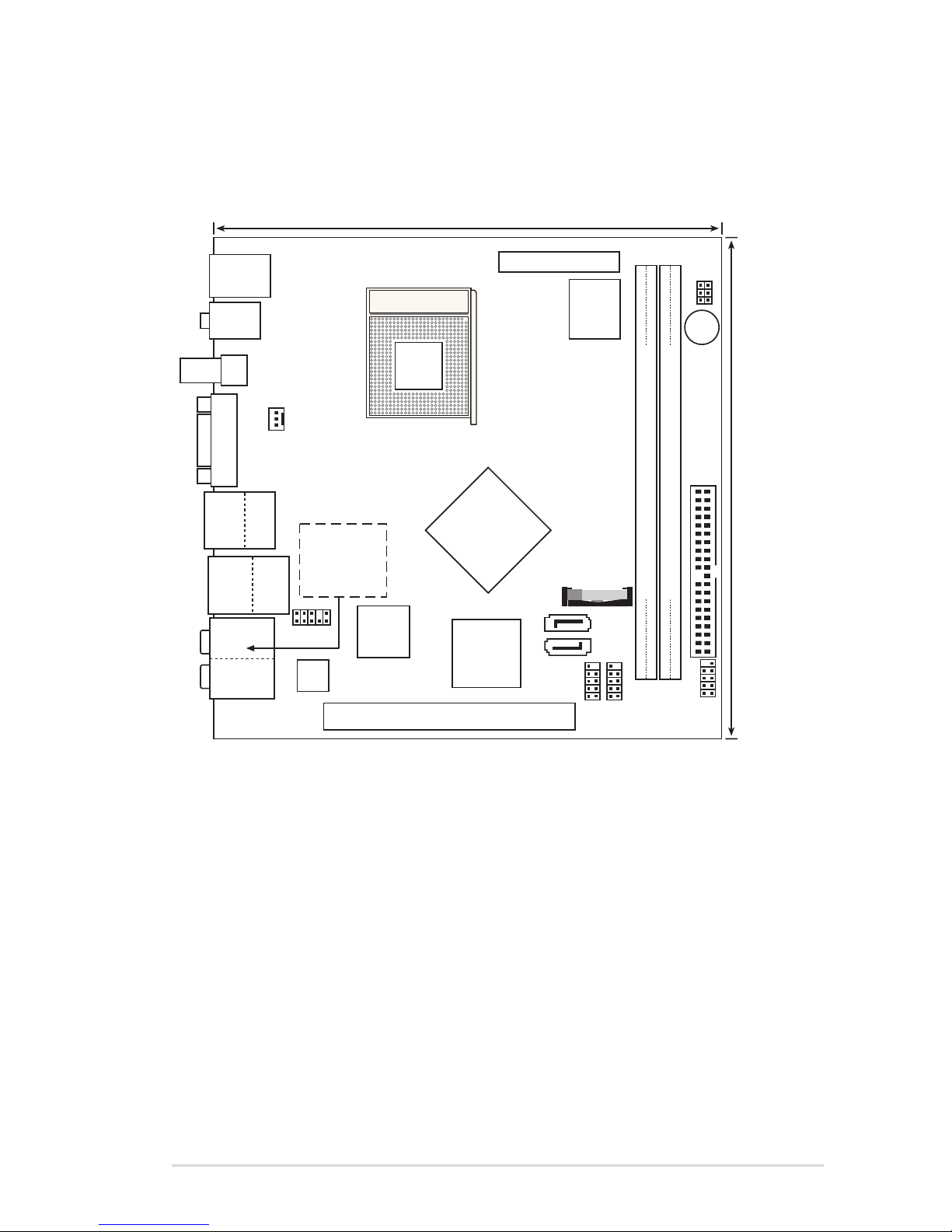

1. Motherboard layout

17.3cm (6.8in)

PCI1

YNRC-BR

FWH

Flash

ROM

PS/2KBMS

T: Mouse

B: Keyboard

ALC883

USB2.0

T: USB3

B: USB4

Top:

RJ-45

CLRTC

SYS_FAN1

17.1cm (6.7in)

ATI

IXP460

BUZZ1

T:USB1

B:USB2

Bottom:

1394

Top:

CLPWD

Below:Mic In

Center:Line Out

Top:Line In

F_AUDIO1

DDR2 DIMM1 (64 bit,240-pin module)

ATXPWER1

SATA3

SATA1

SPDIFOUT1

VGA1

Top:

Subwoofer Speaker Out

Center

Rear Speaker Out

Below

Side Speaker Out

BATTERY1

mPGA479

F_PANEL1

F_USB1

DDR2 DIMM2 (64 bit,240-pin module)

IDE1

F_USB2

RTL8101L

ATI

RC410L

GMCH

TV1

ASUS P5RC-BR

2. Central Processing Unit (CPU)

The motherboard comes with a surface mount 479-pin Zero Insertion Force

(ZIF) socket designed for the Intel® Pentium® M / Dothan® processor (supports

mPGA479M, Micro-FCPGA).

Note the marked corner (with gold

triangle) on the CPU. This mark should

match a speciﬁc corner on the socket

to ensure correct installation.

Gold mark

2.1 Enhanced Intel

SpeedStep® Technology (EIST)

• The motherboard comes with a BIOS ﬁle that supports EIST.

• Visit www.intel.com for more information on the EIST feature.

System requirements

Before using EIST, check your system if it meets the following

requirements:

• Intel® Yonah® Mobile processor with EIST support

• BIOS ﬁle with EIST support

• Operating system with EIST support (Windows® XP SP2/Windows® Server

2003 SP1/Linux 2.6 kernel or later versions)

Using the EIST

To use the EIST feature:

1. Turn on the computer, then enter the BIOS Setup.

2. Go to the Advanced Menu, highlight CPU Configuration,then press

<Enter>.

3. Set the Intel(R) SpeedStep Technology item

to [Automatic], then press <Enter>.

4. Press <F10> to save your changes and exit

the BIOS setup.

5. After the computer restarts, right click on

a blank space on the desktop, then select

Properties from the pop-up menu.

6. When the Display Properties window appears,

click the Screen Saver tab.

ASUS P5RC-BR 3

2.2 Installing the CPU

To install a CPU:

1. Locate the CPU socket on the motherboard.

Socket lever

Make sure that the socket lever

is lifted up to 90 ~ 100 angle;

otherwise, the CPU does not ﬁt

in completely.

90~100 angle

1. Unlock the socket by pressing the

lever sideways , then lift it up to a

90 ~ 100 angle.

8. On the Power schemes section, click , then select any option except

Home/Ofﬁce Desktop or Always On.

9. Click Apply, then click OK.

10. Close the Display Properties window.

After you adjust the power scheme, the CPU

internal frequency slightly decreases when

the CPU loading is low.

The screen displays and procedures

may vary depending on the operating

system.

P5RC-BR

P5RC-BR CPU Socket 479

mPGA479

ASUS P5RC-BR

3. Position the CPU above the

socket such that its marked

corner matches the base of the

socket lever.

4. Carefully insert the CPU into the

socket until it ﬁts in place. Gold Mark

The CPU ﬁts in only one correct orientation. DO NOT force the CPU into

the socket to prevent bending the connectors on the socket and damaging

the CPU!

5. When the CPU is in place , push

down the socket lever to secure

the CPU. The lever clicks on the

side tab to indicate that it is

locked.

After installation, make sure to plug-in the 24-pin ATX power cable to

the motherboard.

This motherboard supports Dothan® M 3 series or Pentium® M 7 series

CPUs.

ASUS P5RC-BR 5

3. System memory

The motherboard comes with two Double Data Rate2 (DDR2) Dual Inline

Memory Module (DIMM) sockets.

A DDR2 module has the same physical dimensions as a DDR DIMM but has a

240-pin footprint compared to the 184-pin DDR DIMMs are notched differently

to prevent installation on a DDR DIMM socket.

The ﬁgure illustrates the location of the DDR2 DIMM sockets.

3.1 Memory conﬁgurations

You can install 128 MB, 256 MB, 512 MB, and 1GB DDR SDRAM DIMMs into

the DIMM sockets using the memory conﬁgurations in this section.

• Installing DDR2 DIMMs other than the recommended conﬁgurations

may cause memory sizing error or system boot failure. Use any of

the recommended conﬁgurations on the next page.

• Install only identical (the same type and size) DDR2 DIMM pairs

using the recommended conﬁgurations.

• Make sure that the memory frequency matches the CPU FSB

(Front Side Bus). Refer to the Memory frequency/CPU FSB

synchronization table on the next page

• Due to chipset resource allocation, the system may detect less

than 2 GB system memory when you installed two 1 GB DDR2

memory modules.

• This motherboard does not support memory modules made up of

128 Mb chips or double sided x 16 memory modules.

YNRC-BR

YNRC-BR 240-pin DDR2 DIMM sockets

DIMM1

DIMM2

ASUS P5RC-BR

3.2 Installing a DDR2 DIMM

3. Firmly insert the DIMM into the

socket until the retaining clips

snap back in place and the DIMM

is properly seated.

To install a DIMM:

1. Unlock a DIMM socket by pressing

the retaining clips outward.

Locked retaining clip

Make sure to unplug the power supply before adding or removing DIMMs

or other system components. Failure to do so may cause severe damage

to both the motherboard and the components.

A DDR2 DIMM is keyed with a notch so that it ﬁts in only one direction. DO

NOT force a DIMM into a socket to avoid damaging the DIMM.

Unlocked retaining clip

DDR2 DIMM notch

Recommended memory conﬁgurations

Memory frequency/CPU FSB synchronization

Sockets

Mode DIMM1 DIMM2

Single-channel (1) Installed Installed

CPU FSB DDR2 DIMM Type Memory frequency

533 MHz DDR2 533 533 MHz

DDR2 667 533 MHz

667 MHz DDR2 533 533 MHz

DDR2 667 667 MHz

Tabla de contenidos

Otros manuales de Placa madre de Asus

Asus

Asus NCT-DA Manual de usuario

Asus

Asus Motherboard A8N-SLI Premium Manual de usuario

Asus

Asus M2N MX - SE Motherboard - Micro ATX Manual de usuario

Asus

Asus P7H55-M BR Manual de usuario

Asus

Asus PRIME H410M-A Manual de usuario

Asus

Asus ROG STRIX X570-F GAMING Manual de usuario

Asus

Asus P4C800-E Deluxe Manual de usuario

Asus

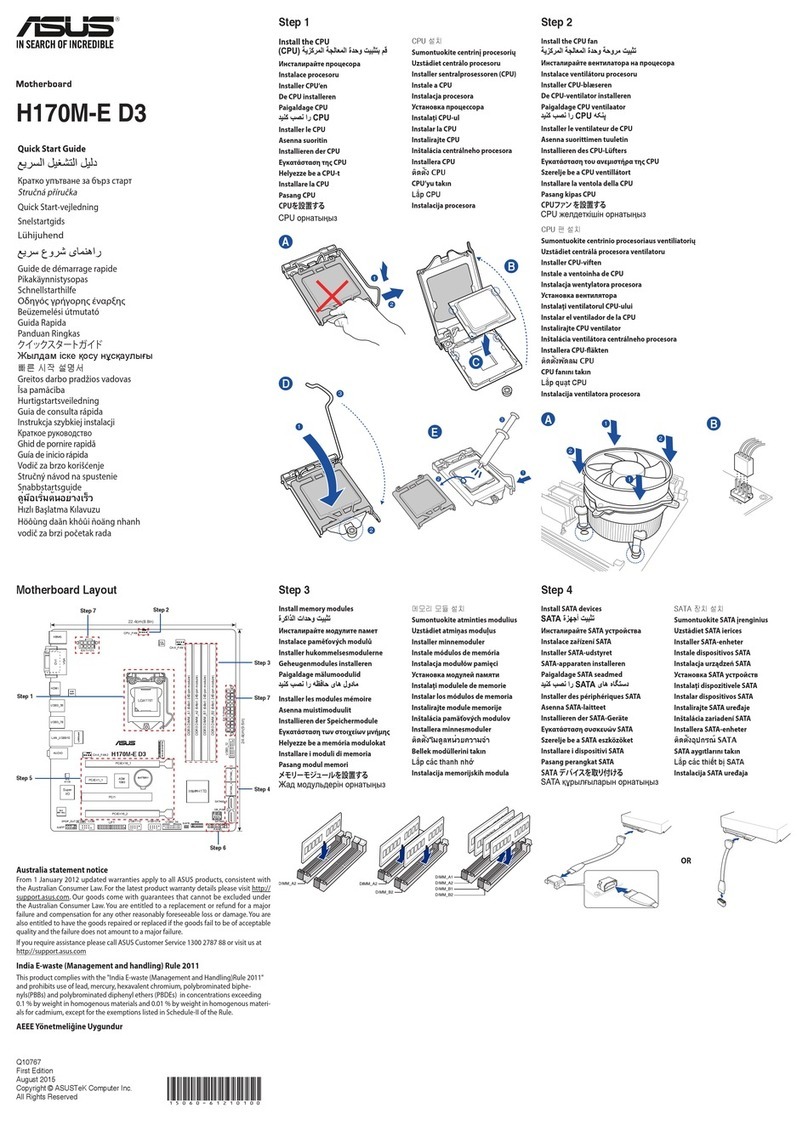

Asus H170M-E D3 Manual de usuario
