Asus DSL-AC68U Manual de usuario

Quick Start Guide

DSL-AC68UDSL-AC68U

Dual-band 802.11ac VDSL/ADSLDual-band 802.11ac VDSL/ADSL

Modem RouterModem Router

EEU15295a / Second Edition / January 2021

Table of contentsTable of contents

Package contents ....................................................................... 3

A quick look at your router ..................................................... 3

Preparing your modem............................................................ 4

Setting up your router.............................................................. 5

A. Wired connection .............................................................................5

B. Wireless connection ........................................................................6

Remembering your wireless router settings ................... 7

FAQ .................................................................................................. 7

Networks Global Hotline Information ..............................89

This QSG contains these languages:

English

Български

Hrvatski

Čeština

Eesti

Magyar

Lietuvių

Latviski

Polski

Русский

Română

Srpski

Slovensky

Slovenščina

Türkçe

Українська

English

A quick look at your routerA quick look at your router

NOTE: If any of the items is damaged or missing, contact your retailer.

Package contentsPackage contents

VDSL/ADSL Wireless Modem Router Power adapter

Network cable (RJ-45 cable) Quick Start Guide

Splitter (varies with region) DSL/phone cable (RJ-11 cable)

Warranty card Support CD (User Manual/

Utilities)

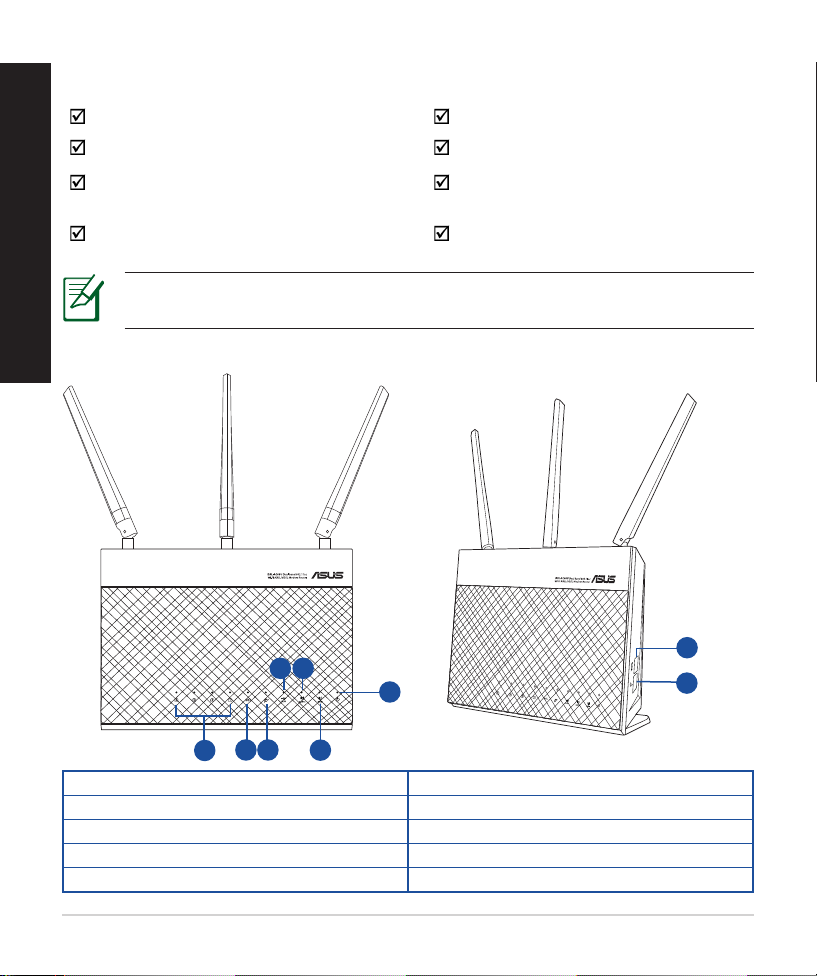

1. LAN 1~4 LED 6. 5 GHz LED

2. DSL LED 7. Power LED

3. Internet LED 8. WPS button

4. USB 3.0 LED 9. Wi-Fi on/o button

5. 2.4 GHz LED

4 5

English

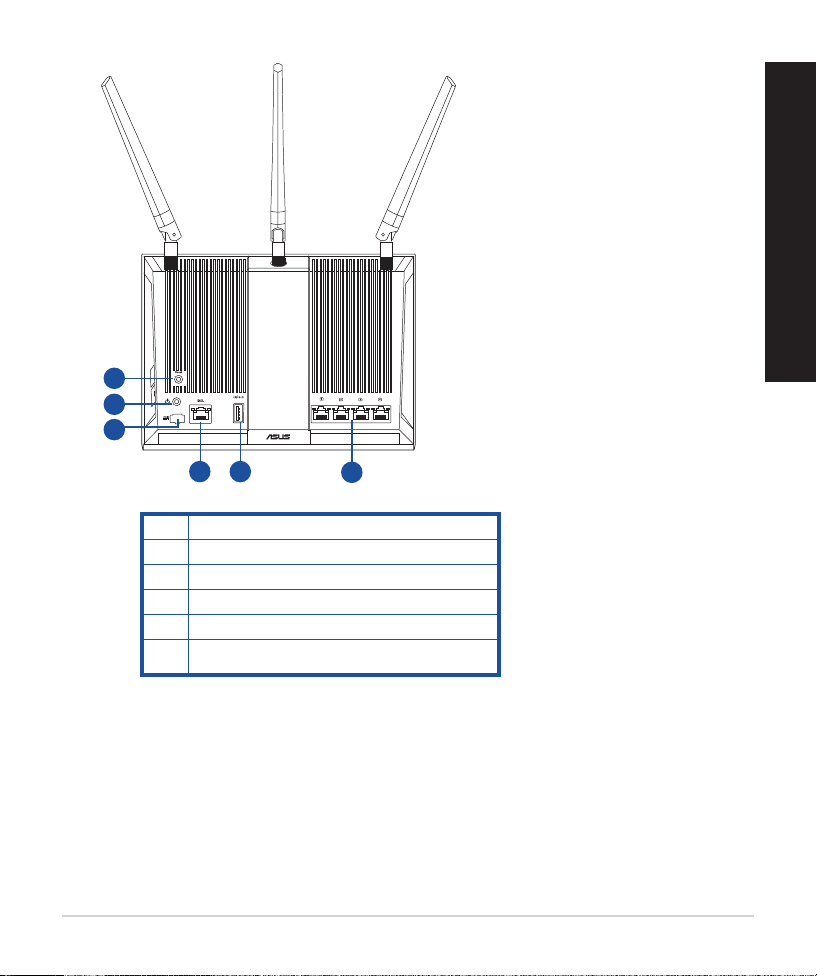

10. Reset button

11. Power button

12. DC-IN jack

13. RJ-11 port

14. USB 3.0 port

15. LAN 1~4 ports

13 14 15

English

Setting upSetting up

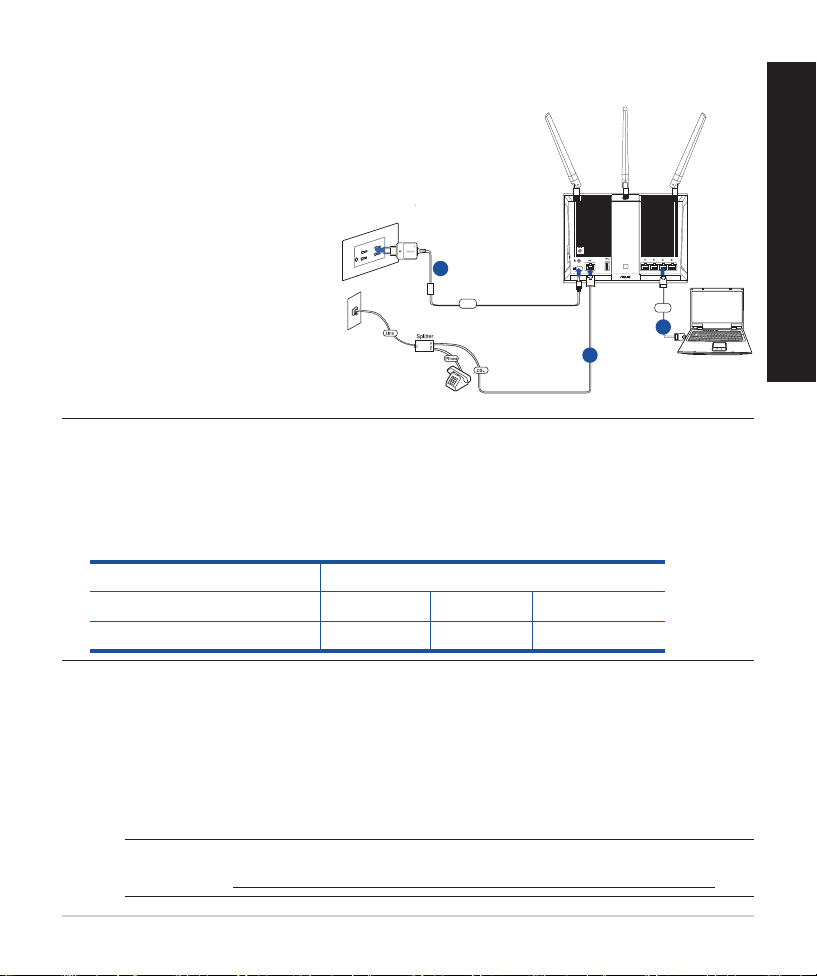

1. Insert your xDSL modem

router’s power adapter to

the DC-IN port and plug it to

a power outlet.

2. Connect one end of the

RJ-11 cable to the DSL port

of your xDSL modem router,

and connect the other end

to the DSL port of your

splitter.

3. Using a network cable,

connect your computer to

your xDSL modem router’s

LAN port.

NOTES:

• Use only the adapter that came with your package. Using other adapters may

damage the device.

• Specications:

DC Power adapter DC Output: +19V with max. 1.75A current

Operating Temperature 0~40oC Storage 0~70oC

Operating Humidity 50~90% Storage 20~90%

Powering upPowering up

1. Turn on your xDSL modem router and wait for a few minutes for Internet

connection.

2. When DSL LED stops ashing and lights constantly, you can start the DSL setup

process via the QIS Wizard (Quick Internet Setup Wizard).

NOTE: For more details on QIS, refer to the online user manual on ASUS

support site: https://www.asus.com/Networking/DSLAC68U/HelpDesk/

Computer

Wall Power Outlet

LAN

Power

Wall telephone

outlet

English

Getting startedGetting started

1. The web GUI launches automatically when you open a web browser. If it does

not auto-launch, enter http://router.asus.com

2. Set up a password for your router to prevent unauthorized access.

NOTE: Disable the proxy settings, dial-up connection, and set your TCP/IP

settings to automatically obtain an IP address. For more details, please refer

to the ASUS Support site: https://www.asus.com/Networking/DSLAC68U/

HelpDesk/

3. Your xDSL modem router automatically congures the DSL Annex mode,

Internet connection type, and VPI/VCI value and encapsulation modes. Key in

the Internet account information that you obtained from your Internet Service

Provider (ISP).

IMPORTANT! Obtain the necessary information from your ISP to congure

the Internet connection.

English

5. Assign the wireless network name (SSID) and security key for your wireless

connection. Click Apply when done.

6. A summary page appears to show the current settings for your network. Click

Next to save your network settings and go to the Network Map page.

4. If QIS failed to detect your Internet connection type, manually congure your

connection settings.

NOTES:

• The auto-detection of your ISP connection type takes place when you congure

your xDSL modem router for the rst time or when your device is reset to its

default settings.

• By default, the QIS Wizard is for DSL setup. If you want to congure DSL-AC68U

as a wireless router, refer to the section Internet Connection in the online user

manual on ASUS support site: https://www.asus.com/Networking/DSLAC68U/

HelpDesk/

български

Бърз прегледБърз преглед

ЗАБЕЛЕЖКА: Ако някой от компонентите е повреден или липсва,

свържете се с Вашия търговски представител.

Бърз прегледБърз преглед

Безжичен VDSL/ADSL модем-рутер Адаптер

Мрежов кабел (RJ-45 кабел) Ръководство за бърз старт

Сплитер (варира за различните

региони)

DSL/телефонен кабел (RJ-11

кабел)

Гаранционна карта Помощен CD диск (ръководство,

помощен софтуер)

1. LAN1~4 LED 6. 5GHz LED

2. DSL LED 7. LED на захранването

3. Интернет индикатор 8. WPS бутон

4. USB 3.0 индикатор 9. изключване на Wi-Fi

5. 2.4 GHz LED

4 5

български

10. Бутон за нулиране

11. Бутон за включване и изключване

12. Порт захранване (DC-IN)

13. RJ-11 порт

14. USB 3.0 порт

15. LAN1~4 порта

13 14 15

български

НастройкаНастройка

1. Включете захранващия

адаптер на Вашия xDSL

модем-рутер във входа

за прав ток, след което го

включете в контакт.

2. Свържете единия край на

RJ-11 кабела към DSL порта

на Вашия xDSL модем-рутер,

след което свържете другия

край към DSL порта на

Вашия сплитер.

3. С помощта на мрежов кабел,

свържете компютъра си с

LAN порта на безжичния

xDSL модем-рутер.

NOTES:

• Използвайте само захранващия адаптер, предоставен с Вашия пакет.

Използването на други адаптери може да доведе до повреда на

устройството.

• Технически характеристики:

Адаптер за захранване с прав ток Изход за прав ток: +19V с макс. 1.75 ток;

Работна температура 0~40oC Памет 0~70oC

Влажност при работа 50~90% Памет 20~90%

ВключванеВключване

1. Включете своя xDSL модем-рутер и изчакайте няколко минути за интернет

връзка.

2. Когато DSL LED спре да мига и започне да свети непрекъснато, можете да

стартирате процеса на инсталиране на DSL чрез QIS Wizard (Съветник за

бързо конфигуриране на интернет).

ЗАБЕЛЕЖКА: За повече информация относно QIS, вижте

ръководството на потребителя на уеб сайта за поддръжка на ASUS:

https://www.asus.com/Networking/DSLAC68U/HelpDesk/.

Computer

Wall Power Outlet

LAN

Power

Wall telephone

outlet
