Disassembly Procedure

V1.0

2 - 1

Disassembly and Assembly

Please follow the information provided in this section to perform the

complete disassembly procedure of the notebook. Be sure to use proper

tools described before.

SUS X510 Series Notebook consists of various modules. This chapter describes the

procedure for the complete notebook disassembly and assembly (Assemble process please

look up from the last page). In addition, in between procedures, the detailed disassembly

(assembly) procedure of individual modules will be provided for your service needs.

The disassembly procedure consists of the following steps:

Service overview

Appropriate Tools

Bottom Case Module

HDD Module

WLAN Module

Battery Module

SSD Module

Thermal Assy & FAN Module

Memory Module

IO Board

HDDBoard

Motherboard Module

Speaker Module

Touchpad Module

LCD Module

Chapter

2

A

Disassembly Procedure

V1.0

2 - 2

Service Overview

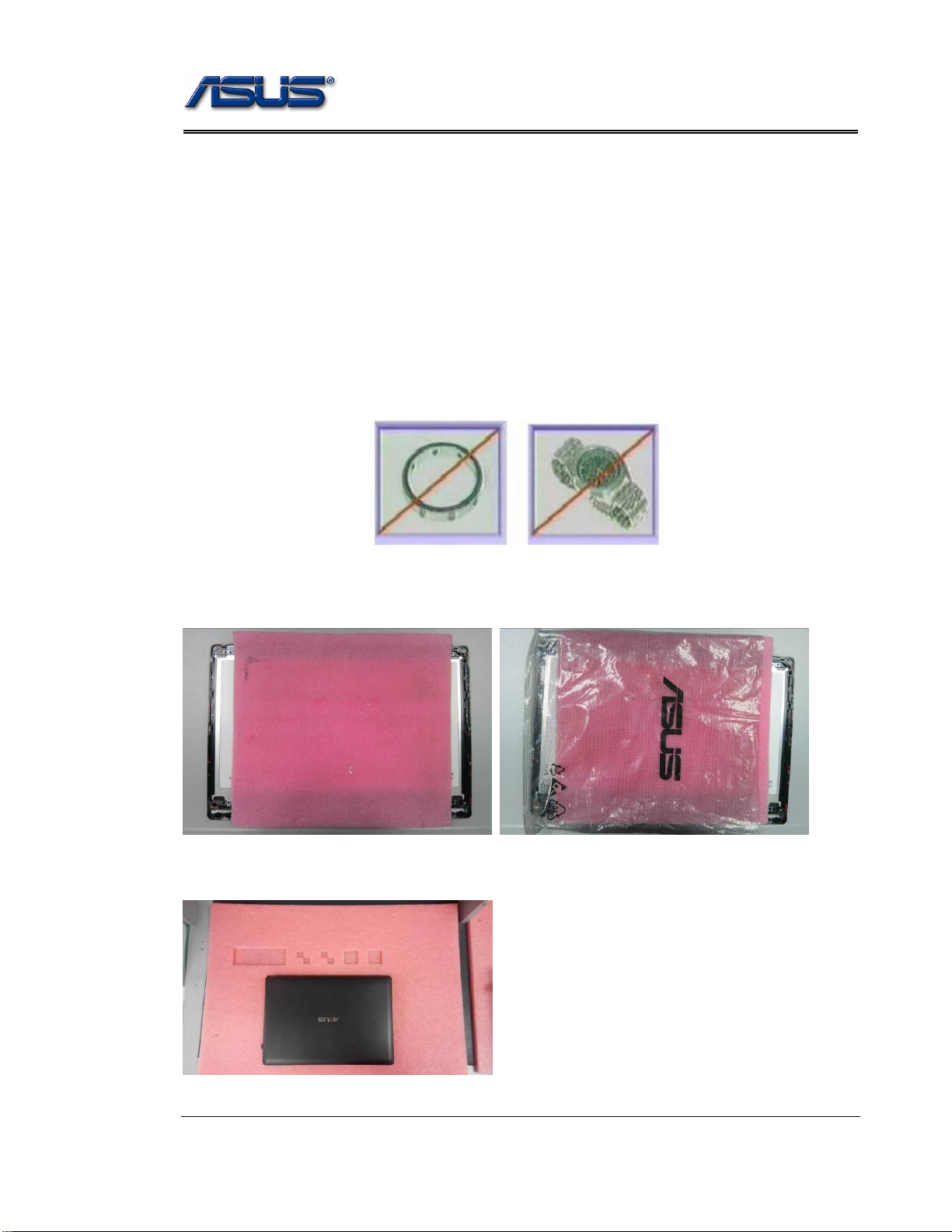

Please pay special attention to the cautions below to prevent any damages to the notebook and also

please be sure to select the appropriate tools described in this section to perform any services desired.

Precautions

Before you perform any service and or repair on the notebook, please follow the steps below first.

1. Be sure that the notebook is powered down.

2. Disconnect the AC plug from the notebook.

3. Remove all rings, watches and any other metal objects from your hands.

4. Always wear a ground strap on your hand to protect the notebook from static discharge.

5. Please refer to “ANSI ESD S20.20”about ESD protection measure.

6. Put disassemble the parts in the functional PE BAG for avoid any damages of the A/B/C/D

part.

7. Environment temperature is 20-30 ℃and humidity is 40% - 70%.

8. Avoid scratching the surface of the machine, please use anti-static and soft materials to put on

desk in repair environment as below photo.

Disassembly Procedure

V1.0

2 - 3

9. Screw Appearance Criteria.

If the screws have the following damaged appearance, please do not use.

a. Shape deformed

b. Paint scratched off

c. Rusty

d. Damaged head –unable to drive in

e. Damaged unable to securely tighten

BACK

Disassembly Procedure

V1.0

2 - 4

Appropriate Tools

The illustrations below show the appropriate tools that should be used for the notebook’s service and

repair.

Cross Screwdriver

Please accord to different screw specification to choose different screwdriver and head.

Below photos are for reference only.

Use a cross screwdriver to fasten/remove screws.

Plastic Blade (PN: 20LT0-0005O000)

Disassembly Procedure

V1.0

2 - 5

Tweezers

Use a pair of tweezers to remove/insert flexible cables.

Thickness gauge (PN: 20LT0-0002J000)

Thickness compass specification 0.05mm-1.5mm

Use it to measure the gap.

BACK

Disassembly Procedure

V1.0

2 - 6

Bottom Case Module

The illustrations below show how to remove the Bottom Case Module.

Remove Bottom Case Module

1. Follow below numbers to remove 10 screws on the Bottom Case.

Assembly Notice: follow the reverse numbers to lock screws.

Screw tightening torque:[1-7] 2.0±0.2 kgf-cm,[8-9] 2.0±0.2 kgf-cm,[10] 2.0±0.2 kgf-cm

1

2

3

4

6

5

9

7

8

10

SCREW M2*6L (K) W-NI,NY

SCREW M2*3L D4.5 (K) W-NI NY

SCREW M2*8.5L(4.5,0.75) (K)#1

Disassembly Procedure

V1.0

2 - 7

2. Remove 2 rubber cover on the bottom case and remove 2 screws under it.

Be careful to use tweezers to avoid scratching the cover.

Assembly Notice: Screw tightening torque:3.0±0.2 kgf-cm

SCREW M2.5*8L (K) B-ZN,NY

Disassembly Procedure

V1.0

2 - 8

3. Using a plastic blade to pry up the bottom case away by following the hook position below.

BACK

Parts:

Total screw * 12

X510UA-1A BOT CASE ASSY * 1

(Actual part name depends on different SKU.)

Please pry open bottom

case from this location

Disassembly Procedure

V1.0

2 - 9

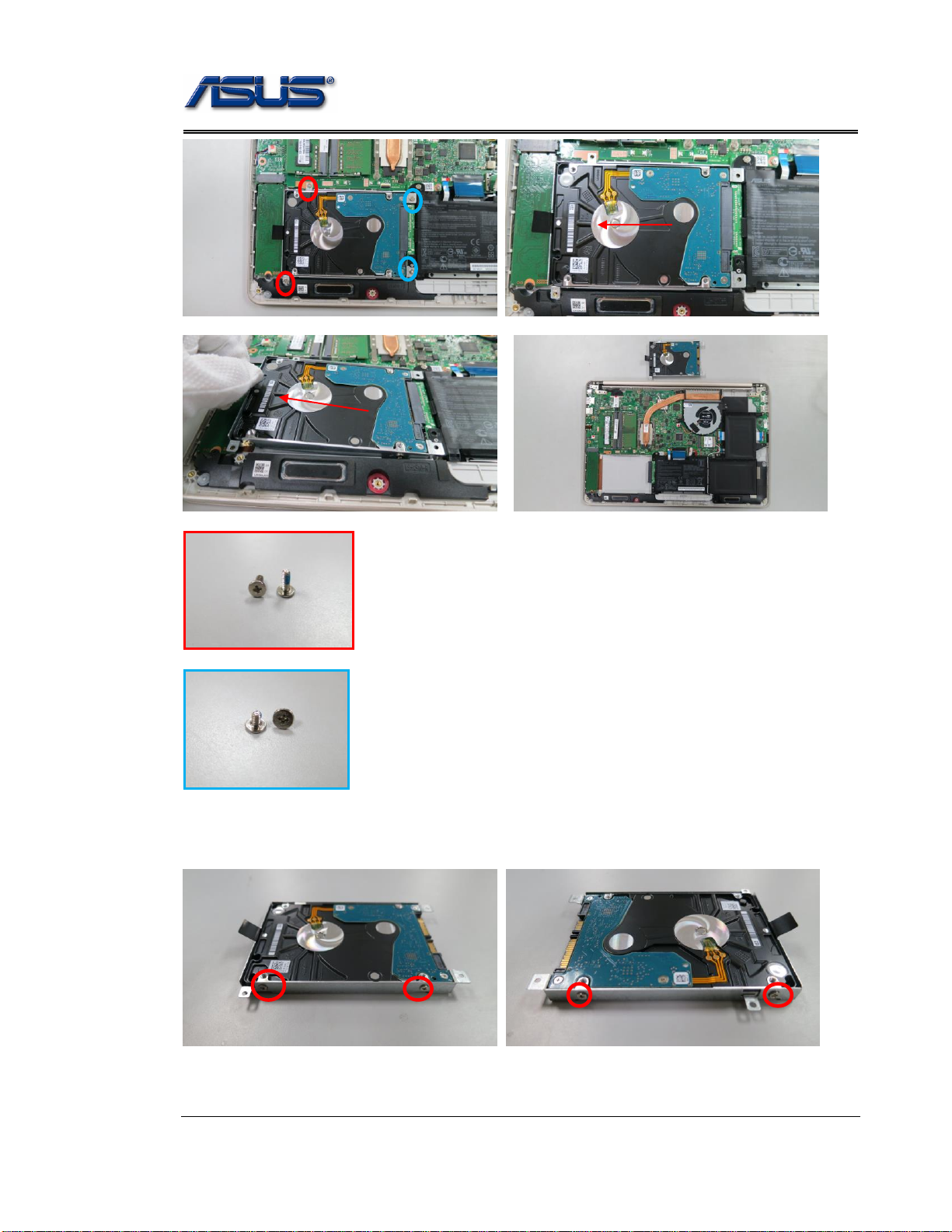

HDD Module

The illustrations below show how to remove the HDD from the notebook.

Remove HDD Module

1. Disconnect the battery cable.

Notice: Before disassembly, please be sure to pull out adapter and disconnect the battery

more than ten seconds in order to avoid IC damage.

Disconnect the battery cable by hand instead of using a tweezer , in order to avoid short circult.

2. Tear up the mylar and follow below numbers to remove 4 screws and take HDD module away.

Assembly Notice: follow the reverse numbers to lock screws.

Screw tightening torque: [1-2]2.0±0.25kgf-cm,[3-4]2.0±0.25kgf-cm

Disassembly Procedure

V1.0

2 - 10

3. Follow below numbers to remove 4 screws on the bracket.

Assembly Notice: follow the reverse numbers to lock screws.

Screw tightening torque: 2.5+0.5kgf-cm

1

2

4

3

SCREW M2*6L (K) W-NI,NY

1

2

3

4

SCREW M2*3L D4.5 (K) W-NI NY
