Asus W3000A Series Manual de usuario

disassembly procedure

W3A

3 - 1

Disassembly Procedure

Please follow the information provided in this section to perform the complete

disassembly procedure of the notebook. Be sure to use proper tools

described before.

SUS W3000A Series Notebook consists of various modules. This chapter describes the

procedures for the complete notebook disassembly. In addition, in between procedures, the

detailed disassembly procedure of individual modules will be provided for your service needs.

The disassembly procedure consists of the following steps:

•Battery Module

•HDD Module

•Optical Drive Module

•CPU Module

•Second Memory Module

•Mini PCI Module

•Keyboard Module

•First Memory Module

•LCD Module

•Top Case Module

•Motherboard Module

Chapter

disassembly procedure

W3A

3 - 2

Battery Module

The illustration below shows how to remove the battery module.

1. Press latch to open the battery module, then lift battery module away from the system.

HDD Module

The illustrations below show how to remove the HDD module from the notebook.

Removing HDD Module

1. Remove 1 screw (M2*4L(K)), then remove the HDD door.

2. Lift the hard disk module and disconnect the FPC then take away the hard disk module.

BATTERY

HDD

MODULE

HDD

MODULE

REMOVAL

M2*4L

disassembly procedure

W3A

3 - 3

Optical Drive Module

Press latch here then pull it out.

CPU Module

The illustrations below show how to remove the CPU module from the notebook.

Removing CPU

1. Remove 6 screws(M2*4L(K)) and take the Fan bracket away.

2. Disconnect the FAN connector and remove 2 screws(M2*4L(K)) then take away the Fan Module.

OPTICAL

DRIVE

REMOVAL

CPU MODULE

REMOVAL

CPU

REMOVAL

M2*4L

disassembly procedure

W3A

3 - 4

3. Remove the 4 screws (M2*4L(K)) upon the thermal module and take away the CPU heat sink

module gently

4. Turn the non-removable screw here 180 degrees counter-clockwise to loosen the CPU and take the

CPU away

Note: If thermal module has no thermal pad on it, please plus a thermal pad on the CPU die

before assembling.

disassembly procedure

W3A

3 - 5

Second Memory Module

The W3000A Series Notebook does not have onboard RAM. There are two SO-DIMM sockets for

installing SO-DIMM RAM. It can upgrade the total memory size up to 2GB with a 1GB module on each

socket.

Removing Memory module

1. Pull 2 latches

2. Pop the module up to a 45°angles, and then pulling out the module in that angle.

Wireless LAN Module

This slot usually has Wireless LAN module when leaving the factory, this slot is for optional system

upgrade.

Removing Wireless LAN Module

1. Remove 1 screw (M2*4L(K)), then take the mini-PCI cover off.

2. Remove 2 Antenna cables from Wireless LAN Module

IRELESS

LAN

MODULE

IRELESS

LAN

REMOVAL

SECOND

MEMORY

MODULE

MEMORY

REMOVAL

disassembly procedure

W3A

3 - 6

3. Remove the Wireless LAN module by opening the 2 latches aside, which will pop

the module up to an angle of 30°, then pull out the module in that angle just like

memory module.

Keyboard Module

The illustration of below shows how to remove the keyboard

Removing Keyboard and Keyboard Cover

1. Remove 2 screws (M2*4L(K))

2. Unlock 3 keyboard latches then pull out the keyboard forward and lay the keyboard on the front side

then disconnect the FPC.

KEYBOARD

K/B COVER

REMOVAL

disassembly procedure

W3A

3 - 7

First Memory Module

1. The first memory module is under keyboard. Push the memory cover to the left side and lift the

memory cover and open the two latches to pop up memory module at 45 degrees angle then pull it

out.

LCD Module

The illustrations below show how to remove and disassemble the LCD module. The module contains

LCD panel, Inverter board, LCD Hinge bracket, Hinge cover, LCD front cover, LCD back cover

1. Remove 2 screws(M2*4L(K)) and FPC on top case and take away the Keyboard Cover.

2. Remove Coaxial cable and inverter cable

FIRST

MEMORY

MODULE

REMOVAL

LCD

MODULE

disassembly procedure

W3A

3 - 8

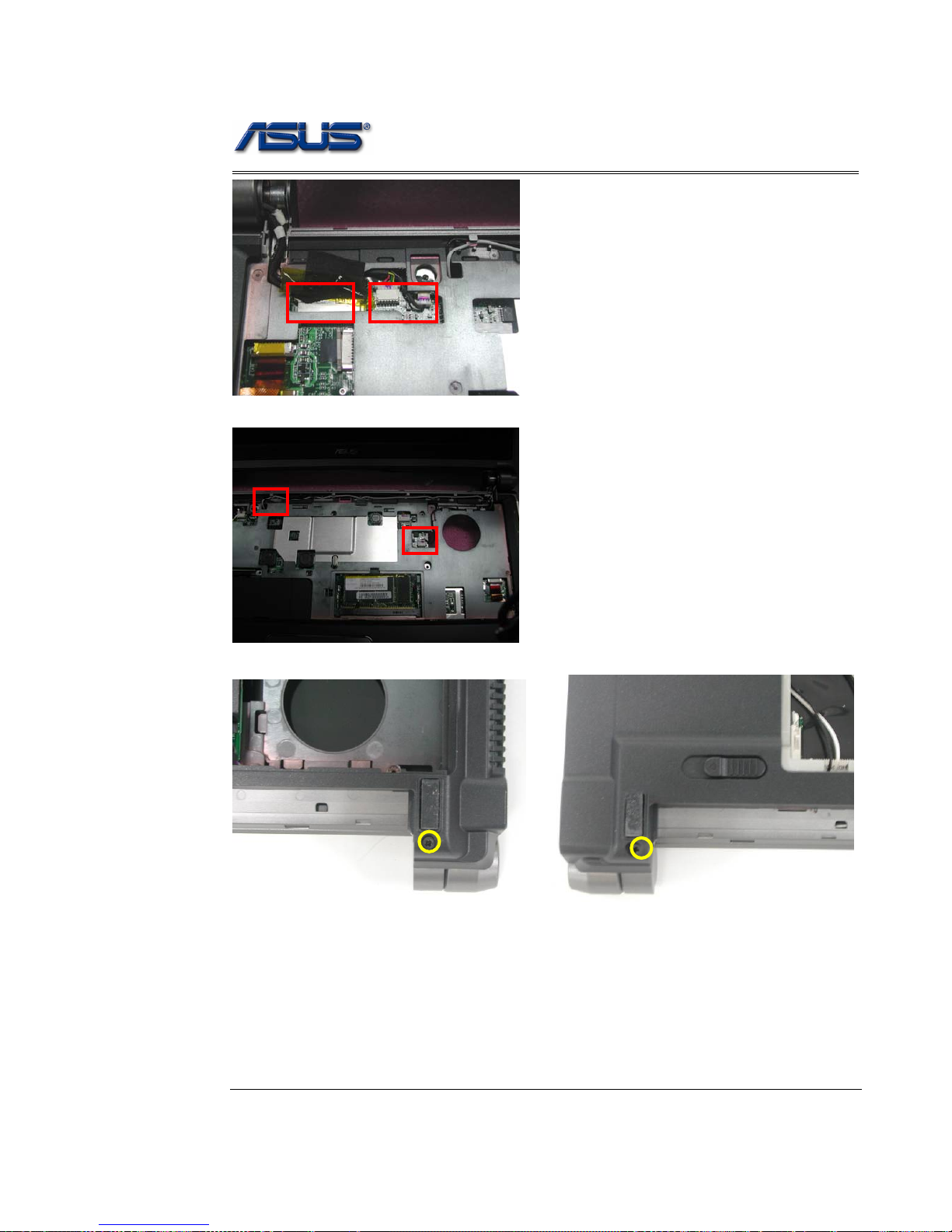

3. Remove Antenna and switch cable.

4. Remove 2 screws(M2*8L(K)) on bottom case

5. Remove 2 screws(M2*8L(K)) on both ends

M2*8L

disassembly procedure

W3A

3 - 9

6. Take away the LCD Module

Removing LCD Module

1. Remove 5 rubber pads and 5 screws(M2 x 4L) from LCD module.

2. Prying the inside edges of the top front bezel, then separate it from LCD back cover and take

LCD

REMOVAL

M2*8L

disassembly procedure

W3A

3 - 10

LCD front bezel away.

3. Disconnect both inverter cable.

4. Remove 1 screws (M2*4L(K)) and 2 screws (M2*3L(K)) take Inverter board off.

5. Remove 8 screws(M2*4L(K)) and take the LCD panel off .

LCD

DISASSEMBLY
