Asus S62F Series Guía de instalación

service overview

1-1

Chapter

Service Overview

Carefully read through this chapter for a look at various components of

the notebook and necessary cautions and tools before performing any

service and repairs.

o provide the best service and support for the ASUS S62F Series, we have provided the

below information for technicians from distributors and resellers to perform the

complete notebook disassembly and assembly. But before performing the procedures,

please be sure to read through the overview in this chapter for component overview,

cautions and tools to avoid any unwarranted damages to the notebook’s hardware.

The following chapter includes:

•S62F Overview

•Components

•Precautions

•Appropriate Tools

service overview

1-2

S62F Series Overview and Components

The ASUS S62F Series Notebook is a product combining the power of Intel®

Pentium-M CPU. In this section, an overview for the S62F, along with its components,

will be presented.

S62F Overview

OVERVIEW

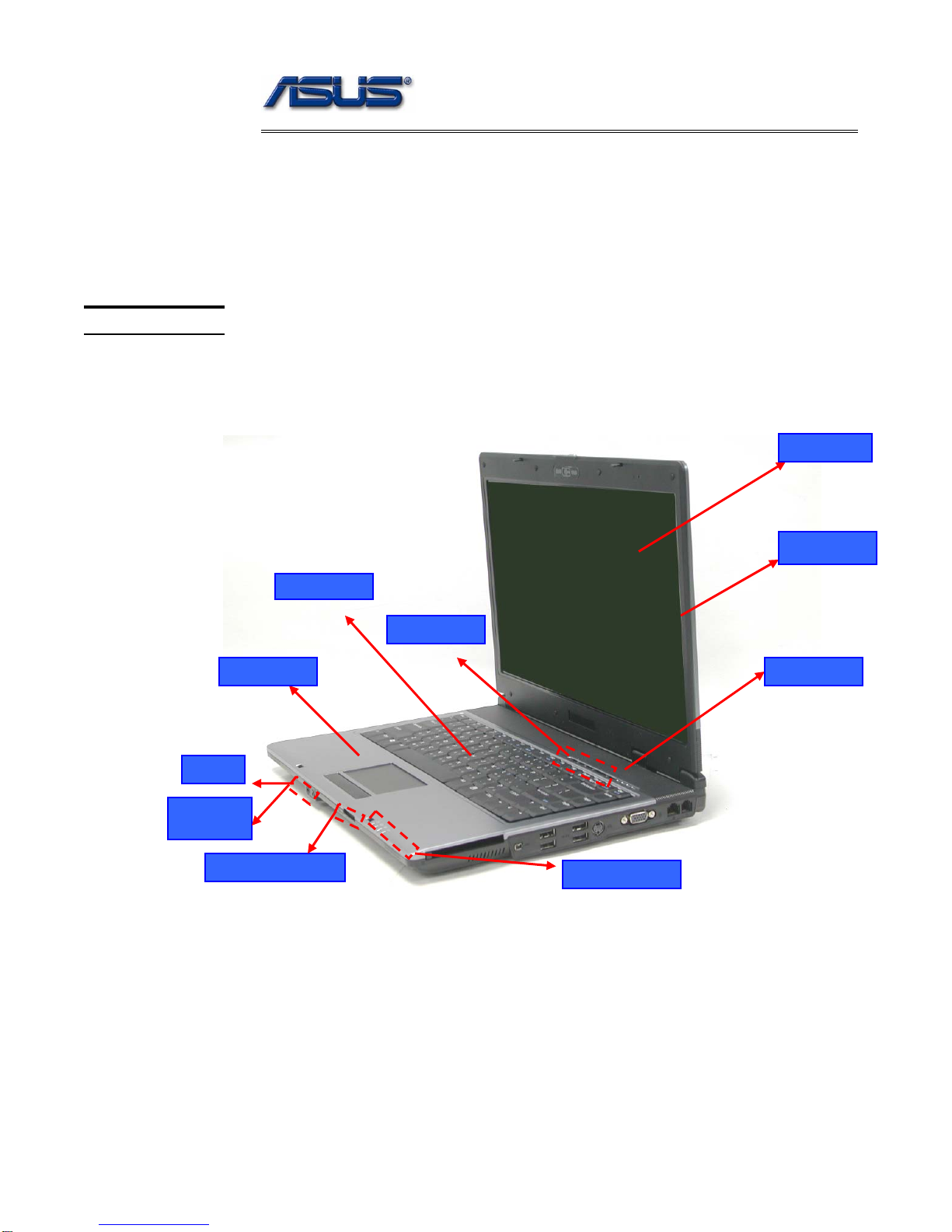

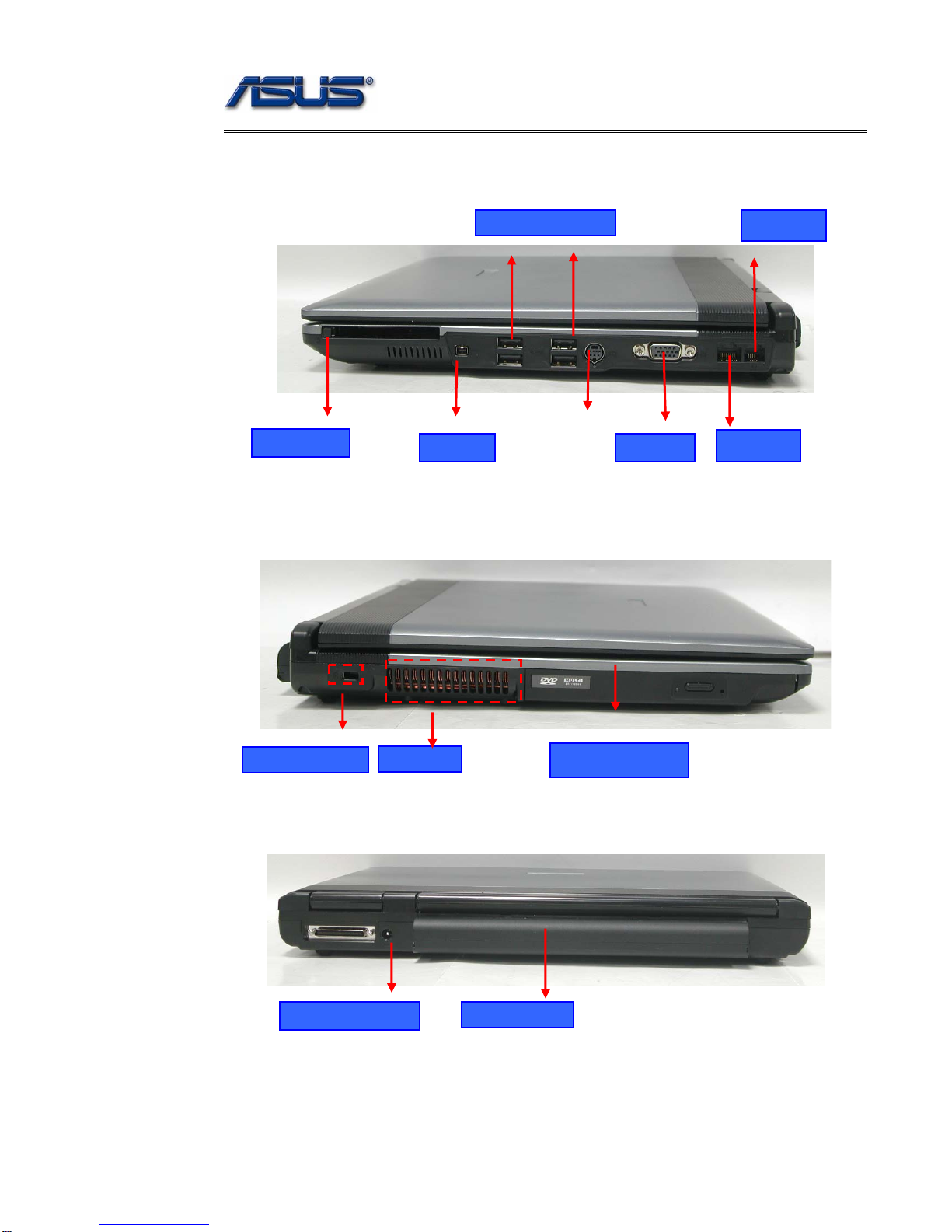

The illustrations below show the notebook’s overview from front view, right side view,

left side view, and rear side view. Most of the parts will be discussed in this manual.

LCD

anel

LCD bezel

board

Instant Ke

TouchPad Power switch

Mic input

LED Indicators

Headphone

output

3 in 1 card reader

service overview

1 - 3

USB

(

2.0

)

orts Modem port

PCMCIA slot LAN port

VGA Port

1394 port

Optical Drive Device

Air vents

Kensin

ton Lock

Batter

Module

DC Power Input Jack

service overview

1 - 4

Components

LCD

COMPONENTS

INVERTER

BOARD

The illustrations below show the components of theS62F Series.

LCD Panel*

The illustration below shows the LCD display panel. The S62F Series notebook comes with

15.0” TFT LCD Panel.

Inverter Board

The illustration below shows the inverter board, which is hidden underneath the lower edge

of the LCD front bezel.

service overview

1 - 5

LCD bracket

LCD

BRACKETS The illustration below shows the LCD brackets.

Hinge Cover

HINGE COVER

The illustration below shows the Hinge Cover.

LCD Case

LCD CASE The illustration below shows the LCD case. Here is the LCD bezel.

service overview

1 - 6

Keyboard

KEYBOARD The illustration below shows the keyboard plate. It can be exchanged with keyboard plates

with different language layouts, such as U.S., German, Russian, British, Italian and others.

Top Case Module

TOP CASE

The illustration below shows the top case of the notebook.

Battery Pack

BATTERY The illustration below shows the battery pack of the notebook. It’s located at bottom of the

notebook.

service overview

1 - 7

Optical Drive Device

OPTICAL The illustration below shows the Optical Drive Device

DRIVE

DEVICE

Hard Disk Drive

HDD The illustration below shows the 2.5” industry-standard HDD with 9.5mm height.

HDD Bracket

HDD BRACKET

The illustration below shows the HDD Bracket that is placed over the HDD.

CPU

CPU The illustration below shows the Intel Pentium-M CPU view.

service overview

1 - 8

CPU Thermal Module

CPU The illustration below shows the thermal module for the CPU. It’s located on the top of

CPU.

THERMAL

MODULE

Memory Module

MEMORY The illustration below shows the industry-standard 200pin SO-DIMM DDR SDRAM

module for the notebook.

Motherboard

MOTHERBOARD The illustration below shows the motherboard of the notebook.

service overview

1 - 9

Modem Module

MODEM The illustration below shows the modem module of the notebook.

MODULE

WALN Module

WALN The illustration below shows the WALN module of the notebook.

MODULE

Top Case

TOP CASE The illustration below shows the TOP case of the notebook.

service overview

1 - 10

Service Overview

Please pay special attention to the cautions below to prevent any damages to the notebook

and also please be sure to select the appropriate tools described in this section to perform any

services desired.

Precautions

CAUTIONS

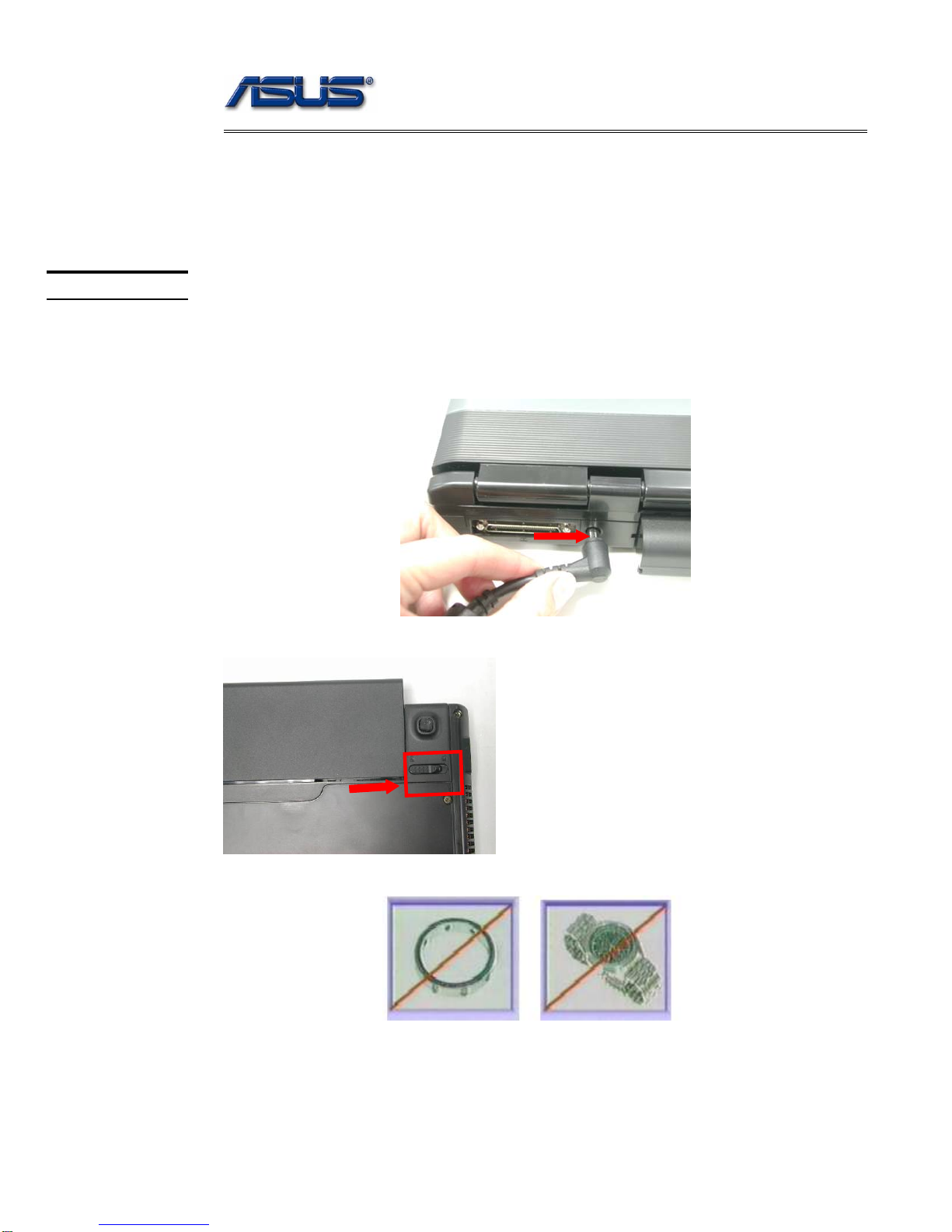

Before you perform any service and/or repair on the notebook, please follow the steps below

first.

1. Be sure that the notebook is powered down.

2. Disconnect the AC plug from the notebook

3. Turn the notebook over. Unlock and hold the latches, and remove the battery .

3. Remove all rings, watches and any other metal objects from your hands.

4. Always wear a ground strap on your hand to protect the notebook from static discharge.
