AEC-6613

Fanless Embedded Box PC

User‟s Manual 4th Ed

All manuals and user guides at all-guides.com

all-guides.com

Preface II

Fanless Embedded Box PC AEC-6613

This document is copyrighted, 2015. All rights are reserved. The original manufacturer

reserves the right to make improvements to the products described in this manual at

any time without notice.

No part of this manual may be reproduced, copied, translated, or transmitted in any

form or by any means without the prior written permission of the original

manufacturer. Information provided in this manual is intended to be accurate and

reliable. However, the original manufacturer assumes no responsibility for its use, or for

any infringements upon the rights of third parties that may result from its use.

The material in this document is for product information only and is subject to change

without notice. While reasonable efforts have been made in the preparation of this

document to assure its accuracy, AAEON assumes no liabilities resulting from errors or

omissions in this document, or from the use of the information contained herein.

AAEON reserves the right to make changes in the product design without notice to its

users.

All manuals and user guides at all-guides.com

Preface III

Fanless Embedded Box PC AEC-6613

Acknowledgement

All other products‟ name or trademarks are properties of their respective owners.

Microsoft Windows is a registered trademark of Microsoft Corp.

Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel Corporation

Core, Atom are trademarks of Intel Corporation

ITE is a trademark of Integrated Technology Express, Inc.

IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines

Corporation.

All other product names or trademarks are properties of their respective owners.

All manuals and user guides at all-guides.com

Preface IV

Fanless Embedded Box PC AEC-6613

Packing List

Before setting up your product, please make sure the following items have been

shipped:

Item

Quantity

BOXER-6613

Phoenix power connector

Screw package

Heat spreader

Wall mount brackets

Product CD with User‟s Manual (in pdf) and drivers

If any of these items are missing or damaged, please contact your distributor or sales

representative immediately.

All manuals and user guides at all-guides.com

Preface V

Fanless Embedded Box PC AEC-6613

About this Document

This User‟s Manual contains all the essential information, such as detailed descriptions

and explanations on the product‟s hardware and software features (if any), its

specifications, dimensions, jumper/connector settings/definitions, and driver

installation instructions (if any), to facilitate users in setting up their product.

Users may refer to the AAEON.com for the latest version of this document.

All manuals and user guides at all-guides.com

Preface VI

Fanless Embedded Box PC AEC-6613

Safety Precautions

Please read the following safety instructions carefully. It is advised that you keep this

manual for future references

1. All cautions and warnings on the device should be noted.

2. All cables and adapters supplied by AAEON are certified and in accordance with

the material safety laws and regulations of the country of sale. Do not use any

cables or adapters not supplied by AAEON to prevent system malfunction or

fires.

3. Make sure the power source matches the power rating of the device.

4. Position the power cord so that people cannot step on it. Do not place anything

over the power cord.

5. Always completely disconnect the power before working on the system‟s

hardware.

6. No connections should be made when the system is powered as a sudden rush

of power may damage sensitive electronic components.

7. If the device is not to be used for a long time, disconnect it from the power

supply to avoid damage by transient over-voltage.

8. Always disconnect this device from any AC supply before cleaning.

9. While cleaning, use a damp cloth instead of liquid or spray detergents.

10. Make sure the device is installed near a power outlet and is easily accessible.

11. Keep this device away from humidity.

12. Place the device on a solid surface during installation to prevent falls

13. Do not cover the openings on the device to ensure optimal heat dissipation.

14. Watch out for high temperatures when the system is running.

15. Do not touch the heat sink or heat spreader when the system is running

16. Never pour any liquid into the openings. This could cause fire or electric shock.

All manuals and user guides at all-guides.com

all-guides.com

Preface VII

Fanless Embedded Box PC AEC-6613

17. As most electronic components are sensitive to static electrical charge, be sure

to ground yourself to prevent static charge when installing the internal

components. Use a grounding wrist strap and contain all electronic components

in any static-shielded containers.

18. If any of the following situations arises, please the contact our service personnel:

i. Damaged power cord or plug

ii. Liquid intrusion to the device

iii. Exposure to moisture

iv. Device is not working as expected or in a manner as described in

this manual

v. The device is dropped or damaged

vi. Any obvious signs of damage displayed on the device

19. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WITH

TEMPERATURES BEYOND THE DEVICE‟S PERMITTED STORAGE TEMPERATURES

(SEE CHAPTER 1) TO PREVENT DAMAGE.

All manuals and user guides at all-guides.com

Preface VIII

Fanless Embedded Box PC AEC-6613

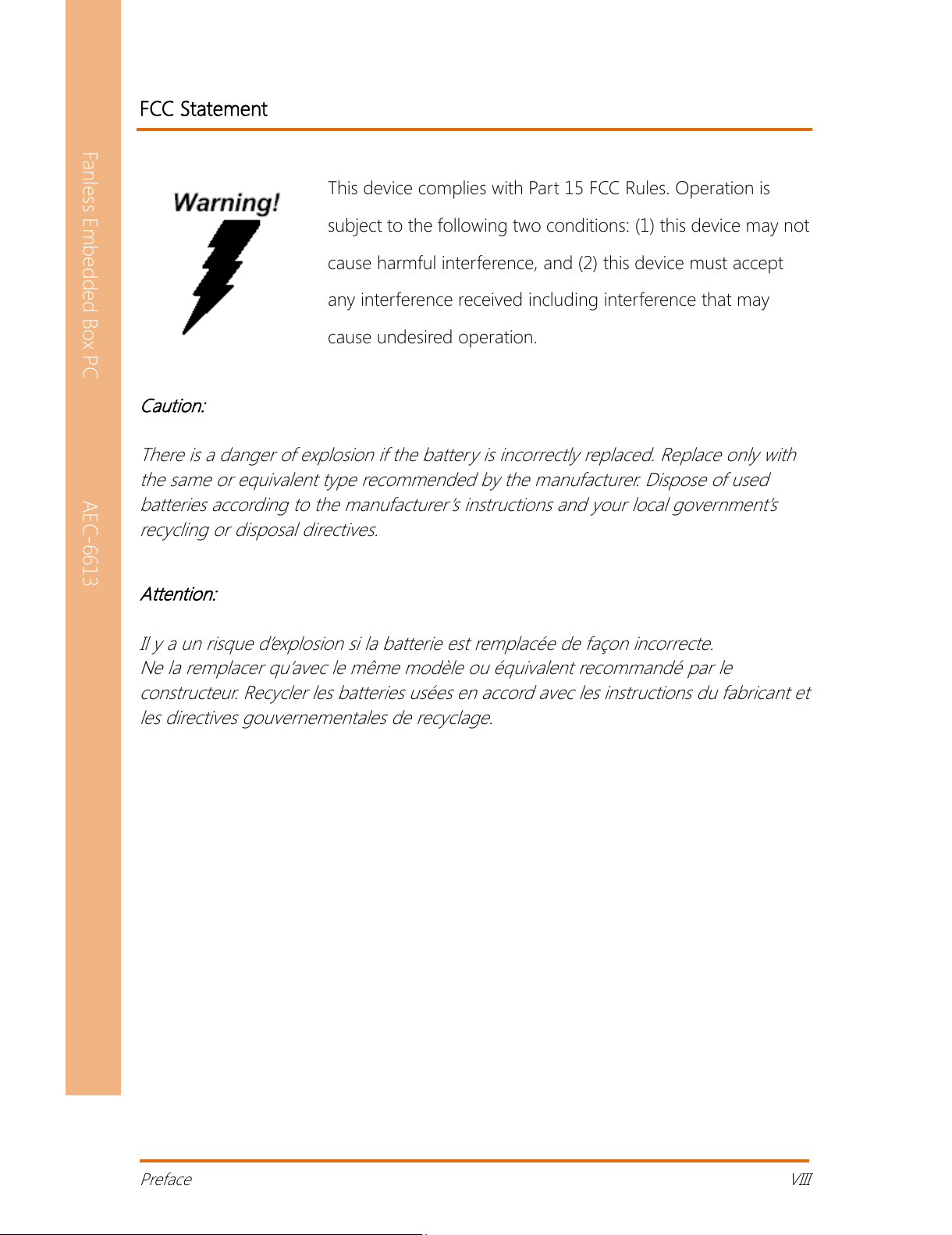

FCC Statement

This device complies with Part 15 FCC Rules. Operation is

subject to the following two conditions: (1) this device may not

cause harmful interference, and (2) this device must accept

any interference received including interference that may

cause undesired operation.

Caution:

There is a danger of explosion if the battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer. Dispose of used

batteries according to the manufacturer‟s instructions and your local government‟s

recycling or disposal directives.

Attention:

Il y a un risque d‟explosion si la batterie est remplacée de façon incorrecte.

Ne la remplacer qu‟avec le même modèle ou équivalent recommandé par le

constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et

les directives gouvernementales de recyclage.

All manuals and user guides at all-guides.com

Preface IX

Fanless Embedded Box PC AEC-6613

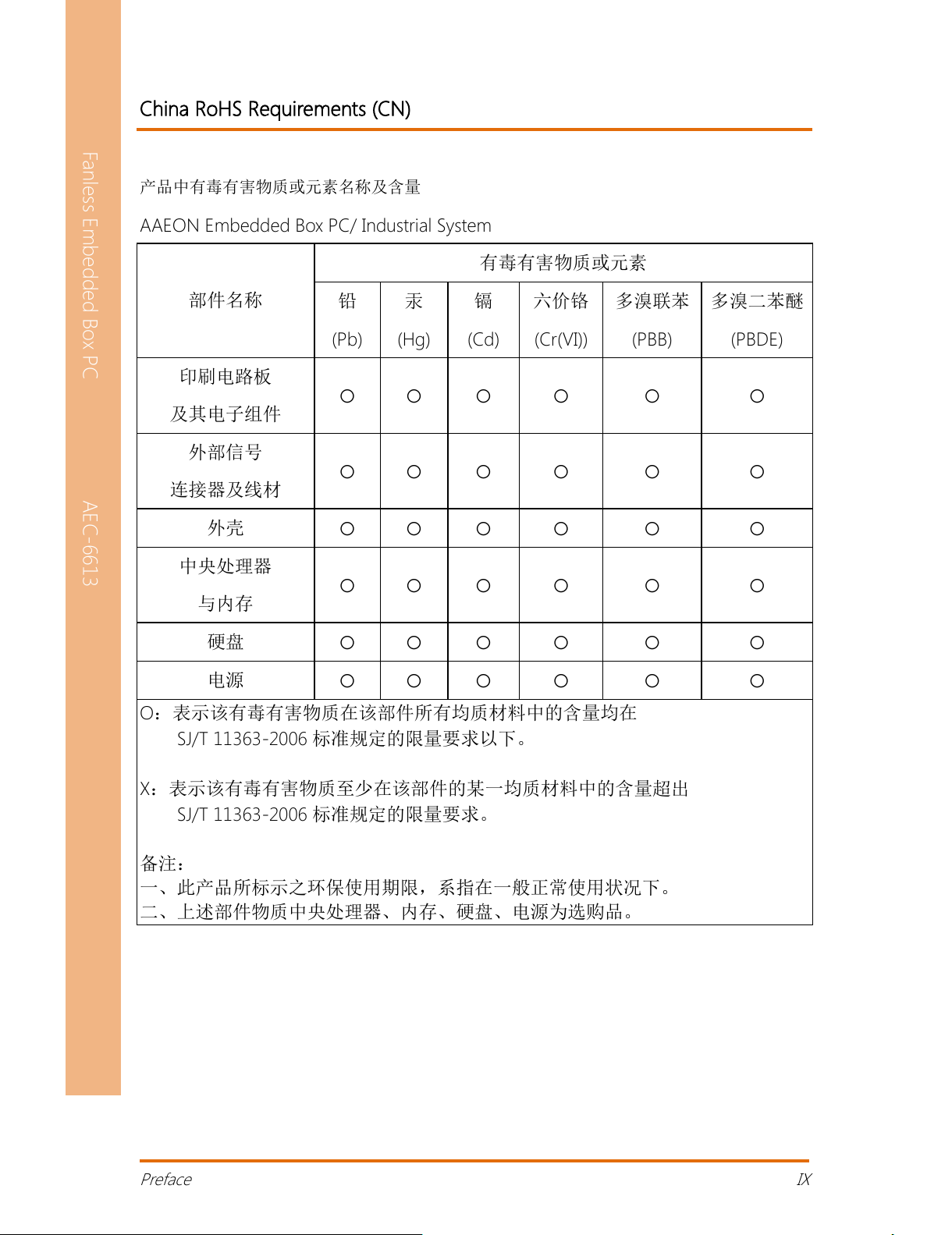

China RoHS Requirements (CN)
