Asus P535 Manual de usuario
Quick Start Guide
P535
2
Check your P535 package for the following items:
PASUS P535 device
PBattery
PAC Adapter
PMini-USB cable
PHeadset
PStylus
PCar cell phone charger*
PCar Kit (PDA holder and windshield suction pedestal)*
PProtection case
PGetting Started CD
PUser Manual
PQuick Start Guide
PWarranty Card
* optional
NOTE:
If any of the above items is damaged or missing, contact your retailer.
CAUTION:
• To reduce risk of re, use only correct battery type. Refer to “Installing the SIM card and battery” section for details.
• Do not attempt to disassemble or service the battery pack.
• Dispose of used batteries properly. Inquire from local authorities for proper disposal of battery.
Package contents
3
Top features
Left side features
Front features
4
6
10
Layout
12
3
5
8
9
11
17
12
13
14
16
7
15
Bottom features
Right side features
Rear features
25 26
23
18
20
21
22
24
27
19
Getting to know your P535
4
Device components description
No. Item Description
1MiniSD slot Allows you to insert a MiniSD storage card.
2Power button Press once to set suspend mode or to wake device from sleep mode.
Press and hold to turn the power ON or OFF.
3Stylus Use the stylus to write, draw, or select items on the touch screen.
4Camera/Shutter button Press to launch the camera. In camera mode, half-press to auto-
focus then full-press to take a picture. In video mode,
full-press to start recording video and press again to stop.
5Volume controller Press the arrow buttons to adjust the volume.
6Reset button Using the stylus, press reset button to soft-reset your device.
7Notication LED This multi-color LED noties the following:
• Green - Phone fully charged.
• Flashing green - Network detected.
• Red - Phone is charging.
• Flashing red - Event notication.
• Flashing blue - Bluetooth
®
or WLAN(IEEE 802.11b/g) ON.
• Flashing blue and green - GPS is ON.
8Earpiece receiver Allows you to listen to incoming/outgoing calls.
9LCD touch screen This 2.8-inch, 65536-color, 240 x 320-resolution, touchscreen TFT
LCD allows you to write, draw, or make selections using the stylus.
10 Call key Press to receive an incoming call or make a call.
11 Left Soft key Performs the command indicated above the button.
12 Mode/Task switcher button Allows you to switch applications and tasks.
Press and hold this button to turn on/off the ashlight.
13 Navigation buttons Use to move through menus. Press the center to run an application
or in camera mode, press to take a picture.
5
Device components description
No. Item Description
14 Action button Press to carry out the task of selected item.
15 Right Soft key Performs the task indicated above the button.
16 Ok or Close button Press to conrm a command or press to close/exit an open
application.
17 End button Press to end a call.
18 Camera ashlight Allows you to capture images in a dim environment.
Press and hold the mode switcher button to turn this ashlight on/off.
19 Camera lens This 2-megapixel camera comes with Auto-Focus (AF) lens and ash
light features.
20 GPS antenna connector Allows you to install an external GPS antenna for better signal
reception.
21 Speaker Allows you to listen audio media and phone calls.
22 Battery compartment Contains the battery that supplies power to the device.
23 Voice recorder button Press to launch the record application to record voice.
24 Hold button Slide to enable or disable all keys including the LCD touch screen.
25 Earphone port Plug headset accessory to this port.
26 Mini-USB connector Use this connector to synchronize your data or to charge the battery.
27 Mic Used to make or receive phone calls, record sounds, record voice, or
say voice commands.
6
Before you can start using your device, you need to install a Subscriber Identity Mode (SIM) card
and a charged battery. A SIM card contains your phone number, subscriber details, phonebook,
and additional phone memory.
Installing the SIM card and battery
1. Remove the battery compartment cover then remove battery.
NOTE: To prevent data loss, the device automatically shuts down after you open the battery compartment.
2. Insert the SIM card with its gold contacts facing down and the notched corner oriented to
the upper left corner of the slot.
3. Replace the battery into the compartment with its copper contacts properly aligned to the
copper conductor on the device.
4. Replace battery compartment cover.
CAUTION: Use only an ASUS qualied battery for this device.
Getting your device ready
Charging the battery
The bundled battery pack is shipped only partially charged. Make sure to charge the battery at
least four hours before using it for the rst time.
To charge the battery:
1. Connect the AC adapter plug to the mini-USB connector at the bottom of the device.
2. Connect the AC power plug to a grounded wall socket or power strip.
NOTE:
• The notication LED turns red and the battery icon appears on the status bar while the battery is charging.
•If your battery gets totally discharged, recharge it for at least twenty minutes before you can turn it back on.
7
Powering your device
After charging the battery, you are now ready to use your device.
To power on your device:
1. Press and hold the power button to turn ON the device.
2. Follow the succeeding screen instructions to setup your Windows Mobile-based device.

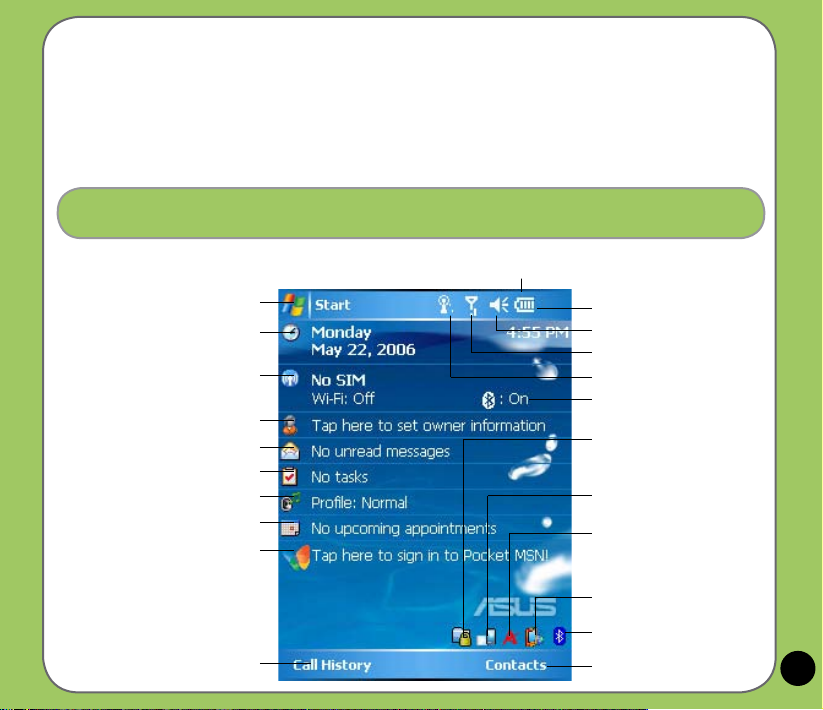

The Today screen
The Today screen displays information useful to you.
Tap to open the Start menu
Tap to setup date, time, and alarm.
Displays the current network
provider and connection status
Tap to set user information
Tap to open messages
Tap to setup tasks
Tap to setup prole
Tap to read or make appointments
Tap to sign in Pocket MSN
Tap to display call history
Indicates the battery status
Tap to adjust volume
Displays the signal status
Tap to view connectivity status
Tap to change WLAN
(IEEE 802.11b/g) settings
Tap to display system CPU,
USB setting, LCD brightness,
battery, memory, and MiniSD
status
Tap to launch Contacts list
Tap to change Bluetooth
settings
Tap to lock, unlock, or change
My Secrets settings
(Appears only when My Secrets is enabled.)
Tap to change screen
orientation
Displays the Bluetooth®
connection status
Status bar
8
ASUS Status icon
The ASUS status icon allows you to easily check and see the current status of the following
device components: CPU, USB, LCD Brightness, Battery power, Memory, MiniSD card, and
device storage.
To check the status of these components, tap the ASUS Status icon on the Today screen.
CPU: Allows you to set the CPU mode. Set to
Automatic Mode to automatically change the CPU
speed according to the CPU loading.
USB: Allows you to set the USB connection mode.
Brightness: Tap to adjust the LCD brightness on
battery power or external power.
Power: Displays the remaining battery power and
allows you to set advanced power saving features.
Memory: Displays the total, currently used, and
remaining memory available.
Storage card memory: Displays the total, used,
and remaining storage card memory.
MiniSD card: Tap to display the contents of the
miniSD card installed.
Settings: Allows you to select the items to display
in this ASUS Status pop-up menu.
9
Input panel icon
Keyboard
Block Recognizer Letter Recognizer
Entering information
Using the Input panel
The Input Panel allows you to select various
input methods available on your device
including: Block Recognizer, Keyboard,
Letter Recognizer, and Transcriber.
Tap the Input panel icon to display shortcut
menu and select input method.
Input panel methods
Transcriber
10
Sending a message
Your device allows you to send and receive email, SMS, MMS, and MSN messages when
connected to a network. The following describes how to compose and send a message.
Composing and sending a message
1. Tap Start then Messaging.
2. Tap Menu > Go To then select account:
• Text Messages
• Outlook E-mail or
• MMS
3. Tap New.
4. Key in the email address or phone number of one
or more recipients, separating them with a
semi-colon. To launch Contacts list, tap To.
5. Key in your message.
Messages
