Phone layout ..................................................................................... 11

Function keys .................................................................................... 13

Multi-color LED indicator ................................................................... 14

Subscriber Identity Module (SIM) card .............................................. 15

Battery .............................................................................................. 17

Battery power levels .................................................................. 17

Installing and removing the battery ........................................... 18

Charging the battery.................................................................. 20

Signal strength .................................................................................. 22

LCD displays ...................................................................................... 22

Camera .............................................................................................. 23

Switching the phone ON or OFF ........................................................ 24

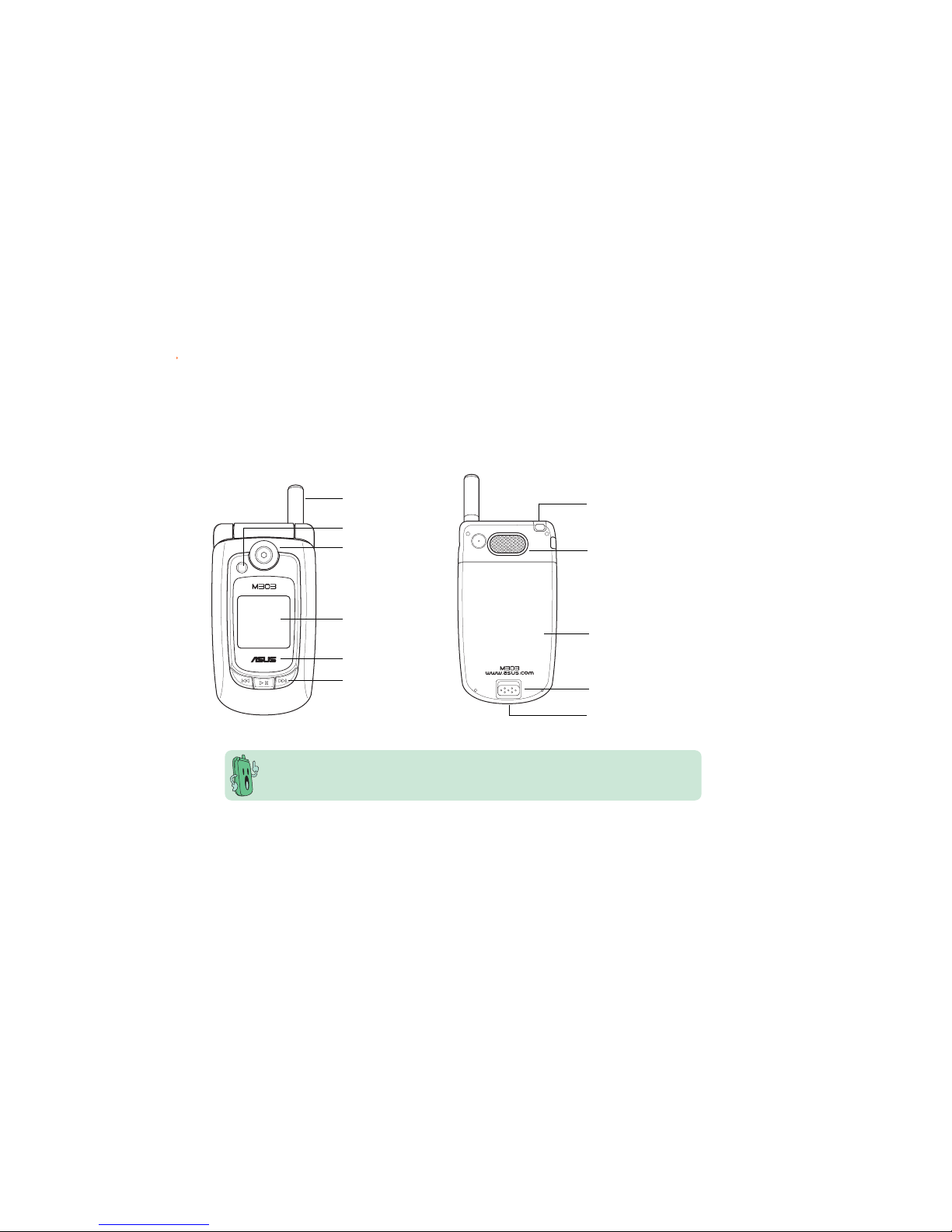

Phone layout

AntennaAntenna

Antenna

CameraCamera

Camera

FlashFlash

Flash

External displayExternal display

External display

Cover and built-inCover and built-in

Cover and built-in

battery*battery*

battery*

Back cover latchBack cover latch

Back cover latch

Strap holderStrap holder

Strap holder

MP3 controlsMP3 controls

MP3 controls

Front ViewFront View

Front View Back ViewBack View

Back ViewBack View

Back View

* The battery comes uninstalled on your mobile phone. Refer to the battery

installation section for instructions on how to install the battery.

LED indicatorLED indicator

LED indicator

SpeakerSpeaker

Speaker

Power adaptor/Power adaptor/

Power adaptor/

USB socketUSB socket

USB socket

Side View (Left)Side View (Left)

Side View (Left)

Phone layout

Camera/VoiceCamera/Voice

Camera/Voice

dial buttondial button

dial button

Volume up buttonVolume up button

Volume up button

Volume down buttonVolume down button

Volume down button

abc

ɺɻɼ

ʄʅʆʇ

0ࡻ

jkl

EarpieceEarpiece

Earpiece

Main displayMain display

Main display

Navigation/Navigation/

Navigation/

Quicklaunch keysQuicklaunch keys

Quicklaunch keys

AlphanumericAlphanumeric

Alphanumeric

keyskeys

keys

MicrophoneMicrophone

Microphone

Soft key (left)Soft key (left)

Soft key (left)

Call keyCall key

Call key

Flip topFlip top

Flip top

Soft keySoft key

Soft key

(right)(right)

(right)

On/Off/EndOn/Off/End

On/Off/End

callcall

call keykey

keykey

key

Front View (Open flip top)Front View (Open flip top)

Front View (Open flip top)

HeadphoneHeadphone

Headphone

JackJack

Jack

MiniSD Card Slot

Side View (Right)Side View (Right)

Side View (Right)

Function keys

When the phone is in idle mode, you can press the following function keys to launch some of

the most common phone functions.

Displays the phone book when in idle

mode; performs various functions

depending on the menu level and

screen display

Ends a call; turns the phone ON or OFF

Enters numbers, alphanumeric

characters, and symbols

Launches the phone menu; performs

various functions depending on the

menu level and screen display

Displays the SMS/MMS inbox

Displays the Fun menuDisplays the Camera menu

Answers a call; displays dialed numbers

Puts the phone in active mode;

selects an option; enters data; long

press to launch WAP; shows the

wallpaper in full screen mode

Displays your shortcuts

Press once to launch the camera. Long press to launch the voice command function.

Press this button to decrease the ring tone volume.

Side keysSide keys

Side keys

Press this button to increase the ring tone volume.

abc

ɺɻɼ

ʄʅʆʇ

0ࡻ

jkl

Multi-color LED indicator

The phone comes with a multi-color LED located below the external display. This LED displays

the phone, message, or call status in four different color indications.

LED indicatorLED indicator

LED indicator

Aside from the four-color LED indicator, seven colors are available for caller

identification. You may assign a specific LED color to a phone book entry. See Chapter 9

“Organizing your stuff” for details.

ColorColor

Color StatusStatus

StatusStatus

Status

Purple (flashing) Default (Idle)

Red Battery is charging

Red (flashing) Battery low warning

Green Battery is fully charged

Green (flashing) Missed call

New SMS/MMS message

Subscriber Identity Module (SIM) card

The phone operator provides you with a Subscriber Identity Module (SIM) card that stores your

mobile phone number, phone book entries, SMS/MMS messages, graphics, etc. Install the SIM

card before you install the battery.

The SIM card usually comes embedded on a plastic card. Read the SIM card documentation

before removing the SIM card. Remove any rough edges on the SIM card before you install

it to the phone.

To install the SIM card:

1. Lift the SIM card case.

122

2. Slide the SIM card in the grooves on the

underside of the case.

The metallic side should face down (A). The

notched edge should be at the top (B).

3. Close the SIM card case.

To remove or replace a SIM card:

1. If a battery is installed, first remove the it

according to the instructions in the battery

section which follows.

2. Place your finger on the notched side of

the SIM card and push the SIM card and

case upwards.

3. Carefully pull the SIM card out from the SIM

card slot. Set the SIM card aside.

4. Replace the SIM card according to the

instructions in the previous section.

• Keep SIM cards out of children’s reach.

• Be careful when handling, inserting, or removing a SIM card to avoid damaging its

contacts.

Battery power levelsBattery power levels

Battery power levels

The battery icon on both displays helps you

keep track of the remaining battery power, so

you will know when to charge the battery.

Take note of the battery icon indicating the

battery power levels.

Icon IndicationIcon Indication

Icon Indication

Battery is 55% to 100% full

Battery is 25% to 55% full

Battery is 10% to 25% full

Battery is 0% to 10% full

Battery has low power.

Charging is needed.

Battery

A rechargable Lithium-Ion battery powers your mobile phone. The battery is built into the

back cover. Make sure that the battery is fully charged before using the phone for the first

time. Initial battery charging may take about eight (8) hours. You can charge the battery

when the phone is either on or off.

A battery icon on the main and external displays indicates the battery power level. Refer to

the table below for battery icon indications.

Dispose of old or defective batteries properly.

Removing and installing the batteryRemoving and installing the battery

Removing and installing the battery

Follow these instructions to install the battery to the mobile phone.

To remove the back cover and built-in battery:

1. To remove the back cover, push the back

cover latch forward with your thumb (A).

2. Continue to hold the latch forward and

place one finger in the notch under the

latch (B).

3. Lift the cover upwards.
