Siren-Based Alarm System

Installation · Programming · Operating

Keep this manual safe for reference and future maintenance

Introduction Contents

General System Overview

Thank you for choosing the Yale Wireless Security

Alarm System. This simple to install system has

been designed with the user in mind.

The siren has a sounder and strobe LEDs to

attract attention.

Number of devices

You can install up to 20 devices in the system.

As well as extra door/window contacts, PIRs and

keypad remote controls, you can add smoke

detectors, keyfob remote controls and help buttons.

Long battery life

The system has a typical battery life of 2 years or

more before they need changing. Regular testing

and battery changes (when notiﬁed by the system)

will ensure reliability and peace of mind. Please note

that alkaline batteries and the correct type of coin

cells must be used as replacements.

Tamper proof system

Each part of the system is ‘tamper’ protected. Any

unauthorised tampering with the system will result in

an alarm. This feature can be turned off by the user

when a battery change is required.

Entry/Exit feature (for System with remote

keypad)

The system has a 20 second entry/exit time. This

feature allows you time to leave the home when

arming the system. Upon entering, the feature allows

time to disarm the system without causing an alarm.

Take care of your safety

Display extreme caution when using ladders or

steps, please follow manufacturer instructions. Be

careful when using hand and power tools and follow

the manufacturers’ guidelines when using them.

Take care that the correct tools are used. Wear

goggles or protective clothing where required.

The external Siren is extremely loud, please

ensure you replace the cover and retreat to a safe

distance before testing.

Contents

1 Location planning 2

2 Unpacking the system 3-4

3 Programming the system 5

4 Mounting alarm devices 6-8

5 Using the system 9-10

Adding accessories 11

Changing the batteries 12

Speciﬁcations 14

Trouble shooting 15

Recommended Installation Sequence

We recommend you follow the easy start sequence,

headings numbered 1-5.

Information and illustrations are subject to change within this

document. Yale reserves the right to alter the speciﬁcation and

product design at anytime without notice. Yale® is a registered

Keyfob remote control accessory

Can be used outside the premises and

kept on your keyring.

Location planning

Operating range

All devices must be within 30 metres of the siren unit and must

not be mounted on or near large metal objects. Avoid obvious

sources of electrical interference such as fridges and microwave

ovens.

Tamper switches

When mounting devices ensure that any tamper switches close

fully. On uneven surfaces it may be necessary to place packing

behind the switch for reliable operation.

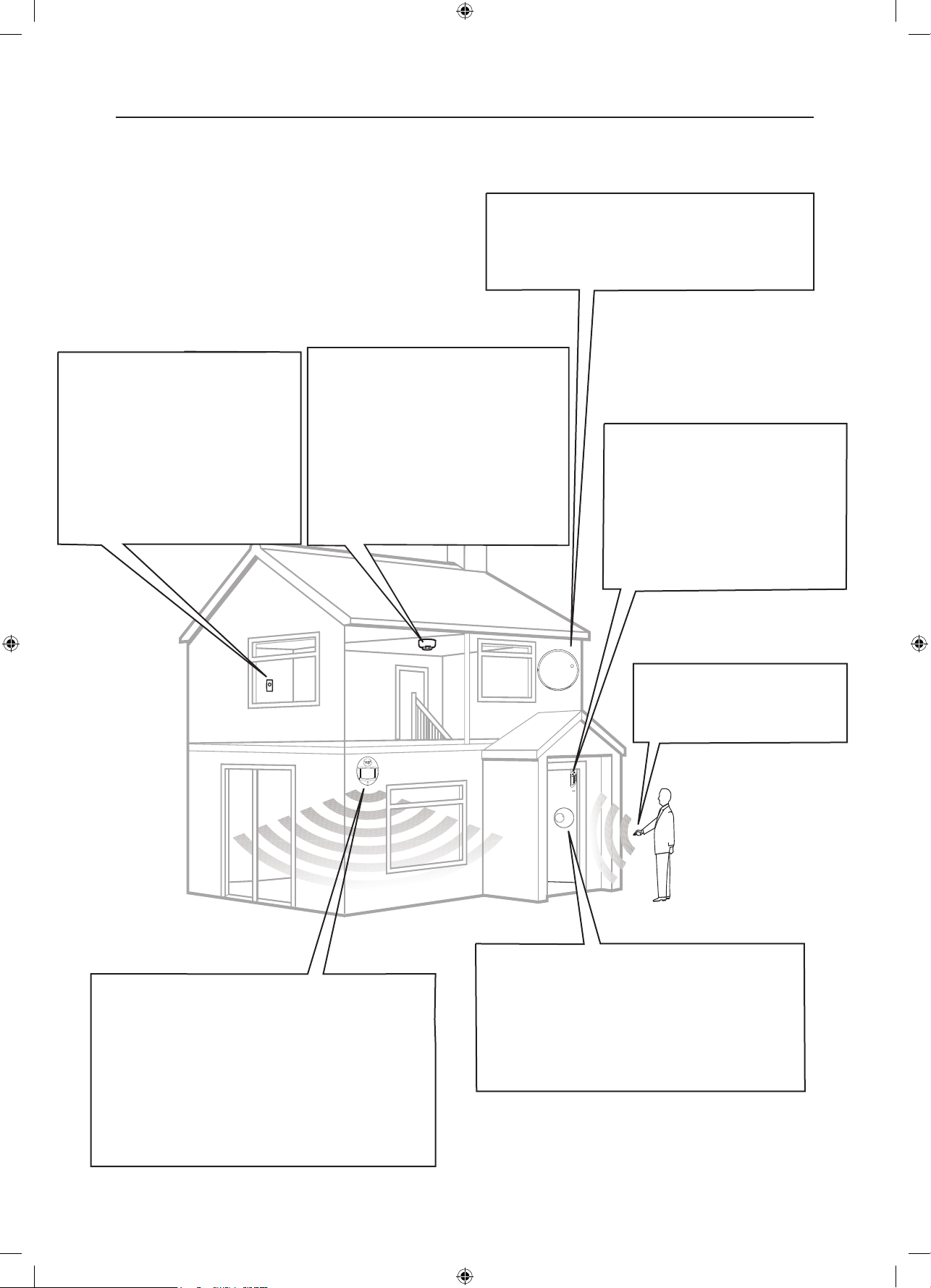

1Work out the best places to locate the devices for maximum protection. Having chosen the

locations do not mount at this stage.

Smoke detector

• Mount in the middle of the ceiling at the

top of a stairwell, or on the centre of

hallway ceilings where smoke would most

likely be detected.

• Do not mount in corners or above cooking

appliances and heaters.

• Install additional detectors if there are

closed doors preventing smoke from

reaching detectors.

Siren

Choose a position on an external wall where the

siren would be most prominent. Mount as high

as possible, out of easy reach. (Round shaped siren shown)

Keypad remote control

• The keypad should be sited next to the main point of entry/

exit so that the system can be disarmed/armed within 20

seconds of entering/leaving the premises.

• Ensure that the keypad is not visible from the outside of the

premises.

• Mount at chest height for ease of use.

• Designed for indoor use only.

Help button accessory

The help button provides extra protection

for you and your family. When help is

needed the button can activate your alarm

immediately - even when the system is

disarmed.

• Mount on bedroom wall or by the front

door

• Not clearly visible to an intruder

• Easily accessible

• Out of reach of children

Extend the system

Extend the system in the future to increase your security or as

your needs change.

For example, add extra PIR detectors in bedrooms and extra

door/window contacts.

PIR movement detectors

• Mount in a position such that an intruder would normally move

across a PIRs ﬁeld of view.

• Height should be between 1.7 and 2.3 metres above oor level.

• Location in a corner will ensure wider room coverage.

• Do not mount a PIR where its eld of view will be obstructed e.g.

by curtains, ornaments etc.

• Do not point directly at sources of heat e.g. res or boilers, and do

not position directly above radiators.

• Avoid mounting a PIR directly facing a window.

• Do not point a PIR at a door protected by a door/window contact.

Yale

Door/Window contacts

Use one door/window contact on a door

that is used as the main point of entry and

exit, usually your front door. The other

door/window contact can be used to

protect

another entry point such as a rear door.

• Mount as high as possible.

• Do not aim a PIR at this door or window.

Battery

savertab

Gapno more

than8mm

Magnet

Sensor

Learn/Test

button

LED

Unpack all the parts on a table top

The easiest way to get to know the system and get it up and running quickly is to get all the

devices and accessories programmed on a table top before locating and mounting them.

Siren

The siren comes in two shapes, square shaped

and round depending on the kit purchased. The

operation and programming of the sirens are

identical, only the case is different.

WARNING

The siren is very loud, be prepared! Take care not to

activate the siren tamper switch unnecessarily.

1Remove the cover by unscrewing the single screw

located on the lid.

2Square siren only: remove the left hand cover (not

battery compartment).

3 Move the programming switches

to Master On (switch 4) and Clear

On (switch 1).

4 Switch the power switch to on

(The 3 strobe LEDs will now ﬂash side to side with one short

beep.)

5 Move the Clear switch to the Off

position.

PIR movement detectors

1Pull out the plastic pull tab on the back of the PIR.

This will activate the batteries.

(A red light can be seen ﬂashing through the lens. This will last

for 30 seconds indicating the component’s initiation. )

Yale

1 2 3 4

Clear

1 2 3 4

Normal Master

Cover screw

Learn/Test

Button

Status

LED

Battery

Compartment

4 X D cells

Fixing

screws X 4

Internal cover

screws X 4

Learn button

Power

switch

Programming

switch

OFF

1 2 3 4

NORMAL

Keypad remote control

1Pull out the plastic battery saver tab at the back of

the remote keypad. This will activate the batteries.

Door/window contacts

1Pull out the plastic pull tab found on the side of the

main unit. This will activate the battery.

Smoke detector accessory

1Remove the cover and insert the four AAA

batteries as shown

2The Smoke detector will now enter into self-

calibration mode for 10 minutes. It will resume

normal operation after this period.

Door/window contacts

1Remove the cover of each door/window contact

by loosening the fixing screw.

2Insert two AAA batteries into each detector as

shown.The indicator LED will flash briefly.

Keypad remote control

Remove the cover and insert the 3 AAA alkaline

batteries as shown.The ‘Tx’ LED will flash briefly

while components initialise.

Please note, the Home button on the operating

panel and the jumper switch inside (do not move)

have no function on this model.

Smoke detector accessory

Remove the cover and insert the four AAA

batteries as shown.

Keyfob remote control accessory

Slide off the battery cover, insert the

23A/MN21 battery as shown, and replace

battery cover. Switch to ‘on’.

Help button accessory

Remove the cover by loosening the fixing

screw and insert the 12V battery (supplied) as

shown. Please ensure you observe battery

polarity.

Tamper

switch

Jumper

switch

Tamper

switch

Jumper

switch

Magnet

Extension terminals

Learn/Test button

Learn/Test

button

On/Off switch

Help button accessory

1Remove the cover by loosening the ﬁxing screw

and insert the 12V battery (supplied) as shown.

Please ensure you observe battery polarity.

Door/window contacts

1Remove the cover of each door/window contact

by loosening the fixing screw.

2Insert two AAA batteries into each detector as

shown.The indicator LED will flash briefly.

Keypad remote control

Remove the cover and insert the 3 AAA alkaline

batteries as shown.The ‘Tx’ LED will flash briefly

while components initialise.

Please note, the Home button on the operating

panel and the jumper switch inside (do not move)

have no function on this model.

Smoke detector accessory

Remove the cover and insert the four AAA

batteries as shown.

Keyfob remote control accessory

Slide off the battery cover, insert the

23A/MN21 battery as shown, and replace

battery cover. Switch to ‘on’.

Help button accessory

Remove the cover by loosening the fixing

screw and insert the 12V battery (supplied) as

shown. Please ensure you observe battery

polarity.

Tamper

switch

Jumper

switch

Tamper

switch

Jumper

switch

Magnet

Extension terminals

Learn/Test button

Learn/Test

button

On/Off switch

Battery

saver tab

ale

123

789

Disarm

Home

Arm

LED

Yale

Battery

saver tab

Gap no more

than 8mm

Magnet

Sensor

Learn/Test

button

LED

Keyfob remote control accessory

1Open the battery compartment using a coin

by turning the cover in the direction of the big

arrow so the cover small arrow is next to round

dot.

2Insert battery and replace cover.

Panic

Button A

Panic

Button B

Gap approx

10mm

Exiting Learn mode:

• Press the Siren Learn button to exit the learn mode

•The PIR and Door Contact may trigger the Siren at this

point. (Do not turn the siren power off.)

Disarming Siren:

•Press disarm followed by 0000.

(The siren will beep and ﬂash twice.)

Adjusting Alarm ringing duration:

• Dip switch 3 determines the alarm ringing duration

length. Switch left for 4 minutes or right for 10

minutes (default) siren duration.

Enable/disable interference detection:

• Set Dip switch 2 for interference detection. Switch

left to enable and right to disable (default).

Programming is now ﬁnished and the system is

ready to be installed.

Entering Learn mode:

• Press and hold Siren learn button for 1 second.

(A short beep will follow with the outside LEDs ﬂashing once.)

Adding devices:

Keypad (All keys should be pressed in quick succession.)

1Press Panic button A and enter pincode (please

note that the default pincode is 0000).

(The LED will now be ﬂashing. System is now in setting mode)

2 Press Panic button A and enter 8

(The keypad will conﬁrm with two fast ﬂashes that it is in “Siren

as master” mode.)

3 Press Panic button A then 1to send learn-in

signal.

4Press Panic button A then 2. The press disarm

twice to quit. (The siren will beep in acknowledgment).

(The keypad LED will now stop ﬂashing. If not, press “disarm”

twice again)

Programming the Siren-based system

(without control panel)

The siren is the heart of the system. All components must be recognised by the siren.

System is now in learning mode for 3 minutes.

Proceed to the following steps to add in

additional devices (20 devices maximum) within

this time period.

If device learning takes more than 3 minutes and

the learn mode expires, the siren learn button will

need to be pressed again to add more devices.

When any device is learnt-in, the siren will beep

once and the outside LEDs will ash once in

acknowledgement.

Remember to press any buttons and keys ﬁrmly

for 1 second to send a learn-in radio signal.

This unit is equipped with the latest type of

radio receiver using AM radio technology. If the

system is armed any criminal attempt to interfere

detector transmissions will trigger an alarm.

If the alarm is frequently triggered by interference

there may be high levels of unusual radio signals

in your area. Some kinds of electronic equipment

can generate this kind of radio interference.

In the unlikely event of you experiencing problems

with interference, it is recommended that you

switch interference detection off.

ale

123

789

Battery

cover

Coin

slot

Locked

Unlocked

Yale

PRESS

Mounting alarm devices

4Before mounting the keypad and siren ensure that the system tamper is

disabled as described below.

Disabling the system tamper

Using the Keypad:

• Press Panic button A and enter pincode (factory

default is 0000) to enter test mode, press

Panic button A then 2to send “Tamper Off” signal,

Then press disarm twice to quit. (The keypad led will

now stop ashing if not press disarm twice again.

The siren will beep in acknowledgement.)

Using the Keyfob:

• Press and hold down Arm and Home buttons for 5

seconds.

(The siren will beep in acknowledgement.)

Mounting the siren

Ensure the tamper switch is fully depressed when

the siren is mounted. If there is a gap, pack with a

suitable spacing material.

Round

Siren

Base

Wall

Spring Guide

Spring compressed

firmly against wall

Square Siren Base

Plunger must

be pressed in

fully against

wall

Wall

1 Using the large screws and wall plugs provided,

mount on the desired wall through the 4 mounting

holes.

2 Fix the siren cover with the securing screw.

Testing whether the siren is ﬁtted correctly:

1 Press Arm with the Keypad/Keyfob.

2 If there are 5 short beeps when armed, the tamper

switch is NOT fully depressed and will need to be

adjusted.

3 If there is one short beep and ash when armed,

the siren is mounted correctly and the siren

installation is complete. Disarm the system and

disable the tamper as described in the information

box above.

Mounting other devices

Find a location where the device is to be mounted,

see section “Location Planning” for suggestions.

Mounting the Keypad:

1 Drill holes into the wall using the ﬁxing slots as a

template.

Before mounting it is important to disable the

system tamper to avoid the siren sounding an

alarm.

The tamper function is now disabled for one hour.

If more time is required, simply repeat the above

step.

Before you make the adjustment:

• Disarm your system using your keyfob (Press

disarm) or keypad (Press disarm followed by the

pincode).

• Disable the system tamper as described on

the left.

• If there is a gap between the wall and the

tamper switch mechanism pack with a suitable

spacing material.

• Once nished repeat the step 1 and 2 above.

Before proceeding to mount the devices

physically, it is useful to check that it is not out of

radio range by doing a simple range test. Please

ensure the system tamper is disabled.

• Keypad: Hold the keypad in the desired

location and arm and disarm the system.

(The siren will beep as conﬁrmation.)

• Help button: To prevent an alarm being

triggered, put the siren into learn mode ﬁrst

(see page 5, section 1). Hold the device in the

desired location and press the emergency

button.

(The siren should respond with a single beep.)

• All other devices: Hold the device in the

desired location and press the learn/test

button.

(The siren should respond with a single beep.)

When you are satisﬁed that the devices work

in your chosen locations, proceed with the

installation as described in the next page.

If the siren does not respond, the location may be

out of range, try alternative locations until reliable

radio contact is obtained.

2 Fit wall plugs into the wall and ﬁx cradle with the

screws provided.

Fixing Slots X 2

Keypad

Cradle Open

3 Slide the keypad into the cradle

4 Close the cradle cover so the logo is facing you

Mounting the PIR

1 Open the PIR by loosening the bottom screw.

Knock out the relevant holes on the base where

the plastic is thinner. The center two knockout

holes are for at wall mounting while the 4 side

holes are for corner mounting.

Corner fixing

knockouts X 4

Wall fixing

knockouts X 2

2 Drill holes into the wall using the knockout holes on

the base as a template.

3 Fit wall plugs and secure the PIR base with the

screws provided.

4 Fit the PIR back together and tighten bottom

screw, the PIR installation is complete.

Mounting the door/window contact

Frame

Door/Window

Gap no more

than 8mm

Magnet

Sensor

1 Find a location where the door/window contact

is to be mounted. It should be mounted between

the door/window frame and the door/window as

shown at the top of the opening. The magnet is to

go on the door/window while the sensor is to be

placed on the frame. Windows can be protected

in a similar way to doors. Make sure the tamper

switch spring is fully depressed.

-Mounting using adhesive pads

1 Clean the mounting surface with a suitable

degreaser agent.

2 Remove the protective ﬁlm from one side of the

adhesive pad and apply to the back of the sensor

and magnet

3 Remove the remaining protective ﬁlm and ﬁrmly

press into place.

4Test sensor by pressing the test button and

opening and closing the door/window. The LED

should light when the door/window is opened.

Installation is complete.

The PIRs have a built-in sleep timer to save

battery power. If there is no movement in front

of the PIRs for 1 minute, the PIRs will become

‘ready to signal’ and movement will now be

reported. The PIRs will sleep for 1 minute after

reporting.

Any movement detected in sleep time will not be

reported and will extend the sleep period by a

further 1 minute.

The gap between the magnet and sensor should

be approximately 10mm when closed (depending

upon the actual environment).

Simple test to see whether the magnet is in range

of the sensor: hold the magnet and sensor in

place and then pull them apart. If the sensor LED

lights up it implies the two items are within range.

Gap approx 10mm

-Mounting using screws and wall plugs

1Loosen the bottom screw

and open the door/

window contact.

2Knock out the holes on the

base as shown.

3Drill holes into the

mounting surface using

the holes in the knockouts

on the base as template.

4Fit wall plugs (if required) and secure with the

screws provided.

5Fit sensor back together and tighten screw.

6Test sensor by pressing the test button and

opening and closing the door/window. The LED

should light when the door/window is opened.

Installation is complete.

Mounting the Help button

1Break through the knockouts (where the plastic is

thinner).

2Using the holes as a template, drill holes in the

surface and insert wall plugs if ﬁxing into plaster or

brick. Screw the rear case to the wall.

3Replace the cover and tighten the screw.

Mounting the Smoke Detector

1The base has two mounting slots. Using the slots

as a template, drill holes and insert the wall plugs if

ﬁxing to plaster. Screw the rear case to the ceiling

using the screws provided.

2Replace the cover.

Knockouts

The tamper switch will automatically reactivate

after one hour. Alternatively you can enable the

tamper switch manually (optional).

See Page 10, Table 1 and Table 2 for manual

tamper switch reactivation using Keypad or

Keyfob.

Arming the system

Keypad/Keyfob: Press arm

(The siren will beep and ﬂash once. There will be no audible

countdown.)

Disarming the system

Keypad: Press disarm followed by your pincode.

Keyfob: Press disarm.

(The siren will beep and ﬂash twice.)

Stopping the Siren

Keypad: Press disarm followed by your pincode.

Keyfob: Press disarm.

(The siren will be silenced and then beep and ﬂash twice.)

Changing your keypad PIN code

1Enter setting mode: Press the Panic button A,

followed by entering the current pincode (factory

default code is 0000).

(The LED will now ﬂash continuously.)

2Press panic button B.

3Enter new 4-digit pincode.

4Press Arm button to conﬁrm.

5Exit setting mode: Press disarm twice to quit the

changing code process. Or wait for 5 minutes for

the keypad to quit test mode automatically.

(The LED will now stop ﬂashing.)

Tamper alarm warning

If any device tamper switches are disturbed a

tamper alarm will be activated with the siren

sounding and the strobe ashing. The alarm can be

silenced as described in “Stopping the Siren”.

Previous alarm warning

Should there be an alarm that was triggered and

expired (while the user was away), the siren will

sound and ash for 3 seconds after disarming (user

returning home).

* Warning: should this happen the intruder could still

be in the premises.

My PIN code:

(write your pincode here so you don’t forget it)

Using the system

Arm and disarm the system and practice using it. Trigger the alarm by arming the system

and opening protected doors/windows and walking past PIRs. Now’s the time to set your pin

code and show the rest of the family how simple it is to use.

• Keypad will arm the system with a 20 seconds

exit period. All detectors will be ignored (except

for the tamper switches). The system can be

armed when inside the protected area of your

premises.

• Keyfob will arm the system instantly without a

20 second exit delay. Any detector activated

afterwards will trigger an instant alarm. The

system should be armed when outside the

protected area of your premises.

• Keypad: If the system has been armed with a

keypad there will be a 20 second entry period

started when the ﬁrst detector is activated

(usually a window/door contact on the main

point of entry). During this entry period all

detectors will be ignored. The siren will beep

once when the ﬁrst detector is triggered.

• If the system is not disarmed before the entry

period expires, the alarm will be activated.

• The system does not have an audible

countdown during the entry period.

• Keyfob: If the system has been armed with a

keyfob there will be no 20 second entry period

and any detector activation will give an instant

alarm.

• The system should be disarmed from outside

the protected area of your premises.

• If the PIN code doesn’t change, repeat the

above procedure quickly without gaps.

• The keypad will lock out for one minute after

four failed attempts to enter the pincode.

If there is a persistent siren tamper fault then a

series of 5 pips and ashes will be given when

the system is armed, then the siren should be

checked for any mounting problems and if the

siren lid is secure.

Using the help button

Activate: Press and hold panic button for 2

seconds, the LED will light briey and the siren will

be activated.

Silence: press and hold panic button for 10

seconds, the LED will light briey and the siren will

be silenced.

Using the smoke detector

The smoke detector will indicate a ﬁre by sounding

its built-in siren, lighting the LED and activating the

external siren and strobe.

-Smoke detection

When smoke is detected the device will activate for

a minimum of 10 seconds with a two tone alarm and

ashing LED for a local re alarm. The detector will

also activate the external siren and strobe.

• Pressing the test button when in an alarm

condition will silence the alarm for 10 minutes, it

will automatically resume smoke detection again

after this period.

• If the smoke density is still over the alarm

threshold, then the smoke detector will remain in

an alarm condition and it will repeat the local ﬁre

alarm and activate the external siren and strobe

again.

-Testing

Smoke detector testing should be done on a regular

monthly basis. Pressing the test button will make

the LED ash, the audible sounder chime and will

send a radio test signal to the siren when the button

is released. If nothing happens after pressing the

test button then change the batteries.

-Recalibration

The smoke detector might need recalibrating after

time to ensure it is working at its optimum. This is

done by pressing and holding in the test button until

the LED ashes and it beeps after 10 seconds. The

detector will then start its self-calibration routine.

Keypad Modes: Table 1

KeyFob Modes: Table 2

Please note that silencing the alarm with the

help button does not disarm the system. If the

alarm is armed prior to activation, the system

will re-arm after being silenced with the help

button.

• Sending learn signal

Press any key except the emergency button.

• Siren tamper (Enable)

Press and hold down Arm and emergency for 5

seconds.

• Siren tamper (Disable)

Press and hold down Arm and Home for 5

seconds.

• Learn mode (Enter)

Press and hold down Home and emergency for 5

seconds.

• Learn mode (Exit)

Press and hold down disarm for 5 seconds.

Entering setting mode:

Press Panic button A followed by pincode (factory

default is 0000). You can now select different function.

(The LED on the keypad will start ﬂahsing)

Function setting:

Press Panic button A , followed by one of the

following number key:

1 Send learning/testing signal

2 Disable Siren tamper

3 Enable Siren tamper

4 Enter learn mode (not suitable for ﬁrst time set-up)

5 Exit learn mode

7 Keypad to work with control panel based sysem.

8 Keypad to work with siren based system.

Exiting setting mode:

Press disarm twice.

(The LED will now stop ﬂashing. If not, press disarm twice

again)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de seguridad de Assa Abloy

Assa Abloy

Assa Abloy Yale SR-1200e Manual de usuario

Assa Abloy

Assa Abloy Yale SR-BX-ZW Manual de usuario

Assa Abloy

Assa Abloy Yale Secure Connect MZ-1 Manual de usuario

Assa Abloy

Assa Abloy Yale AC-PB Manual de usuario

Assa Abloy

Assa Abloy Yale Sync Smart Home Alarm Manual de usuario

Assa Abloy

Assa Abloy Yale SR-PIR Manual de usuario

Assa Abloy

Assa Abloy Yale SAA5015 Manual de usuario

Assa Abloy

Assa Abloy Pando S559685084 Manual de usuario

Assa Abloy

Assa Abloy Yale SAA5015 Manual de usuario

Assa Abloy

Assa Abloy Securitron TSB Manual

Assa Abloy

Assa Abloy Yale Easy Fit EF Series Manual de usuario

Assa Abloy

Assa Abloy Premium Plus HSA6410 Manual de usuario

Assa Abloy

Assa Abloy Yale AC-KF Manual de usuario

Assa Abloy

Assa Abloy Yale SmartHome Alarm Series Manual de usuario

Assa Abloy

Assa Abloy effeff EXITalarm Manual de servicio

Assa Abloy

Assa Abloy Yale SV-4C-2ABFX-2 Manual de usuario

Assa Abloy

Assa Abloy MSL mFlipLock check Manual de usuario

Assa Abloy

Assa Abloy EXITalarm Manual de servicio

Assa Abloy

Assa Abloy Yale SR-A100-00SR Manual de usuario

Assa Abloy

Assa Abloy Securitron M680E Manual de usuario

Assa Abloy

Assa Abloy Yale EF-KIT2 Manual de usuario

Assa Abloy

Assa Abloy Yale Smart Living SR-1100 Manual de usuario

Assa Abloy

Assa Abloy Yale SV-4C-2ABFX Manual de usuario

Assa Abloy

Assa Abloy Yale Smart Home Alarm Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
