Assa Abloy Yale inTouch Especificaciones técnicas

Stand-alone Touchscreen Access Cylindrical Lock

Installation and Programming Instructions

For Technical Assistance call Yale at 1-800-810-WIRE (9473)

NOTE TO INSTALLER

FAILURE TO FOLLOW THESE INSTRUCTIONS

COULD RESULT IN DAMAGE TO THE PRODUCT

AND VOID THE FACTORY WARRANTY

An ASSA ABLOY Group brand

P/N 80-9150-0065-010 Rev B

This document is available on our website in printed Spanish and French. Go to www.yalecommercial.com.

Click "Product Information & Documentation" and then "Installation Instructions".

Este documento está disponible en español en nuestra página de internet. Vaya a www.yalecommercial.com.

Presione "Información del Producto y Documentación" y luego "Instrucciones de Instalación".

Ce document est disponible sur notre site Web dans le français imprimé. Allez à www.yalecommercial.com.

Cliquez sur le " ; Information sur le produit et Documentation" et puis " Installation Instructions".

An ASSA ABLOY Group brand

P/N 80-9150-0065-010 Rev B

CAUTION: Changes or modiﬁcations to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

IMPORTANT: The accuracy of the door preparation is critical for the proper functioning

and security of this cylindrical product. Misalignment can cause premature wear and a

lessening of security.

Finish Care: This lockset is designed to provide the highest standard of product quality

and performance. Care should be taken to insure a long-lasting ﬁnish. When cleaning

is required use a soft, damp cloth. Using lacquer thinner, caustic soaps, abrasive cleaners

or polishes could damage the coating and result in tarnishing.

Warnings .........................................................................................................................2

Introduction .....................................................................................................................2

Installation

Components and Tools.............................................................................................3

Door Preparation ......................................................................................................4

Prepare Lock for Installation................................................................................. 5-6

Install Lock............................................................................................................ 7-8

Hardware Troubleshooting........................................................................................8

Programming

Programming Features-Menus-Keys-Deﬁnitions ............................................... 9-11

Operating Modes.............................................................................................. 12-16

Easy Mode................................................................................................ 12-13

Advanced Mode ....................................................................................... 14-16

Miscellaneous Information......................................................................................17

Programming Troubleshooting ...............................................................................18

Sample Pin Code Management Sheets .................................................................19

TABLE OF CONTENTS

WARNINGS

INTRODUCTION

Yale® inTouch™ Stand-alone Touchscreen Access Lock combines robust cylindrical lock-

sets with a contemporary electronic aesthetic.

Users beneﬁt from an interactive touchscreen that makes day-to-day access effortless and

offers voice-guided programming for simple updates to user information in the event of

stafﬁng changes or security breaches.

inTouch

is engineered for quick & easy installation and ﬁts into the standard ANSI/BHMA

A156.115 cylindrical locks with lever door prep with only one additional 3/4" hole and 7

screws including latchbolt and strike.

inTouch

features the choice of "Easy" or "Advanced" operating modes. Locks are shipped

as a default from the factory in "Easy" mode. The desired operating mode should be de-

termined before the completion of lock installation, but can be changed at a later time if

required.

An ASSA ABLOY Group brand

P/N 80-9150-0065-010 Rev B

Lock Installation

#2 phillips screw driver

Lever removal tool (supplied)

3/8" or 1/2" drill

3/32" Allen wrench (supplied)

Door Prep

2-1/8" (54mm) hole saw

1" (26mm) boring bit

5/16" (8mm) drill bit

7/64" (2.5mm) drill bit

Chisel & hammer

Parts Illustrations

Tools

Quick Start Instructions

Installation Instructions

Door Marker

Outside Touchscreen Assembly

4 AA Alkaline Batteries

Latchbolt

Strike

Allen Wrench 3/32" (2.5mm)

Lever Removal Tool

Screw Pack (7 screws)

2 Keys (If cylinder included)

In the box, you should ﬁnd. . .

COMPONENTS AND TOOLS

Outside

Touchscreen

Assembly

Inside

Support

Assembly

Inside

Escutcheon

Inside

Lever

Handle

Battery Cover

4 AA Alkaline

Batteries

Latchbolt

Strike

Inside Escutcheon Assembly:

• Inside Support Assembly

• Inside Escutcheon

• Inside Lever Handle

• Battery Cover

INSTALLATION

An ASSA ABLOY Group brand

P/N 80-9150-0065-010 Rev B

Verify backset before marking and drilling door.

A. Mark horizontal line across edge of door 40-5/16"

(1024mm) from ﬂoor.

B. Fold door marker over the edge of the door, centering

on the horizonal line.

C. Mark centers of holes at proper backset. For beveled

and square edge doors, mark both sides of the door.

3/4" Diameter

3-1/2"

Backset 2-3/8" or 2-3/4"

A. Drill 2-1/8" (54mm) dia. hole through the door.

Cut notches as shown on template.

Note: To avoid splintering wood doors, drill holes (A) and

(D) from both sides of the door.

B. Drill 3/4" (19mm) diameter hole through the door according

to door marker.

C. Drill 1" (25mm) diameter hole in edge of door. Mortise for

latchbolt front 1-1/8" (29mm) wide x 2-1/4" (57mm) high

by 5/32" deep.

D. Drill two (2) 5/16" (8mm) diameter holes through door

(see note, above).

E. Drill pilot holes for latchbolt screws. 7/64" (2.5mm).

A. Close the door and mark a horizontal line from the center

of the template to the frame of the door.

B. Measure half the thickness of the door. Mark this same

distance with a vertical line starting from the stop side

of the frame. Where both lines cross make a 1" (25mm)

diameter hole, 1/2" (13 mm) in depth.

C. Align the holes of the strike with the vertical line. Trace

the outline of the strike and mortise with a 1/16" (1.6mm)

depth. Attach the strike with two screws (provided).

DOOR PREPARATION

Mark Door

Drill Door

Prepare and Install Strike (Wood Frames Only)

Strikes

497

Optional Strike Box

#202

Attaching Screws

81-2012-0620

#12-12-24x1"

371

Standard Strike Box

14-5301-1033

Attaching Screws

81-2012-0416

#8-8-32x3/4"

An ASSA ABLOY Group brand

P/N 80-9150-0065-010 Rev B

The lock is packed representative of how it will install on the door.

Before installation:

A. Disassemble the inside escutcheon

1. Remove the inside lever with the lever removal tool provided

2. Separate the inside support assembly from the inside escutcheon

B. Remove the battery cover

1. Unscrew the hex screw using the Allen wrench provided. The hex screw does

not come completely out.

2. Slide the battery cover off.

The outside assembly stays assembled.

Face the door from the secure side to determine it’s hand.

The secure side is the touchscreen side of an entrance door or the corridor side of a room door.

Note: inTouch locks are non-handed; the lever can be ﬂipped around to the desired handing.

Left Hand Reverse

Hinges on left.

Opens outward.

For handed locks,

specify LHR.

Left Hand

Hinges on left.

Opens inward.

For handed locks,

specify LH.

Right Hand

Hinges on right.

Opens inward.

for handed locks,

specify RH.

Right Hand Reverse

Hinges on right.

Opens outward.

For handed locks,

specify RHR.

PREPARE LOCK FOR INSTALLATION

Unpack the Lock

Determine Hand of the Door

Inside

Support

Assembly

Inside

Escutcheon Inside

Lever

Handle

Battery

Cover

Support

Assembly

Screws

An ASSA ABLOY Group brand

P/N 80-9150-0065-010 Rev B

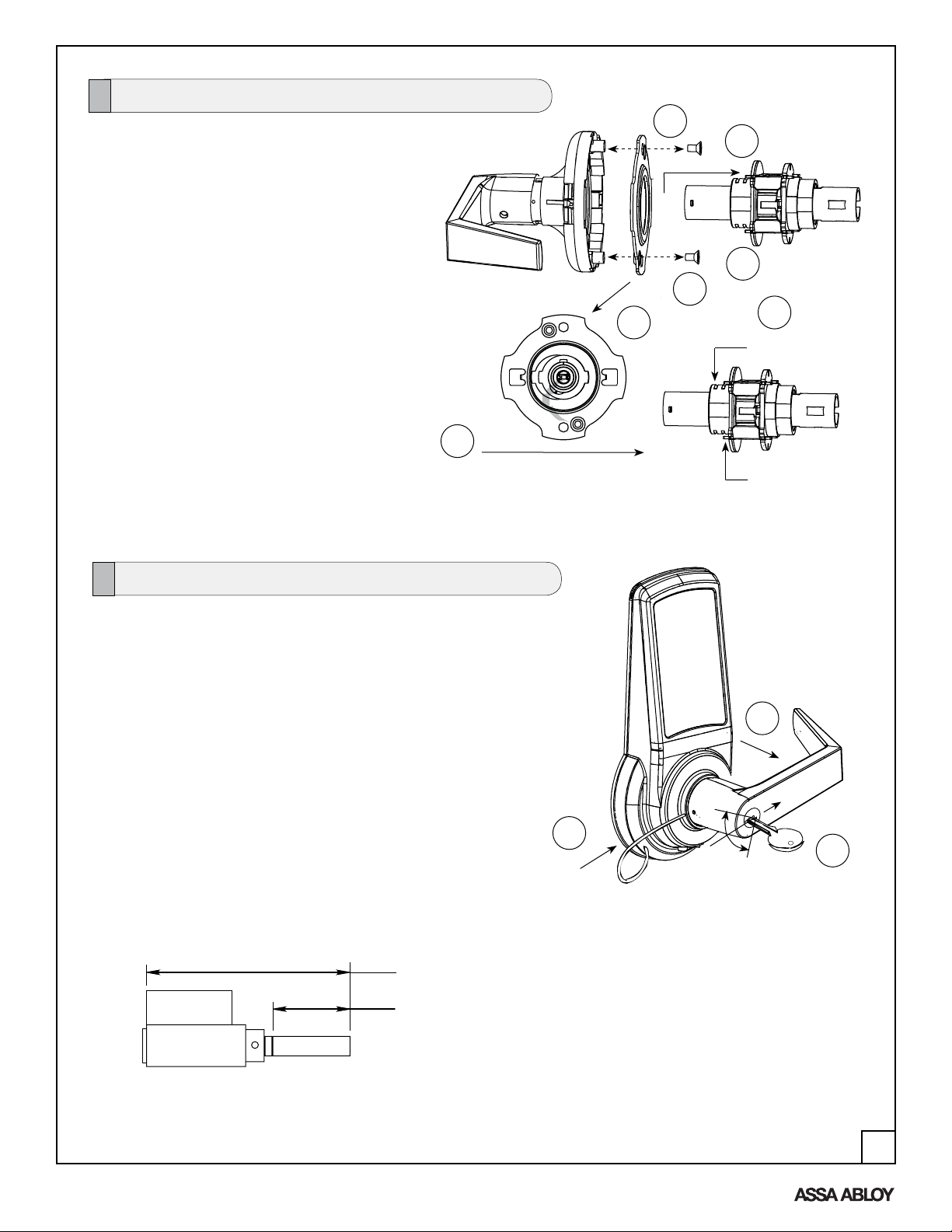

Adjust Lock for Door Thickness (If Necessary)

1. Remove cylinder handle:

A. Insert key and rotate 45 degrees counterclockwise.

B. Insert lever retainer tool and push.

C. Slide lever off lock.

2. Remove the plastic sleeve from the old cylinder.

3. Slide new cylinder into sleeve.

4. Insert key into cylinder.

Important: Make sure the key cut side of key lines

up facing towards the end of the lever. If the key is

inserted incorrectly, the lock will reassemble and

might appear to properly work; however, when the

key is removed, the latchbolt will remain retracted.

5. Rotate key 45 degrees counterclockwise.

Depress retainer plate, push the handle onto the shank until fully seated.

Pull on handle to insure properly seated.

2-5/8" (66.5) For 6 pin cylinders, 1-3/8" thick doors

2-7/8" (73) For 6 pin cylinders, 1-3/4" thick doors ONLY

1-3/16" (30) For 6 pin cylinders, 1-3/8" thick doors

1-7/16" (36.5) For 6 pin cylinders, 1-3/4" thick doors ONLY

CAUTION: The cylinders furnished with inTouch™ lock for use in 1-3/8" doors have a tailpiece

that is 1/4" shorter than the standard cylinders that are furnished for 1-3/4" doors. Trying to

install a standard cylinder in 1-3/8" will DAMAGE the lock body.

How to Replace, Re-Key or Install Cylinder

Key cut

Lock is packed pre-adjusted for 1-3/4" (44mm) doors.

To adjust for thinner door:

A. Remove (2) screws from outside

support assembly.

B. Slide outside assembly away

from the lock body.

C. Disengage plate from assembly

by sliding to the side and removing.

D. Re-seat plate on outside assembly.

Plate hole is slightly off center

(gray area). Slide plate over

assembly and slide to the center

until seated in one of the two grooves.

E. Adjust for door thickness by

seating plate in grooves on

assembly to match door thickness.

F. Re-seat plate on assembly.

G. Fasten plate and outside assembly to lock body with (2) screws.

Position for 1-3/4"

thick doors

Position for 1-3/8"

thin doors

Slide Plate to re-seat in grooves

An ASSA ABLOY Group brand

P/N 80-9150-0065-010 Rev B

Outside Assembly

Touchscreen

Cable

Escutcheon Screw

(1) 10-32 x 3/4" Pan Head

With Star Washer Screw

Motor Cable

Support Assembly Screws

(2) 10-32 x 2-1/2" Flat

Head Machine Screws

Inside Assembly

EASY

EXT-PWR / REMOTE / MOTOR

Easy /

Advanced

Mode

ADVANCED

Touchscreen

Cable

Connector

EXT-PWR / REMOTE / MOTOR

8 7

9b Touchscreen Cable

Routing

"Z" Fold

INSTALL LOCK

1. Install latchbolt in door. Be sure that bevel

edge of bolt faces strike. Attach with two

screws supplied.

2. Install strike on the door frame.

3. Insert outside assembly through door, making

sure that the lock body frame hooks latch case

and retractor engages bolt tail(s). DO NOT

FORCE (See Detail A above). If lock body

does not engage latch easily, check door

preparation for errors.

a. Guide motor cable (red and black wires)

through 2-1/8" diameter hole.

b. Guide touchscreen cable through 3/4"

diameter upper hole.

4. Guide motor cable through rectangular

hole on inside support assembly.

5. Slide inside support assembly over outside

assembly, lining up top and bottom screw

guides with holes in door. Secure both

assemblies with (2) 10-32 x 2-1/2" ﬂat head

machine screws. Do not over-tighten.

6. Attach motor cable connector to the

inside escutcheon PC board header

marked “MOTOR.”

7. Attach the touchscreen cable connector to

the inside escutcheon PC board header

as illustrated.

8. Select EASY or ADVANCED Mode using the

switch on the back of the PC board.

Directions

(2) 8-32 x 3/4"

Flat Head

Combination Screws

(2) 8-32 x 3/4"

Flat Head

Combination Screws

Retractor

Engages

Bolt Tail(s)

Lock Body

Frame

Engages

Latchcase

Latch

Detail A

An ASSA ABLOY Group brand

P/N 80-9150-0065-010 Rev B

Cycle the lock in both the locked and the unlocked positions. If problems are found:

HARDWARE TROUBLESHOOTING

9. Slide inside escutcheon over inside

support assembly.

CAUTION:

a. Position motor cable against inside

support assembly. Avoid pinching wires

against the steel shank of the assembly.

b. “Z” fold touchscreen wire cable and lay

against the back recessed area of

the escutcheon assembly. Position and

bend wires to prevent binding when

installing the escutcheon over the

support assembly.

10. Install and secure the 10-32 x 3/4" pan

head screw through the center of the

battery housing into the barrel nut of

the outside assembly.

11. Slide on inside lever and push in to attach.

12. Insert four (4) AA alkaline batteries. The

lock responds, “Welcome to the Yale

Digital World.”

Note: Refer to programming instructions prior to

completion of step 13.

13. Install battery cover and tighten hex head

screw with Allen wrench provided with lock.

Directions, Continued

Symptom Suggested Action

Door is binding a. Check that door and frame are properly aligned and door is free swinging.

b. Check hinges: They should not be loose or have excessive wear on knuckles.

Latchbolt will not deadlock a. Either strike is out of alignment or the gap between the door and jamb is too great.

Realign strike or shim strike out towards ﬂat area of latchbolt.

Latchbolt does not retract or extend properly Latchbolt tail and retractor are not properly positioned:

a. Remove lockset. Look though 2-1/8" hole and verify latchbolt tail is centered

between top and bottom of hole.

b. Remove latchbolt and insert lockset. Look though latchbolt hole and verify retractor

mouth centered in hole. If not, adjust outside rose plate.

c. If necessary, rebore holes to line up retractor and tail.

Test the Operation of the Lockset

An ASSA ABLOY Group brand

P/N 80-9150-0065-010 Rev B

PROGRAMMING

9 Volt Batteries Purchased Separately

HEX Screw

" I" Button

4 AA

Alkaline

Batteries

Speaker

Status LED

Battery Cover

Outside Inside

9 Volt

Emergency Power

Supply Terminal

Passage Mode

Cylinder

Lockout

Mode

Low

Battery

Touchscreen

Numbers " P " Key

(Reurn to Previous)

PROGRAMMING FEATURES - MENUS - KEYS - DEFINITIONS

Programming Features-Menus-Keys-Deﬁnitions ............................................... 9-11

Operating Modes.............................................................................................. 12-16

Easy Mode................................................................................................ 12-13

Advanced Mode ....................................................................................... 14-16

Miscellaneous Information......................................................................................17

Programming Troubleshooting ...............................................................................18

Sample Pin Code Management Sheets .................................................................19

An ASSA ABLOY Group brand

P/N 80-9150-0065-010 Rev B

Menu and Icons

Touch the screen with palm of hand or

ﬁngers to begin and end actions. Enter Master PIN code (6 digits in length).

Advanced Mode only. Factory default: 123456.

Click the indicated number. Enter Supervisor PIN code. Can be 4-12 digits

in length. Factory default: 1234567890.

Press the Star key on the touchscreen to

Enter or Accept entry. Enter User PIN. Can be 4-12 digits in length.

Press the Pound key on the touchscreen to

enter Menu mode.

Supervisor Serial Number (00 - 19).

Advanced Mode only.

Press this key to return to the previous

step or menu setting.

User Serial Number (01 - 49).

Advanced mode only.

Repeat operation using settings indicated. Enter value 1 - 10 (times or seconds).

The I-Button is located under the battery

cover. Remove battery cover for access.

Enter value 1 - 255 (seconds).

Slide the batter cover up and off. Voice guide.

Passage Mode

Low Battery

1Lockout Mode

3Lock and Unlock - Audio and Visual

Return to Previous Step

Advanced Mode: See "Advanced Mode" on page 14.

All Code Lockout: Advanced mode only. This feature is enabled only by the Master code. When

enabled, it restricts all user PIN code access. When the unit is in Lockout, the red locked

padlock will appear on the screen.

Easy Mode: See "Easy Mode" on page 12.

Emergency Power Supply: 9V battery connections are located under the front of the outside

escutcheon. In the case that the 4 AA alkaline batteries are completely discharged, a 9V bat-

tery can be used to supply power to the lock. While connecting the 9V battery, the lock can

be operated as normal, thus granting access so the 4 AA alkaline batteries can be replaced.

Group Lockout: Advanced mode only. This feature can be enabled by either the Master code or

the Supervisor code. If Group Lockout is enabled through the Master code, speciﬁc Supervi-

sors and their entire group of Users will be locked out. If Group Lockout is enabled through

the Supervisor code, only Users corresponding to that Supervisor are locked out.

Deﬁnitions

Tabla de contenidos

Otros manuales de Cerrar de Assa Abloy

Assa Abloy

Assa Abloy Sargent V.S2 Manual de usuario

Assa Abloy

Assa Abloy Yale Real Living YRD210-ZW Especificaciones técnicas

Assa Abloy

Assa Abloy Lockwood 3P82TSS-A11E Manual de usuario

Assa Abloy

Assa Abloy Sargent Passport 1000 Series Manual de usuario

Assa Abloy

Assa Abloy Corbin Russwin BLSS ML2000 Series Manual de usuario

Assa Abloy

Assa Abloy SARGENT Delayed Egress 57-80 Series Manual de usuario

Assa Abloy

Assa Abloy Yale Real Living Assure Lock SL Series Especificaciones técnicas

Assa Abloy

Assa Abloy EL580 Manual de usuario

Assa Abloy

Assa Abloy Securitron Magnalock Series Manual de usuario

Assa Abloy

Assa Abloy OneSystem 509N Guía de instalación

Assa Abloy

Assa Abloy Yale 8800-ITS Guía de inicio rápido

Assa Abloy

Assa Abloy 8800 Series Manual de usuario

Assa Abloy

Assa Abloy Sargent L980S Manual de usuario

Assa Abloy

Assa Abloy Yale Easy Manual de usuario

Assa Abloy

Assa Abloy Corbin Russwin BLSS ML2000 Series Manual de usuario

Assa Abloy

Assa Abloy Sargent Profile v.S1 Manual de usuario

Assa Abloy

Assa Abloy eCLIQ Manual de usuario

Assa Abloy

Assa Abloy Sargent Passport 1000 Series Manual de usuario

Assa Abloy

Assa Abloy Yale SIMPLICITY Manual de usuario

Assa Abloy

Assa Abloy 840C-50 Manual de usuario

Assa Abloy

Assa Abloy Interlock IEGL Manual de usuario

Assa Abloy

Assa Abloy Corbin Russwin UT5200 Series Guía de inicio rápido

Assa Abloy

Assa Abloy medeco Aperio M100 Manual de usuario

Assa Abloy

Assa Abloy Yale P113 Manual de usuario

Manuales populares de Cerrar de otras marcas

Magic

Magic 105 Manual de usuario

Gantner

Gantner GAT NET.Lock 7020 System Guía rápida

Wittkopp

Wittkopp Insys 7202 Manual de usuario

Dorma

Dorma Studio Classic Manual de usuario

Securam

Securam ECSL-601 Manual de usuario

Sudhaus

Sudhaus 3003 Manual de usuario

Safety 1st

Safety 1st 48517 Manual de usuario

Pado

Pado FDS-10 Manual de usuario

Esco

Esco systeQ Series Manual de usuario

COMPX

COMPX National D8951 Manual de usuario

secureo

secureo Key Box Manual de usuario

Stock Loks

Stock Loks C8713 Manual de usuario

COMPX

COMPX 1T-058 Manual del propietario

Auslock

Auslock T11 Manual de usuario

ELCOM

ELCOM 7205 Manual de usuario

Stealth SAFES

Stealth SAFES ShadowVault Manual de usuario

Knox

Knox KeySecure 5 Manual de usuario

Kwikset

Kwikset 48334/01 Manual de usuario
