M100 Aperio

Mortise Lock Series

Installation Instructions

Machine

screwwith

washer

Package Contents

Additional Tools Needed

Options not included:

Gang box to mount hub

Approved Credential:

HID iCLASS ID Credential

Flathead drivers 3/32”, 3/16”

#2 Phillips Driver

Pencil, Wire Stripper

Wireless Frequency: 2.4 GHz, IEEE 802.15.4, using AES 128bit encryption

Hub Power Requirement: 8-24VDC, 250mA

Lock Battery Type: CR2, providing 30,000 Cycles

Operating Temperature: -10C to 50C

FCC Part 15, Class B Compliant

Credentials Supported: 13.56MHz iCLASS credentials are supported

Product Specifications

For technical support please call 1-800-810-WIRE (9473)

Hub Mounting Bracket and

Hardware

(Hardware not shown)

Aperio Hub

16

Scan the QR code with

your Smartphone wherever

you see this symbol to

view our How-To videos

System Overview

The M100 wireless mortise lock extends access control to an office door, stockroom door or

any other door requiring additional accountability without the complexity and expense of

running wires to the opening. The M100 lock connects to an access control system through

the included communication hub. The communication hub connects to the access control

system with wiegand wiring typical of a wiegand reader.

When a credential card is presented to the reader on the lock the request for access is sent

wirelessly to the communication hub. The communication hub then communicates through

wiegand wiring to the access control system where the decision is made to grant or deny

access.



Installation Steps

A. 1 - Choose the hub location

It is recommended that the hub be mounted near the top of a wall, on the ceiling or

above the ceiling to reduce potential for interference.

For a stable and reliable radio link, it is recommended that the hub is located within forty-five (45)

feet of the lock. A maximum of two interior walls between the hub and lock is recommended

Recommended locations:

A: Wall Mount

B: Ceiling Mount

C: Inside Ceiling Mount

D: Wall Mount, Adjacent Room

C. Test the Lock

A. Locate and Mount the Hub B. Connect the Hub

D. Install the Lock

A.2 - Mounting the Hub.

The included adapter plate can be used to mount the hub on a single or double gang box.

B. Wiring the Hub.

The Aperio Hub connects to the Access Control system via Wiegand wiring. The hub

requires 8-24VDC power (250mA). The hub includes three form C relays that can be used

to transmit Lock jamb status, low battery signal and a tamper signal. The hub connects to

the mortise lock wirelessly.

*Note: the Green LED input is used to grant access

to the M100 lock. If the Green LED signal is not

available to indicate approved access, the hub input

can be activated by another unlock signal or relay.

Connect Lock Jamb, Low Battery &

Tamper Detection Form C Relays

Installing the Hub

C. Testing the Lock with the Access Control System

With the hub connected to power and the access control system, test the lock with a known

good credential to confirm it will open as desired when installed.

D. Mounting the Lock

Before You Be

in please verify the followin

You have the proper Cam for the door hardware being used

Verify the rotation of the lock matches the hardware on the door



Step 1:



The M100 installs in a similar fashion to a mechanical mortise lock, and requires the same

adjustments to function properly with the mortise hardware. The following steps outline the mechanical

installation only.

Removal of Existing Cylinder

a) Remove the door-edge trim by removing the retaining screws and gently prying the trim plate

loose

(Fig. 1).

b) Loosen the cylinder clamp screw far enough to allow the existing cylinder to be removed (Fig. 2).

c) Using a key partially inserted, rotate the mortise cylinder counter-clockwise to remove it. Also

remove any trim rings if they are used (Fig. 3).



Fig. 1

Fig. 2 Fig. 3



Step 2:

Verify that the cam on the M100 is the same style as was on the cylinder that was just removed. If

the removed cylinder is a Medeco brand, the cam can be interchanged onto the M100 (Fig. 4).



Fig. 4

Screw the M100 into the cylinder mounting hole on the mortise hardware (Fig. 5). It is important to not

over tighten, or to keep too loose on the door. The face of the M100 cylinder should stand proud of the

escutcheon approximately 3/16"-1/4". Please also see (Fig. 12) before proceeding (Fig. 6).

 

Fig. 5 Fig. 6



Step 3: Re-tighten the cylinder clamp screw with the M100 in a vertical position. The screw should

engage tightly in the slot along the edge of the cylinder so the cylinder cannot rotate (Fig. 7).



Fig.7



Step 4: Add back plate and locking nut (Fig. 8). Warning: Wire harness goes through plate (Fig. 9).

 

Fig. 8 Fig. 9

Tighten with locking nut tool (Fig. 10). Warning: Only one or two threads should be visible for proper

operation (Fig. 11).



 

Fig. 10 Fig. 11



Step 5: Connect control unit to wire harness and install 4 mounting screws (Fig. 12 and Fig. 13).

Warning: Avoid pinching wire harness when mounting the control unit.



Fig. 12 Fig. 13



Step 6: Install Battery. Please verify the battery is inserted in the correct polarity position. Always use new

batteries installed with correct polarity (Fig. 14 and 15).



 

Fig.14 Fig.15

Step 7: Install cover assembly (Fig. 16) and cover screw (Fig. 17).

 

Fig.16 Fig.17

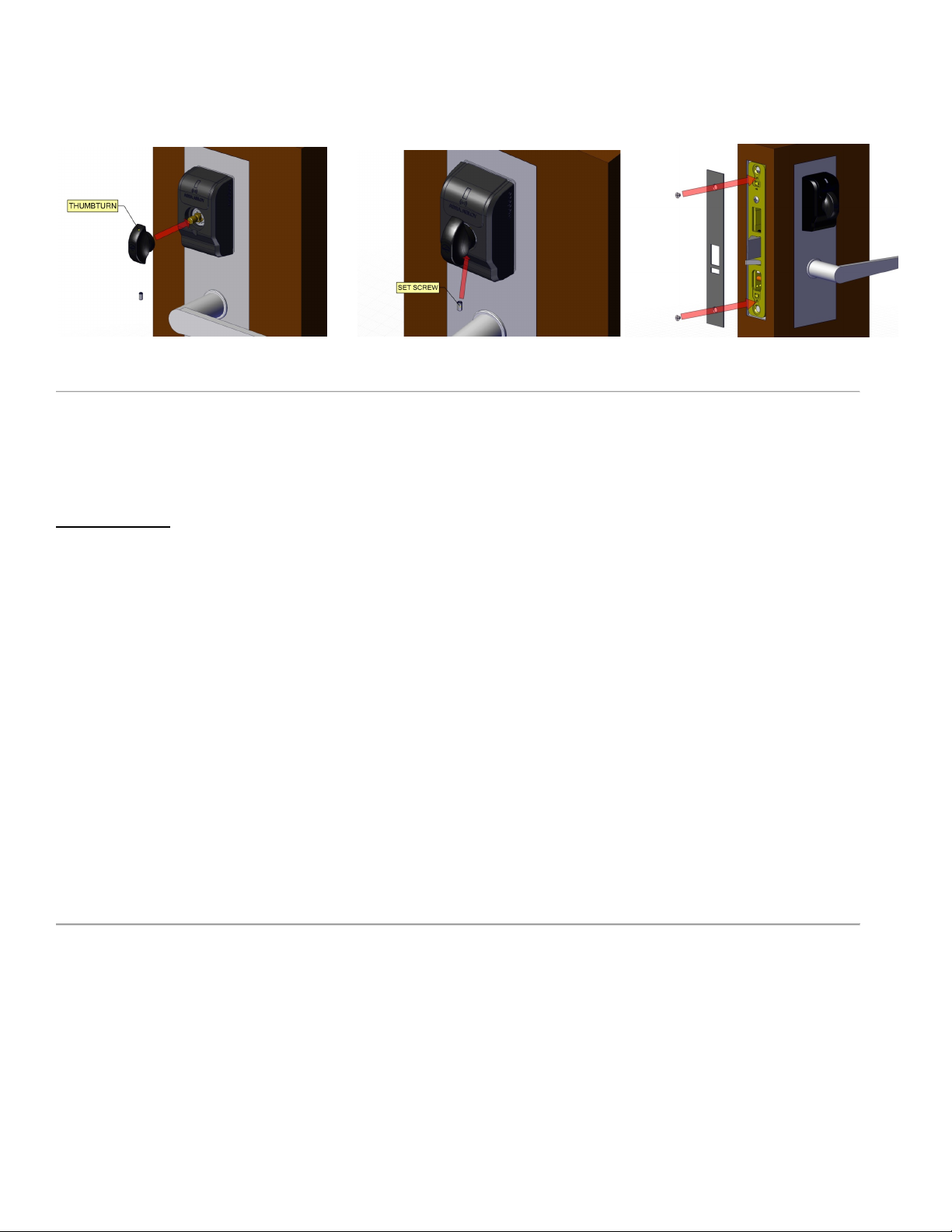

Step 8: Install thumbturn (Fig. 18), set screw (Fig. 19), and re-install door edge trim (Fig. 20).

Fig. 18 Fig. 19 Fig. 20



Warning:

FCCStatement

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

1.Thisdevicemaynotcauseharmfulinterference,and

2.Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired

operation.



Changesormodificationsnotexpresslyapprovedbythemanufacturercouldvoidtheuser’sauthorityto

operate

thisequipment.



LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradio

exemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilne

doitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillage

radioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.



Tips and Trouble Shooting

Thumbturn drags on cover.

Thumbturn is not out far enough refer to Step 4, Fig. 12.

The cover does not sit flush on plate.

Cylinder is protruding out to far (included are optional spacers for proper spacing of cylinders) refer to

Step 4, Fig. 12.

For Technical Support please call 1-800-810-WIRE (9473)
