Assa Abloy SARGENT 1431 Manual de usuario

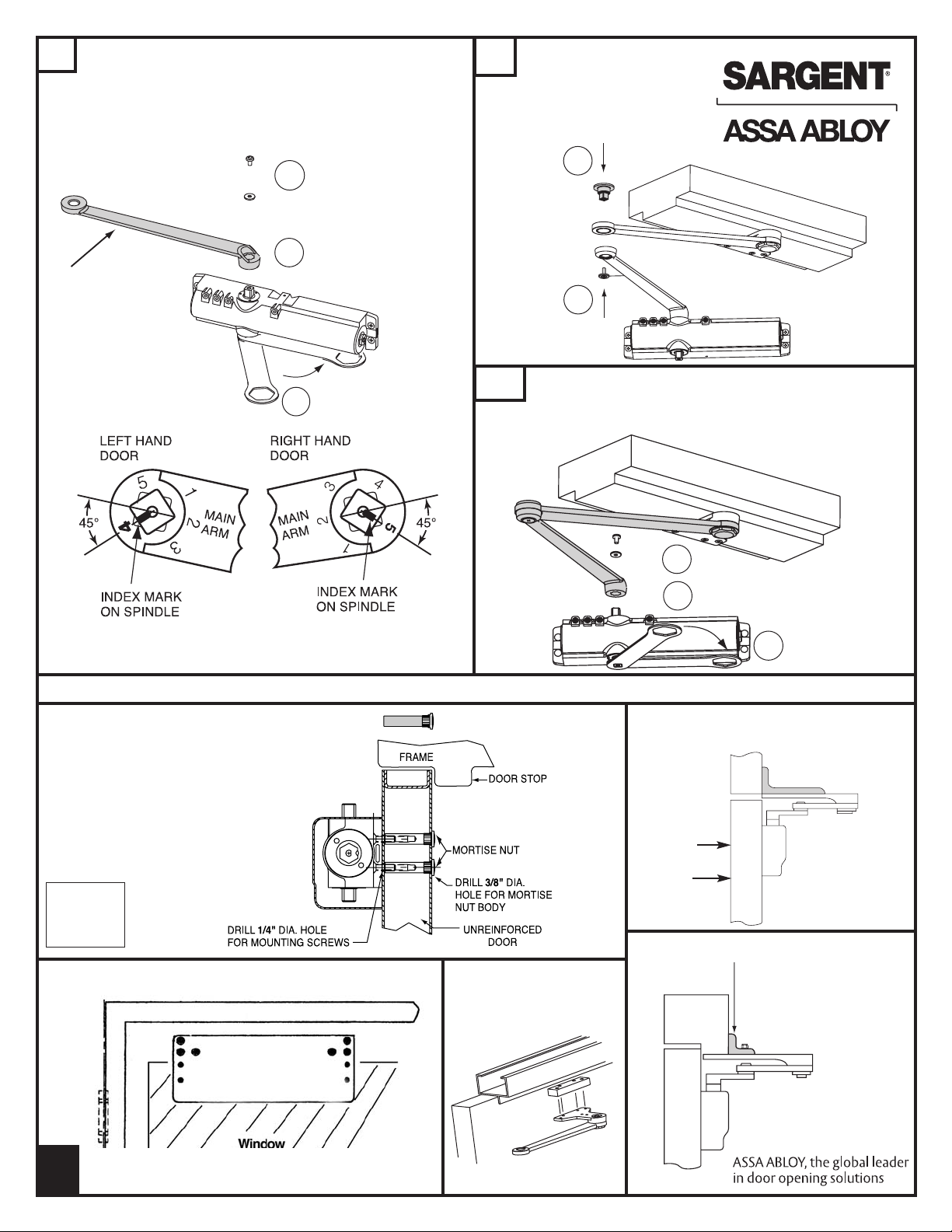

1431 DOOR CLOSER WITH P10/PH10 ARM

INSTALLATION INSTRUCTIONS

CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY

MAY RESULT IN INJURY OR DAMAGE.

FOR ASSISTANCE, CALL SARGENT AT 1-800-727-5477

1LOCATE AND MARK HOLES USING FULL SIZE TEMPLATE OR

MEASURE AS SHOWN BELOW

RIGHT HAND SHOWN, LEFT HAND OPPOSITE.

PULL SIDE PULL SIDE

PUSH SIDE PUSH SIDE

LEFT HAND DOOR RIGHT HAND DOOR

1431 CLOSER AND P10 ARM ARE NON-HANDED

ONLY THE PH10 ARM IS HANDED

ATTACH FOOT BRACKET TO DOOR STOP.

ATTACH DOOR CLOSER TO DOOR WITH SPRING POWER NUT

TOWARD HINGE.

PRE-DRILL 3/32" HOLES FOR SELF TAPPING

SCREWS OR USE #16 DRILL (DIA.177) AND

TAP #12-24 FOR MACHINE SCREWS

A7387D 1

* NOTE: FOR MAXIMUM POWER, INSTALL FOR 90° OPENING.

ALTERNATE: PREASSEMBLE ARM PRIOR TO

ATTACHING TO STOP

USE FIFTH HOLE SPACER

WHEN REQUIRED

IMPORTANT: USE A MINIMUM OF 5 SCREWS

HAND

(PH10 ONLY)

Reproduction in whole or in part without the express written

permission of SARGENT Manufacturing is prohibited.

A7387C 1/30/08 3:17 PM Page 1

ALTERNATE METHOD FOR ATTACHING ARM:

A. PREASSEMBLE ARM TO FOOT BRACKET

B. MOUNT ARM TO CLOSER AS SHOWN IN STEP 4

ACCESSORIES

5ATTACH ARM TO CLOSER

*A. ROTATE BOTTOM SPINDLE WITH WRENCH

B. INSTALL MAIN ARM WITH INDEX MARK

POSITIONED AS SHOWN BELOW

C. SECURE WITH SCREW AND WASHER

*WARNING: IF NOT PROPERLY INDEXED, DOOR

CLOSER WILL NOT FUNCTION PROPERLY.

!! !!

2A7387D

125 VF BRACKET FOR FLUSH FRAME

AND DOOR CONDITION

OPTIONAL: USE MORTISE NUTS (TB)

WHEN THROUGH-BOLTING IS REQUIRED

SEE PAGE 4

FOR

TEMPLATING

DIMENSIONS

FLUSH

FRAME

DOOR

125 V BRACKET FOR NARROW FRAME

CONDITION

1431-D DROP PLATE USED WITH NARROW TOP RAILS

1431-D DROP PLATE

581-2 SPACER USED

WITH BLADE STOPS

MAIN ARM

A. OPEN DOOR AND

INSTALL PIVOT AS

SHOWN

B. USE SCREW TO SECURE

PIVOT AND ARMS AS SHOWN

Reproduction in whole or in part without the express written

permission of SARGENT Manufacturing is prohibited.

A7387C 1/30/08 3:17 PM Page 2

Door Closer Cycle

Opening

cycle

DOOR WIDTH 1431 DOOR CLOSER

(INCHES)

24-30 TURN nut 1-3

30-36 FACTORY SET

36-42 TURN nut 1-3

42-48 TURN nut 7-9

FINAL ADJUSTMENT AND REGULATING PROCEDURES

8ADJUST CLOSING POWER TO THE MINIMUM REQUIRED TO

RELIABLY CLOSE AND LATCH DOOR

9INSTALL COVER AS SHOWN

SPRING POWER

ADJUSTMENT GUIDELINES

SHORT SCREW

GAP

PLASTIC SPACER

AND LONG SCREW

MOVE

INSERT AS

NEEDED

SLIGHT TIGHTENING OR

LOOSENING OF HOLD OPEN

NUT CHANGES HOLDING

POSITION OF DOOR

NOTE: ALWAYS USE A DOOR

STOP TO STOP DOOR TO

PROTECT WALL AND TRIM

ADJUSTMENT OF HOLD OPEN ARM

(PH10 ARM ONLY)

1-3/8" WRENCH

A7387D

– Adjust Door speed, and Latching speed valves to achieve the desired closing time.

Recommend 6 seconds minimum from 90° to the closed position.

– If Backcheck is required, adjust valve to achieve a slight cushioning effect.

Auxiliary stop required.

– If closer is equipped with Delayed Action,

regulate valve to achieve the desired delay.

Latching speed range

Closing

speed range

Backcheck range

Spring Power

Adjustment

Backcheck

Closing speed

Latching speed

Delayed

action

(Optional)

SLOW

DOWN

SPEED

Delayed

action range

Use 1/8" hex wrench to

adjust valves

– If door is hard to open, decrease power

slightly

– If door does not latch, increase power

as required

– Use the chart as a starting point

– Doors adjusted with high closing power

to overcome strong draft conditions may

exceed ADA standards.

Reproduction in whole or in part without the express written

permission of SARGENT Manufacturing is prohibited.

A7387C 1/30/08 3:17 PM Page 3

4A7387D

Reproduction in whole or in part without the express written

permission of SARGENT Manufacturing is prohibited.

A7387C 1/30/08 3:17 PM Page 4
