EX88 Interlocking Rim Exit Device

Preparation Guide and Installation Instructions

Box Contents

EX88 Interlocking Rim Exit Device

Cylinder and Trim Interface Kit

Mounting Hardware Kit

Frame Kit with Templates

Mounting End Cap Kit

Recommended Installation Tools

Safety glasses Measuring tape Level Pencil

Power drill Drill bits: 5/32”, 3/4” Center punch Phillips screw driver

IMPORTANT NOTE 1: All work must be performed to applicable building, regulatory and life-

safety codes. Please consult local Authority Having Jurisdiction (AHJ) for more information.

IMPORTANT NOTE 2: The Americans with Disabilities Act (ADA) guidelines specify door

hardware be mounted 34”-48” above the finished floor.

Active Push Bar

Filler Plate

Back Bar

Page | 2

P800.872.3267 F800.232.7329

Etechsupport.adamsrite@assaabloy.com

www.adamsrite.com

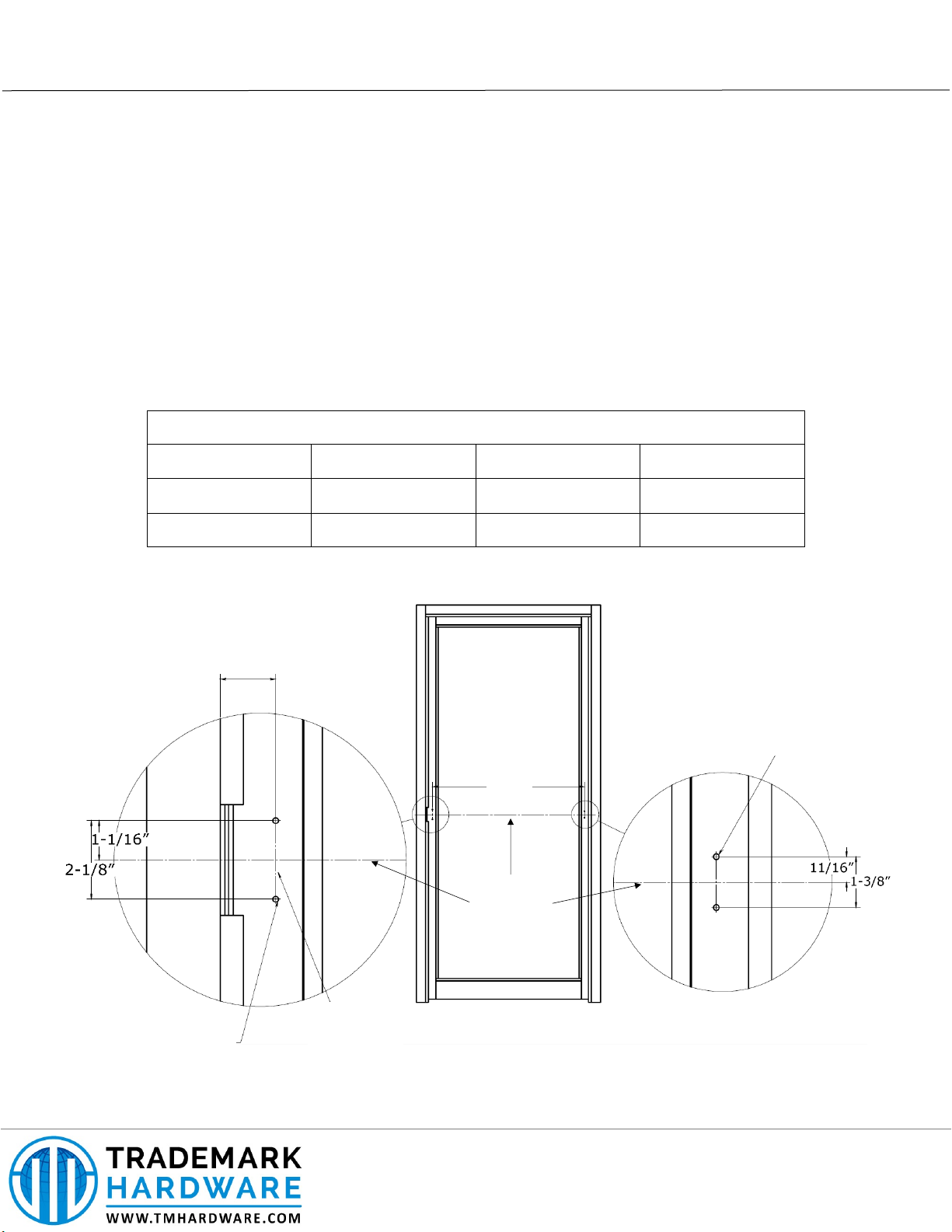

Preparing the Inside of the Door (LHR Shown)

1. DETERMINE and MARK the applicable bar height centerline (horizontal line) of the exit device on the

interior of the door.

2. DETERMINE the location of the latch end door template by using the bar height centerline of the exit

device and aligning the template with the mounting centerline (vertical line) of the door.

3. AFFIX the latch end door template to the door.

4. DETERMINE and MARK the hinge side preparation using dimension “A” as shown in the chart below.

5. IF standard door widths, as shown in the chart below, are not being used,

THEN CUT to proper length using Sizing the Exit Device chart on page 4.

6. MARK, CENTER PUNCH, DRILL all holes.

7. PREPARE door for cylinder and/or trim using Preparing the Door for Cylinder or Trim on page 5, if

required.

8. REMOVE the templates.

Standard Door Widths and Mounting Hole Spacing

Exit Device Length

Regular (R)

Midlength (M)

Long (L)

Standard Door

Opening Width

36”

42”

48”

Dimension “A”

33”

39”

45”

1-1/2” from

surface of strike

to mounting

centerline

Bar Height

Centerline

“A”

Mounting

Centerline

Drill 5/32”dia pilot

holes for self-tapping

screws, 2 places

Drill 5/32”dia pilot

holes for self-tapping

screws, 2 places

Page | 3

P800.872.3267 F800.232.7329

Etechsupport.adamsrite@assaabloy.com

www.adamsrite.com

Prepping the Frame (LHR Shown)

1. DETERMINE and MARK the applicable bar height centerline (horizontal line) of the exit device on the

frame for the strike plate.

2. DETERMINE the location of the strike plate template by using the bar height centerline of the exit

device and aligning the template with the surface of the closed door.

3. MARK, CENTER PUNCH, DRILL all holes.

4. REMOVE the template.

1-17/32” from

inside surface

of closed door

Cut away

stop

Bar Height Centerline

1-1/2”

3”

1”

2”

Drill 5/32”dia pilot

holes for self-tapping

screws, 2 places

Page | 4

P800.872.3267 F800.232.7329

Etechsupport.adamsrite@assaabloy.com

www.adamsrite.com

Sizing the Exit Device

Standard Door Widths and Mounting Hole Spacing

Exit Device Length

Regular (R)

Midlength (M)

Long (L)

Standard Door

Width

No Cut Required

36”

42”

48”

Minimum Door

Width Exit Device

Can Support

30”

42”

NOTE: All EX Series Exit Devices are sized at the factory for 5/8” frame stop in narrow stile aluminum

applications.

1. DETERMINE cut off dimension “B” Back Bar extrusion length by subtracting 3-7/8” from door

opening width.

2. MARK cut off line “B” on Filler Plate and Back Bar.

3. REMOVE Filler Plate from Back Bar and CUT along lines on both pieces. REPLACE Filler Plate into

Back Bar.

IMPORTANT NOTE: Do not cut Active Push Bar

“B”

Page | 5

P800.872.3267 F800.232.7329

Etechsupport.adamsrite@assaabloy.com

www.adamsrite.com

Preparing the Door for Cylinder or Trim

1. PREPARE the exterior and interior of the door for cylinder or trim using the latch end door template

and exterior cylinder template, as required.

2. PREPARE the door for cylinder mounting or trim mounting according to manufacturer’s instructions,

as required.

9/32”

Mounting

Centerline

Bar Height Centerline

Cylinder Centerline

Bar Height

Centerline

Bar Height

Centerline

1/4”

1/8”

13/16”

13/32”

3/8”dia

7/32”dia thru

c’sink 3/8”dia

x 82 deg, 2 plc

(cylinder only)

Exterior Preparation for Use with Cylinder

Interior Preparation for Use with Trim and Cylinder

Bar Height Centerline

Cylinder Centerline

1/8”

1-3/16”dia

(cylinder only)

Page | 6

P800.872.3267 F800.232.7329

Etechsupport.adamsrite@assaabloy.com

www.adamsrite.com

Handing the Exit Device for Installation with

Cylinder or Trim

NOTE: The orientation of the trim plate differs for LHR and RHR applications. The Trim Actuator is

ALWAYS located on the bottom of the Trim Plate.

IF installing cylinder or trim,

THEN DETERMINE the door handing and INSTALL accompanying Cylinder and Trim Interface Kit

Left Hand Reverse –LHR

Right Hand Reverse –RHR

Page | 7

P800.872.3267 F800.232.7329

Etechsupport.adamsrite@assaabloy.com

www.adamsrite.com

Installing the Exit Device

NOTE: Use provided self-tapping screws for aluminum or hollow metal applications.

Use provided wood screws for wood applications.

1. INSTALL Mounting Foot on hinge side of door

using two (2) #10-32 x 3/4” pan head screws.

Leave screws slightly loosened for final

adjustment.

2. SLIDE the exit device onto the mounting foot

3. INSTALL Interlocking Mounting Base on latch

side of door using two (2) #10-32 x 3/4” pan

head screws. Leave screws slightly loosened for

final adjustment.

Page | 8

P800.872.3267 F800.232.7329

Etechsupport.adamsrite@assaabloy.com

www.adamsrite.com

Installing the Strike Plate

1. INSTALL the Strike Plates using two (2) #10-32

x 3/4” flat head screws.

2. VERIFY that exit device is fully operational.

3. ADJUST strike plate as necessary using shim

plates provided.

4. MARK, CENTER PUNCH, DRILL 5/32” diameter

pilot hole for center screw.

5. INSTALL the #10-32 x 3/4” flat head self-

tapping center screw to maintain optimum

adjustment.

10-32 x 3/4"

flat head self-

tapping

screws, 2 qty

10-32 x 3/4"

flat head self-

tapping screw,

1 qty

Page | 9

P800.872.3267 F800.232.7329

Etechsupport.adamsrite@assaabloy.com

www.adamsrite.com

Testing and Adjusting Exit Device Operation

1. PERFORM a visual inspection to make certain exit device will be level and secure.

2. TEST the operation of the Active Push Bar and latching mechanism and ADJUST as necessary (door

should open when the Active Push Bar is depressed and properly lock into strike plate when door is

closed).

NOTE: The following is not applicable to fire-rated exit devices. Dogging the Active Push Bar disables

the latching function, making the door a simple push/pull operation.

3. DEPRESS and HOLD active push bar in unlocked position.

4. INSERT and ROTATE hex key one-quarter turn clockwise to lock device (DOG) into position.

5. ROTATE hex key one-quarter turn counterclockwise to unlock device and release device into

motion.

6. ENSURE exit device is operational and ADJUST as required.

NOTE: Over-rotation of the key past the prescribed one-quarter turn may cause damage to the exit

device.

3. TIGHTEN two (2) #10-32 x 3/4” pan head

mounting screws on the Mounting Foot on

hinge side of door.

4. TIGHTEN two (2) #10-32 x 3/4” pan head

mounting screws on the Interlocking Mounting

Base on latch side of door.

Page | 10

P800.872.3267 F800.232.7329

Etechsupport.adamsrite@assaabloy.com

www.adamsrite.com

Installing the Mounting End Caps

1. INSTALL Hinge End Mounting End Cap on hinge

side of door using two (2) #8-32 x 3/8” tri lobe

pan head screws.

2. INSTALL Latch End Mounting End Cap on

latch side of door using two (2) #8-32 x 3/8”

tri lobe pan head screws.

Maintenance

1. CHECK mounting fasteners periodically and TIGHTEN if loose.

2. APPLY screw locking compound or CHANGE part fasteners if screws continue to back out.

3. PERFORM periodic and required checks and adjustments of strikes to compensate for wear and tear

such as door sagging.

Warranty

For complete warranty information, please visit the Adams Rite website:

http://www.adamsrite.com/en/site/adamsritecom/about/warranty/
