Assa Abloy Yale Assure Lock SL Especificaciones técnicas

P/N YRD256-MNL-0003 Rev G

Yale Assure Lock®

® SL

Key Free Touchscreen Deadbolt

Installation and Programming Instructions

(YRD2 6)5

This manual will walk you through all the required steps to add your new

Yale Assure Lock SL to your door.

• Remove existing deadbolt

• Double check door measurements

• Install your Assure Lock SL

• Program your Assure Lock SL

• Add your Assure Lock SL to your smart home system or Yale

Acess app if purchased with Yale Smart Module or Yale Access

Upgrade Kit

Failure to follow these instructions could result in damage to the product, voiding the factory warranty and could lead to failure of the product to provide access.

Before you begin

Using the app on your smart

phone, scan this QR for step-by

-step installation instructions & to

DOWNLOAD

THE BILT APP

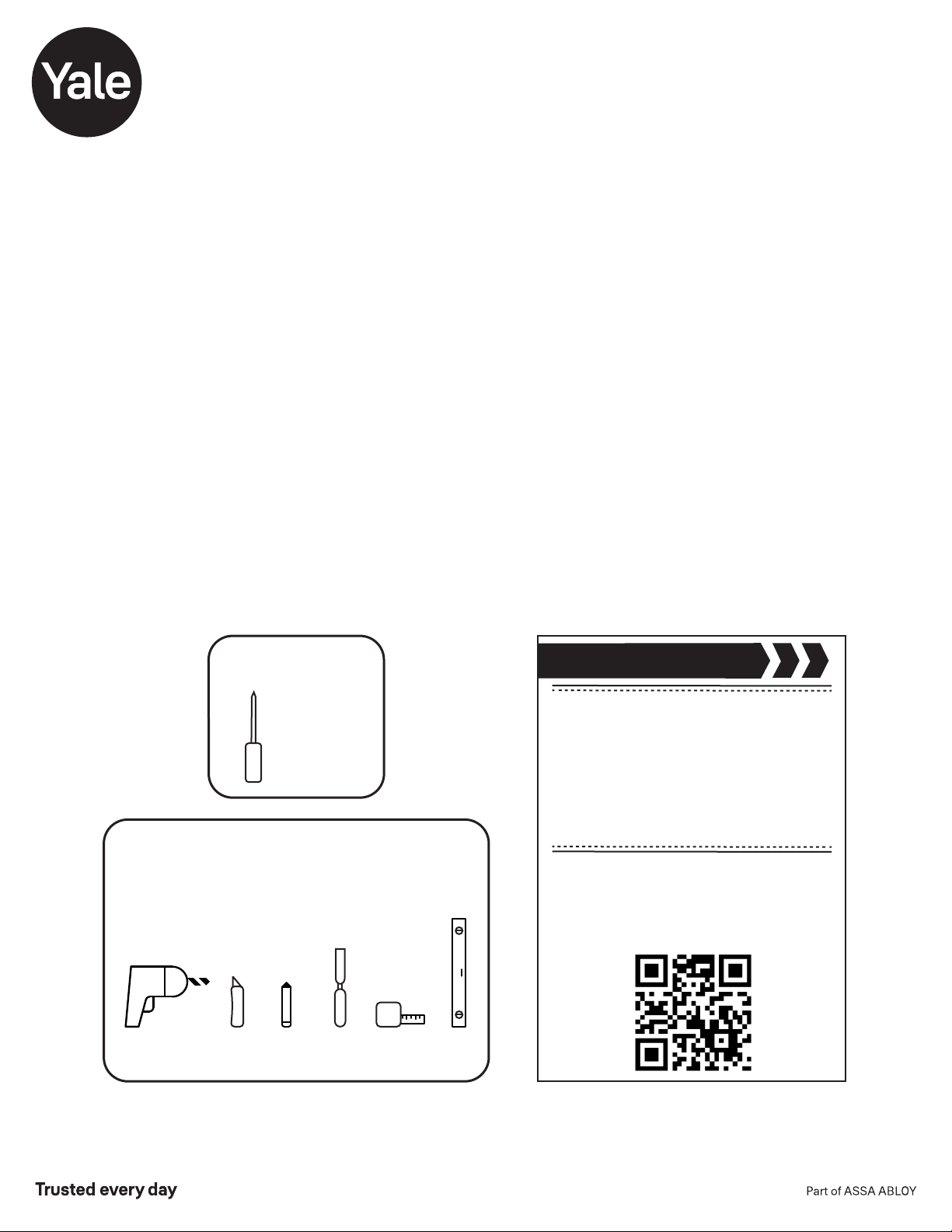

Tools Needed

Standard

Phillips Head

Screwdriver

Tools Needed For New

Doors Or Adjusting Existing Door

Utility

Knife

Drill Wood

Mortise

Chisel

Pencil Tape

Measure Level

P/N YRD256-MNL-0003 Rev G

Key Free Touchscreen

Keypad

Installation Guide

and Door Template

Mounting Hardware

Strike Plate Adjustable

Deadbolt

(AYRDB-DRIVE

Adjustable Drive-In Deadbolt

available for purchase)

OR OR

Screw Set D

Silver for

2 to 2-1/4"

Door Thickness

Screw Set C

Black

Standard for

1-3/4"

Door Thickness

Strike Plate

and

Deadbolt

Screws

Inside Lock

Screws

Optional

Security

Strike Plate

Screws

Let's Get Started

Screw Set B

Green

for

1-3/8"

Door Thickness

Yale Smart Module

(with select models)

What's In The Box

Loosen screw to

remove cover

4 AA Batteries

Battery Cover

Inside Lock Mounting Plate

x2 x2 x2 x2 x2x4

P/N YRD256-MNL-0003 Rev G

Frame

Remove Existing Deadbolt

Do not discard old lock hardware until Assure Lock has been successfully installed.

P/N YRD256-MNL-0003 Rev G

New Door Marking Template

Door Checker

Use door checker from installation guide envelope to verify your door measurements and

make any needed adjustments.

With door checker, use template from installation guide envelope to prep a new door that

has not been predrilled for hardware.

Check

Your Door

Guide

New Door

Marking

Template

2Check Door Measurements And

Make Adjustments If Needed

Let's Get Started

P/N YRD256-MNL-0003 Rev G

For Deadbolt

Actual Size

*Deadbolt position is based on

backset. Choose position

appropriate for your door.

Reference Door Checker

measurements E and F.

AYRDB-DRIVE

Adjustable Drive-In Deadbolt

available for purchase

optional

*2-3/8" Backset, default

*2-3/4" Backset, optional

Press

Pull

Bolt must be in retracted (unlocked)

position. Note horizontal orientation of

tailpiece slot and UP orientation of

deadbolt latch.

Backset

For Strike Plate

Actual Size

Choose

standard strike

plate screws

or security

screws.

For Strike Plate, optional

Actual Size

Bolt must be in

retracted

(unlocked)

position.

3Install Deadbolt and Strike Plate

Pour la gâche

Taille réelle

P/N YRD256-MNL-0003 Rev G

Outside of DoorInside of Door

Bolt must be in retracted

(unlocked) position. Note

horizontal orientation of

tailpiece slot.

4Install Touchscreen Keypad

Door face hole

must be at least

2-1/8".

If hole is too

small, a door lock

installation kit or

jig should be used

to increase hole

size.

P/N YRD256-MNL-0003 Rev G

Actual Size

Inside of Door

Make sure keypad

and mounting plate

are straight before

tightening screws.

Screw Set D

Silver

for

2 to 2-1/4"

Door Thickness

Screw Set C

Black

Standard for

1-3/4"

Door Thickness

Actual Size

Insert cable

through cable hole

Choose through bolt appropriate for

your door thickness. Verify appropriate

through bolt with the door checker.

Screw Set B

Green

for

1-3/8"

Door Thickness

5Install Inside Mounting Plate

Inside of Door

Use cable hooks for

proper cable routing.

Do not pinch cable.

6Attach Cable

This Side Up

mark

Make sure cable

is securely

attached

P/N YRD256-MNL-0003 Rev G

Actual Size Inside of Door

Make sure thumbturn

is vertical. If the thumbturn

does not move freely, refer to

“Hardware Troubleshooting.”

Horizontal

7Install Inside Lock

P/N YRD256-MNL-0003 Rev G

Inside of Door

If thumbturn operation fails, check the installation beginning with Step 3.

Test Mechanical Operation
