ASROCK Z97M OC Formula Manual de usuario

Version 1.0

Published April 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;

7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &

DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,

DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.

English

Z97M OC Formula

Intel

Z97

DDR3_A2 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

ATX12V1

CPU_FAN1

Supe r

I/O

ATXPWR1

USB 3_4 _5

CPU_FAN2

PCIE2

PCIE1

PCIE3

PLED1

HDLED RESET

PLED PWRBTN

PANEL1

USB6_7 USB4_5

COM1

CHA_FAN2

Z97M OC Formula

22 17

Purity

Sound 2

1345

1920

HD_AUDIO1

CMOS

Battery

SATA3_ 0

SATA3_ 3

SATA3_ 2

SATA3_ 5

SATA3_ 1

SATA3_ 4

SATAE_ 1

CLRMOS1

T B1

CHA_FAN1

SPEAKER1

TPMS1

PCIE4

NUT1

NUT2NUT3NUT4

PWR_FAN1

Killer

E2200

PCIE_PWR1

USB 2.0

T: USB0

B:USB1

Top:

Central/Bass

Cen ter :

REA R SPK

Top:

LIN E IN

Cen ter :

FRO NT

Bot tom :

Opt ica l

SPD IF

Bot tom :

MIC I N

Top:

RJ-45

USB 3.0

T: USB2

B: USB3

PS2

Keyboar d

/Mouse

VGA1

DVI1

USB 3.0

T: USB0

B: USB1

HDMI1

USB 2.0

T: USB2

B: USB3

eSATA1

64Mb

BIOS

RoHS

Motherboard Layout

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN2)

3 CPU Fan Connector (CPU_FAN1)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

5 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)

6 ATX Power Connector (ATXPWR1)

7 USB 3.0 Header (USB3_4_5)

8 SATA3 Connector (SATA3_0)

9 SATA3 Connector (SATA3_3)

10 SATA3 Connector (SATA3_1)

11 SATA3 Connector (SATA3_4)

12 SATA3 Connector (SATA3_2)

13 SATA3 Connector (SATA3_5)

14 SATA Express Connector (SATAE_1)

15 Clear CMOS Jumper (CLRMOS1)

16 underbolt AIC Connector (TB1)

17 Power LED Header (PLED1)

18 System Panel Header (PANEL1)

19 Chassis Fan Connector (CHA_FAN1)

20 Chassis Speaker Header (SPEAKER1)

21 TPM Header (TPMS1)

22 USB 2.0 Header (USB4_5)

23 USB 2.0 Header (USB6_7)

24 PCIe Power Connector (PCIE_PWR1)

25 COM Port Header (COM1)

26 Chassis Fan Connector (CHA_FAN2)

27 Power Fan Connector (PWR_FAN1)

28 Front Panel Audio Header (HD_AUDIO1)

English

Z97M OC Formula

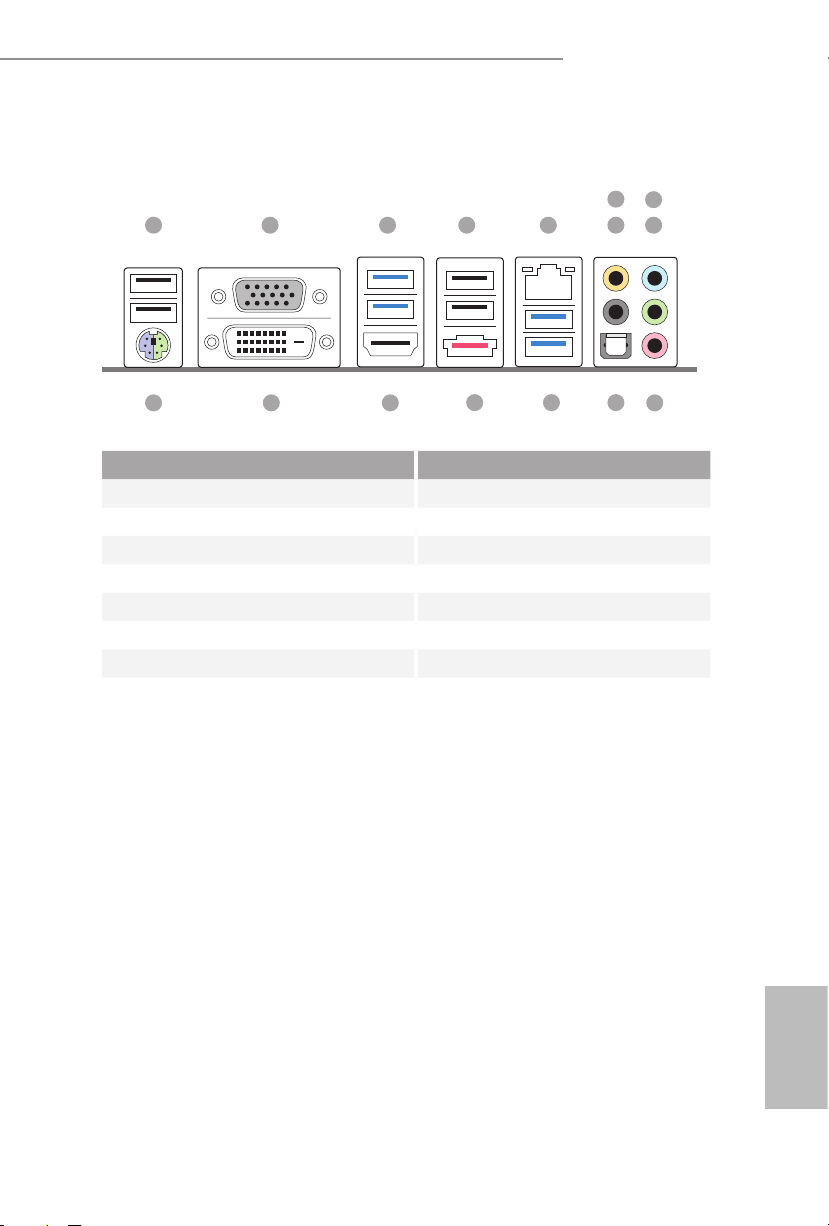

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 9 Front Speaker (Lime)**

2D-Sub Port 10 Microphone (Pink)

3 USB 3.0 Ports (USB3_01) 11 Optical SPDIF Out Port

4 USB 2.0 Ports (USB23) 12 USB 3.0 Ports (USB3_23)

5 LAN RJ-45 Port* 13 eSATA Connector***

6 Central / Bass (Orange) 14 HDMI Port

7 Rear Speaker (Black) 15 DVI-D Port

8 Line In (Light Blue) 16 PS/2 Mouse/Keyboard Port

1 2 3 754

1516

English

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 9)

Rear Speaker

(No. 7)

Central / Bass

(No. 6)

Line In

(No. 8)

2V -- -- --

4V V -- --

6V V V --

8V V V V

*** e eSATA connector supports SATA3 with cables within 1 meters.

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your

system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and

click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select

“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,

or select “Realtek HDA Audio 2nd output” to use the front panel audio.

ACT/LINK LED

SPEED LED

LAN Port

English

Z97M OC Formula

Chapter 1 Introduction

ank you for purchasing ASRock Z97M OC Formula motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

•ASRock Z97M OC Formula Motherboard (Micro ATX Form Factor)

•ASRock Z97M OC Formula Quick Installation Guide

•ASRock Z97M OC Formula Support CD

•2 x Serial ATA (SATA) Data Cables (Optional)

•1 x ASRock Flexible SLI Bridge Connector Cable

•1 x I/O Shield

•1 x Screw for M.2_SSD (NGFF) Socket 3

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

1.2 Specications

Platform •Micro ATX Form Factor

•High Density Glass Fabric PCB

CPU •Supports 4th Gen & 5th Generation Intel® CoreTM Processors

(Socket 1150)

•Digi Power design

•8 Power Phase design

•Supports Intel® Turbo Boost 2.0 Technology

•Supports Intel® K-Series unlocked CPUs

•Supports ASRock BCLK Full-range Overclocking

Chipset •Intel® Z97

Memory •Dual Channel DDR3 Memory Technology

•4 x DDR3 DIMM Slots

•Supports DDR3 3000+(OC)/2933(OC)/2800(OC)/2400(OC)/

2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buered

memory

•Max. capacity of system memory: 32GB

•Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

Expansion

Slot

•2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16

(PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))

•1 x PCI Express 2.0 x16 Slot (PCIE4: x4 mode)

•1 x PCI Express 2.0 x1 Slot

•Supports AMD Quad CrossFireXTM and CrossFireXTM

•Supports NVIDIA® Quad SLITM and SLITM

English

Z97M OC Formula

Graphics •Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

•Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

•Pixel Shader 5.0, DirectX 11.1

•Max. shared memory 1792MB

•ree graphics output options: D-Sub, DVI-D and HDMI

•Supports Triple Monitor

•Supports HDMI with max. resolution up to 4K x 2K

(4096x2304) @ 24Hz

•Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

•Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

•Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port

(Compliant HDMI monitor is required)

•Supports HDCP with DVI-D and HDMI Ports

•Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI Ports

Audio •7.1 CH HD Audio with Content Protection (Realtek ALC1150

Audio Codec)

•Premium Blu-ray Audio support

•Supports Surge Protection (ASRock Full Spike Protection)

•Supports Purity SoundTM 2

- Nichicon Fine Gold Series Audio Caps

- 115dB SNR DAC with Dierential Amplier

- TI® NE5532 Premium Headset Amplier (Supports up to

600 Ohm headsets)

- Direct Drive Technology

- EMI Shielding Cover

- PCB Isolate Shielding

•Supports DTS Connect

English

LAN •PCIE x1 Gigabit LAN 10/100/1000 Mb/s

•Qualcomm® Atheros® KillerTM E2200 Series

•Supports Qualcomm® Atheros® Security Wake On Internet

Technology

•Supports Wake-On-LAN

•Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

•Supports Energy Ecient Ethernet 802.3az

•Supports PXE

Rear Panel

I/O

•1 x PS/2 Mouse/Keyboard Port

•1 x D-Sub Port

•1 x DVI-D Port

•1 x HDMI Port

•1 x Optical SPDIF Out Port

•1 x eSATA Connector

•4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

•4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

•1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

•HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

Front Speaker / Microphone

Storage •6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

13 and Intel Smart Response Technology), NCQ, AHCI and

Hot Plug (SATA3_1 connector is shared with the eSATA port)

•1 x SATA Express Connector (shared with SATA3_4,

SATA3_5 and M.2 Socket)

*Support to be announced

•1 x eSATA Connector, supports RAID (RAID 0, RAID 1,

RAID 5, RAID 10, Intel Rapid Storage Technology 13 and

Intel Smart Response Technology), NCQ, AHCI and Hot Plug

•1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s

module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)

Otros manuales para Z97M OC Formula

Tabla de contenidos

Idiomas:

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK A790GMH128M Manual de usuario

ASROCK

ASROCK 880GMH-LE USB3 - NOTICE 2 Manual de usuario

ASROCK

ASROCK CONROEXFIRE-ESATA2 - INSTALLATION - 03-2007 Manual de usuario

ASROCK

ASROCK J3160TM-ITX Manual de usuario

ASROCK

ASROCK Z87M OC Formula Manual de usuario

ASROCK

ASROCK B450 Pro4 Manual de usuario

ASROCK

ASROCK WOLFDALE1333-GLAN Manual de usuario

ASROCK

ASROCK H55 PRO - V1.0 Manual de usuario

ASROCK

ASROCK X299 GAMING i9 Manual de usuario

ASROCK

ASROCK B560M-HDV Manual de usuario

ASROCK

ASROCK Z68 EXTREME4 - ANNEXE 541 Manual de usuario

ASROCK

ASROCK Q1900B-ITX Manual de usuario

ASROCK

ASROCK IMB-156 Instrucciones de uso

ASROCK

ASROCK Z87 Extreme4 TB4 Manual de usuario

ASROCK

ASROCK G41-G3 - Manual de usuario

ASROCK

ASROCK Z77 Pro4-M Manual de usuario

ASROCK

ASROCK 939A790GMH Manual de usuario

ASROCK

ASROCK P45R2000-WiFi Manual de usuario

ASROCK

ASROCK Z77 Pro4-M Manual de usuario

ASROCK

ASROCK N68PV-GS Manual de usuario

ASROCK

ASROCK IMB-148 Manual de usuario

ASROCK

ASROCK P4S55FX2 Manual de usuario

ASROCK

ASROCK 890GX Extreme3 Manual de usuario

ASROCK

ASROCK K10N750SLI-110DB Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
