ASROCK IMB-185 Manual de usuario

IMB-185

User Manual

Version 1.0

Published September 2015

Version 1.0

Published September 2015

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

................................................................ 6

1.3 Motherboard Layout ...................................................... 8

1.4 I/O Panel ....................................................................... 10

2 Installation ......................................................... 11

2.1 Screw Holes................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (DIMM) ........................ 12

2.4 Expansion Slots ............................................................ 13

2.5 Jumpers Setup............................................................... 14

2.6 Onboard Headers and Connectors................................ 16

2.7 Driver Installation Guide ............................................ 21

3 UEFI SETUP UTILITY......................................... 22

3.1 Introduction .................................................................... 22

3.1.1 UEFI Menu Bar .................................................... 22

3.1.2 Navigation Keys ................................................... 23

3.2 Main Screen................................................................... 23

3.3 Advanced Screen........................................................... 24

 ............................................... 25

........................................... 27

 .......................................... 29

3.3.4 Intel(R) Smart Connect Technology ..................... 30

 ........................................ 31

............................................... 32

 ............................................... 33

........................................... 34

3.4 Hardware Health Event Monitoring Screen ................... 35

3.5 Boot Screen ................................................................... 36

3.6 Security Screen ............................................................. 38

3.7 Exit Screen .................................................................... 39

4 Software Support .............................................. 40

4.1 Install Operating System................................................ 40

4.2 Support CD Information ................................................. 40

4.2.1 Running Support CD............................................ 40

4.2.2 Drivers Menu........................................................ 40

4.2.3 Utilities Menu........................................................ 40

4.2.4 Contact Information.............................................. 40

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-185 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-



guide to BIOS setup and information of the Support CD.



updated, the content of this manual will be subject to change without no-





the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit



www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-185 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock IMB-185 Driver CD

ASRock IMB-185 Jumper Setting Instruction

1 x I/O Panel Shield



Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU Socket LGA1150 for Intel®Core i7/i5/i3/Celeron

(Haswell)

Core

Number (By CPU, Max 4)

Max Speed (By CPU)

L3 Cache (By CPU)

Chipset H81

BIOS UEFI

Expansion

Slot

PCI 0

Mini-PCIe 0

mSATA 1

PCIe 1 (x16)

CFast Card

Socket 0

Memory

Technology Dual Channel DDR3 1066/1333/1600 MHz

SDRAM

Max. 16GB

Socket 2 x SO-DIMM

Graphics

Controller Intel®HD Graphics (By CPU)

VRAM Shared Memory

VGA Supports max resolution 1920x1200

LVDS Yes

HDMI Supports HDMI 1.4a, max resolution 4096x2304

DVI No

DisplayPort No

Multi Display Yes (Dual Display)

Ethernet

Ethernet 10/100/1000 Mbps

Controller GbE LAN1:Intel®I210, LAN2: Intel®I217V

Connector 2 x RJ-45

SATA

Max Data

Transfer

Rate

SATA2 (3.0Gb/S), SATA3 (6.0Gb/S)

Rear I/O

VGA 1

DVI 0

HDMI 1

DisplayPort 0

Ethernet 2

USB 4 (2 x USB 3.0, 2 x USB 2.0)

Audio 2 (Mic-In, Line-Out)

Serial 3 (RS-232/422/485)

PS/2 0

Internal

Connector

USB 6 (3 x USB Header 2.54mm pitch)

LVDS/

Inverter 24 bit dual channel LVDS

VGA 1

Serial 3 (RS-232)

SATA 2 x SATA3 (6.0Gb/s), 2 x SATA2 (3.0Gb/s)

mPCIe 0

Parallel 0

mSATA 1

IrDA 0

GPIO 8-bit 4 x GPI + 4 x GPO

SATA PWR

Output Con 0

Speaker

Header 1

Watchdog

Timer

Output Output from super I/O to drag RESETCON#

Interval 256 Segments, 0,1,2…255 Sec/Min

Power

Requirements

Input PWR ATX PWR (4 + 24)

Power On

AT/ATX Supported

-AT : Directly PWR on as power input ready

-ATX : Press button to PWR on after power

input ready

Environment Temperature 0ºC – 60ºC

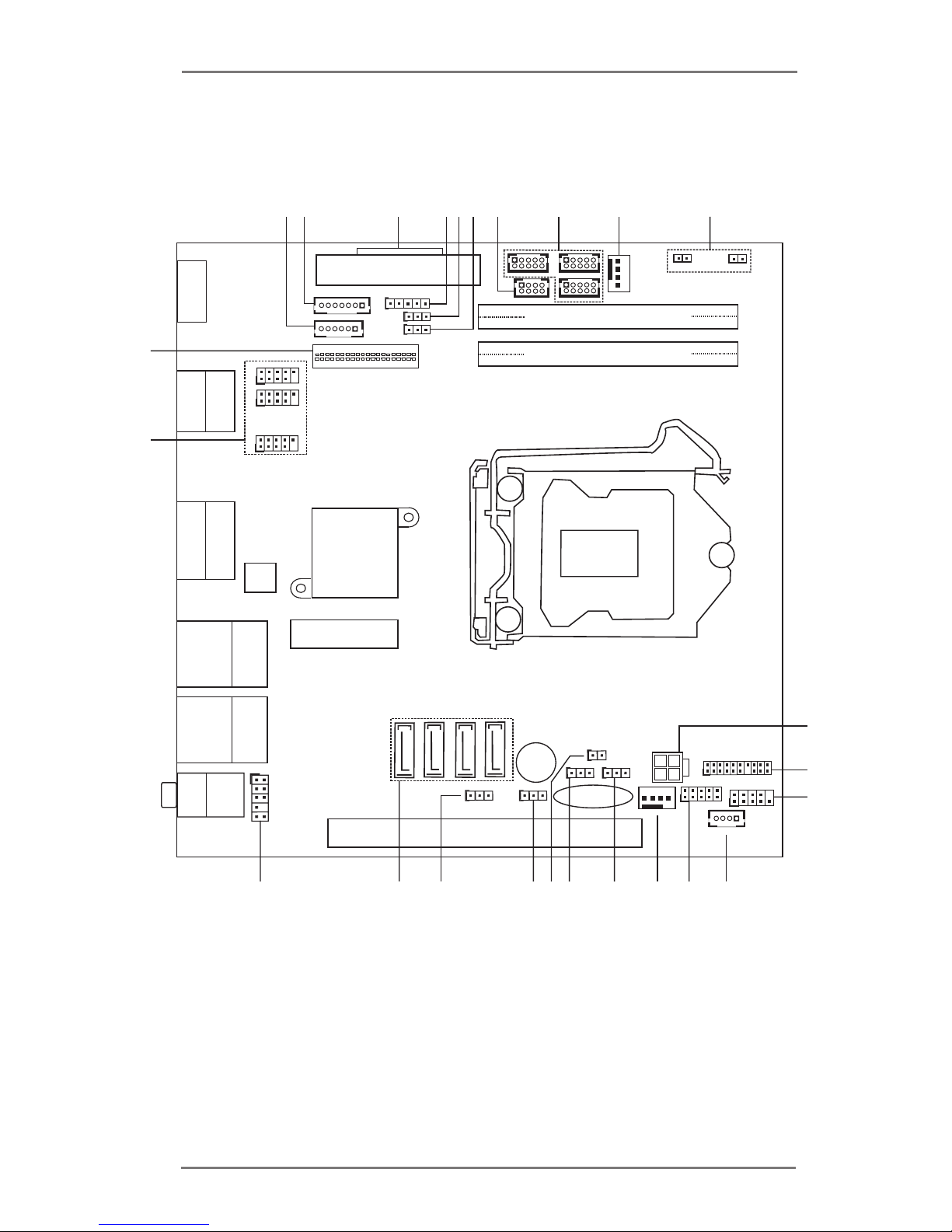

1.3 Motherboard Layout

LAN1

USB 3.0

T: USB1

B: USB0

Top:

Line

Out

Bottom:

Mic In

DDR3_B1

DDR3_A1

PCIE1

BUZZ1

CMOS

Battery

CPU_ FAN 1

CLRCO MOS 1

BIOS

Chip

PANEL 1

HDLED R ESET

PLED PW RBTN

SATA_ 4

BLT_ VOL1

BLT_ PW R1

SPEA KE R1

USB10 _11

HD_AUDIO1

BKT _PWR 1

mini-SATA

IMB-185

CI1

JGP IO1

12345678910

USB8_ 9

USB4_ 5

CON1

PS2 _KB_ MS1

CI2

SATA_ 5

LVDS 1

PNL _P WR1

BLT_P WM1

HDMI1

ATXPWR1

COM 4

COM 6

COM 5

SATA_ 0

SATA_ 1

PWR_J P1

CHA_FAN1

COM1

COM2

COM3

VGA1

LAN2

USB 2.0

T: USB3

B: USB2

TPM1

JGPIO _JP 1

JGPIO _PW R1

MSATA_SE L1

171819

1 :

Backlight Power Connector

2 : Backlight Volume Control

3 : 24-pin ATX Power Input Connector

4 : PNL_PWR1

: Backlight Power Selection

6 : BLT_PWM1

7 :

PS2_KB_MS1

8 : RS-232 Port 4 Pin Headers

9 :

4-Pin Chassis FAN Connector (+12V)

10 : Chassis Intrusion Headers

11 :

4-pin ATX Power Input Connector

12 : TPM Header

13 :

System Panel Header

14 : 3W Audio AMP Output Wafer

15 : Digital Input / Output Pin Header

6 :

4-Pin Chassis FAN Connector (+12V)

17 : Digital Input / Output Power Select

18 : GPIO Default Setting

19 : mSATA Select

20 : Clear CMOS Header

: ATX/AT Mode Jumper

22 : SATA3 Connectors (SATA_0, SATA_1)

SATA2 Connectors (SATA_4, SATA_5)

23 :

Front Panel Audio Header

24 :

USB2.0 Connectors

25 : LVDS Panel Connector

1.4 I/O Panel

1 COM Port (COM1)*

2 COM Port (COM3)*

3 LAN RJ-45 Port (LAN1)**

4 LAN RJ-45 Port (LAN2)**

5 Line out (Lime)

6 Microphone (Pink)

7 USB 2.0 Ports (USB_23)

8 USB 3.0 Ports (USB_01)

9 VGA Port (VGA1)

10 COM Port (COM2)*

11 HDMI Port (HDMI1)

** There are two LEDs next to the LAN port. Please refer to the table below for the LAN port

LED indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

PIN RS232 RS422 RS485

1 DCD, Data Carrier Detect TX- RTX-

2 RXD, Receive Data RX+ N/A

3 TXD, Transmit Data TX+ RTX+

4 DTR, Data Terminal Ready RX- N/A

5 GND GND GND

6 DSR, Data Set Ready N/A N/A

7 RTS, Request To Send N/A N/A

8 CTS, Clear To Send N/A N/A

9 No Power/+5V/+12V N/A N/A

* This motherboard supports RS232/422/485 on COM1~3 ports. Please refer to below table for







2 4

Otros manuales para IMB-185

Tabla de contenidos

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK Z77 Extreme3 Manual de usuario

ASROCK

ASROCK 890FX Deluxe3 Manual de usuario

ASROCK

ASROCK ATW-HC2260 Manual de usuario

ASROCK

ASROCK PHANTOM GAMING X670E PG Lightning Manual de usuario

ASROCK

ASROCK IMB-190 Manual de usuario

ASROCK

ASROCK 775Dual-880Pro Manual de usuario

ASROCK

ASROCK H87M-ITX Manual de usuario

ASROCK

ASROCK IMB-158 Manual de usuario

ASROCK

ASROCK B660M Pro RS/AX Manual de usuario

ASROCK

ASROCK 960GM/U3S3 FX Manual de usuario

ASROCK

ASROCK IMB-1001 Manual de usuario

ASROCK

ASROCK P67 Extreme4 Gen3 Manual de usuario

ASROCK

ASROCK FM2A58+BTC Manual de usuario

ASROCK

ASROCK X300M-STX Manual de usuario

ASROCK

ASROCK B150 Combo Manual de usuario

ASROCK

ASROCK B150 Pro4/3.1 Manual de usuario

ASROCK

ASROCK P67 TRANSFORMER - Manual de usuario

ASROCK

ASROCK Z97 Extreme3 Manual de usuario

ASROCK

ASROCK P55 PRO/USB3 - Manual de usuario

ASROCK

ASROCK 939A785GMH/128M Manual de usuario

ASROCK

ASROCK IMB-770 Manual de servicio

ASROCK

ASROCK IMB-792 Manual de usuario

ASROCK

ASROCK Z790 Pro RS Manual de usuario

ASROCK

ASROCK K7VM3 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
