ASRock Z77 Extreme3 Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published August 2012

2ASRock Z77 Extreme3 Motherboard

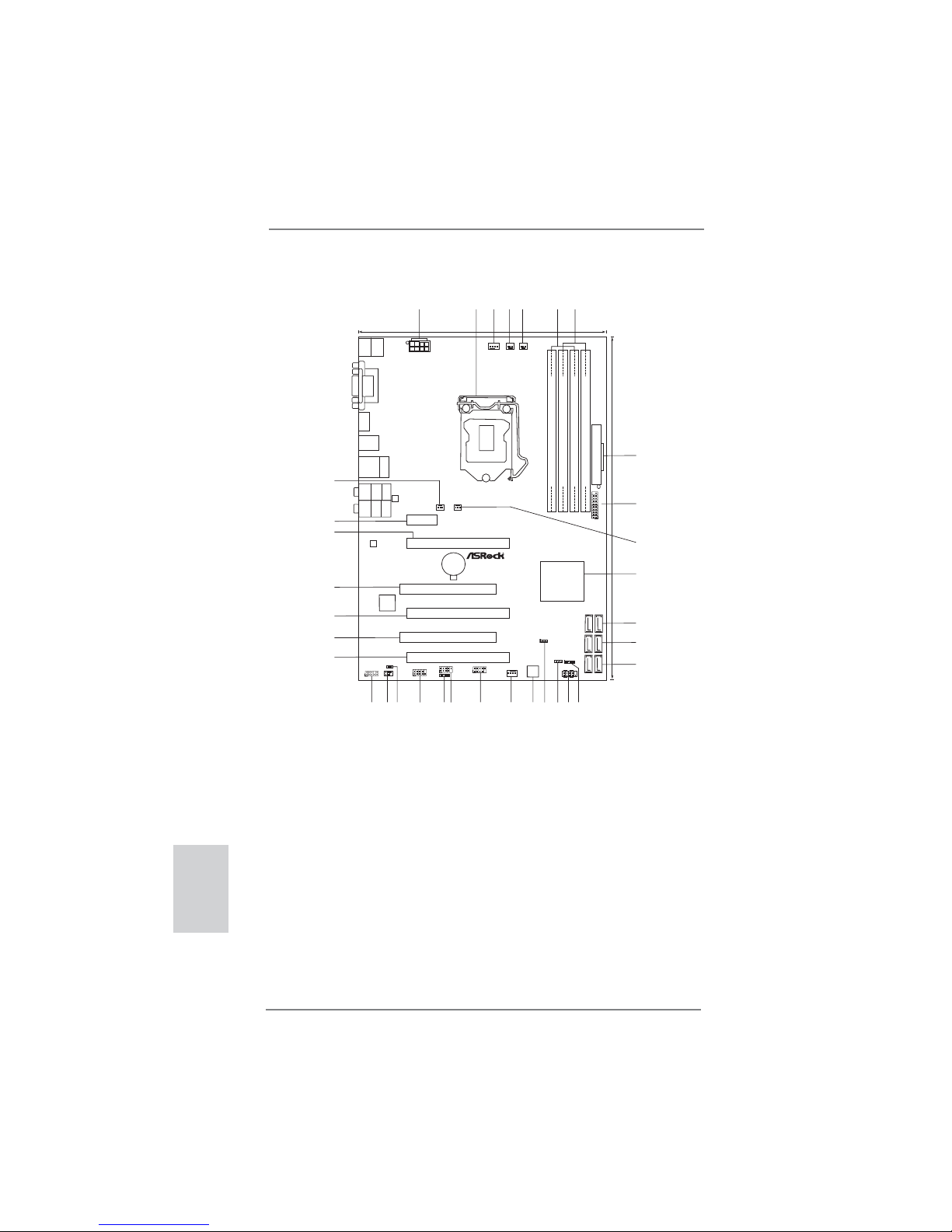

Motherboard Layout

English

1 ATX 12V Power Connector (ATX12V1)

2 1155-Pin CPU Socket

3 CPU Fan Connector (CPU_FAN1)

4 CPU Fan Connector (CPU_FAN2)

5 Power Fan Connector (PWR_FAN1)

6 2 x 240-pin DDR3 DIMM Slots

(DDR3_A1, DDR3_B1, Black)

7 2 x 240-pin DDR3 DIMM Slots

(DDR3_A2, DDR3_B2, Black)

8 ATX Power Connector (ATXPWR1)

9 USB 3.0 Header (USB3_2_3, Black)

10 Chassis Fan Connector (CHA_FAN3)

11 Intel Z77 Chipset

12 SATA3 Connectors (SATA3_0_1, Gray)

13 SATA2 Connectors (SATA2_2_3, Black)

14 SATA2 Connectors (SATA2_4_5, Black)

15 Chassis Speaker Header (SPEAKER1, Black)

16 System Panel Header (PANEL1, Black)

17 Power LED Header (PLED1)

18 Clear CMOS Jumper (CLRCMOS1)

19 SPI Flash Memory (64Mb)

20 Chassis Fan Connector (CHA_FAN1)

21 USB 2.0 Header (USB6_7, Black)

22 USB 2.0 Header (USB4_5, Black)

23 Consumer Infrared Module Header

(CIR1, Gray)

24 COM Port Header (COM1)

25 HDMI_SPDIF Header

(HDMI_SPDIF1, Black)

26 Infrared Module Header (IR1)

27 Front Panel Audio Header

(HD_AUDIO1, Black)

28 PCI Express 2.0 x16 Slot (PCIE4, Black)

29 PCI Slot (PCI2, Black)

30 PCI Express 3.0 x16 Slot (PCIE3, Black)

31 PCI Slot (PCI1, Black)

32 PCI Express 3.0 x16 Slot (PCIE2, Black)

33 PCI Express 2.0 x1 Slot (PCIE1, Black)

34 Chassis Fan Connector (CHA_FAN2)

Intel

Z77

64Mb

BIOS

DDR3_A2 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

ATX12V1

CPU_FAN1

CMOS

Battery

Super

I/O

USB 2.0

T:USB0

B: USB1

PS2

Keyboard

ATXPWR1

USB3_2_3

CPU_FAN2

AUDIO

CODEC

LAN

PHY

HD_AUDIO1

HDMI_SPDIF1

COM1

CLRCMOS1

IR1

CIR1

USB6_7

HDLED RESET

PLED PWRBTN

PANEL1

PLED1

SPEAKER1

PCIE1

PCIE2

PCIE3

PCI1

CHA_FAN1

HDMI1

USB 3.0

T: US B0

B: USB1

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

21.8cm (8.6 in)

30.5cm (12.0 in)

1234567

19 15

DDR3 2800+

RoHS

Front USB 3.0

Z77 Extreme3

Fast USB

Fast LAN

PCI Express 3.0

ErP/EuP Ready

ast RAMF

Top:

SIDE SPK

Center:

REAR SPK

Bottom:

CTR BASS

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

USB4_5

PWR_FAN1

PCIE4

PCI2

CHA_FAN2 CHA_FAN3

VGA1

DVI1

SATA2_4_5 SATA2_2_3 SATA3_0_1

ASRock Z77 Extreme3 Motherboard

English

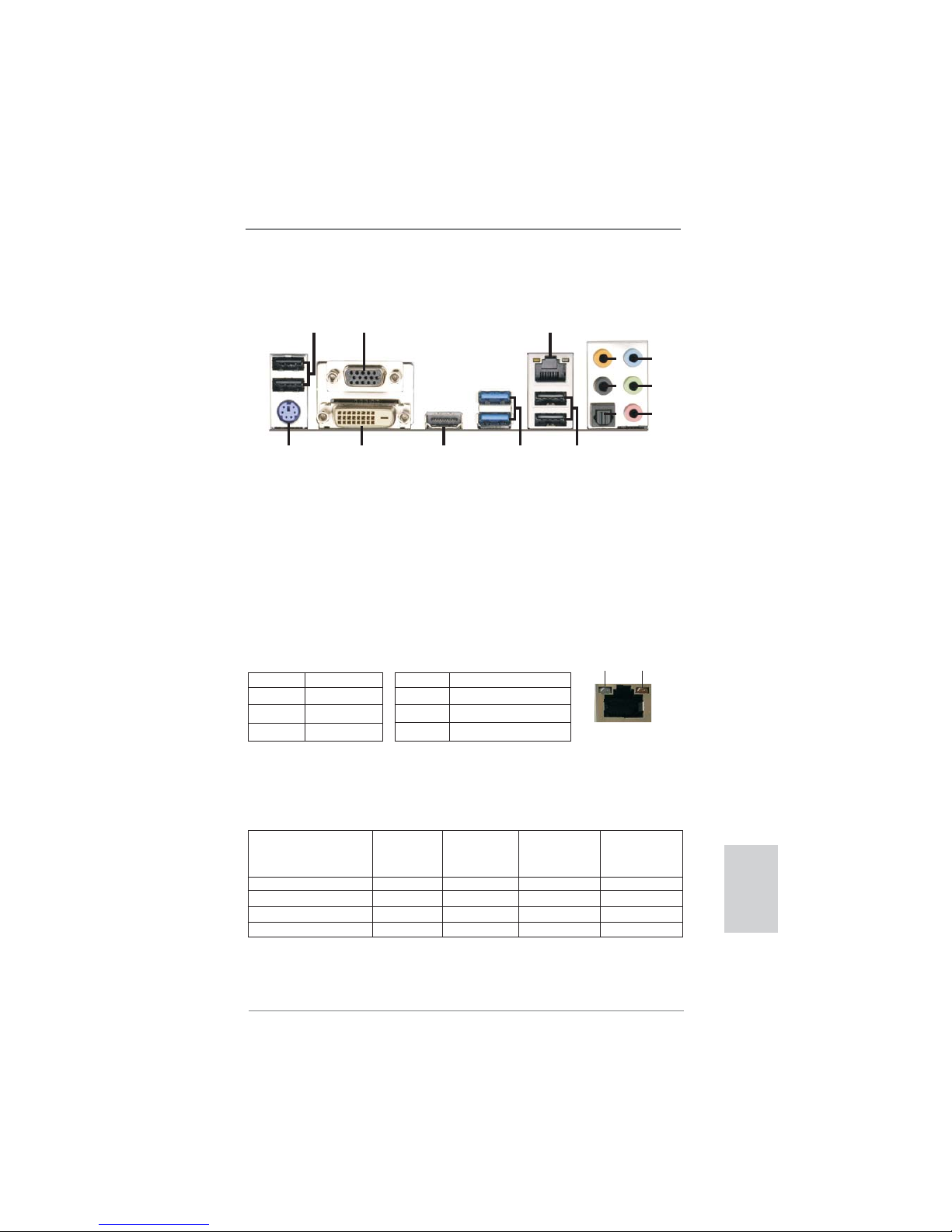

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 USB 2.0 Ports (USB_0_1) ** 8 Front Speaker (Lime)

2 D-Sub Port (VGA1) 9 Microphone (Pink)

* 3 LAN RJ-45 Port 10 USB 2.0 Ports (USB_2_3)

4 Central / Bass (Orange) 11 USB 3.0 Ports (USB3_0_1)

5 Rear Speaker (Black) 12 HDMI Port (HDMI1)

6 Optical SPDIF Out Port 13 DVI-D Port (DVI1)

7 Line In (Light Blue) 14 PS/2 Keyboard Port (Purple)

ACT/LINK

LED

SPEED

LED

LAN Port

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 8) (No. 5) (No. 4) Side Speaker

(No. 7)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

123

4ASRock Z77 Extreme3 Motherboard

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will ﬁnd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

ASRock Z77 Extreme3 Motherboard

1. Introduction

Thank you for purchasing ASRock Z77 Extreme3 motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock Z77 Extreme3 Motherboard

(ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm)

ASRock Z77 Extreme3 Quick Installation Guide

ASRock Z77 Extreme3 Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1 x ASRock SLI_Bridge_2S Card

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conﬁguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

English

6ASRock Z77 Extreme3 Motherboard

English

1.2 Speciﬁcations

Platform - ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm

- ASRock DuraCap (2.5 x longer life time) (100% Japan-made

high-quality Conductive Polymer Capacitors)

CPU - Supports 3rd and 2nd Generation Intel®CoreTM i7 / i5 / i3 in

LGA1155 Package

- Digi Power Design

- 8 + 3 Power Phase Design

- Supports Intel®Turbo Boost 2.0 Technology

- Supports Intel®K-Series unlocked CPU

Chipset - Intel®Z77

- Supports Intel®Rapid Start Technology and Smart Connect

Technology

Memory - Dual Channel DDR3 Memory Technology

- 4 x DDR3 DIMM slots

- Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/

1600/1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 32GB (see CAUTION 1)

- Supports Intel®Extreme Memory Proﬁle (XMP)1.3/1.2

Expansion Slot - 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE3: single at x16

(PCIE2) / x8 (PCIE3) or dual at x8/x8 mode)

* PCIE 3.0 is only supported with Intel®Ivy Bridge CPU. With

Intel®Sandy Bridge CPU, it only supports PCIE 2.0.

- 1 x PCI Express 2.0 x16 slot (PCIE4 @ x4 mode)

- 1 x PCI Express 2.0 x 1 slot

- 2 x PCI slots

- Supports AMD Quad CrossFireXTM, 3-Way CrossFireXTM and

CrossFireXTM

- Supports NVIDIA®Quad SLITM and SLITM

Graphics * Intel®HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU

integrated.

- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick

Sync Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000

- Pixel Shader 5.0, DirectX 11 with Intel®Ivy Bridge CPU.

Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge

CPU.

- Max. shared memory 1760MB

ASRock Z77 Extreme3 Motherboard

English

- Three VGA Output options: D-Sub, DVI-D and HDMI

(see CAUTION 2)

- Supports HDMI 1.4a Technology with max. resolution up to

1920x1200 @ 60Hz

- Supports DVI with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @

75Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required) (see CAUTION 3)

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI and HDMI ports

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudioTM

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efﬁcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 4 x Ready-to-Use USB 2.0 Ports

- 2 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone

SATA3 - 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel

Smart Response Technology), NCQ, AHCI and Hot Plug

functions

8ASRock Z77 Extreme3 Motherboard

English

USB3.0 - 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to

5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports),

supports USB 1.0/2.0/3.0 up to 5Gb/s

Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel

Smart Response Technology), NCQ, AHCI and Hot Plug

functions

- 2 x SATA3 6.0Gb/s connectors

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

- 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)

- 1 x Power Fan connector (3-pin)

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage

Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX

Multimedia Suite - OEM

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan (Allows Chassis Fan Speed Auto-

Adjust by CPU Temperature)

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft®Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit /

XP / XP 64-bit compliant (see CAUTION 4)

ASRock Z77 Extreme3 Motherboard

English

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage

under Windows®7 / VistaTM / XP. For Windows®OS with 64-bit

CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows®cannot use.

2. You can choose to use two of the three monitors only. D-Sub,

DVI-D and HDMI monitors cannot be enabled at the same time.

Besides, with the DVI-to-HDMI adapter, the DVI-D port can sup-

port the same features as HDMI port.

3. xvYCC and Deep Color are only supported under Windows®7

64-bit / 7. Deep Color mode will be enabled only if the display

supports 12bpc in EDID. HBR is supported under Windows®7

64-bit / 7 / VistaTM 64-bit / VistaTM.

4. ASRock XFast RAM is not supported by Microsoft® Windows®

XP / XP 64-bit. Intel®Smart Connect Technology and Intel®USB

3.0 ports are not supported by Microsoft® Windows®VistaTM /

VistaTM 64-bit / XP / XP 64-bit.

10 ASRock Z77 Extreme3 Motherboard

English

1.3 Unique Features

ASRock Extreme Tuning Utility (AXTU)

ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to

ne-tune different system functions in a user-friendly interface,

which includes Hardware Monitor, Fan Control, Overclocking,

OC DNA, IES and XFast RAM. In Hardware Monitor, it shows

the major readings of your system. In Fan Control, it shows the

fan speed and temperature for you to adjust. In Overclocking,

you are allowed to overclock CPU frequency for optimal system

performance. In OC DNA, you can save your OC settings as

a proﬁle and share it with your friends. Your friends then can

load the OC proﬁle to their own system to get the same OC set-

tings. In IES (Intelligent Energy Saver), the voltage regulator

can reduce the number of output phases to improve efﬁciency

when the CPU cores are idle without sacriﬁcing computing per-

formance. In XFast RAM, it fully utilizes the memory space that

cannot be used under Windows®OS 32-bit CPU.

ASRock Instant Boot

ASRock Instant Boot allows you to turn on your PC in just a few

seconds, provides a much more efﬁcient way to save energy,

time, money, and improves system running speed for your sys-

tem. It leverages the S3 and S4 ACPI features which normally

enable the Sleep/Standby and Hibernation modes in Windows®

to shorten boot up time. By calling S3 and S4 at speciﬁc timing

during the shutdown and startup process, Instant Boot allows

you to enter your Windows®desktop in a few seconds.

ASRock Instant Flash

ASRock Instant Flash is a BIOS ﬂash utility embedded in Flash

ROM. This convenient BIOS update tool allows you to update

system BIOS without entering operating systems ﬁrst like MS-

DOS or Windows®. With this utility, you can press the <F6> key

during the POST or the <F2> key to enter into the BIOS setup

menu to access ASRock Instant Flash. Just launch this tool and

save the new BIOS ﬁle to your USB ﬂash drive, ﬂoppy disk or

hard drive, then you can update your BIOS only in a few clicks

without preparing an additional ﬂoppy diskette or other compli-

cated ﬂash utility. Please be noted that the USB ﬂash drive or

hard drive must use FAT32/16/12 ﬁle system.

Otros manuales para Z77 Extreme3

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK PRO4 B550 Manual de usuario

ASROCK

ASROCK A75M-DGS Manual de usuario

ASROCK

ASROCK N68C-S Manual de usuario

ASROCK

ASROCK ATW-HC2260 Manual de usuario

ASROCK

ASROCK H670M PRO RS Manual de usuario

ASROCK

ASROCK IMB-185 Manual de servicio

ASROCK

ASROCK 4COREN73PV-HD720P - V3.1 Manual de usuario

ASROCK

ASROCK A785GMH128M Manual de usuario

ASROCK

ASROCK P67 PRO3 - Manual de usuario

ASROCK

ASROCK IMB-A182 Manual de usuario

ASROCK

ASROCK B150TM-ITX TPM R2.0 Manual de usuario

ASROCK

ASROCK 775Twins-PT890 Manual de usuario

ASROCK

ASROCK PRO Series Manual de usuario

ASROCK

ASROCK athena A1 Manual de usuario

ASROCK

ASROCK CONROE1333-DVI/H Manual de usuario

ASROCK

ASROCK 890GX Pro3 Manual de usuario

ASROCK

ASROCK H270M Pro4 Manual de usuario

ASROCK

ASROCK FM2A68M-DG3+ Manual de usuario

ASROCK

ASROCK Z590 Phantom Gaming 4/ac Manual de usuario

ASROCK

ASROCK H81M-HDS R2.0 Manual de usuario

ASROCK

ASROCK EP2C612D16FM Manual de usuario

ASROCK

ASROCK AM5D4ID-2I/BCM Manual de usuario

ASROCK

ASROCK H55 PRO - V1.0 Manual de usuario

ASROCK

ASROCK H570 Steel Legend Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
