ASROCK IMB-147 Manual de usuario
1
IMB-147
User Manual
Version 1.0
Published January 2013
Copyright©2013 ASRock INC. All rights reserved.
2
Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis-
tered trademarks or copyrights of their respective companies, and are used only for
identication or explanation and to the owners’ benet, without intent to infringe.
Disclaimer:
Specications and information contained in this manual are furnished for informa-
tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran-
ties or conditions of merchantability or tness for a particular purpose.
In no event shall ASRock, its directors, ofcers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from
any defect or error in the manual or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in Cali-
fornia, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com
3
Contents
1. Introduction ................................................................ 5
1.1 Package Contents.......................................................... 5
1.2 Specications ................................................................. 6
1.3 Unique Features............................................................. 8
1.4 Motherboard Layout ..................................................... 9
1.5 I/O Panel ...................................................................... 11
2. Installation .................................................................. 12
2.1 Installing Memory Modules (DIMM) ............................... 13
2.2 Expansion Slots (PCI and PCI Express Slots) ............... 14
2.3 Installing SATA Hard Disks............................................. 15
2.4 Power Connectors.......................................................... 16
2.5 Installing the System Panel............................................ 17
2.6 Onboard Headers and Connectors ................................ 18
2.7 Jumpers Setup ............................................................... 22
2.8 Operating System Setup ................................................ 24
2.8.1 Installing Windows®7 Without RAID ..................... 24
2.9 Installing Drivers............................................................. 25
2.10 Hot Plug for Hard Disk Drives ........................................ 26
4
3. UEFI SETUP UTILITY.................................................. 30
3.1 Introduction .................................................................... 30
3.1.1 UEFI Menu Bar ..................................................... 30
3.1.2 Navigation Keys .................................................... 31
3.2 Main Screen ................................................................... 32
3.3 Advanced Screen........................................................... 33
3.3.1 CPU Conguration ............................................... 34
3.3.2 Chipset Conguration........................................... 35
3.3.3 Storage Conguration .......................................... 36
3.3.4 Super IO Conguration ........................................ 37
3.3.5 ACPI Conguration............................................... 39
3.3.6 USB Conguration ............................................... 40
3.4 Hardware Health Event Monitoring Screen.................... 41
3.5 Boot Screen ................................................................... 42
3.6 Security Screen.............................................................. 43
3.7 Exit Screen..................................................................... 44
5
1. Introduction
Thank you for purchasing ASRock IMB-147 motherboard, a reliable moth-
erboard produced under ASRock’s consistently stringent quality control. It
delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
In this manual, chapter 1 contains the introduction of the motherboard.
Chapter 2 provides step by step installation instructions. Chapter 3 in-
cludes information about the UEFI.
Because the motherboard specications and the BIOS software
might be updated, the content of this manual will be subject to
change without notice. In case any modications of this manual
occur, the updated version will be available on ASRock’s web-
site. You may nd the latest VGA cards and CPU support list on
ASRock’s website as well. http://www.asrock.com
If you require technical support related to this motherboard,
please visit our website for specic information about the model
you are using. www.asrock.com/support/index.asp
1.1 Package Contents
ASRock IMB-147 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRock IMB-147 Quick Installation Guide
ASRock IMB-147 Support CD
2 x Serial ATA (SATA) Data Cables (Optional)
1 x Serial ATA (SATA) HDD Power Cable (Optional)
2 x COM Port Cables (Optional)
1 x I/O Panel Shield
6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU Intel®Dual-Core AtomTM CedarView Processor
D2550/N2600/N2800
Core
Number 2
Max Speed D2550/N2800: 1.86 GHz, N2600:1.6GHz
L3 Cache N/A
Chipset NM10
BIOS UEFI
Expansion
Slot
PCI 0
Mini-PCIE 1 (Half Size)
mSATA 0
P C I e x 1 6
(Gen2) 0
CF Card
Socket 0
Memory
Technology Single Channel DDR3 800/1066 MHz SDRAM
Max. D2550/N2800: 4GB, N2600:2GB
Socket D2550/N2800: 2 x SO-DIMM, N2600: 1 x SO-
DIMM
Graphics
Controller Intel® PowerVR SGX545, Support Directx9
compliant Pixel Shader v3.0 and OGL 3.0
VRAM Shared Memory
VGA Yes, supports max. resolution 1920 x 1200
LVDS
Single Channel 18bits, max resolution 1440 x
900 (optional)
2-ch 24bits, up to 1920 x 1200
HDMI No
DVI No
Display Port 0
Multi Display Yes
Ethernet
Interface 10/100/1000 Mbps
Controller GbE LAN: 1 x Realtek RTL8111E-VL
Controller 2 x RJ-45
SATA
Max Data
Transfer
Rate
SATA2 (3.0Gb/s)
7
* For detailed product information, please visit our website:
http://www.asrock.com
Rear I/O
VGA 1 x D-Sub
HDMI 0
DVI-I/D 0
Display Port 0
Ethernet 2
USB 4 (USB 2.0 compliant)
Audio 0
Serial 1 (RS-232/422/485) + 2 (RS-232)
PS/2 2
Internal
Connector
USB 4 (USB 2.0 compliant)
LVDS/
Inverter 1/1
VGA 1 (shared with rear I/O VGA COM)
Serial 3 (RS-232)
SATA 2 x SATA2 (3.0Gb/s)
m-SATA 0
Mini-PCIE 1
Parallel 1
IrDA 0
GPIO 2 x GPI + 2 x GPO
SATA PWR
Output Con 1
Speaker
Header 1
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec/min
Power
Requirements
Input PWR 12V DC-In (4-pin ATX PWR Con) & DC-IN
Jack
Power On
AT/ATX Supported
-AT : Directly PWR on as Power input ready
-ATX: Press Button to PWR on after Power
input ready
Environment Temperature 0ºC – 60ºC
8
1.3 Unique Features
ASRock Instant Flash
ASRock Instant Flash is a BIOS ash utility embedded
in Flash ROM. This convenient BIOS update tool allows
you to update system BIOS without entering operating
systems rst like MS-DOS or Windows®. With this util-
ity, you can press the <F6> key during the POST or the
<F2> key to enter into the BIOS setup menu to access
ASRock Instant Flash. Just launch this tool and save
the new BIOS le to your USB ash drive, oppy disk or
hard drive, then you can update your BIOS only in a few
clicks without preparing an additional oppy diskette or
other complicated ash utility. Please be noted that the
USB ash drive or hard drive must use FAT32/16/12 le
system.
ASRock Crashless BIOS
ASRock Crashless BIOS allows users to update their
BIOS without fear of failing. If power loss occurs during
the BIOS update process, ASRock Crashless BIOS will
automatically finish the BIOS update procedure after
regaining power. Please note that BIOS files need to
be placed in the root directory of your USB disk. Only
USB2.0 ports support this feature.
9

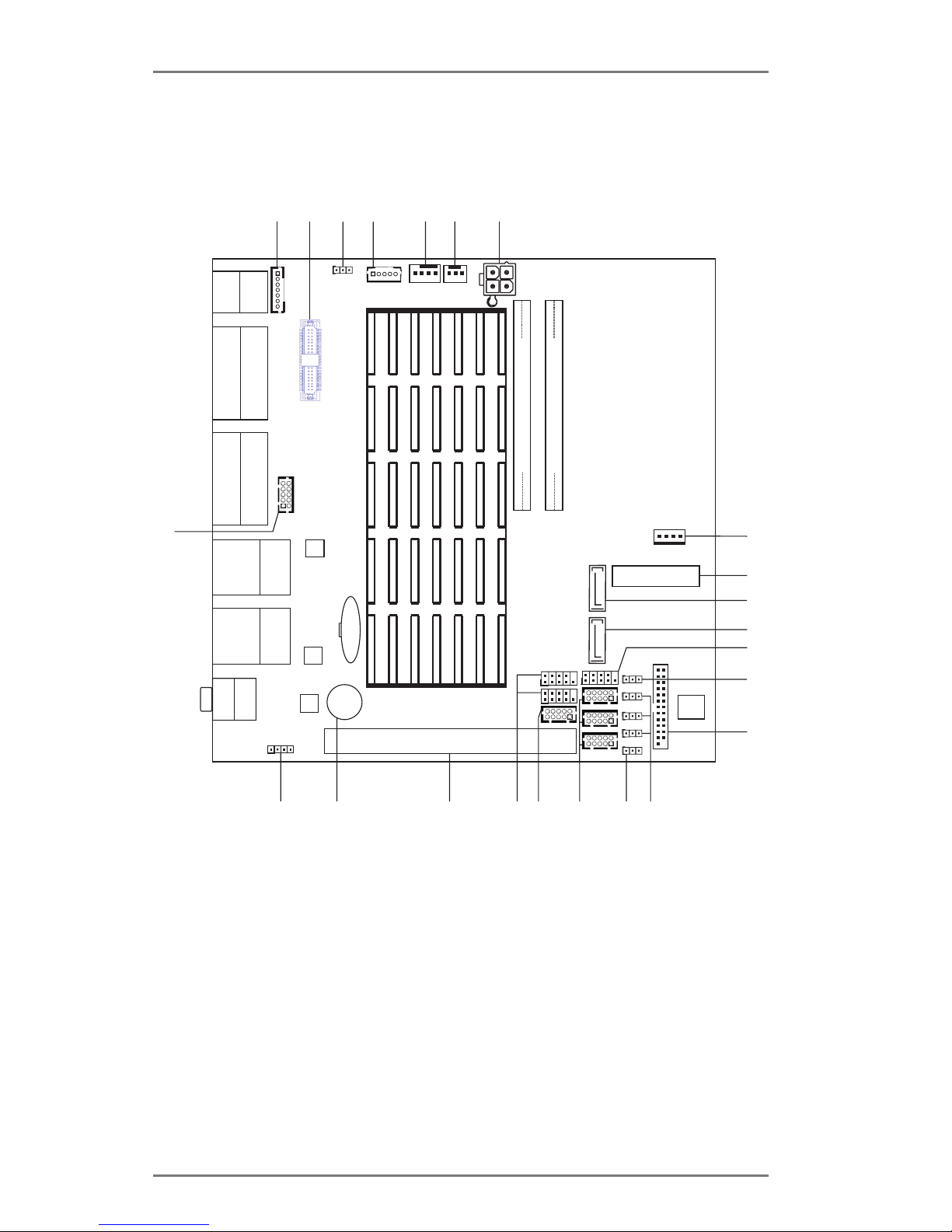

1.4 Motherboard Layout
56
DC12V1
DDR3_A1
DDR3_B1
PCI1
BUZZ1
CMOS
Battery
RJ-45
USB 2.0
T: USB1
B: USB0
RJ-45
USB 2.0
T: USB3
B: USB2
IMB-147
COM3
VGA1
COM2
COM1
Designed in Taipei
AUDIO
CODEC
LAN
LAN
16M b
BIO S
SATA2_1
SATA _
2 2
LVDS 1
1
BLT_VOL1
PNL_PWR1
1
CPU_FAN1
CHA_FAN1
USB_6_7
1
PCIE1
USB_4_5
1
PAN EL 1
HDLED RESET
PLED PWRBTN
1
PWR_JP1
1
COM_PWR4
1
COM_PWR5
1
COM_PWR6
1
1
COM4
COM5
COM6
DGIO_AMP1
PS2
Mouse
PS2
Keyboard
Line Out
Mic In
BLT_PWR3
1
SPEAKER1
1
VGA_H1
12347
9
10
8
11
12
14
13
15 16 17
18
19 20 21
22
23 24
2526
27
28
SATA_PWR1
1
LPT1
1
1
CLRCMOS1
10
1 Backlight & Amp Volume Control Header (BLT_VOL1)
2 LVDS Panel Connector (LVDS1)
3
Panel Power Jumper (PNL_PWR1)
4
Inverter Power Control Header (BLT_PWR3)
5
CPU FAN Connector (CPU_FAN1)
6
Chassis FAN Connector (CHA_FAN1)
7 ATX 12V Power Connector (DC12V1)
8
SATA Power Connector (SATA_PWR1)
9
Half-size mini PCIE Connector (PCIE1)
10
SATA2 Connector (SATA2_1)
11
SATA2 Connector (SATA2_2)
12 System Panel Header (PANEL1)
13 ATX/AT Mode Jumper (PWR_JP1)
14 Printer Port Header (LPT1)
15 COM Port Power Setting Jumper (COM_PWR4)
16 COM Port Power Setting Jumper (COM_PWR5)
17 COM Port Power Setting Jumper (COM_PWR6)
18 Clear CMOS Header (CLRCMOS1)
19 COM Port Header (COM4)
20 COM Port Header (COM5)
21 COM Port Header (COM6)
22 GPIO& Header (DGIO_AMP1)
23
USB2.0 Connector (USB_4_5)
24
USB2.0 Connector (USB_6_7)
25
PCI Slot (PCI1)
26
Buzzer (BUZZ1)
27 Internal Speaker Header (SPEAKER1)
28
VGA Header (VGA_H1)
Tabla de contenidos
Otros manuales de Placa madre de ASROCK
ASROCK
ASROCK K10N7SLI Manual de usuario
ASROCK
ASROCK P55 DELUXE - V1.1 Manual de usuario
ASROCK
ASROCK IMB-197-D Manual de usuario
ASROCK
ASROCK X99 X99 Extreme3 Manual de usuario
ASROCK
ASROCK Z370M Pro4 Manual de usuario
ASROCK
ASROCK H410TM-ITX Manual de usuario
ASROCK
ASROCK Z690M PG Riptide/D5 Manual de usuario
ASROCK
ASROCK 880GMH USB3 R2.0 Manual de usuario
ASROCK
ASROCK N68- S Manual de usuario
ASROCK
ASROCK 945GCM-S Manual de usuario
ASROCK
ASROCK IMB-150 Manual de servicio
ASROCK
ASROCK Z690 Phantom Gaming 4 Manual de usuario
ASROCK
ASROCK Z87 Extreme9/ac Manual de usuario
ASROCK
ASROCK H310CM-ITX/ac Manual de usuario
ASROCK
ASROCK H310M-STX Manual de usuario
ASROCK
ASROCK ALIVENF6P-VSTA Manual de usuario
ASROCK
ASROCK 880GMH-LE USB3 - NOTICE 2 Manual de usuario
ASROCK
ASROCK ALIVENF7G-HD720P - V3.1 Manual de usuario
ASROCK
ASROCK Q1900DC-ITX Manual de usuario
ASROCK
ASROCK Z590 EXTREME Manual de usuario
Manuales populares de Placa madre de otras marcas
Gigabyte
Gigabyte GA-9IVDT Manual de usuario
Texas Instruments
Texas Instruments ADS8372EVM Manual de usuario
Commell
Commell MS-C73 Manual de usuario
IBT Technologies
IBT Technologies MB860 Manual de usuario
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manual de usuario
Biostar
Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación
