1. Introduction
Thank you for purchasing ASRock IMB-146 motherboard, a reliable moth-
erboard produced under ASRock’s consistently stringent quality control. It
delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
In this manual, chapter 1 contains the introduction of the motherboard.
Chapter 2 provides step by step installation instructions. Chapter 3 in-
cludes information about the UEFI.
Because the motherboard specications and the BIOS software
might be updated, the content of this manual will be subject to
change without notice. In case any modications of this manual
occur, the updated version will be available on ASRock’s web-
site. You may nd the latest VGA cards and CPU support list on
ASRock’s website as well. http://www.asrock.com
If you require technical support related to this motherboard,
please visit our website for specic information about the model
you are using. www.asrock.com/support/index.asp
1.1 Package Contents
ASRock IMB-146 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRock IMB-146 Quick Installation Guide
ASRock IMB-146 Support CD
1 x Serial ATA (SATA) Data Cables
1 x Serial ATA (SATA) HDD Power Cables
1 x I/O Panel Shield
6
1.2 Specications
Platform
Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
ASRock DuraCaps (100% Japan-made high-quality Conduc-
tive Polymer Capacitors)
CPU
Intel®Dual-Core AtomTM CedarView Processor D2550/
N2600/N2800
Supports Hyper-Threading Technology
Chipset Intel®NM10 Express Chipset
Memory
Single Channel DDR3 memory technology
2 x 204-pin DDR3 SO-DIMM slots (see CAUTION 1)
Supports DDR3 1066/800 MHz SDRAM
Max. capacity of system memory: 8GB (see CAUTION 2)
Expansion
Slots 1 x mini-PCI Express slot
Graphics
Intel® PowerVR SGX545
Supports DirectX 9, Pixel Shader v3.0 and OGL 3.0
Max. shared memory 256MB
Four VGA Output options: D-Sub, 2 x LVDS and DVI
Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
Supports 2-CH/24bits LVDS with max. resolution up to
1920x1200 @ 60Hz
Supports DVI with max. resolution up to 1920x1200 @ 60Hz
Audio 2 CH Audio (Realtek ALC662 Audio Codec)
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111E-VL
Supports Wake On LAN
Supports PXE
Rear Panel
I/O
1 x DC Jack
1 x PS/2 Keyboard/Mouse port
1 x D-Sub port
1 x Serial Port (RS-232)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
Internal I/O
2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and
Hot Plug
1 x COM port header
2 x LVDS connectors
1 x DVI connector
7
* For detailed product information, please visit our website:
http://www.asrock.com
1 x Printer port
1 x LPC Debug header
1 x CPU Fan connector (1 x 4-pin)
1 x Chassis Fan connector (1 x 3-pin)
4 pin 12V power connector
SATA power connector
2 x USB 2.0 headers (supports 3 USB 2.0 ports)
BIOS
16Mb AMI UEFI Legal BIOS with GUI support
Supports “Plug and Play”
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
Support CD Drivers
Hardware
Monitor
CPU/Chassis Temperature Sensing
CPU/Chassis Fan Tachometer
CPU Quiet Fan
Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS Microsoft®Windows®7 compliant
Certications
FCC, CE, WHQL
CAUTION!
1. N2600 only supports one SO-DIMM and 4GB of system memo-
ry.
2. Due to the operating system’s limitation, the actual memory size
of the reservation for system usage under Windows®32-bit op-
erating systems may be less than 4GB.
8
1.3 Unique Features
ASRock Instant Flash
ASRock Instant Flash is a BIOS ash utility embedded
in Flash ROM. This convenient BIOS update tool allows
you to update system BIOS without entering operating
systems rst like MS-DOS or Windows®. With this util-
ity, you can press the <F6> key during the POST or the
<F2> key to enter into the BIOS setup menu to access
ASRock Instant Flash. Just launch this tool and save
the new BIOS le to your USB ash drive, oppy disk or
hard drive, then you can update your BIOS only in a few
clicks without preparing an additional oppy diskette or
other complicated ash utility. Please be noted that the
USB ash drive or hard drive must use FAT32/16/12 le
system.
ASRock Crashless BIOS
ASRock Crashless BIOS allows users to update their
BIOS without fear of failing. If power loss occurs during
the BIOS update process, ASRock Crashless BIOS will
automatically finish the BIOS update procedure after
regaining power. Please note that BIOS files need to
be placed in the root directory of your USB disk. Only
USB2.0 ports support this feature.
9

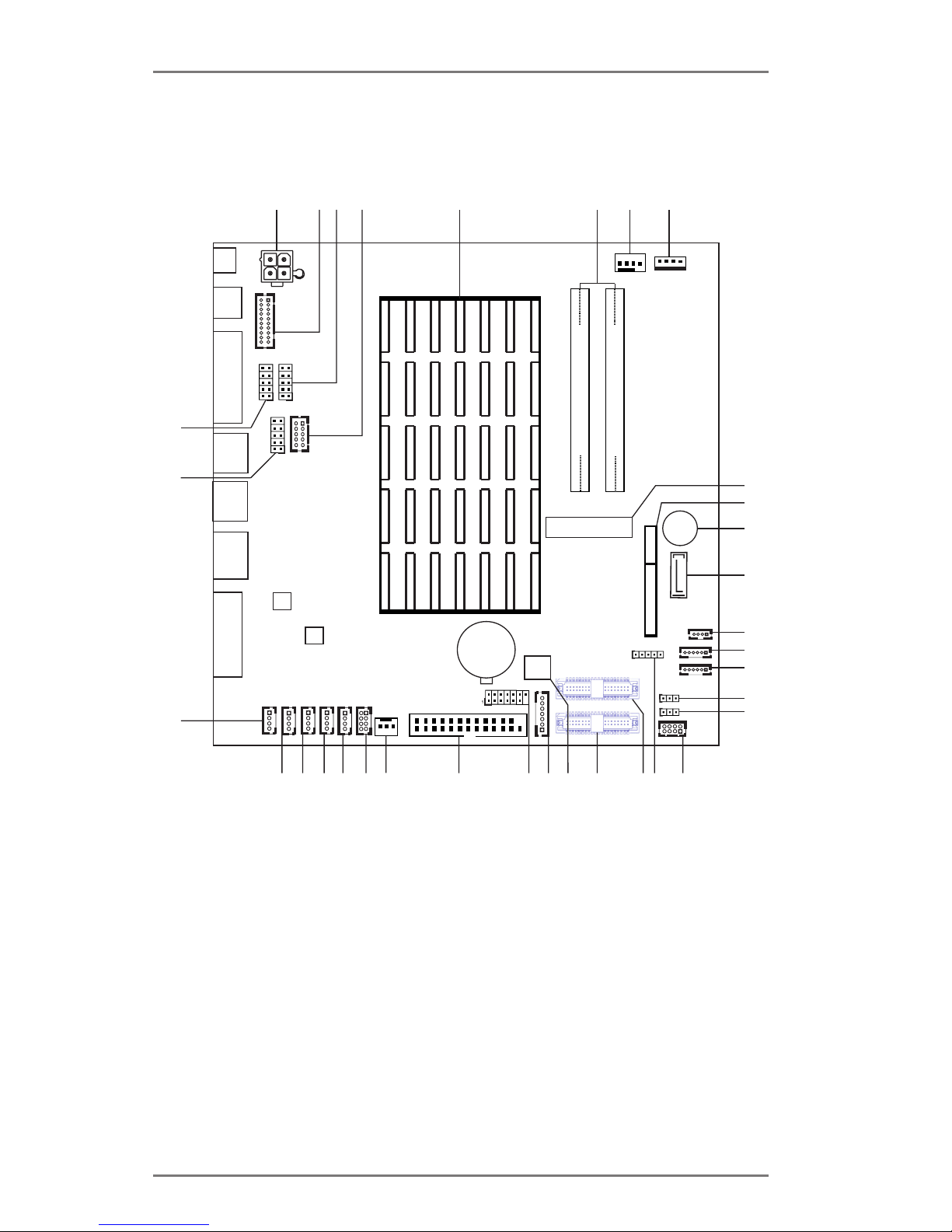

1.4 Motherboard Layout
1
ATX1 2V 1
DDR3_A1
DDR3_B1
BUZZ1
CMOS
Battery
USB 2.0
T: USB0
B: USB1
RJ-45
IMB-146
COM1
AUDIO
CODEC
LAN
16Mb
BIOS
SATAI I_ 2
1
LVDS1
CLRCMOS1
1
CPU_FAN1
CHA_FAN1
PCIE1
PS2
Keyboard
/Mouse
22
24
26
27
28
2930
31
32
33
SATA_PWR1
1
LPT1
1
1
LVDS2
DC_JACK1
USB 2.0
T: USB2
B: USB3
VGA1
LPC1
PWR_JP1
1
PANEL1
USB4_5
LVDS_VOL1
1
11
20
21
25
34
35
SATAI I_ 1
SET_CM2
DIO1
DVI1
1
1
SET_CM1
COM2
1
MIC_IN1 LINE_OUT1 LINE_IN1
SPEAKER_OUT1
USB6
111111
BLT_VOL1
1
1
LVDS2_BLT_CTL1
BLT_PWR3
BLT_PWR2
1
1
1
23489
5 6 7
10
12
11
13
14
15
16
17
18
19
23
1
1
10
1 4-pin ATX 12V Power Connector
2 DVI Connector (DVI1)
3 Digital I/O header (DIO1)
4 COM Port Header (COM2)
5 CPU
6 NM10 Express Chipset
7 2 x 204-pin DDR3 SO-DIMM Slots (DDR3_A1, DDR3_A2)
8 CPU Fan Connector (CPU_FAN1)
9 SATA Power Connector (SATA_PWR1)
10 mini PCI Express Slot (PCIE1)
11 SATA2 Connector (SATAII_2, Black)
12 Buzzer (BUZZ1)
13 SATA2 Connector (SATAII_1, Blue)
14 LVDS2 Backlight Control Connector (LVDS2_BLT_CTL1)
15 Backlight Power Connector (BLT_PWR3, for LVDS2)
16 Backlight Power Connector (BLT_PWR2, for LVDS1)
17 Clear CMOS Jumper (CLRCMOS1)
18 PWR-On Mode Jumper (PWR_JP1)
19 System Panel Header (PANEL1)
20 LVDS VDD PWR Setting Jumper (LVDS_VOL1)
21 LVDS Connector (LVDS2)
22 LVDS Connector (LVDS1)
23 SPI Flash Memory (16Mb)
24 Backlight & Amp Volume Control Header (BLT_VOL1)
25 LPC Debug Header (LPC1)
26 Printer Port (LPT1)
27 Chassis Fan Connector (CHA_FAN1)
28 USB 2.0 Header (USB4_5)
29 USB 2.0 Header (USB6)
30 Audio AMP Output Speaker Header (SPEAKER_OUT1)
31 Line-In Connector (LINE_IN1)
32 Line-Out Connector (LINE_OUT1)
33 MIC-In Connector (MIC_IN1)
34 COM Power Setting Jumper (SET_CM1)
35 COM Power Setting Jumper (SET_CM2)
Otros manuales para IMB-146
1
Tabla de contenidos
Otros manuales de Placa madre de ASROCK
ASROCK
ASROCK FATAL1TY P67 PROFESSIONAL Manual de usuario
ASROCK
ASROCK Z170 PRO4/D3 Manual de usuario
ASROCK
ASROCK H61M-HP4 Manual de usuario
ASROCK
ASROCK WOLFDALE1333-GLAN Manual de usuario
ASROCK
ASROCK N3700-ITX Manual de usuario
ASROCK
ASROCK P4I945GC Manual de usuario
ASROCK
ASROCK 4CORE1600-DVI - V1.0 Manual de usuario
ASROCK
ASROCK Z87M Extreme4 Manual de usuario
ASROCK
ASROCK Z270M Manual de usuario
ASROCK
ASROCK PRO Series Manual de usuario
ASROCK
ASROCK Z77 Extreme3 Manual de usuario
ASROCK
ASROCK FM2A55 Pro+ Manual de usuario
ASROCK
ASROCK IMB-V1000 Manual de usuario
ASROCK
ASROCK Fatal1ty X399 Manual de usuario
ASROCK
ASROCK K10N750SLI-WIFI Manual de usuario
ASROCK
ASROCK Z97M OC Formula Manual de usuario
ASROCK
ASROCK 785G Pro Manual de usuario
ASROCK
ASROCK G965M-S Manual de usuario
ASROCK
ASROCK Q1900M Pro3 Manual de usuario
ASROCK
ASROCK A780LM Manual de usuario
Manuales populares de Placa madre de otras marcas
Gigabyte
Gigabyte GA-9IVDT Manual de usuario
Texas Instruments
Texas Instruments ADS8372EVM Manual de usuario
Commell
Commell MS-C73 Manual de usuario
IBT Technologies
IBT Technologies MB860 Manual de usuario
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manual de usuario
Biostar
Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación
