AsReader ASR-R202G Series Manual de usuario

Updated:4/9/2019

ASR-R202G

Series

Quick Start

Guide

Manual

ASR-R202G Parts –Page 1/2

Font-view Back-view

How to Assemble –Page 1/7 (Preparation)

This section is for assembling the ASR-R202G

parts for use.

Please prepare the following parts to assemble:

a) Gun (ASR-R202G)

b) AsRing+ (ASA-102R)

c) AsLock Header (ASA-R250G-HDL)

d) AsLock Spacer (ASA-102R-SPL)

e) A compatible iOS Device

f) Case* (ASC-xxx-x)

a. b. c.

*Silicone ASC-P6-W case shown. Hybrid cases also available. d. e. f.

e.d.

c.b.

How to Assemble –Page 2/7 (Connect Header to Gun)

Slide Header firmly onto the ASR-R202G as shown (Steps 1-2).

Step 1 Step 2

Connector

PUSH FIRMLY

Face-Down Face-Up

Connection Point

Top View of Gun

Slide Header onto Gun Make sure Header is firmly

attached to the Gun.

Face-Down Face-Up

Top View of Gun

Step1 Step2

Push Firmly

Connector

Connector Point

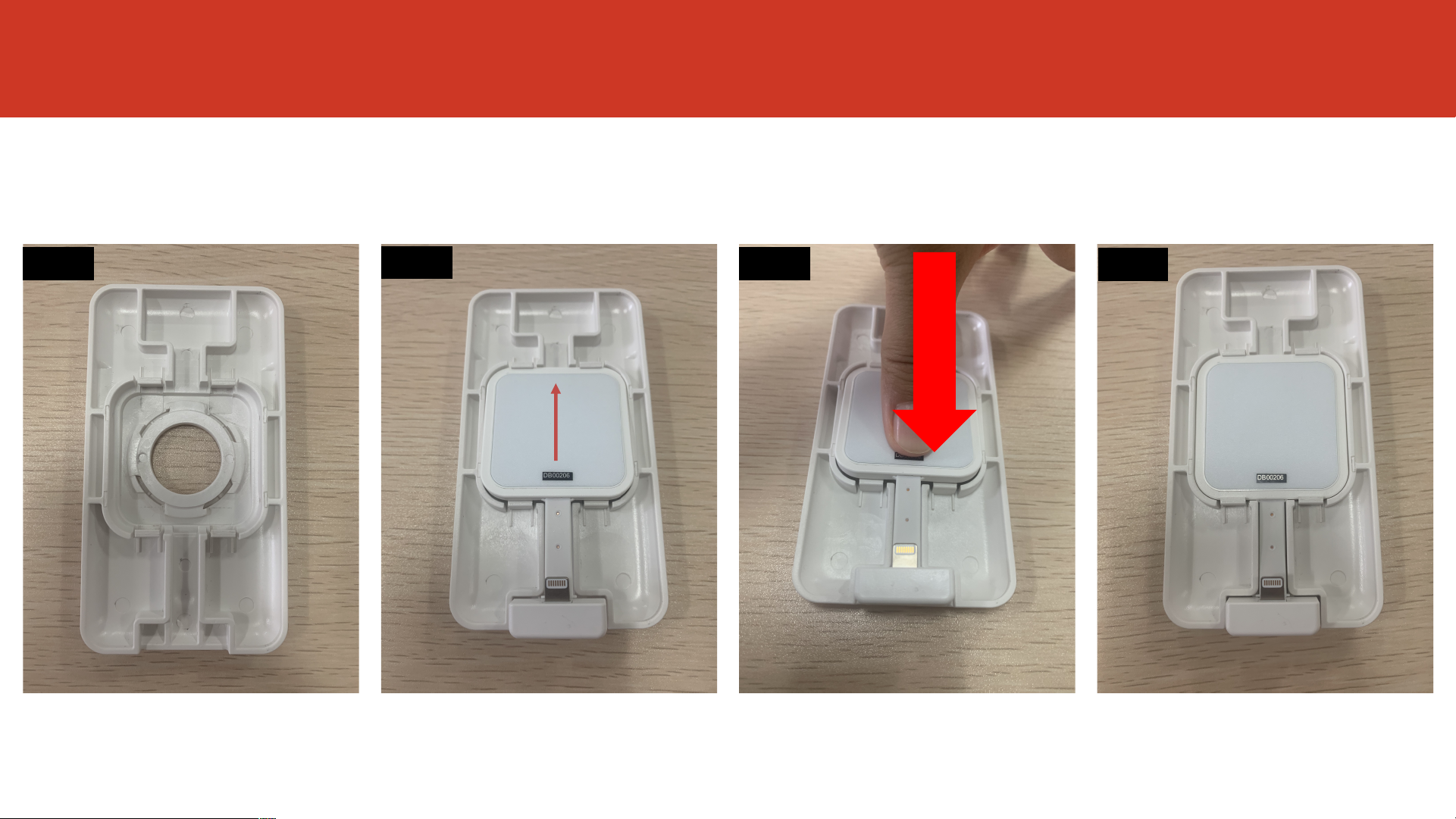

How to Assemble –Page 3/7 (Combine AsRing+ and Spacer)

Set up the AsRing+ and Spacer as shown (Steps 1-4).

Step 1 Step 2 Step 3 Step 4

Place AsRing+ on top of Spacer. Slide top of AsRing+ into Spacer. Hardly press the bottom to fit the

AsRing+ into place.

Make sure none of the AsRing+ sides

are sticking out.

Press it hardly

Step1 Step2 Step3 Step4

How to Assemble –Page 4/7

Attach the assembled AsRing+/Spacer to the iOS device as shown (Steps 1-2).

Step 0 Step 1 Step 2

Prepare the assembled

AsRing+/Spacer and the iOS

device.

Connect Lightning Connector

to iOS device.

Make sure the parts are

securely connected.

How to Assemble –Page 5/7 (Using Silicone-only Case)

Silicone Case:

If a Silicone-only case is being used, please follow the instructions below (Steps 1-3).

Silicone-only Case Silicone-only Case Silicone-only Case

Insert device into case

starting at the bottom.

Slide remaining sides

into the case.

Make sure device is correctly

inside the case.

Step1 Step2 Step3

How to Assemble –Page 6/7 (Using Hybrid Case)

Hybrid Case:

If a Hybrid case is being used, please follow the instructions below (Steps 1-5). If using an iPod Touch with an ASC-P5H,

ASC-P7H, or ASC-P7PH case, make sure Step 0 on ‘How to Assemble – Page 4/7’ was followed before proceeding.

Step 1 Hybrid Case Step 2 Hybrid Case Step 3 Hybrid Case Step 4 Hybrid Case Step 5 Hybrid Case

(2)

(1)

(3)

Separate the silicone part

from the plastic part.

Place unit into silicone

part starting at the base.

Make sure all sides of

the device are properly

inside the case.

Place the unit into the plastic

part by aligning (1) bottom, (2)

right-hand side, then (3) top.

Slide the left side in and

make sure all sides are

properly in place.

How to Assemble –Page 7/7 (The final step)

Finally, attach the magnetic part of the AsRing+ to the top of the Header as shown (Steps 1-4).

Magnetic connection of AsRing+.

Magnetic connection of Header. Attach the parts as shown.

Picture of completely

assembled Gun.

Rotate clockwise until you hear a

click to indicate that the buckle

has tightened.

Step1 Step2 Step3 Step4

ASR-R202G Apps –Page 1/1

The LongRange2D App allows

the user to scan barcodes. Also can

export the data to .csv files.

Essential apps for the ASR-R202G and AsRing+ are the

following:

1) LongRange2D (Gun Demo App)

2) AsRing+ (for AsRing+ Firmware Updates)

3) AsTagFinder*

The AsRing+ Firmware Update App can be downloaded

from APPStore.

The AsRing + App is necessary to

update the AsRing+ to the latest

firmware version.

The LongRange2D App can be downloaded from:

AppStore.
