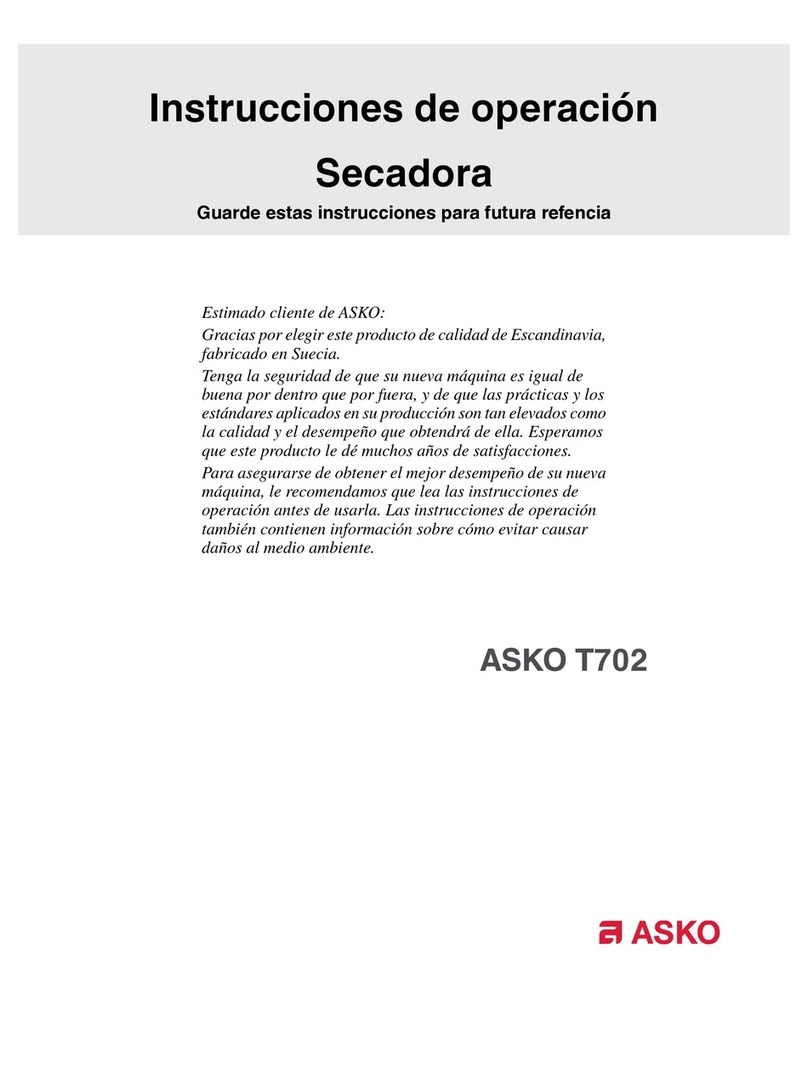

Asko T702C Manual de usuario

Dear ASKO Customer,

Thank you for choosing this quality product from Scandinavia,

which was made in Sweden.

We want you to feel assured that the inside of your new ma-

chine is just as good as the outside and that the ethics and

standards that went into the production of this machine are

just as high as the quality and performance that you will re-

ceive from it. We hope that this product will give you many

years of pleasure.

To ensure that you get the most out of your new machine, we

recommend that you read the operating instructions before

using the machine. The operating instructions also contain

information on how to avoid damaging the environment.

Operating Instructions

Tumble dryer

Save these instructions for future reference

ASKO T702C

Before using your machine for

the first time

3Do not tumble dry

4Important safety instructions

4Installation

5Grounding instructions

5Interrupting a program

5Transport/Winter storage

5Packing material

5Disposal

6Child safety

6General

7Description of the tumble dryer

8Front panel

8Options button

Advice and tips before you

tumble dry

9Have the clothes been spun?

9Materials that can be tumble dried

Materials that should not be

tumble dried

9Static electricity

10Operating instructions

10Sort your fabrics

10Turn on the main power switch.

Open the door, load the items, and

then close the door

10Select the program

12Selecting Options

12Press the Start button

13Drying program finished

13Once drying has finished

Care and maintenance

instructions

14Cleaning the lint filter

Cleaning the outside of the

machine

15Cleaning the condenser

16Troubleshooting

16The machine will not start

16Overheating cut-off

16Drying takes too long

The laundry does not dry, or is too

dry

16Error messages

17Technical information

17Technical data

18Service and guarantee

19Warranty

How to contact the ASKO

Appliances Inc.

20Installation instructions

20Positioning the tumble dryer

23Adjusting the feet

23Condensed water

23Electrical installation

26Reversing the door

28Quick guide

28Fabrics

28Turn on the main power switch

28Load the laundry

28Select a program and any options

28Press the Start/Stop button

28Drying program finished

28Once tumble drying has finished

Customer Care Center2

1-800-898-1879

www.askousa.com

Contents

Do you need this Use&Care Guide in spanish? Log onto www.askousa.com/customercare to download.

¿Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askousa.com/customercare

y descárguesela.

Do not tumble dry

Certain materials are not suitable for tumble dry-

ing. Always check and follow the instructions on

each item's laundry label. You can find more infor-

mation in the "Advice and tips before you tumble

dry" chapter.

Note!

When starting the tumble dryer for the first time

or after a long period without use, you may hear

a slight thumping noise. This noise is completely

normal and will disappear after a few loads.

See the Quick guide on the last page.

3Customer Care Center

1-800-898-1879

www.askousa.com

Before using your machine for the first time

Save these instructions for future reference

Installation

See the "Installation" chapter.

Warning!

WARNING - To reduce the risk of fire, electric

shock, or injury to persons when using your appli-

ance, follow basic precautions, including the fol-

lowing:

•Read all instructions before using the appli-

ance.

•Do not wash or dry articles that have been

previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents,

cooking oils, other flammable or explosive

substances as they give off vapors that could

ignite or explode.

•Do not allow children to play on or in the appli-

ance. Children should be closely supervised

when near the appliance.

•Before the appliance is removed from service

or discarded, remove the door to the drying

compartment.

•Do not reach into the appliance if the drum is

moving.

•Do not install or store this appliance where it

will be exposed to the weather.

•Do not tamper with controls.

•Do not attempt to repair or replace any part of

the appliance or perform any servicing unless

specifically recommended in this guide.

•Do not use fabric softeners or dryer sheets

unless the manufacturer gives written assur-

ance that the product will not damage a tumble

dryer.

•Do not heat-dry items containing: vinyl, plastic,

foam rubber or similarly textured rubberlike

materials, fiberglass, or wool unless wool un-

less the label specifies “washable”.

•Clean the lint filter before or after each load.

•Keep the area around the exhaust opening and

adjacent surrounding areas free from the accu-

mulation of lint, dust and dirt.

•The interior of the machine should be cleaned

periodically by an authorized ASKO service

agent.

•Do not place items exposed to cooking oils in

your dryer. Items contaminated with cooking

oils may contribute to a chemical reaction that

could cause a load to catch fire.

•Electrical installation, if required, must be done

by a licensed electrician.

•Do not operate appliance while away from the

home.

•Do not heat dry items that have been dry-

cleaned.

•The dryer is made and marked to facilitate re-

cycling. When it is no longer useful, contact

your local refuse collection service for advice

on how to properly dispose of the dryer for

purposes of recycling.

•Damaged power cables should only be re-

placed by a certified professional.

•Provide sufficient ventilation, otherwise smoke

from open fires or fumes from equipment

burning other fuels can be drawn into the room.

Caution!

During the program, the back of the dryer will get

very hot. Let the machine cool completely before

touching the back.

Warning!

This appliance must be properly grounded.

Customer Care Center4

1-800-898-1879

www.askousa.com

Important safety instructions

Grounding instructions

A) Grounding instructions for a grounded,

cord-connected appliance

In the event of malfunction or breakdown,

grounding will reduce the risk of electric shock by

providing a path of least resistance for electric

current. This appliance (Canadian market only)

is equipped with a cord having an equipment-

grounding conductor and a grounding plug. The

plug must be plugged into an appropriate outlet

that is properly installed and grounded in accor-

dance with all local codes and ordinances.

Warning!

Improper connection of the equipment-grounding

conductor can result in a risk of electric shock.

Check with a qualified electrician or service repre-

sentative or personnel if you are in doubt as to

whether the appliance is properly grounded. Do

not modify the plug provided with the appliance

(Canadian market only). If it will not fit the outlet,

have a proper outlet installed by a qualified elec-

trician.

To reduce the risk of fire, this appliance must be

exhausted outdoors or the equivalent. Do not ex-

haust into a chimney, wall, ceiling or concealed

space in a building.

B) Grounding instructions for a

permanently connected appliance:

This appliance must be connected to a grounded

metal, permanent wiring system, or an equipment-

grounding conductor must be run with the circuit

conductors and connected to the equipment-

grounding terminal or lead on the appliance.

Note

This manual does not cover every possible condi-

tion and situation that may occur. Use common

sense and caution when installing, operating, and

maintaining any appliance.

Interrupting a program

You can stop a drying program by:

•Opening the door. The drum will then stop au-

tomatically.

•Pressing the main power switch.

•Press the Start/Stop button for three seconds.

When you want to resume tumble drying, simply

close the door and press the Start/Stop button.

Transport/Winter storage

If you need to move your machine or store it over

the winter in unheated premises, make sure you

drain the condensed water container beforehand.

Packing material

Please sort waste materials in accordance with

local guidelines.

Disposal

This machine is manufactured and labeled for

recycling. In order to prevent injuries, the machine

must be made unusable once the decision has

been made to dispose of it. Contact your munici-

pality for information about where and how your

machine can be recycled correctly.

Save these instructions for future reference

5Customer Care Center

1-800-898-1879

www.askousa.com

Important safety instructions

General

Do not allow

children to play

with the tumble

dryer.

The tumble dryer does not start automatically

when the door closes (for example, if a child

closes the door from inside). The tumble dryer

has a magnetic catch, which allows the door to

be opened from the inside. The door has a door

switch that automatically stops the tumble dryer

when the door is opened.

Customer Care Center6

1-800-898-1879

www.askousa.com

Child safety

Outer door5.Panel1.

Fan (behind hatch)6.Condensed water container2.

Condenser (behind the front plate)7.Serial number tag and rating plate3.

Lint filter8.Lint filter holder4.

7Customer Care Center

1-800-898-1879

www.askousa.com

Description of the tumble dryer

234

Main power switch1

Options button2

Program selector3

Start/Stop4

Options button

Button for selecting Low Temperature2.

Customer Care Center8

1-800-898-1879

www.askousa.com

Front panel

Here are some tips that may help you before you

begin tumble drying.

Have the clothes been spun?

Items to be tumble dried should be spun at 1000

rpm or faster. Higher spin speeds save both ener-

gy and drying time.

Materials that can be tumble dried

This symbol means that the material is suitable

for tumble drying. Fabrics best suited to tumble

drying are cotton fabrics, terry cloth, and synthetic

fibers. Garments will be softer and lighter when

tumbled than when hung out to dry.

Note!

The tumble dryer does not cause any significant

wear to fabrics. The lint trapped in the lint filter

consists of dust and fiber residues which gather

when the items are used.

Materials that should not be tumble

dried

This symbol means that the material is not

suitable for tumble drying. Certain materials may

melt or become a fire hazard if exposed to heat

and others can lose their shape or shrink.

And do not tumble dry

•materials labeled "Do not dry near heat".

•garments that have been dry-cleaned at home.

•plastic foam.

•fiberglass material.

•wool must not be tumble dried due to the risk

of piling.

Static electricity

To reduce the risk of static electricity in the laundry

after tumble drying, you can:

•Use fabric softener when washing.

•Wait five minutes after the drying program ends

before opening the door and removing the

laundry from the dryer.

Note!

If the door is opened during the program, the

program will be interrupted and will return to the

start. The clothes may be too damp or too dry as

a result.

9Customer Care Center

1-800-898-1879

www.askousa.com

Advice and tips before you tumble dry

Warning!

To reduce the risk of electric shock or injury to

persons, read the "Important Safety Instructions"

section before operating this appliance.

Below are step-by-step instructions to help you

achieve the best possible tumble drying results.

1Sort your fabrics

You will achieve the most uniform drying

results if the items are made of the same

type of material. Close zippers and fasten buttons

or belts; sort the items and adjust load and tem-

perature.

2Turn on the main power switch.

3Open the door, load the items,

and then close the door

4Select the program

The choice of program depends on what

you intend to do with the items after drying

them.

Guidelines as to what specific programs

can be used for.

Auto Delicate

Auto Iron Dry

Auto Heavy

Auto Normal

Auto Heavy

This program is for items that are particularly diffi-

cult to dry, such as jeans with very thick seams.

Note!

Knitted fabrics in particular are prone to shrinkage.

Use the Auto Normal, Auto Delicate, or Auto Iron

Dry programs for these items. Stretch clothes

back into shape immediately after drying.

Auto Normal and Auto Delicate

These programs shut off the heat once the load

is dry but before it is "bone-dry". The Auto Normal

program shuts off the heat slightly later than Auto

Delicate. Use trial and error to find out what works

best. Use these programs when you want items

to be completely dry.

Auto Iron Dry

This program shuts off the heat once the load is

just damp enough for ironing or pressing.

Customer Care Center10

1-800-898-1879

www.askousa.com

Operating instructions

Otros manuales para T702C

Tabla de contenidos

Otros manuales de Secadora de Asko

Asko

Asko T744C Manual de usuario

Asko

Asko T783C Manual de usuario

Asko

Asko DOMESTIC TD85 Manual de usuario

Asko

Asko T754HP Manual de usuario

Asko

Asko T743C Instrucciones de montaje

Asko

Asko T793 Manual de usuario

Asko

Asko T760 Manual de usuario

Asko

Asko DC7583 Instrucciones de montaje

Asko

Asko TD75.13 Series Manual de usuario

Asko

Asko DC 7171 Manual de usuario

Asko

Asko PROFESSIONAL TDC112HPS Manual de usuario

Asko

Asko T784 Manual de usuario

Asko

Asko T793 Manual de usuario

Asko

Asko PROFESSIONAL TDC112VS MARINE Manual de usuario

Asko

Asko T701 Manual de usuario

Asko

Asko 7704 - Manual de usuario

Asko

Asko T721 Manual de usuario

Asko

Asko T794C FI Manual de usuario

Asko

Asko T702 Manual de instrucciones

Asko

Asko T884HPXL Manual de usuario

Asko

Asko T712C Manual de usuario

Asko

Asko 7705 - Manual de usuario

Asko

Asko T209H Manual de usuario

Asko

Asko T700 Series Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario

Bosch

Bosch WTX8HKM9SN Manual de usuario
