Assembly Instructions

MAYA

Sideboard

VERSION 1.0

ASSEMBLY INSTRUCTIONS

Read these instructions carefully and keep for future

reference. Refer to parts inventory for guidance, and

ensure you have all pieces before starting.

When assembling, place all parts on a soft, clean, and ﬂat

surface such as a carpet to prevent scratches.

If you’re having diculty, our friendly Customer Care

team is always here to help. Call us at 1.888.746.3455

during business hours, email [email protected] or chat

live at article.com.

Page 2 of 7MAYA Sideboard

20 min

PARTS INVENTORY

ID DESCRIPTION QTY

SIDEBOARD 1

LEG FRAME 2

CROSS BAR 1

PARTS INVENTORY CONT.

ID DESCRIPTION QTY

ALLEN KEY 1

M6 ×15MM BOLT 18

M6 ×35MM BOLT 4

LOCK WASHER 22

WASHER 22

TIME # OF PEOPLE DIFFICULTY

ANTI-TIP

Installation Required

REQUIRED TOOL

Page 3 of 7MAYA Sideboard

×4

×18

Do not fully tighten bolts until

all bolts are placed properly.

80%

Page 4 of 7MAYA Sideboard

Adjust levelers as needed.

Fully tighten bolts.

100%

Page 5 of 7MAYA Sideboard

Serious or fatal crushing injuries can occur from furniture

tip-over. To help prevent tip-over:

• Install tip-over restraint provided.

• Do not set heavy objects on top of this product,

unless the product is speciﬁcally designed to

accomodate them.

• Never allow children to climb or hang on mirrors,

shelves, consoles, or cabinets with doors and/or

drawers.

Use of tip-over restraints may only reduce but not

eliminate, the risk of tip-over.

20 min

TIME

REQUIRED TOOL

# OF PEOPLE DIFFICULTY

PARTS INVENTORY

ID DESCRIPTION QTY

BRACKET 4

M4 ×20MM SCREW 4

M8 ×51MM PLUG 4

M6 ×70MM SCREW 4

STRAP 2

ANTI-TIP RESTRAINT INSTALLATION

WARNING!

Hardware (C/D) to attach brackets to wall is

designed for drywall. To attach this unit to another

type of wall, consult with your local hardware store.

REQUIRED TOOL

8MM / 5/16" DRILL BIT

1010 Raymur Ave.

Vancouver, BC V6A 3T2

During shipping, the doors of your cabinet may have

shifted slightly. This can easily be corrected by tightening

a few screws. Always start by adjusting the top hinge on

Page 6 of 7MAYA Sideboard

×2×4

Mark on wall where second pair

of brackets should be placed.

Attach pair of brackets to top

corners of the back of the unit.

× 4× 4 × 4

Drill holes in wall using

8mm / 5/16"drill bit.

Page 7 of 7MAYA Sideboard

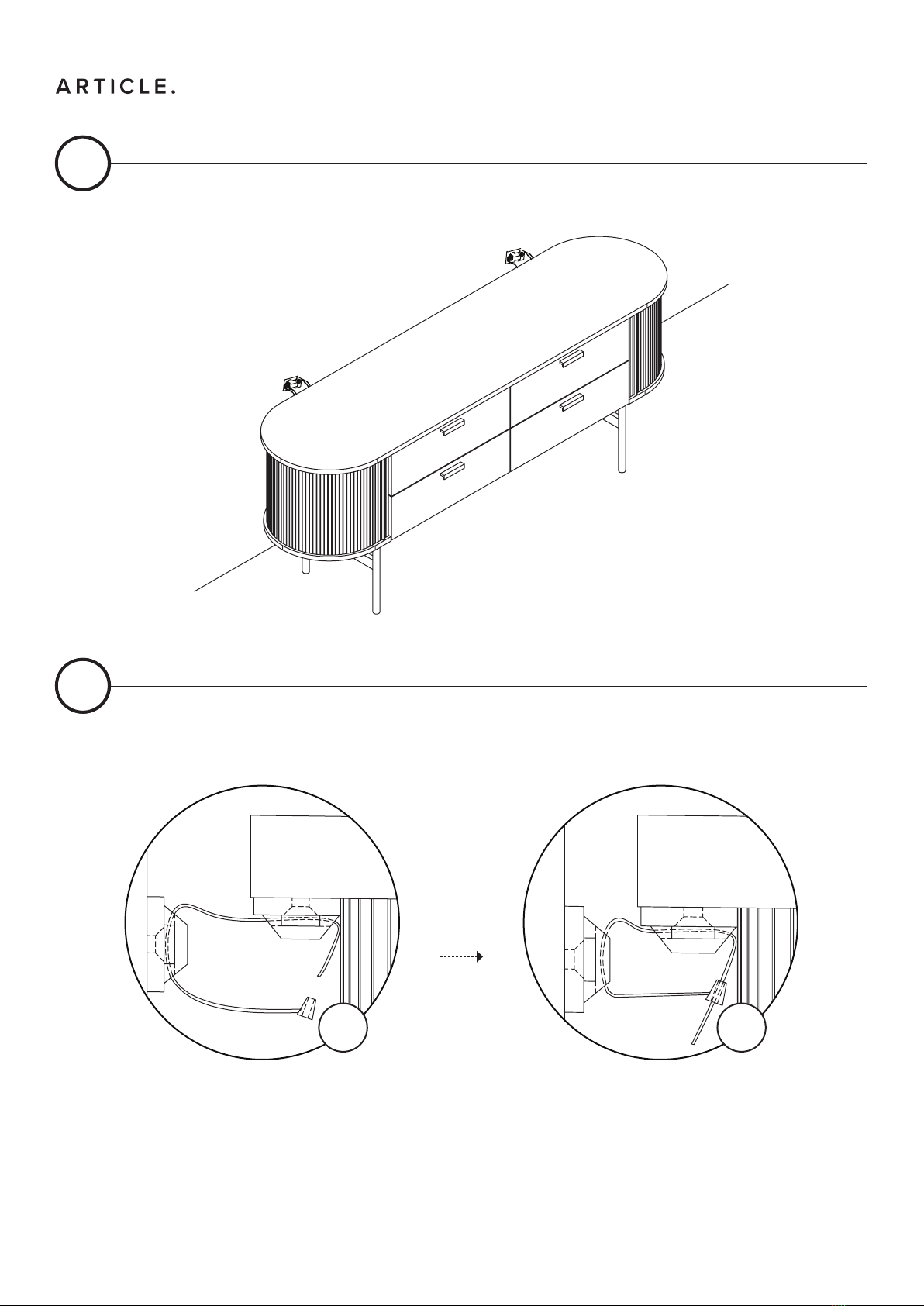

Align brackets on unit

with brackets on wall.

×2×2

Pull strap down until it snap-locks.
