ArtFox Pointy 10R Manual de usuario

USER MANUAL

ARTFOX Pointy 10R

Tableofcontents

1. Safety instructions.................................................................................................................... 3

2. Fixture exterior view................................................................................................................. 5

Installation...............................................................................................................................................

3.1

Connection to the mains.....................................................................................................6

3.2

Changing the lamp.............................................................................................................. 7

3.3

Lamp adjustment................................................................................................................. 8

3.4

Replacing rotating gobos................................................................................................. 10

3.5 Rigging the fixture................................................................................................................ 11

3.6 DMX-512 connection........................................................................................................... 13

4. DMX Protocol..............................................................................................................................14

5. Operation Menu....................................................................................................................... 17

6. Technical Specifications...................................................................................................... 19

7. Maintenance and cleaning.....................................................................................................21

8. Photometric diagrams............................................................................................................ 23

ArtFox Pointy 10R - Beam Spot Wash 3-in-1, 3D effect

CAUTION ! EYE DAMAGES !

Avoid looking directly into the light source!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOU INITIAL START - UP

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en-

sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes

written in this manual.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this

manual or any unauthorized modification to the device.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This light was designed for indoor use and it is intended for

professional application only. It is not for household use.

Safety instructions

CAUTION!

Disconnect the fixture from mains before you remove any cover of the fixture.

With a high voltage you can suffer a dangerous electric shock when touching

alive wires and electrical parts under covers!

Make sure that the available voltage is not higher than stated on the rear panel of the fixture.

This fixture should be operated only from the type of power source indicated on the marking label. If you are

not sure of the type of power supplied, consult your authorized distributor or local power company.

Always disconnect the fixture from AC power before cleaning, removing or installing the fuses, or any part.

The power plug has to be accessible after installing the fixture. Do not overload wall outlets and extension cords

as this can result in fire or electric shock.

Do not allow anything to rest on the power cord. Do not locate this fixture where the cord may be damaged by

persons walking on it.

Make sure that the power cord is never crimped or damaged by sharp edges. Check the fixture and the power

cord from time to time.

Refer servicing to qualified service personnel.

This fixture falls under protection class I. Therefore this fixture has to be connected to

a mains socket outlet with a protective earthing connection.

Do not connect this fixture to a dimmer pack.

During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily

mean that the device is defective.

Do not touch the device’s housing bare hands during its operation (housing becomes hot)!

For replacement use lamps and fuses of same type and rating only.

If the fixture has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on

immediately. The arising condensation water might damage your device. Leave the device switched off until

it has reached room temperature.

Do not shake the fixture. Avoid brute force when installing or operating the fixture.

This fixture was designed for indoor use only, do not expose this unit to rain or use near water.

When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat, moisture

or dust.

Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of

the device and to protect it from overheating.

Do not block the front objective lens with any object when the fixture is under operation.

The openings should never be covered with cloth or other materials, and never must be blocked.

The fixture becomes very hot during operation. Allow the fixture to cool approximately 20 minutes prior to

manipulate with it.

This fixture should not be placed in a built-in installation unless proper ventilation is provided.

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fas-

tened.

Always use a secondary safety cable when mounting this fixture.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fix-

ture.

Warning

The minimum distance between light output and the illuminated surface must be more

than 10 meters.

The maximum ambient temperature 45°C must never be exceeded.

CAUTION!

The lens has to be replaced when it is obviously damaged,

so that its function is impaired, e. g. due to cracks or deep scratches!

Operate the device only after having familiarized with its functions. Do not permit operation by persons not

qualified for operating the device. Most damages are the result of unprofessional operation!

CAUTION!

The lamp has to be replaced when it is damaged

or deformed due to the heat!

Please use the original packaging if the device is to be transported.

CAUTION!

Fast on-off-cycles (e.g. 10 min. on / 10 min. off) will reduce lamp life.

Fixture exterior view

1- Front lens

2- Tilt lock

3- Pan lock

4- Base

5- Touch screen

6- Moving head

7- Arm

8- Handle

The head should be locked for transportation- the tilt lock latch (2) and the pan lock latch (3) have to be in the

locked positions. To unlock the head, move these latches to unlock positions before operating the fixture.

Rear panel of the base:

1- Power In

2- Power On / Off

3- 3-pin DMX Out

4- 5-pin DMX Out

5- Fuse Holder

6- 3-pin DMX In

7- 5-pin DMX In

Front panel of the base:

1- LCD touch screen

2- FUNCTION button

3- UP button

4- DOWN button

5- ENTER/DISPLAY ON button

The ENTER/DISPLAY ON button also serves for switching the display on when the fixture is disconnected

from the mains.

Installation

Fixtures must be installed by a qualified electrician in accordance with all

national and local electrical and construction codes and regulation.

3.1 Connection to the mains

For protection from electric shock, the fixture must be earthed!

The Colorfullight Monster is equipped with auto-switching power supply that automatically adjusts to any

50-60Hz AC power source from 100-240 Volts.

This fixture must be earthed. To use the fixture, a plug must be fixed.

The correct assembly of a sufficient plug may be done by professional persons only.

The conductors in the cable are marked by the following table.

Core (EU)

Core (US)

Connection

Plug Terminal Marking

Brown

Light blue

Green /Yellow

Black

White

Green

Live

Neutral

Earth

3.2 Changing the lamp

DANGER !

Install the lamp with the fixture unplug from mains !

To insert the new lamp.

1. Disconnect the fixture from mains and allow it to cool at least 20 minutes.

2. .Loosen the two quarter-turn fasteners (1) on a lamp cover and remove the lamp cover (2) to get into lamp

compartment.

3. Remove both Fastons (3) from flat blades of the lamp.

4. Holding the lamp by its ceramic base (4), carefully pull the lamp outwards until you break force of

spring locks (5) keeping the lamp in the lamp compartment.

5 Holding the new lamp by its ceramics base (4), gently insert the lamp into lamp compartment until it snaps

into spring locks (5).

Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is not designed

for. Damages caused by non-observance are not subject to warranty. Please follow the lamp manufacturer‘s

notes!

Warning: do not touch the lamp’s envelope with bare hands. Should this happen, clean the bulb with a cloth

soaked in alcohol and dry it

Slide both Fastons (3) onto lamp blades and check this connection

Re-insert the lamp cover (2) and tighten the two quarter-turn fasteners (1) .

8. Connect the fixture to the mains.

9. Reset the "Lamp On Time” and "Lamp Strikes” counters in the menu "Information”.

Never operate this fixture without the lamp!

Do not operate this fixture without the lamp cover!

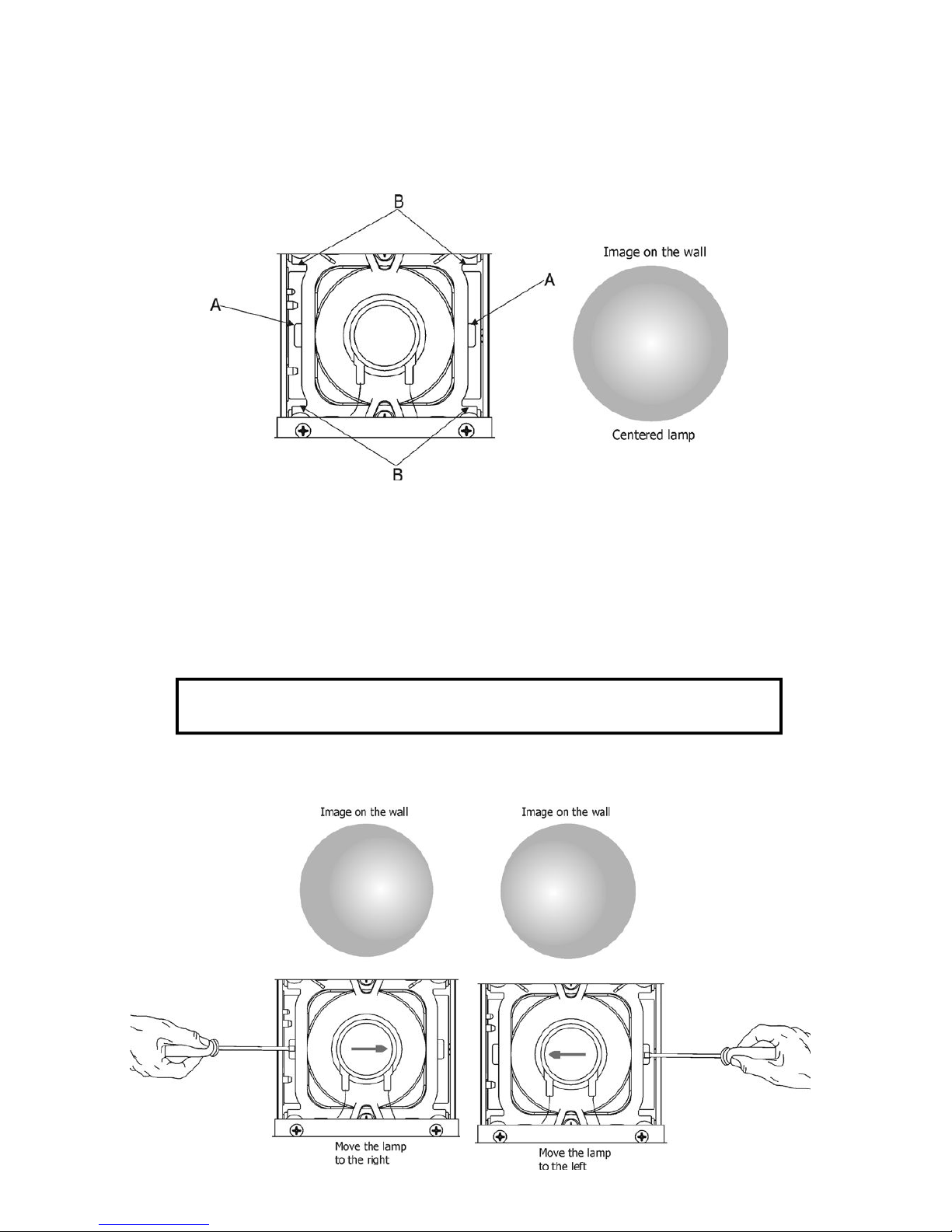

3.3 Lamp adjustment

The lamp holder is aligned at the factory. Due to differences between lamps,the fine adjustment may improve

light performance.

For lamp adjustment serve four slots in the lamp assembly.

Slots A - for adjustment of the lamp horizontally

Slots B - for adjustment of the lamp vertically

To adjust the lamp in the fixture.

1. Connect the fixture to the mains, switch on the lamp, open shutter and dimmer, set zoom and focus (Static

gobo wheel a rotating gobo wheel should be set at 0 DMX) and check the image on the wall

2. Disconnect the fixture from mains.

.Loosen two quarter-turn fasteners (1) on a lamp cover and remove the lamp cover (2) to get into lamp

compartment.

Move the lamp into desired position by using a suitable screwdriver inserted in the appropriate slots (A, B).

Re-insert the lamp cover (2) and tighten the two quarter-turn fasteners (1) .

6. Connect the fixture to the mains and check if the adjustment has been correctly made.

7. If you need to continue in adjusting, disconnect the fixture from mains and repeat steps 2-5.

The lamp must be adjusted with the fixture disconnected from mains!

Do not operate this fixture without the lamp cover!

Note: Due to light refraction in the fixture, the lamp has to be moved into direction of shifted hot-spot - see

pictures below.

Note!

The adjusted hot-spot may move during the first 100 hours of the lamp operation

(lamp stabilizes its burning) and the lamp adjusting has to be repeated.

(In some cases, the lamp adjusting has to be made every 100 hours of lamp operation.)

3.4 Replacing rotating gobos

DANGER!

Replace gobos with the device switched off only.

Unplug from mains before!

1. Disconnect the fixture from mains and allow it to cool.

2. Remove the bottom plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.

3. Gently pull up the gobo holder from the rotation gobo wheel.

4. Carefully remove the gobo and the spring gobo-lock from the gobo holder by pushing to the gobe from the side

without toothed wheelt. Do not touch the surface of the pattern of the glass gobo - use a suitable glove.

Be careful! Glass!

5. Insert the new gobo (glazy side towards the lamp). Insert the spring-gobo lock

to secure it in the gobo holder.

6. Insert the gobo holder back into rotating gobo wheel.

7. Replace the bottom cover before applying power.
