Arkon CLAMPRV29 Manual de usuario

Telescoping pole extends upward from

17 inches to 29 inches.

Compatibility:

Fits smart phones with cases weighing

up to 2 pounds and measuring up to 4”

wide and 1/4”-20 compatible cameras.

IMPORTANT:

Do notovertightenring. Overtightening

ring may damage threads on holder

and also make it difﬁcult to adjust

holder.

Attach mount to surface by tightening C-clamp knob. Slide optional

rubber clamp boot onto the top of the mount’s clamp to prevent

scratching clamp surface if desired.

For thicker tables or desks, adjust the clamp bracket by using a Phillips

screwdriver to remove the screws from the top position and move

them to the bottom position.

Your Pro Stand Clamp Mount will arrive in four parts:

Clamp Pedestal with

Telescoping Pole

Overhead Arm

Assembly

25mm to 1/4”-20

Camera Bolt Adapter

(optional)

RV001WR-B

Attach overhead arm assembly to clamp pedestal by unscrewing the

collar at the top of the pole until the metal ball side of the overhead

arm assembly ﬁts into the collar. Tighten collar clockwise to secure.

Unscrew tightening ring from holder. Place ring over the 17mm end of

mount then snap the holder onto the ball. Set to desired position, then

tighten ring.

SP25MMCAM

Assembled Mount

SP3RMPR0PL

HD011-B

Tightening Ring

Tightening

Knob

Collar

Metal

Ball Side

Screws

Continued on page 2

CLAMPRV29 |Arkon Pro Stand Clamp Mount for Phone or Cameras

HD011-B

Phone Holder

RV001WR-B

Clamp Bracket

C-Clamp Knob

C-Clamp

rev.091818

1a1b

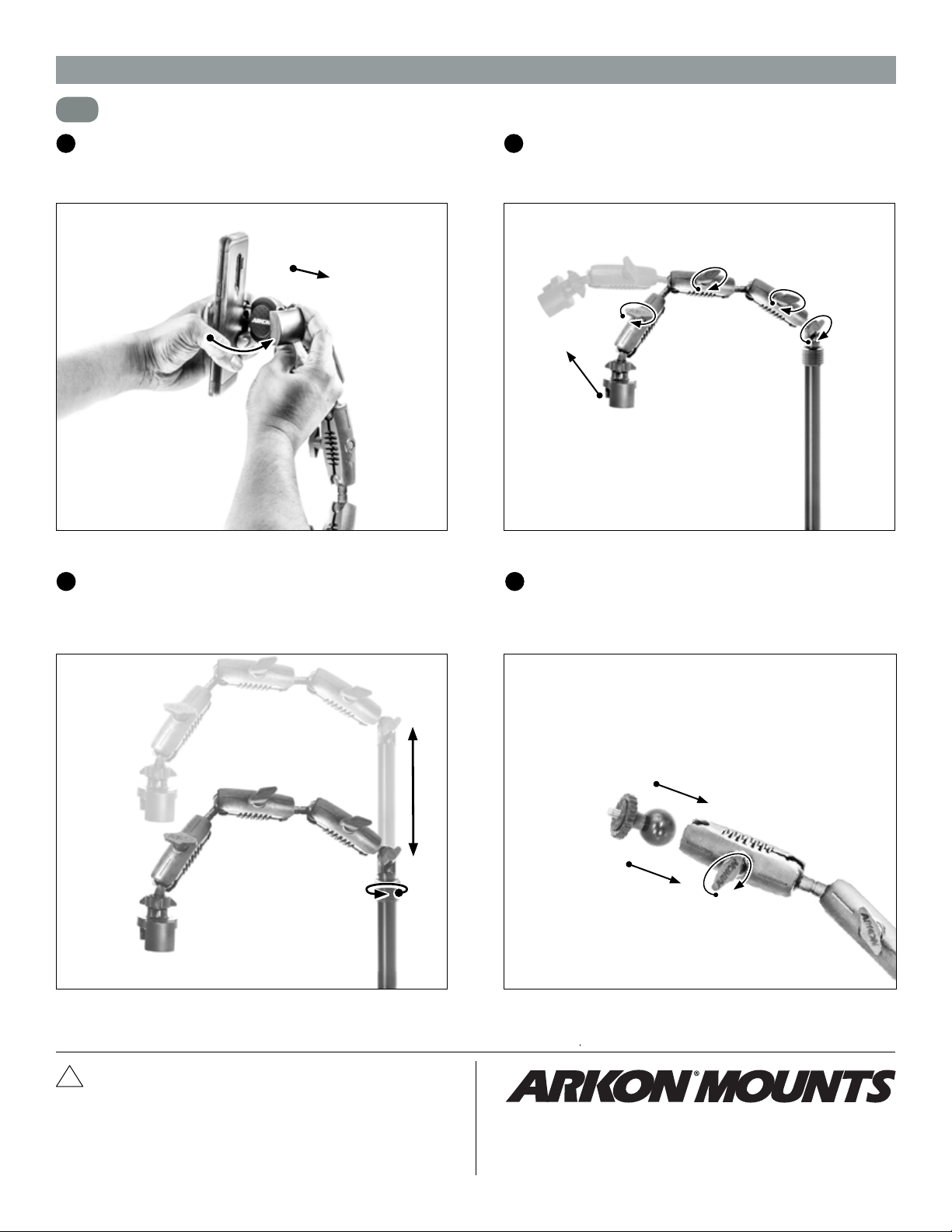

7To attach optional camera, pico projector, or Mevo camera adapter,

unscrew shaft knob and remove phone holder, ring, and ball adapter.

Attach the 25mm ball end of the camera adapter to the shaft and

tighten clockwise to secure.

6Adjust the height of the pole by loosening the adjustment collar

counterclockwise. Tighten clockwise to set height.

5Shafts can be adjusted by unscrewing the shafts’ knobs to loosen.

Tighten knobs to set.

Consumer Hotline:

USA (800) 841-0884

INT’L (626) 254-9005

Monday - Friday 9 am - 5 pm, PST

www.arkon.com

Arcadia, CA 91006 USA

Designed in USA | Made in Taiwan and USA

Safety Precautions

Arkon Resources, Inc. is not responsible for any damages caused to your

device or yourself due to the installation or use of this mount.

page 2

4Using two hands, insert phone into the holder by pushing the device

into one of the spring-loaded support arms. Expand the other support

arm and fully insert device until it lays ﬂat against the blue rubber pad.

CLAMPRV29 |Arkon Pro Stand Clamp Mount for Phone or Cameras rev.091818
