Arista C-130 Manual de usuario
Quick Start Guide
C-130 Access Point
Arista Networks
www.arista.com
DOC-03483-02
i Quick Start Guide: Access Point
© Copyright 2020 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista Networks
and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service
names may be trademarks or service marks of others.
Headquarters
5453 Great America Parkway
Santa Clara, CA 95054
USA
408 547-5500
www.arista.com
Support
408547-5502
866 476-0000
support-wifi@arista.com
Sales
408 547-5501
866 497-0000
Contents
About this Guide ............................................................................................................3
Package Content.............................................................................................................4
C-130 Overview...............................................................................................................7
Front Panel of C-130.....................................................................................................................................7
Rear Panel of C-130.....................................................................................................................................8
Top Side Ports on C-130...............................................................................................................................9
Install the C-130............................................................................................................11
Mount the C-130.........................................................................................................................................11
Mounting Instructions using the Standard Package Contents ...................................................................11
Mounting Instructions using the Silhouette/Interlude Bracket Mount .........................................................13
Mounting Instructions using the Wall Mount Bracket..................................................................................13
Power the Access Point On.........................................................................................................................13
Using C-130 with Power Adapter ...............................................................................................................14
Connect Access Point to the Network.........................................................................................................14
Access Point Troubleshooting.....................................................................................15
Appendix A: AP-Server Mutual Authentication .........................................................16
C-130ii
About this Guide
This installation guide explains how to deploy the C-130 access point (AP).
Important: Please read the EULA before installing C-130.You can download and read the EULA from
https://www.arista.com/en/support/product-documentation.
Installing the AP constitutes your acceptance of the terms and conditions of the EULA mentioned above in this
document.
Intended Audience
This guide can be referred by anyone who wants to install and configure the C-130 access point.
Document Overview
This guide contains the following chapters:
•Package Content on page 4
•C-130 Overview on page 7
•Install the C-130 on page 11
•Access Point Troubleshooting on page 15
Note: All instances of the term 'server' in this document refer to the Wireless Manager, unless the server
name or type is explicitly stated.
Product and Documentation Updates
To receive important news on product updates, please visit our website at
.https://www.arista.com/en/support/product-documentationWe continuously enhance our product documentation
based on customer feedback.
3
Package Content
The access point (AP) package must contain the components shown in the following figure.
C-1304
Figure 1: Package Components
5
Table 1: Labels: Package Components
DescriptionLabel
C-130 Access Point1
15/16" (24 mm) Mounting Bracket2
Important: The MAC address of the device is printed on a label at the bottom of the product and the
packaging box. Note down the MAC address before mounting the device on the ceiling or at a location
that is difficult to access.
If the package is not complete, please contact Arista Networks Technical Support Team at
support-wifi@arista.com, or return the package to the vendor or dealer where you purchased the product.
C-1306
C-130 Overview
C-130 is a 4x4 802.11a/b/g/n/ac access point with three radios.
This chapter provides an overview of the C-130 and describes:
•Front Panel of C-130 on page 7
•Rear Panel of C-130 on page 8
•Top Side Ports on C-130 on page 9
Front Panel of C-130
The front panel of the C-130 has 4 functional LEDs that indicate the working of the device.

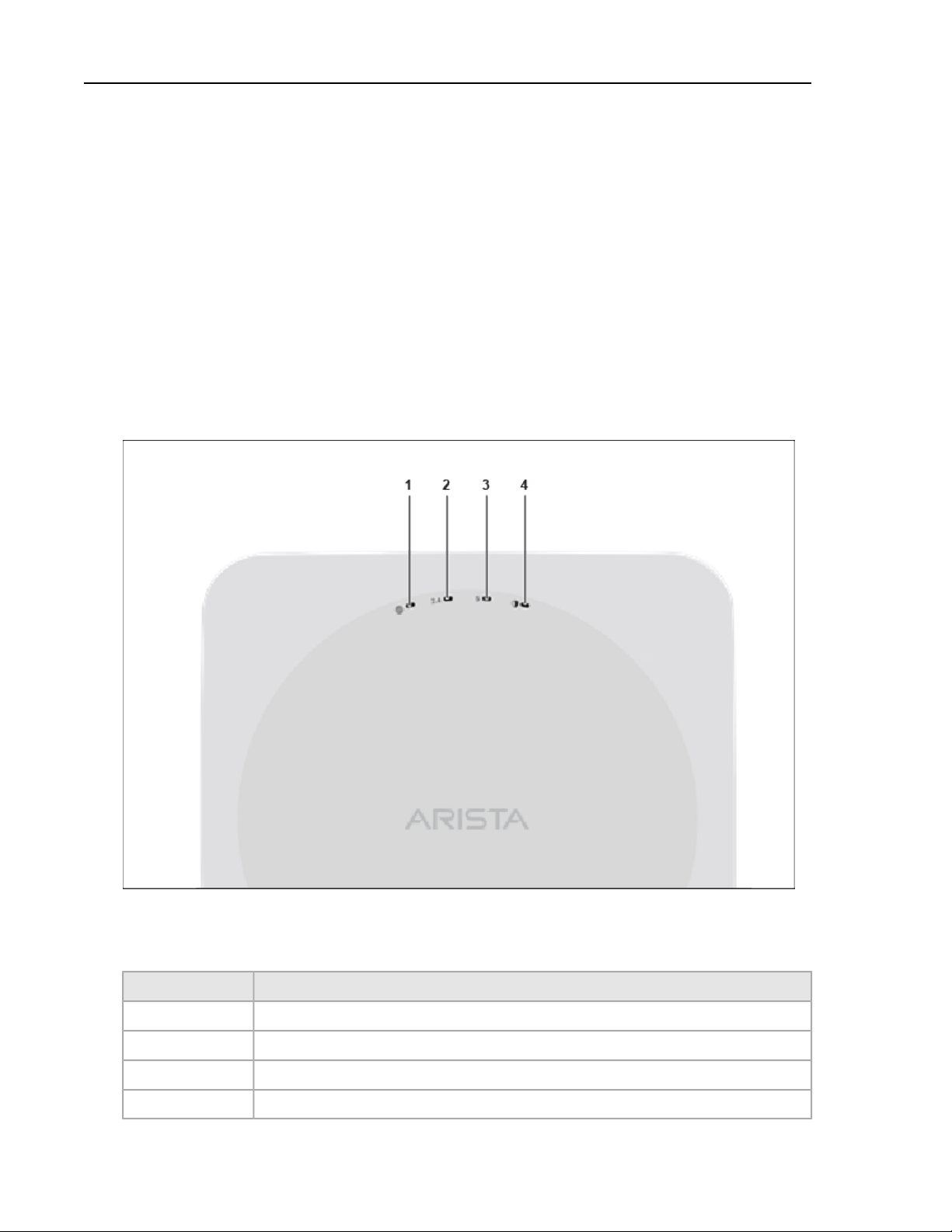

Figure 2: Front Panel LEDs
Table 2: Labels: Front Panel LEDs
DescriptionLabel
Power1
2.4 GHz Radio2
5 GHz Radio3
Third Radio4
7
Power LED: The following table describes the Power LED states.
Table 3: Power LED States Description
OrangeGreen
Running at reduced capabilityRunning at full capabilitySolid
Did not receive an IP addressReceived IP address, but not connected to the serverBlinking
Reduced capability indicates that theAP is getting lower than the required maximum power from the PoE switch,
i.e., 802.3af instead of 802.3at.
Radio LEDs: ON when the corresponding radio is operational.
Rear Panel of C-130
The rear panel of the C-130 provides an PoE+ Ethernet port that enables you to connect the device to a wired
LAN through a switch or a hub and power the device by using the 802.3af/802.3at standard.
Figure 3: Rear Panel
Table 4: Labels: Rear Panel
DescriptionLabel
Power (DC IN)1
LAN22
LAN13
Table 5: C-130 Port Details
Speed/ProtocolConnectorTypeDescriptionPort
--6.3 mm barrelEnables you to connect to and
power on device using 12V DC
power with 2.0 ampere.
DC IN
C-1308
Speed/ProtocolConnectorTypeDescriptionPort
RJ45Gigabit Ethernet port used to
connect to the wired LAN and
Ethernet (LAN1/PoE+) • 10/100/1000 Mbps Gigabit
Ethernet
communicate with the Mojo • 802.3af/80 Class 0 PoE/PoE+
Cloud or Server. This port can • PoE input voltage: 48V
also be used to power the device If using PoE (802.3af) some
features will be disabled
using the 802.3af Power over
Ethernet (PoE+) standard.
10/100/1000 Mbps Gigabit
Ethernet
RJ45Gigabit Ethernet port that can be
used for wired extension for an
SSID.
Ethernet (LAN2)
Top Side Ports on C-130
The top side panel of the AP has a console port, a USB port, and a Reset pin.
Figure 4:Top Side Panel
Table 6: Labels:Top Side Panel
DescriptionLabel
Console (Ethernet)1
USB2
Reset3
9
