Argos Boston Basic Modular 2 609/0069 Manual de usuario
Assembly Instructions - Please keep for future reference
Dimensions
Width - 60cm
Depth - 30cm
Height - 60cm
609/0069
Boston Basic Modular 2 Half Door
610/8937
609/2610
Important - Please read these instructions fully before starting assembly
Version 3 Date: 19/03/15
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
413/6815
414/1941
1
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Care and maintenance
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
that all bolts and fittings are
tightend properly.
Handy Hints
2
Vertical support x 2
(29.4 x 27.65cm)
4
Back panel x 2
(29.5 x 59.6cm)
5
Door panel x 2
(27.1 x 27.1cm)
6
Pilot holes for
guidance only
Pilot holes for
guidance only
Top/Bottom panel x 2
(60 x 29.5cm)
1
Side panel x 2
(56.9 x 29.4cm)
2
Shelf (56.9 x 29.4cm)
3
Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components, call the
Customer Helpline:
Argos = 0345 6400800
3
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
Components - Fittings
I
50mm Dowel x 2
F
Nail x 20
B
Handle x 2
40mm Screw x 8
E
25mm Screw x 2
A
Metal plate x 2
C
D
Door hinge x 4
G
Door stopper x 2
H
30mm Dowel x 8
12mm Screw x 6
JK
Screw cover x 4
Ruler - Use this ruler to help correctly identify the screws
Tools required
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
Phillips screwdriver
(medium & large)
Small
hammer
Ruler/tape
measure
Drill
Eye protection
(when using a
hammer or glue)
The screws length is measured from the head to the point (30mm screw shown).
7mm Suitable drill bit
(for use with wall plug)

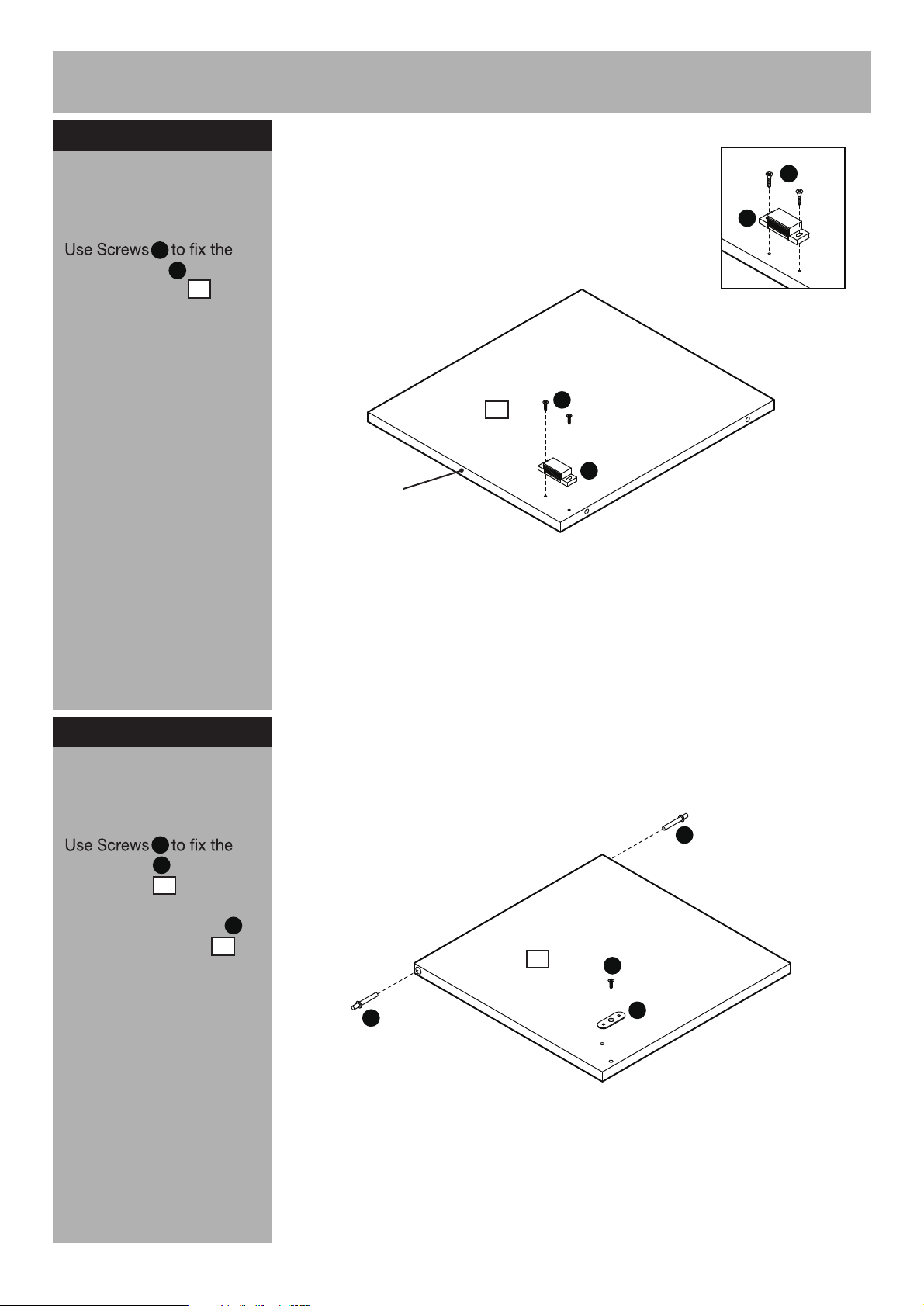

Assembly Instructions
Step 1
Attaching door
stoppers
Step 2
Attaching metal plates
& door hinges
4
Metal plates onto the
Door panels .
Insert the Door hinges
into the Door panels .
G
6
C
D
66
D
D
G
C
Door stoppers onto the
Vertical supports .
G
H
4
4
G
H
X 2
X 2
Finished
front edge
G
H

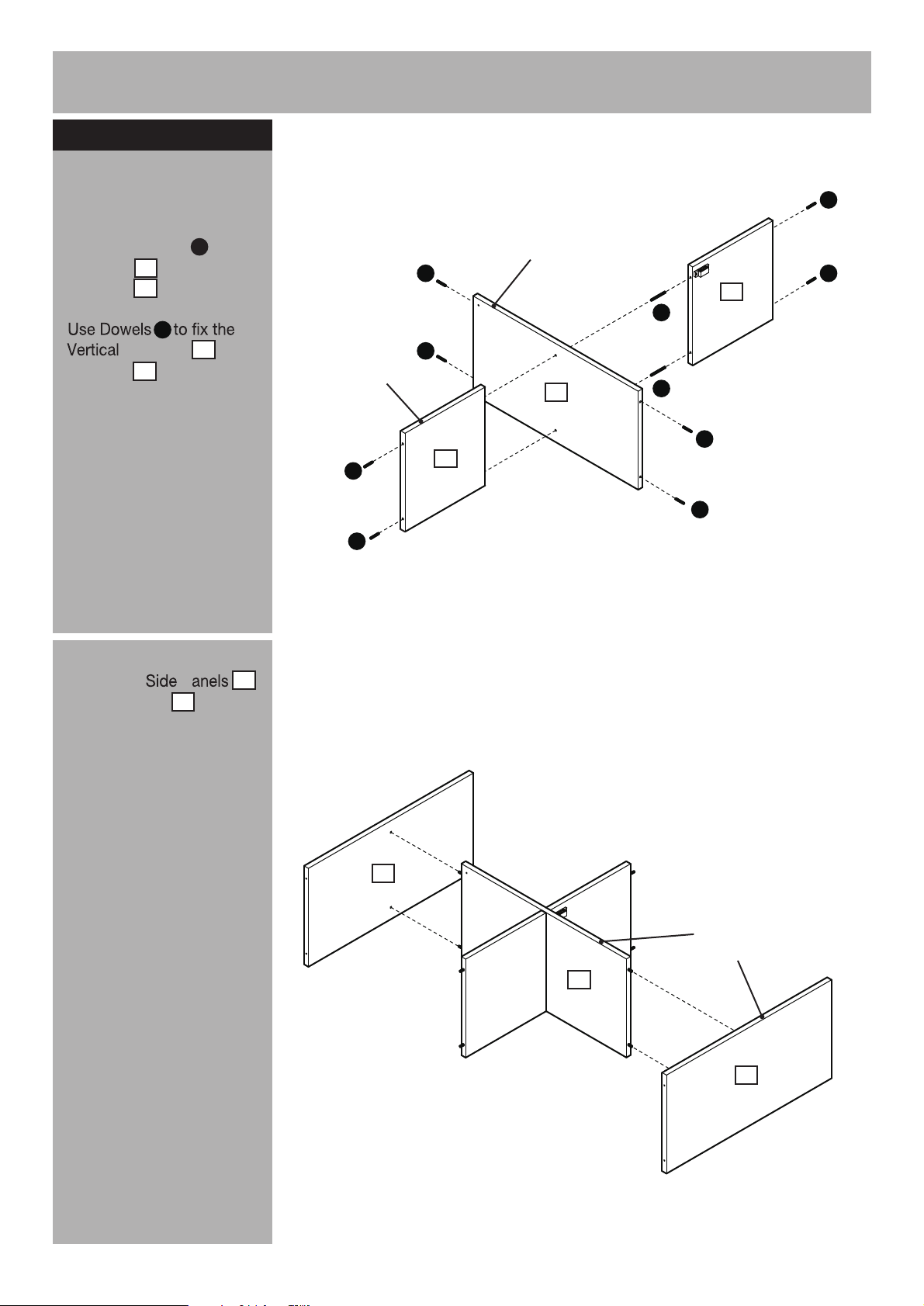

Assembly Instructions
Step 3
Attaching the side
panels
a:
supports onto
the Shelf .
4
3
4
3
I
I
4
4
3
3
2
2
5
a:
b:
2
b:
Fix the
3
J
J
J
J
J
J
J
J
Finished
front edge
Finished
front edge
Finished
front edge
p
onto the Shelf .
I
Insert Dowels into
the
Shelf and Vertical
J
supports .

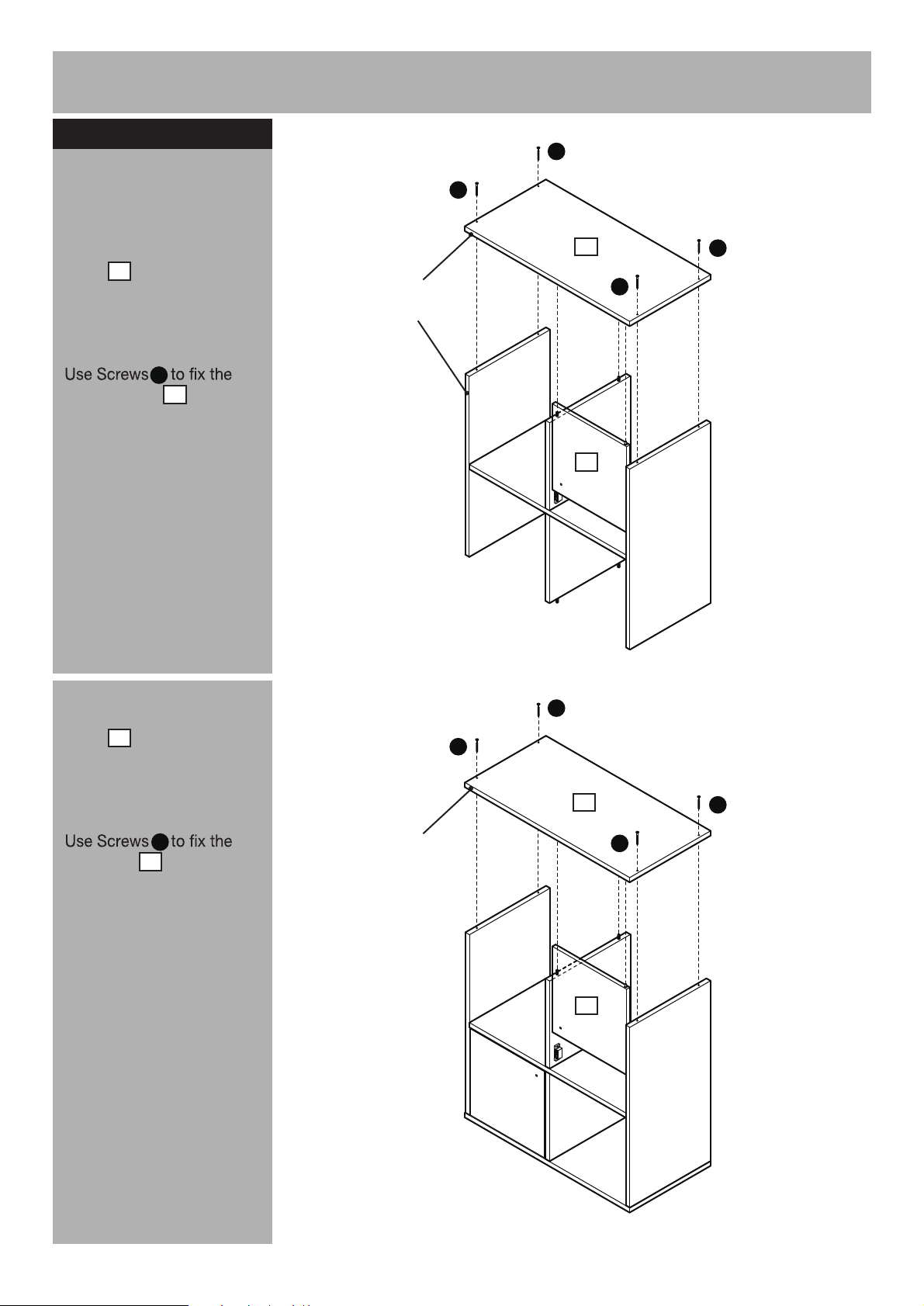

Assembly Instructions
Step 4
a:
Carefully locate the Door
panel onto the unit,
aligning the Door hinges
with the corresponding
holes.
Bottom panel onto the
unit.
6
1
Note:
Note:
Ensure the Door
hinges are aligned with
the corresponding holes.
E
Carefully locate the Door
panel onto the unit,
aligning the Door hinges
with the corresponding
holes.
Top panel onto the unit.
6
1
Ensure the Door
hinges are aligned with
the corresponding holes.
E
6
a:
b:
Attaching the door
panels
b:
1
E
E
E
E
E
E
E
E
6
1
Finished
front edge
Finished
front edge
6
B
B
7

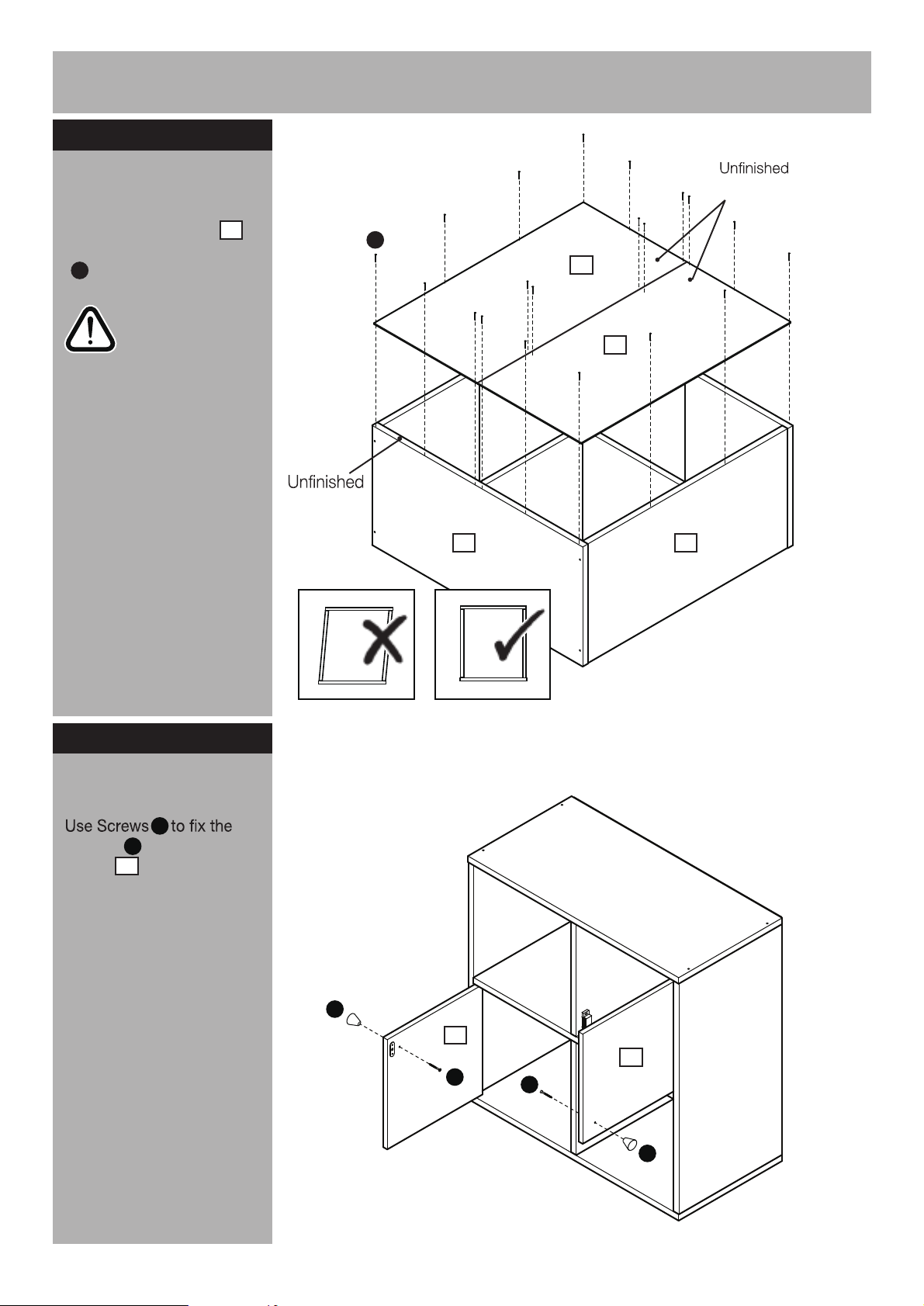

Assembly Instructions
Step 5
F
back edge
5
5
Step 6
Attaching the handles
AA
Handles onto the Door
panels .
A
B
6
6
6
back surface
21
Fixing back panel
Attach Back panels
onto the unit using Nails
.
5
F
Important:
The unit MUST
be ‘square’ when
back is attached.
Step

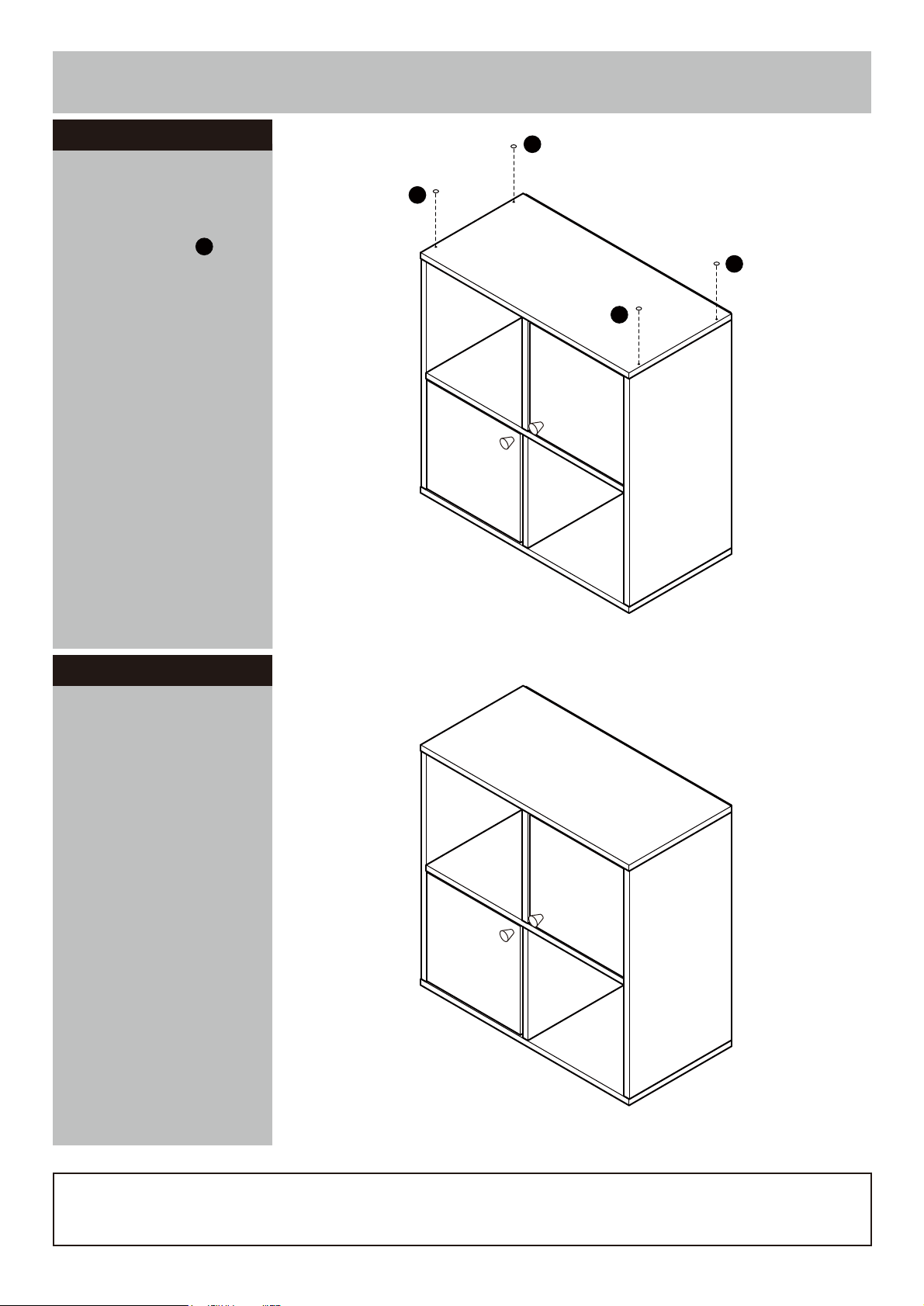

Assembly Instructions
8
Assembly is complete.
Finishing the unit
With help, place the unit in
the intended position.
Note:
It would be useful
to ask someone to help
you at the stage.
Step 8
K
K
K
K
Use
Screw
c
overs to
cover the screw heads.
K
Attaching the screw
covers
7
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
