Arecont Vision MegaDomeTM Installation Manual

0 | Page

Arecont Vision MegaDomeTM Installation Manual

1 | Page

MegaDome™ Installation Manual

A. Arecont Vision MegaDomeTM

Inside the box:

B. Mounting template

C. Magnetic core

D. Pack of four (4) wood screws and four (4)

dry wall anchors

E. One double sided hex key

F. One single sided hex key

G. Security L-key

H. Power cable

•#1 Phillips head screw driver

Not included but needed:

•#2 Phillips head screw driver

Image 1

Mounting the Camera:

1. Remove camera and hardware from the

box.

2. Using the Mounting template, prepare the

mounting provisions for camera

installation. NOTE: the 19.5mm diameter

hole on the Mounting template is where

the Ethernet cable will be exiting the

MegaDomeTM, align accordingly. If using

the side conduit hole, please see step 9

below.

3. Using Security L-key, loosen the four (4)

screws securing the dome cover (Image

2). Remove vandal resistant dome

cover. NOTE: Do not remove screws

from the dome cover.

Image 2

HGFE C

RJ-45

POWER

HOLE

A D B

Arecont Vision MegaDomeTM Installation Manual

2 | Page

4. Run Ethernet cable through the hole on the

bottom of the camera (Image 3) and plug it

into the RJ45 port. NOTE: If the camera will

be powered via PoE, please skip to step 6.

5. If the camera is powered by an outside power

supply, run the supplied power cable through

the hole and connect it to its respective

connector inside the camera (Image 3).

NOTE: Make sure that your installation of

wires complies with Electrical Code of the

local government where the camera is

installed and no bare wires are exposed.

6. Align the holes in the camera with the

prepared holes on the mounting surface.

Attach the camera to the mounting surface

with the wood screws or any optional

hardware suitable for the mounting surface.

7. Install the included magnetic core onto the

Ethernet cable as shown in Image 4. NOTE:

Ensure both tabs are tightly secured.

Image 3

Image 4

HOLE

POWER

RJ-45

Arecont Vision MegaDomeTM Installation Manual

3 | Page

8. Reference Image 5 for proper positioning of

the magnetic core.

9. If you are using the side conduit opening,

remove the conduit plug by first removing the

socket set screw using one of provided Allen

keys (Image 6).

Image 5

Image 6

10. To adjust the tilt, use a #1 Phillips screwdriver

to loosen the screw on the side of the plastic

lens bracket 1/4 turn (Image 7). CAUTION:

Do not remove the screw!

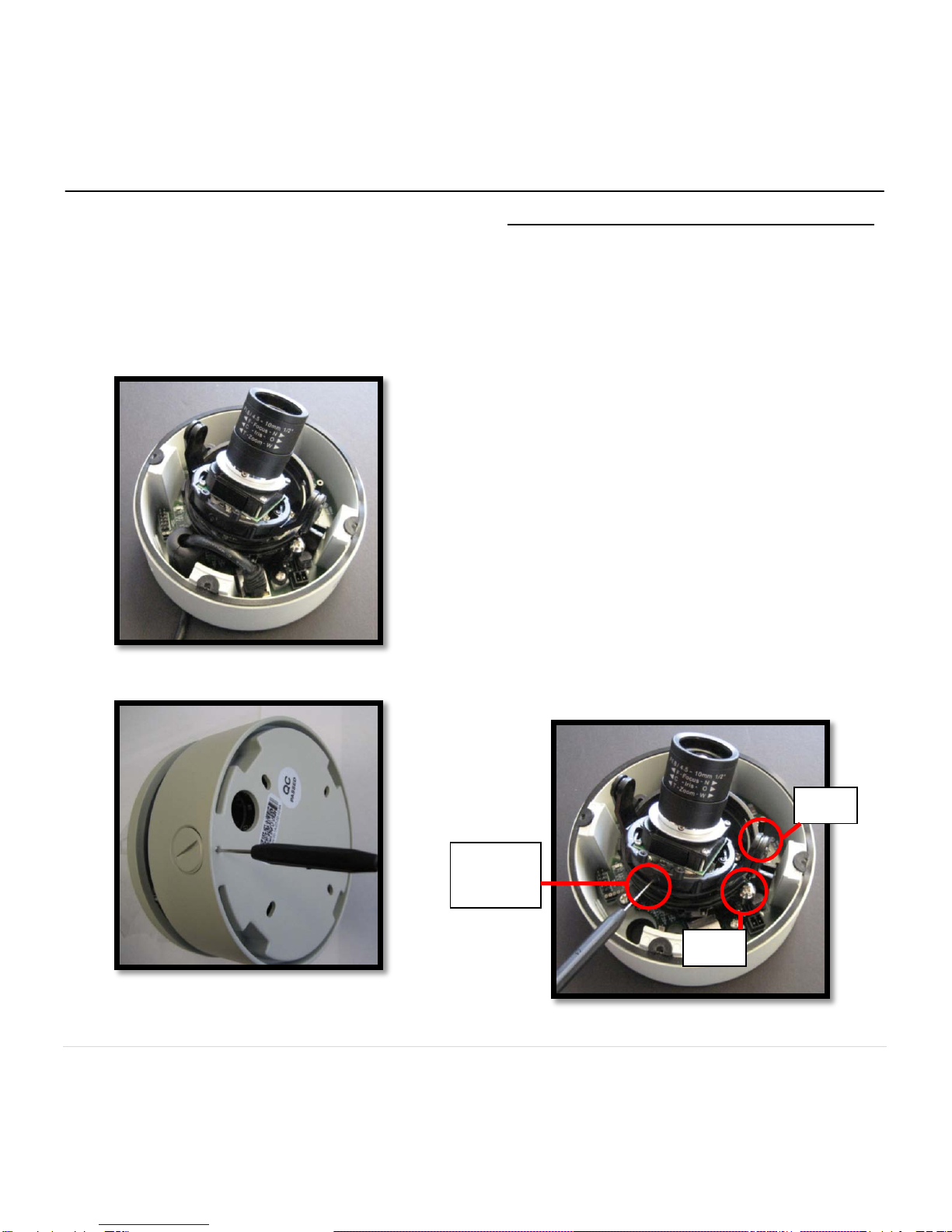

Adjusting the Tilt, Pan, Z-axis (yaw) and Focus:

11. Adjust lens tilt as required and tighten the

screw from step 10.

12. To adjust the pan, use a #2 Phillips

screwdriver to loosen the screw as shown in

Image 7.

13. Adjust the pan as required and tighten the

screw from step 2.

14. To adjust the Z-Axis, or Yaw, for vertical wall

mounting, loosen the set screw as shown in

Image 7. NOTE: There are two set screws on

opposite sides; both need to be loosened.

15. Adjust the Z-Axis as required and tighten the

set screw back down.

Image 7

Z-AXIS

(yaw)

TILT

PAN

Arecont Vision MegaDomeTM Installation Manual

4 | Page

16. To adjust back focus, loosen the two (2) set

screws with the appropriate Allen key as

shown Image 8 (only one of two screw holes

shown). Adjust the silver back focus ring as

needed and tighten down the set screws.

17. To focus the lens, loosen the three set screws

as shown in Image 9 and adjust each as

needed. Aadjusts the zoom, Badjusts the

iris (adjustment is the band between A and C

as outlined in red; there is no set screw), C

adjusts the focus.

18. Remove the protective film from the camera

dome. NOTE: be cautious not to scratch the

vandal dome cover.

19. Secure the vandal dome cover to the camera.

Image 8

Image 9

BACK

FOCUS

SET

SCREW

BACK

FOCUS

RING

BACK

FOCUS

SET

SCREW

BACK

FOCUS

RING

Arecont Vision MegaDomeTM Installation Manual

5 | Page

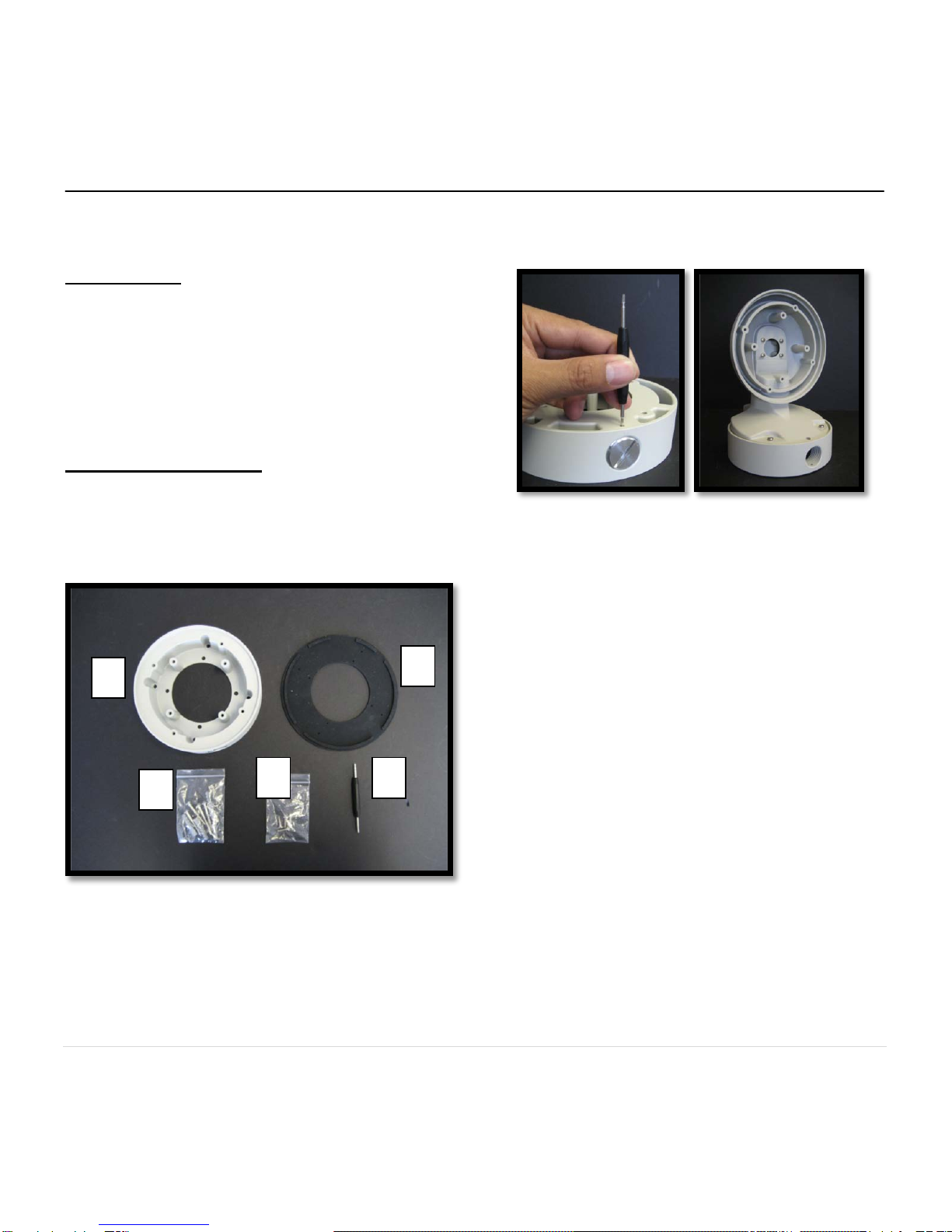

MegaDome™ Pendant Installation Instructions

A. Top shield

Inside the box:

B. Pendant Mount

C. Mounting template

D. Pack of four (4) machine screws

E. Pack of four (4) small machine screws

F. Pack of four (4) wood screws and four (4)

dry wall anchors

G. Large round rubber gasket

H. Smaller square rubber gasket

I. One double sided hex key

J. #2 Phillips head screw driver

Not included but needed:

Image 10

20.Remove Pendant Mount and hardware from

the box.

Image 11 Image 12

21. Using the Mounting template, prepare the

mounting provisions for camera installation.

22. Place small gasket onto pendant dome as

shown in image 11.

23. Attach Dome to Pendant as shown in Image

12 using four machine screws provided.

24. Install large round rubber gasket onto

Pendant as shown in image 12. Be sure to

align the holes appropriately.

25. Run Ethernet Cable and outside power cable

(if necessary) through the Pendant.

26. Attach Pendant to the ceiling using the four

wood screws provided or any optional

hardware suitable for the mounting surface.

27. For installation of the camera, please

reference “Mounting the Camera”.

Arecont Vision MegaDomeTM Installation Manual

6 | Page

MegaDome™ Wall Mount Installation Instructions

A. Top shield and Wall mount

Inside the box:

B. Mounting template

C. Pack of four (4) machine screws

D. Pack of four (4) wood screws and four (4)

dry wall anchors

E. Large round rubber gasket

•#2 Phillips head screw driver

Not included but needed:

Image 13

28. Remove Wall Mount and hardware from the

box.

Image 14

29. Using the Mounting template, prepare the

mounting surface.

30. Install large round rubber gasket onto Wall

Mount as shown in image 14. Be sure to

align the holes appropriately. NOTE: the four

little rubber nipples protrude into the top

shield.

31. Run Ethernet Cable and outside power cable

(if necessary) through the Wall Mount.

32. Attach Wall Mount to the wall using drywall

screws or any optional hardware suitable for

the mounting surface.

33. For installation of the camera, please

reference “Mounting the Camera”.

Arecont Vision MegaDomeTM Installation Manual

7 | Page

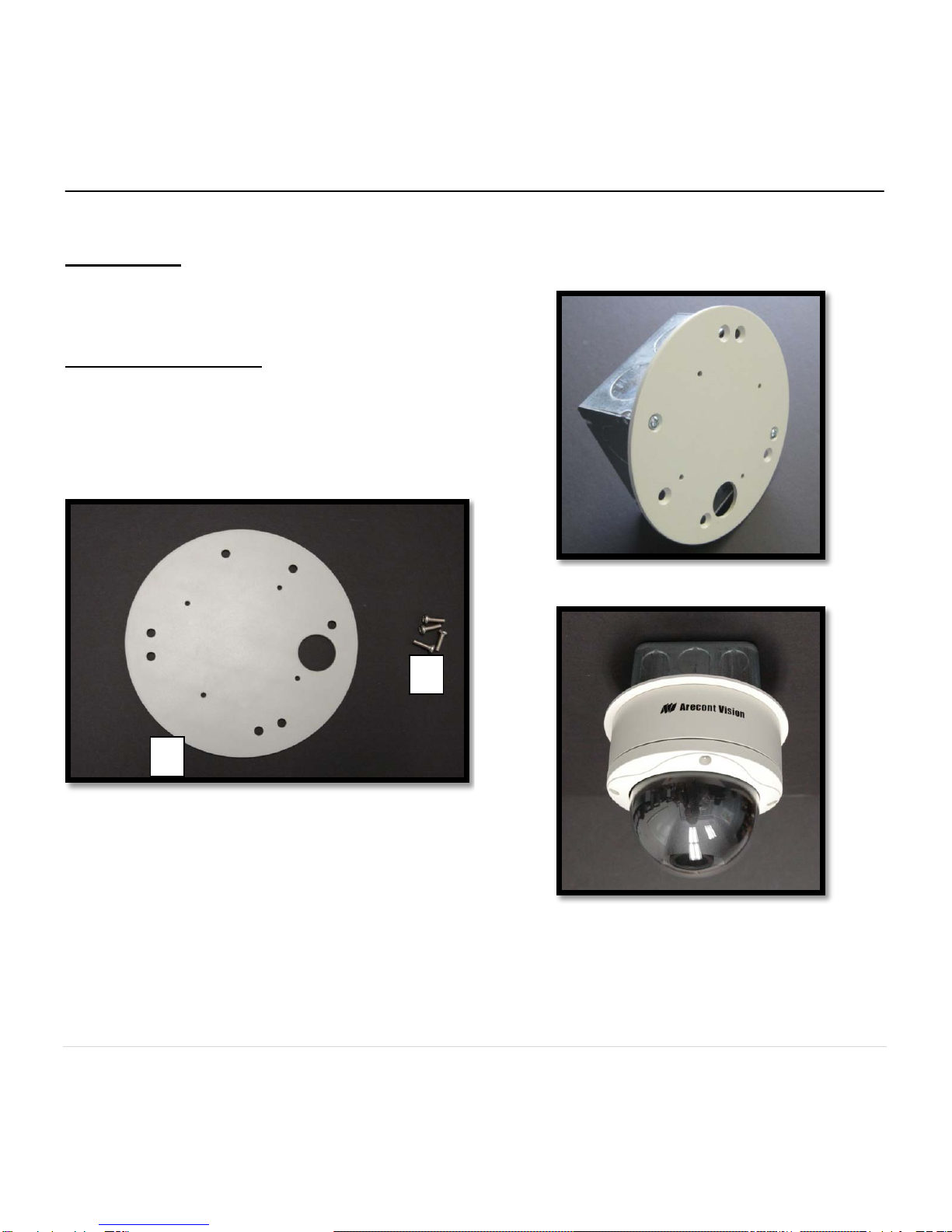

MegaDome™ Junction Box Adapter Installation Instructions

A. Junction Box Adapter

Inside the box:

B. Pack of four (4) machine screws

C. Pack of four (4) wood screws and four (4)

dry wall anchors

D. Large round rubber gasket

E. One double sided hex key

•#2 Phillips head screw driver

Not included but needed:

•MegaDome™ Wall Mount, MD-WMT

•¾” NPT Conduit (if necessary)

Image 15

34. Remove Junction Box and hardware from the

box

Image 16 Image 17

35. Remove the conduit plug by first removing the

socket set screw using one of provided Allen

keys shown in Image 16.

36. Attach Junction Box Adapter to the wall using

drywall screws or any optional hardware

suitable for the mounting surface.

37. Attach MegaDome™ Wall Mount to Junction

Box Adapter as shown in Image 17.

38. Connect ¾” NPT Conduit to Junction Box

Adapter

39. Run Ethernet Cable and outside power cable

(if necessary) through the Junction Box

Adapter and Wall Mount.

40. For installation of the camera, please

reference “Mounting the Camera”.

Arecont Vision MegaDomeTM Installation Manual

8 | Page

MegaDome™ Flush Mount Adapter Installation Instructions

F. Flush Mount Adapter

Inside the box:

G. White Trim Ring

H. Pack of four (4) machine screws and one

(1) I-Blot

I. Mounting template

•#2 Phillips head screw driver

Not included but needed:

Image 18

41. Remove Flush Mount Adapter, Trim Ring and

hardware from the box

42. Attach Dome to Flush Mount Adapter as

shown in Image 19. Please reference

“Mounting the Camera”, if needed.

43. Using the Mounting template, cut a hole in

surface for mounting.

44. Insert Flush Mount Adapter into the hole.

45. Screw the “lever screws” until the FMA is

snuggly installed, as shown in Image 19. The

“Support Arm” will ride down the screw to

compress the mounting surface.NOTE: Do

not over-torque the lever screws

46. Attach the Trim Ring to the Flush Mount

Adapter by rotating clockwise as show in

Image 20.

Image 19

Image 20

Lever

screw

Support

Arm

Arecont Vision MegaDomeTM Installation Manual

9 | Page

MegaDome™ Electrical Box Adapter Installation Instructions

A. Electrical Box Adapter

Inside the box:

B. Pack of four (4) machine screws

•#2 Phillips head screw driver

Not included but needed:

•Common Electrical Box, such as single

gang box, double gang box or square

electrical box.

Image 21

47. Remove Electrical Box Adapter and hardware

from the box.

48. Attach Electrical Box Adapter to Electrical Box

as shown in Image 22.

49. Attach Dome to Electrical Box Adapter as

shown in Image 23. Please reference

“Mounting the Camera”, if needed.

Image 22

Image 23

Este manual sirve para los siguientes modelos

Otros manuales de Cámara de seguridad de Arecont Vision

Arecont Vision

Arecont Vision MegaDome G3 Manual de usuario

Arecont Vision

Arecont Vision MegaDome 2 Manual de usuario

Arecont Vision

Arecont Vision AV2225PMIR Manual de usuario

Arecont Vision

Arecont Vision ConteraIP Fisheye AV12CPD-236 Manual de usuario

Arecont Vision

Arecont Vision AV12275DN-NL Manual de usuario

Arecont Vision

Arecont Vision MicroDome AV2455DN-S Manual de usuario

Arecont Vision

Arecont Vision Contera AV02CLB-100 Manual de usuario

Arecont Vision

Arecont Vision AV2100 Manual de usuario

Arecont Vision

Arecont Vision SurroundVideo Omni AV12176DN-NL Manual de usuario

Arecont Vision

Arecont Vision MicroDome G2 AV1555DN-S Manual de usuario

Arecont Vision

Arecont Vision D4S Series Manual de usuario

Arecont Vision

Arecont Vision SurroundVideo G5 Mini Manual de usuario

Arecont Vision

Arecont Vision SurroundVideo Omni AV12176DN-08 Manual de usuario

Arecont Vision

Arecont Vision Contera AV02CID-100 Manual de usuario

Arecont Vision

Arecont Vision AV12975DN-NL Manual de usuario

Arecont Vision

Arecont Vision MegaVideo Flex Series Manual de usuario

Arecont Vision

Arecont Vision MegaBall 2 Manual de usuario

Arecont Vision

Arecont Vision MegaBall AV2245PM-W Manual de usuario

Arecont Vision

Arecont Vision MicroDome Manual de usuario

Arecont Vision

Arecont Vision megadome Manual de usuario

Arecont Vision

Arecont Vision D4SO Series Manual de usuario

Arecont Vision

Arecont Vision AV1215PM-S Manual de usuario

Arecont Vision

Arecont Vision AV08ZMV-300 Manual de usuario

Arecont Vision

Arecont Vision MegaBall AV2245PM-W Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
