AV8185

8 Megapixel 180° Panoramic H.264 IP-camera

The AV8185 network camera is a part of

Arecont Vision’s full line of H.264 megapixel

cameras. This fully compliant implementation

of H.264 (MPEG 4, Part 10) is capable of

sustaining over 80 billion operations per second

and maintaining full motion progressive scan

1600 x 1200 video at 22 fps. Part of the

SurroundVideo® line of cameras, it offers

bandwidth and storage efficiency of 10X

greater on average over MJPEG counterparts.

Arecont Vision Advantages:

H.264 (MPEG4, Part 10) Compression Standard

• Simultaneous support of both H.264 and MJPEG

• 10x average bandwidth and storage reduction over MJPEG

World’s First H.264 Panoramic Megapixel Cameras

• 8 megapixel 180° field of view

Bit Rate Control

• Maintain desired bandwidth and storage size

Real Time Streaming Protocol (RTSP)

• Allows for compatibility with media players such as

Apple QuickTime, Windows Media Player, VLC Player, etc.

Superior Low Light Performance

• 1/2” CMOS sensor

High Definition Panoramic 180° Imaging

• No de-warping software required

Unparalleled High Definition Resolution - 1600 x 1200

• Resolution up to 1600(H) x 1200(V) per sensor

• Total resolution: 6400(H) x 1200(V) - (4 x 2 MP)

• Substitute up to twenty-four analog cameras

Fastest MegaPixel Image Rates

• Up to 22fps per channel

Forensic Zooming

• Zoom live or after-event while recording full field of view in HD …

replace PTZ devices

Reduced Overall System Cost

• Less cameras to install, less wiring, no external power (POE), less

NVR licensing fees

Other key features:

• Moonlight™ Mode - extended exposure

and proprietary noise cancellation

• Up to four regions of interest for simultaneous

panoramic and digital PTZ viewing and recording

• Image cropping to discard unnecessary

scene and more

AV8185

8 Megapixel 180° Panoramic H.264 IP-camera

www.arecontvision.com [email protected] 818.937.0700 877.CAMERA.8

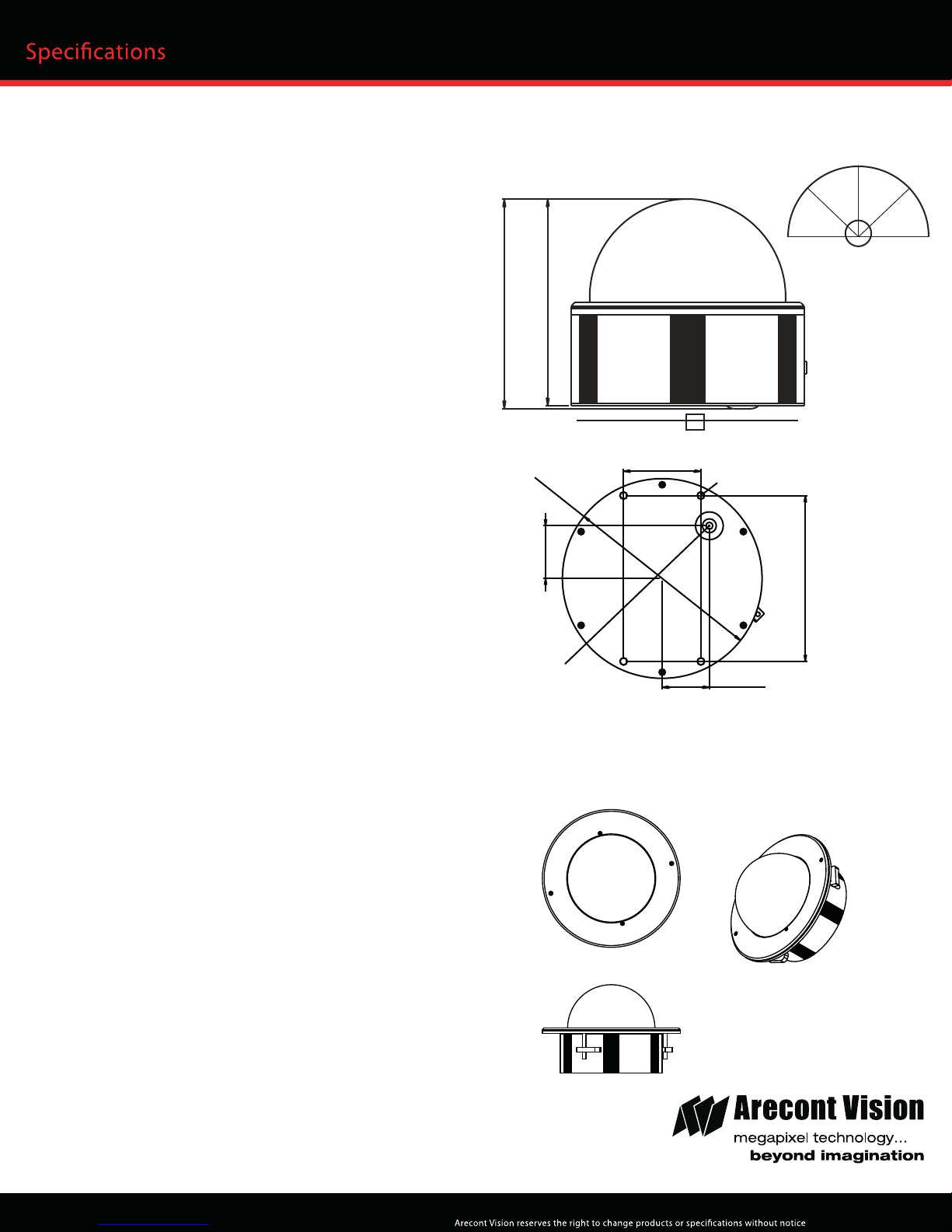

AV8180: 180° Field of View

5.98” (151.9 mm)

2.79” (70.8 mm)

1.70” (43.2 mm)

7.20” (182.9 mm)

1.90” (48.3 mm)

ETHERNET

CABLE EXIT

1/4-20 SCREWS

Model Numbers:

AV8185

Imaging

• Four 2 megapixel CMOS image sensors

• 1600(H) x 1200(V) pixel array each sensor

• ½” optical format

• Bayer mosaic RGB lter

• Sensitivity 0.2 Lux @ F2.0

• Dynamic range 61 dB

• Maximum SNR 50 dB

• Moonlight™ mode - extended exposure

and proprietary noise cancellation

Data Transmission

• Video frame rate up to:

• 88 fps @ 800x600

• 22 fps @ 1600x1200

• 5.5 fps @ 6400x1200

• Compression type

• H.264 (MPEG4, Part 10)

• Motion JPEG

• 21 levels of quality

• TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols

• 100Base-T Ethernet Network Interface

• Data rate

• bit rate control from 100Kbps to 10Mbps

• bit rate control available for full view, multi-view and archive

• unthrottled data rate up to 55Mbps

• Multi-streaming: 8 non-identical streams

Programmability

• Auto exposure (AE) and Gain Control (AGC) >120dB

• On-camera motion detection with 64 detection zones

• Programmable backlight compensation

• Auto multi-matrix white balance

• 50/60Hz selectable icker control

• Electronic pan, tilt, zoom (PTZ)

• Electronic image rotation - upside-down image turn

• Resolution windowing down to 32x32 pixels window

• Programmable motion blurring control

for low-light mode

• Moonlight™ mode - extended exposure

and proprietary noise cancellation

• Programmable resolution, brightness, saturation,

gamma, sharpness, tint

• Up to four regions of interest for simultaneous panoramic

and digital PTZ viewing and recording

Electrical

• General purpose opto-coupled input and output

• Power over Ethernet (PoE): PoE 802.3af

• Auxiliary power: 12-48VDC and 24VAC

•

Power consumption 9 Watts maximum

Regulatory Approvals

•

FCC, CE and RoHS compliant

Mechanical

• 6.49”(H) (164.8mm) x 6.0”dia. (152.4mm)

•

4 pounds or 1815 grams

Environmental

•

Operating temperature 0˚C (32 °F) to +50˚C (122 °F)

•

Storage temperature -20˚C (-4 °F) to +60˚C (140 °F)

•

Humidity 0% to 90% (non condensing)

45° 45°

6.49” (164.8 mm)

6.40” (162.4 mm)

6”

www.arecontvision.com [email protected] +1.818.937.0700 877.CAMERA.8

AV8185: 180° Field of View

Full Field of View (FOV) Resolutions

• 1600(H)x1200(V) x 4 8 megapixel total

• 800(H)x600(V) x 4 2 MP total (1/4 resolution)

Revised on 12/10/09



Recessed Dome Ring Kit

Made in USA

Accessories:

Dome 6-I-C Indoor 6” Pendant Dome, Ceiling Mount

Dome 6-I-W Indoor 6”Pendant Dome, Wall Mount

Dome 6-O-C Outdoor 6” Pendant Dome, Ceiling Mount

Dome 6-O-W Outdoor 6”Pendant Dome, Wall Mount

RD-KIT Recessed Dome Ring Kit

D6-CMA Corner Mount Adapter

D6-PMA Pole Mount Adapter
