920 Series Managed Switch Quick Start Guide

Welcome to Araknis Networks™

Thank you for choosing an Araknis 920 series managed switch. With multi-gigabit

connectivity on all network ports, updated modern aesthetics, and a managed

interface, the Araknis 920 series switch is a sleek and highly capable addition to any

network.

Series overview

Each 920 series switch comes with a power module in the box. QSFP28 and additional

power modules are sold separately.

Model Ethernet

ports

Total possible

QSFP28 ports

Total possible PoE

budget (Watts)

AN-920-SW-F-12-POE 12

1 with QSFP28

module

(sold separately)

750 with 1 power

module

1080 with 2 power

modules

AN-920-SW-F-24-POE 24

2 with QSFP28

modules

(sold separately)

750 with 1 power

module

1650 with 2 power

modules

Unboxing

The package contains:

Switch Rubber feet for flat

surfaces (4)

Rack mount kit:

ears (2), screws

(8)

Quick Start

QRcard

AC power cord Power module

 

Install the modules

Caution: -.The switch must be powered off when installing QSFP28 modules.



Power module QSFP28 module

Note: -__.To remove the power module, push the tab toward the handle and pull the

module straight back.

Caution: -.Do not use a Y power cable. Sometimes called a Ysplitter cable.

Pro Tip: -_Connect each power module to separate circuits in the same phase. Use a

separate UPS for each power cable.

Installing the switch

Rack mount Shelf mount

Caution: -.To avoid possible interference or damage, do not stack equipment on top

of the switch.

Rack mounting guidelines

lThe maximum ambient temperature of the space the switch is installed in should

not exceed 122°F/50°C.

lThere should be air flowing through the rack.

lMake sure all the leveling feet or casters are adjusted correctly and they come in

contact with the supporting surface. Always load heavier equipment at the

bottom of the rack.

lMake sure the rack is grounded and the equipment is surge protected.

lDo not overload the power equipment or the switch. Read our WattBox Best

Practices for more information.

Connections

Caution: -.All router and switch connections should be on network ports. Not the

management port.

QSFP28 ports

The QSFP28 (Quad Small Form-Factor Pluggable Plus) ports support up to a 100Gbps

connection and are typically used to connect switches.

PoE Budgeting

Total PoE device consumption = 47

Model Total PoE budget (Watts)

Remaining

PoE budget

(Watts)

AN-920-SW-R-12-POE 750 with 1 power module 703

1080 with 2 power modules 1033

AN-920-SW-R-24-POE 750 with 1 power module 703

1650 with 2 power modules 1603



LED States

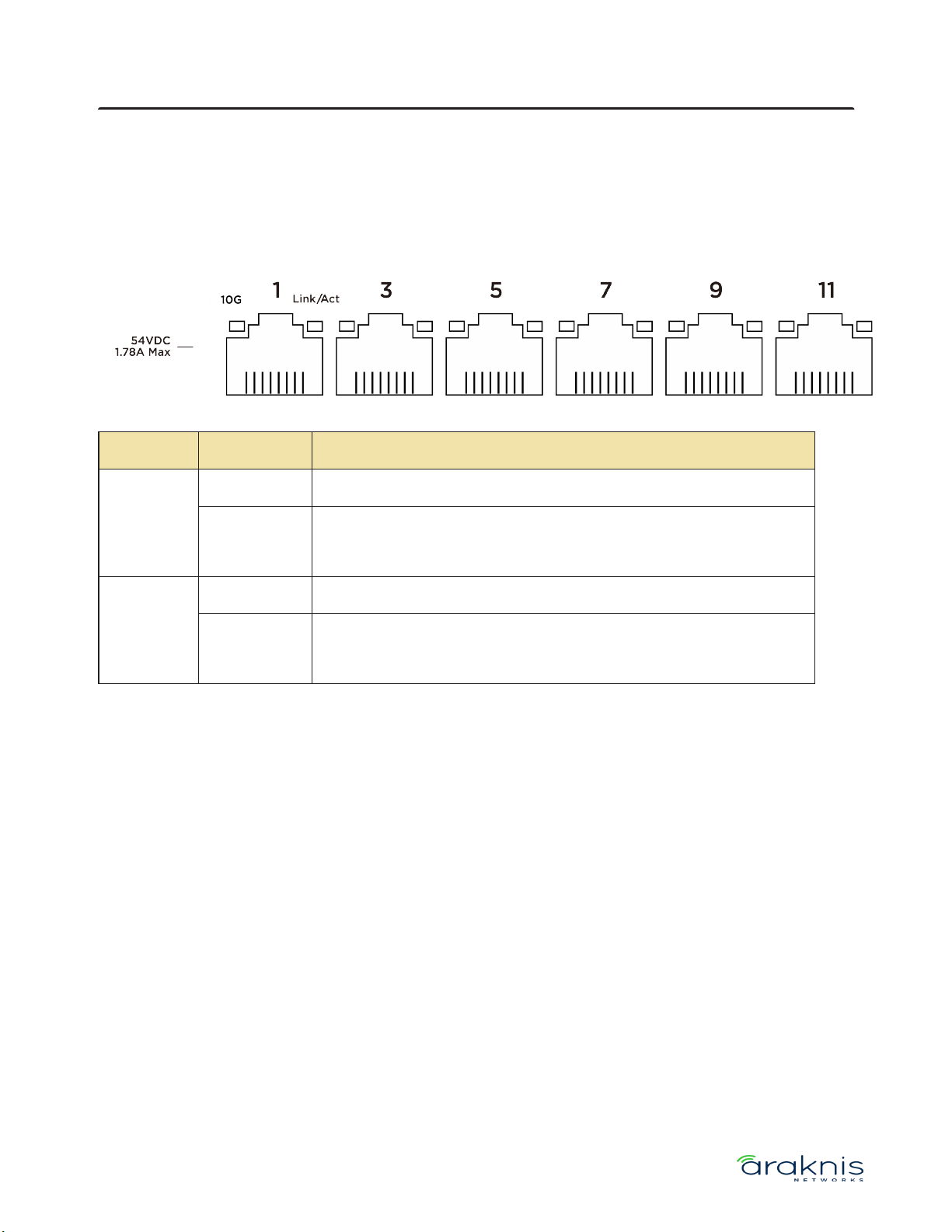

RJ45 ports

LED LEDstate Description

10G/PoE

Blinking The port is negotiated at 10 Gbps and/or providing PoE*

Off The port is not negotiated at 10 Gbps and/or providing

PoE*

Link/Act

Blinking Packets are flowing through the port

Off The port does not detect connection or the port is

disabled

*Configurable in the web interface

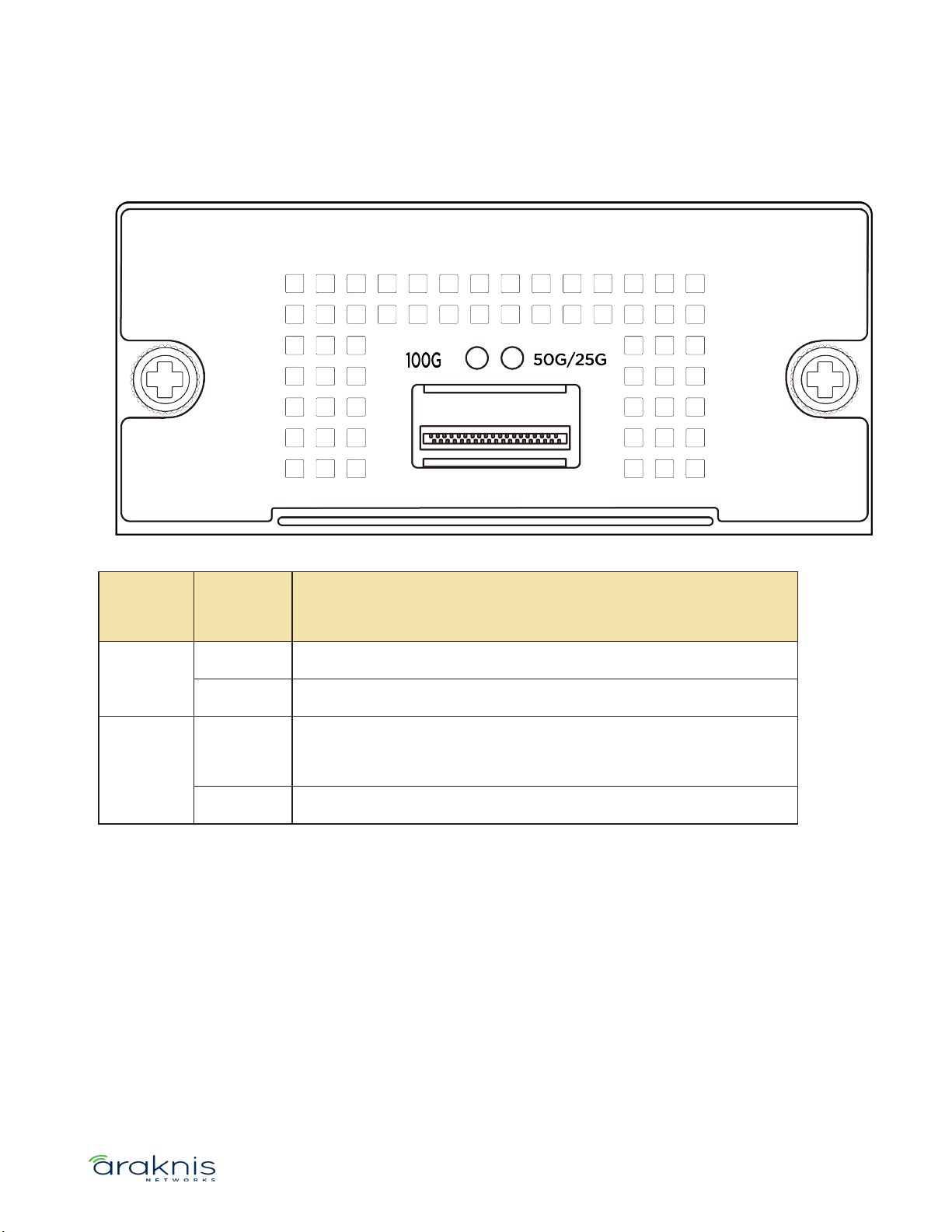

QSFP28 module LEDs

LED LED

state Description

100G Blinking The port is negotiating at 100 Gbps and passing traffic

Off The port does not detect a connection or is disabled

50/25G Blinking The port is negotiating at 50-25 Gbps and passing

traffic

Off The port does not detect a connection or is disabled



Configuration

Araknis switches can be configured through OvrC or the local interface. The local

interface is accessible using OvrC’s WebConnect feature, typing the switch’s DHCP

address into your browser’s address bar, or using the switch’s default IP address.

Configuring the switch in OvrC

OvrC provides Wi-Fi management, remote device management, real-time notifications,

and intuitive customer management, using your computer or mobile device. Setup is

plug-and-play, with no port forwarding or DDNS address required.

To add this device to your OvrC account:

1. Connect the switch to the internet.

2. Log into OvrC (www.ovrc.com).

3. Scan the site using an OvrC Pro

device or add the switch manually by

entering the MAC address and

Service Tag.

Logging in to the local interface

Log into the switch using the default credentials. You must update the credentials after

initial login.

Username araknis

Password araknis
