Aquatic Serenity studio 21 Manual de usuario

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and speciﬁcations are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324

March 2008

Rough-In Plumbing

Measurements

SErENITy STudIO 21

SErENITy STudIO MODEL # AI21AIR7242C / AI21AIR7242CTO (Tub Only)

GENERAL SPECIFICATIONS:

Tub Size 71 1/4” x 41 1/2” x 24”

181 cm x 105 cm x 61 cm

Bathing Well 43 1/2” long

24 3/4” wide

21 1/4” interior depth

Shipping Weight 188 lbs. / 85.5 kg

Tub Weight Filled 1491 lbs. / 618 kg

Tub Weight Only 138 lbs. / 63 kg

Gallons to Overow 163 gal. / 618 L

ELECTRICAL SPECIFICATIONS:

Blower/Heater 1 HP; 10.5 AMP; 120V

Requirement 15 AMP; 120V, separate circuit

required protected w/ Class A GFCI

Air Bath System:

- 73 Air Jets

- 1 HP Variable Speed Air Blower with 20-Minute Timer

- 600 Watt Air Heating System

- Electronic Control Package with Wave and Pulse Features

- Automatic Purge and Dry Cycle with Water Sensors

Aquatic Quality Features:

- Chromatherapy

- Slip Resistant Floor

- Air Channels Lined with Antimicrobial Coating

- Pre-leveled ABS Support Base

- Durable, Easy to Clean, Lucite® Cast Acrylic Surface

- Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested

Limited Lifetime Warranty

STANDARD EQUIPMENT: • Comfort Pillow - Oval or Rectangle

• Bolt-On Grab Bars

- White, Biscuit, Chrome, Polished Brass, Gold,

Polished Nickel, Satin Nickel or Oil Rubbed Bronze

• Lift & Turn Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel

Satin Nickel or Oil Rubbed Bronze

• Cable Drive Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,

Satin Nickel, Oil Rubbed Bronze or

Color Matched (Bone, White and Biscuit Only)

• Waterproof Remote Control with infrared sensor

and 25’ cord

• Remote Blower Wiring Kit

• Factory Installed Tile Flange

• Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading xture manufacturers.

OPTIONAL EQUIPMENT:

Each Serenity Studio model is equipped with a 600 watt air heating system to raise the temperature of the air going into the bath. This air tem-

perature will be less than the bathing temperature of the water, but will help to reduce a rapid decrease in water temperature. In addition, the air

coming from the air jets will feel cool against the skin, just as a breeze on a warm day cools your body. This system does not heat the water.

Two Person Bath

38 3/4”

41 1/2”

Fax-On-Demand

Document # 1001

Deck Width

4 3/4”

41 1/2”

Deck Width 4 1/4”

43 1/2”

24 3/4”

71 1/4”

22”

21”

68 3/8”

24”

2 1/4”

12 1/4”

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Jacuzzi de Aquatic

Aquatic

Aquatic HOTSOAK 84 AI7236SVHS Manual de usuario

Aquatic

Aquatic SERENITY 15 Manual de usuario

Aquatic

Aquatic LUXEAIR 29 ai29lux6038 Manual de usuario

Aquatic

Aquatic DEL RAY, JR. AI6048R Manual de usuario

Aquatic

Aquatic LUXEAIR 21 ai21lux7042 Manual de usuario

Aquatic

Aquatic HOTSOAK 77 AI22AIR6636CHS Manual de usuario

Aquatic

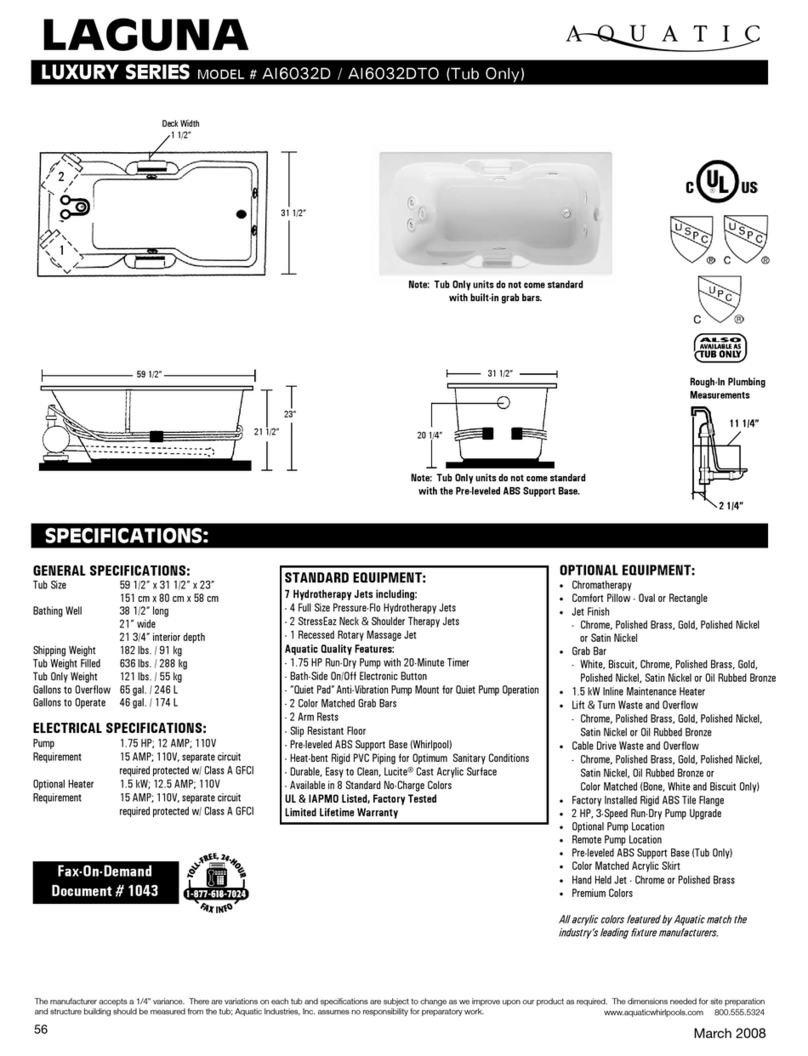

Aquatic AI6032D Manual de usuario
