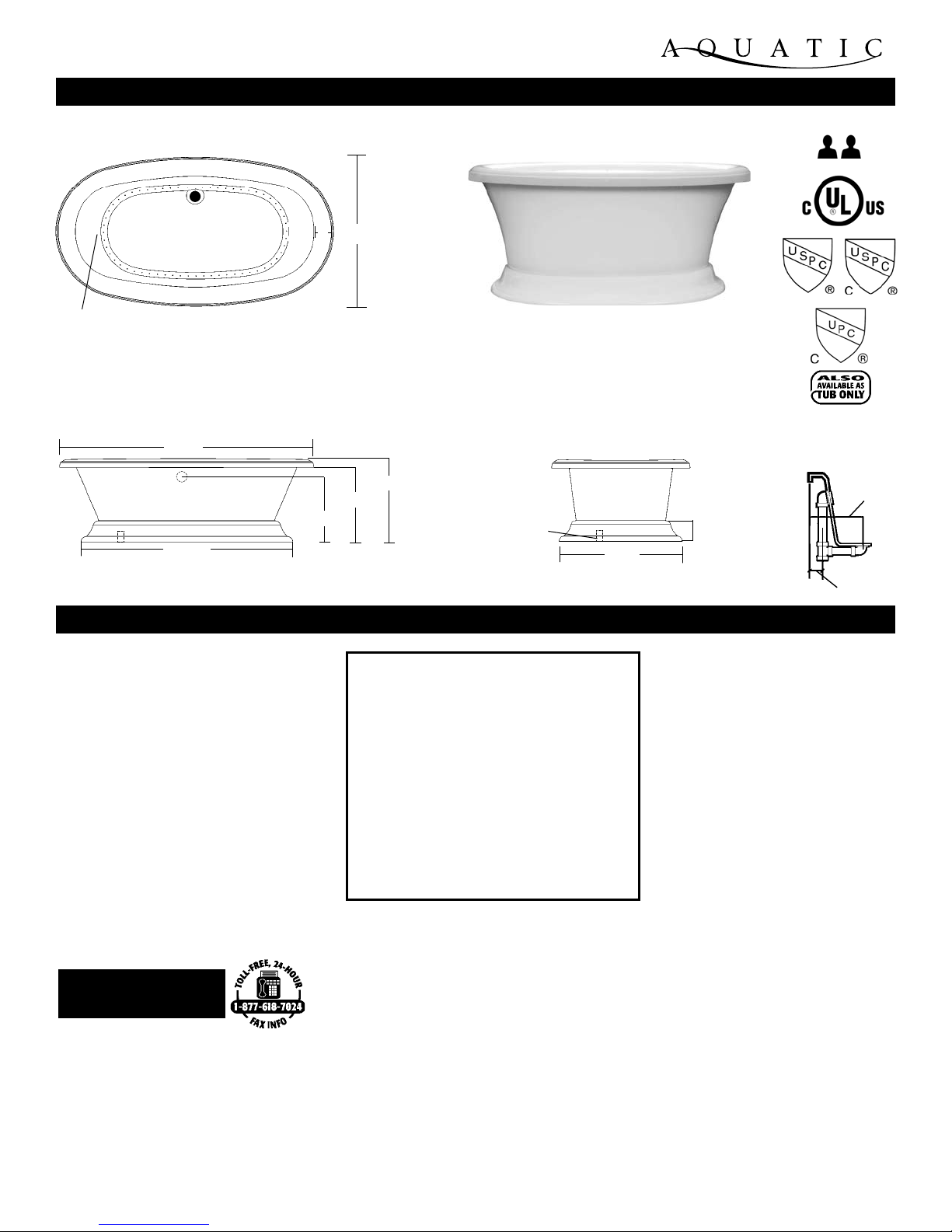

Aquatic SERENITY 13 Manual de usuario

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and speciﬁcations are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324

September 2008

Rough-In Plumbing

Measurements

GENERAL SPECIFICATIONS:

Tub Size 66” x 38” x 26”

168 cm x 97 cm x 66 cm

Bathing Well 39” long

22” wide

19 1/4” interior depth

Maximum Water Depth 14”

Shipping Weight 339 lbs. / 154 kg

Tub Weight Filled 768 lbs. / 348 kg

Tub Only Weight 245 lbs. / 111 kg

Gallons to Overow 63 gal. / 238 L

ELECTRICAL SPECIFICATIONS:

Blower/Heater 1 HP; 10.5 AMP; 120V

Requirement 15 AMP; 120V, separate circuit

required protected w/ Class A GFCI

• Comfort Pillow - Oval or Rectangle

• Waste and Overow for Freestanding Models

- Chrome, Polished Brass, Satin Nickel,

Polished Nickel, Oil Rubbed Bronze or White

• Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading xture manufacturers.

OPTIONAL EQUIPMENT:

Air Bath System:

- 60 Air Jets

- 1 HP Variable Speed, Remote Air Blower with 20-Minute Timer

- 600 Watt Air Heating System

- Electronic Control Package with Wave and Pulse Features

- Automatic Purge and Dry Cycle

- Waterproof Remote Control with infrared sensor and 25’ cord

Aquatic Quality Features:

- Air Channels Lined with Antimicrobial Coating

- Extra Deep Bathing Well

- Durable, Easy to Clean, Lucite® Cast Acrylic Surface

- Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested

Limited Lifetime Warranty

STANDARD EQUIPMENT:

SErENITy 13

SErENITy Air Baths MODEL # AI13AIR6638F / AI13AIR6638FTO (Tub Only)

Two Person Bath

66”

38”

4”

Each Serenity Air Bath model is equipped with a 600 watt air heating system to raise the temperature of the air going into the bath. This air tem-

perature will be less than the bathing temperature of the water, but will help to reduce a rapid decrease in water temperature. In addition, the air

coming from the air jets will feel cool against the skin, just as a breeze on a warm day cools your body. This system does not heat the water.

33 1/4”

Blower

Connection

21 1/2”

26”

23”

Fax-On-Demand

Document #1320

57”

3 1/2”

11”

Note: The interior of bathing well and outside of bathing well can each

be specied in a different color. Only one premium color upcharge will be

applied if one or more premium colors are used.

Note: This model requires a remote blower location. The connection for the

air blower is under the tub; the blower may be placed up to 15 feet away

and connected by piping under the oor. Please refer to the Owner’s Manual

for detailed installation instructions. Document #1184 on our Fax-on Demand

System or on our website at www.aquaticwhirlpools.com.

Back Angle 25º

5 3/4”
