APsystems YC600 Manual de usuario

2019/06/20 Rev4.1 Quick Installation Guide

YC600 Microinverter Quick Installation Guide

Step 1. Verify the grid voltage to match with the microinverter rating

Step 2. The AC bus distribution

a. The AC bus is arranged at the proper position of the microinverter.

b. One end of the AC bus access junction box into power grid.

c. Wire the conductors of the AC bus: L - BROWN; N - BLUE；PE - YELLOW GREEN.

NOTE: Wiring colour code can be different according local regulation, check all the wires of the installation before

connecting to the AC bus to be sure they match. Wrong cabling can damage irreparably the microinverters, such an issue is

not covered by the warranty.

Step 3. Attach the APsystems microinverters to the racking

NOTE: Do not place the microinverters (including DC and AC connectors) where exposed to the sun, rain or snow, even gap

between modules. Allow a minimum of 2 cm between the roof and the bottom of the microinverter to allow proper air

flow. The racking on which the microinverter is installed must be reliably grounded.

a. Mark the location of the microinverter on the rack, with respect to the PV module junction box or any other

obstructions.

b. Mount one microinverter at each of these locations using hardware recommended by your module racking

vendor. When installing the microinverter, grounding washer must be facing the racking.

Step 4. Ground the system

a. An earth wire is already inside the AC cable, thus the grounding work can be done directly

with it.

Please scan the QR code to get

mobile app and more support to

help the installation.

grounding washer

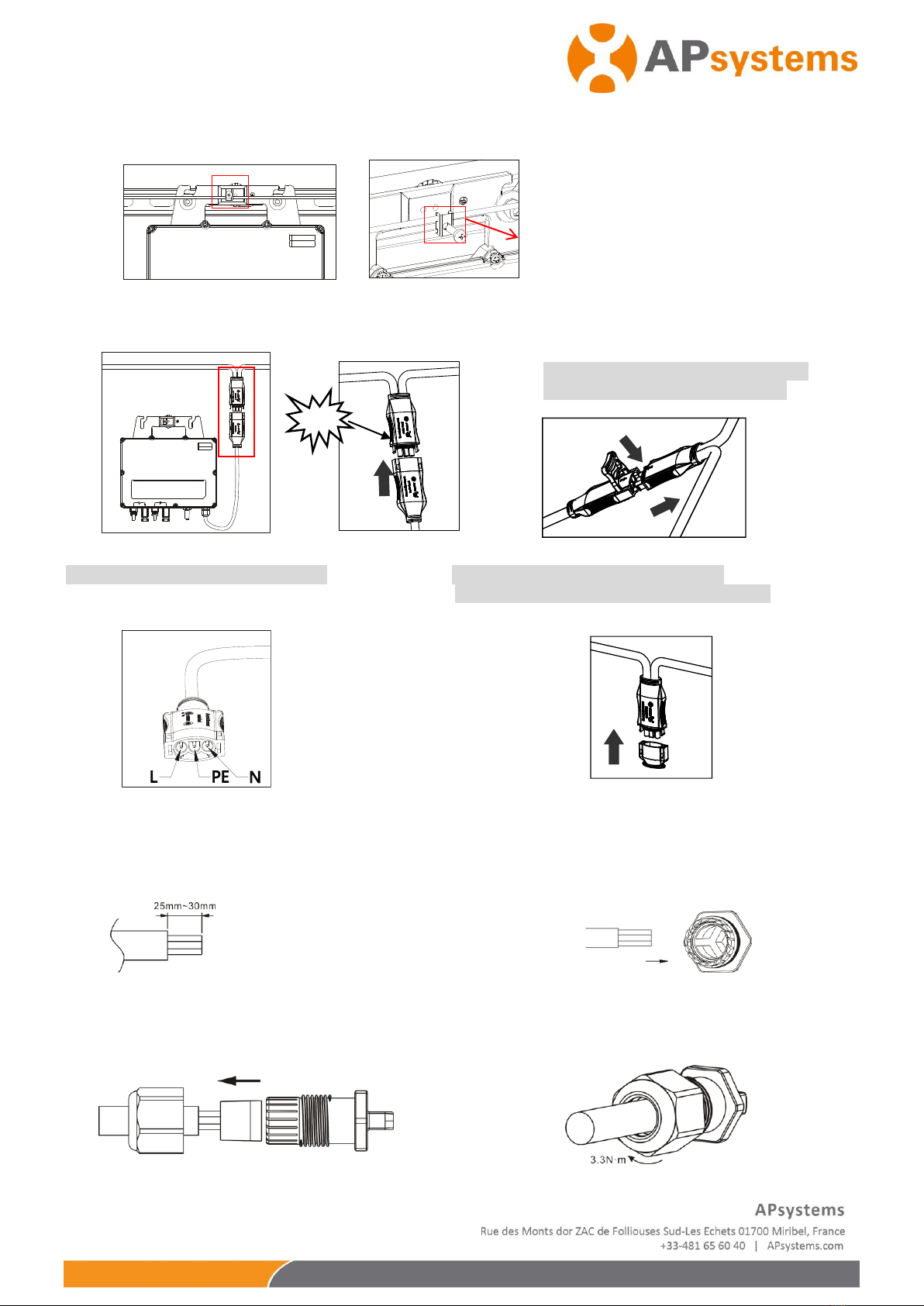

2019/06/20 Rev4.1 Quick Installation Guide

b. For geographical areas having special requirements, the external grounding can be done by using the

grounding brackets.

Step 5. Connect the APsystems microinverter to AC bus cable

Push the microinverter AC connector to the trunk cable connector. Listen for the "Click".

NOTE: AC connector interface as follows. NOTE: Cover any unused connectors with

Bus Cable Y-CONN Cap to protect the connectors.

Step 6. Install a Bus Cable End Cap at the end of AC bus cable

a. Strip cable jacket. c. Insert the wires into the cable clamps.

b. Insert the cable end into the seal. d. Rotate the nut with 3.3N·m until the

latching mechanism meets the base.

Nut

Seal

Body

Click

Best Practice: Use the Bus Cable Unlock

Tool of AC Bus to split the connectors.

grounding brackets

2019/06/20 Rev4.1 Quick Installation Guide

Step 7. Place the PV modules and connect each YC600 to the PV modules

Step 8. Finalizing the APsystems installation

a. Each APsystems microinverter has removable serial number labels.

b. Peel labels off, affix one to the respective location on the APsystems installation map, and fill in 1,2 in the

label below, according to the layout on the roof.

c. The other serial number label posted on the solar module frame is easy to find.

d. Log on to the EMA with your installer access details, then you can create a user account in EMA and

NOTE: you can request an EMA installer account at https://emea.apsystems.com/resources/register/

NOTE: Sequence of steps 1 to 8 can be changed depending on the installation.

NOTE: Using APsystems' mobile app ECUAPP can make the installation and registration much simpler when there is an ECU

included in the installation.

Step9.Start the operation

1. Turn on the AC circuit breaker on each microinverter AC branch circuit.

2. Turn on the main utility-grid AC circuit breaker. Your system will start producing. power after a two-minute waiting

time.

Product information is subject to change without notice.

(Please download manuals at emea.APsystems.com).
