Apogee Instruments SQ-422X Manual de usuario

APOGEE INSTRUMENTS, INC. | 721 WEST 1800 NORTH, LOGAN, UTAH 84321, USA

TEL: (435) 792-4700 | FAX: (435) 787-8268 | WEB: APOGEEINSTRUMENTS.COM

OWNER’S MANUAL

QUANTUM SENSOR

Model SQ-422X

Rev: 16-Nov-2021

TABLE OF CONTENTS
Owner’s Manual ............................................................................................................................................................................... 1
Certificate of Compliance......................................................................................................................................................... 3
Introduction ............................................................................................................................................................................. 4
Sensor Models ......................................................................................................................................................................... 5
Specifications ........................................................................................................................................................................... 6
Deployment and Installation.................................................................................................................................................... 8
Cable Connectors................................................................................................................................................................... 10
Operation and Measurement ................................................................................................................................................ 10
Maintenance and Recalibration............................................................................................................................................. 19
Troubleshooting and Customer Support................................................................................................................................ 21
Return and Warranty Policy................................................................................................................................................... 22


CERTIFICATE OF COMPLIANCE

EU Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Apogee Instruments, Inc.

721 W 1800 N

Logan, Utah 84321

USA

for the following product(s):

Models: SQ-422X

Type: Quantum Sensor

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

2014/30/EU Electromagnetic Compatibility (EMC) Directive

2011/65/EU Restriction of Hazardous Substances (RoHS 2) Directive

2015/863/EU Amending Annex II to Directive 2011/65/EU (RoHS 3)

Standards referenced during compliance assessment:

EN 61326-1:2013 Electrical equipment for measurement, control, and laboratory use –EMC requirements

EN 50581:2012 Technical documentation for the assessment of electrical and electronic products with respect to

the restriction of hazardous substances

Please be advised that based on the information available to us from our raw material suppliers, the products

manufactured by us do not contain, as intentional additives, any of the restricted materials including lead (see

note below), mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), polybrominated

diphenyls (PBDE), bis (2-ethylhexyl) phthalate (DEHP), butyl benzyl phthalate (BBP), dibutyl phthalate (DBP), and

diisobutyl phthalate (DIBP). However, please note that articles containing greater than 0.1% lead concentration are

RoHS 3 compliant using exemption 6c.

Further note that Apogee Instruments does not specifically run any analysis on our raw materials or end products

for the presence of these substances, but we rely on the information provided to us by our material suppliers.

Signed for and on behalf of:

Apogee Instruments, November 2021

Bruce Bugbee

President

Apogee Instruments, Inc.

INTRODUCTION

Radiation that drives photosynthesis is called photosynthetically active radiation (PAR) and is typically defined as

total radiation across a range of 400 to 700 nm. PAR is often expressed as photosynthetic photon flux density

(PPFD): photon flux in units of micromoles per square meter per second (µmol m-2 s-1, equal to microEinsteins per

square meter per second) summed from 400 to 700 nm (total number of photons from 400 to 700 nm). While

Einsteins and micromoles are equal (one Einstein = one mole of photons), the Einstein is not an SI unit, so

expressing PPFD as µmol m-2 s-1 is preferred.

The acronym PPF is also widely used and refers to the photosynthetic photon flux. The acronyms PPF and PPFD

refer to the same variable. The two terms have co-evolved because there is not a universal definition of the term

“flux”. Some physicists define flux as per unit area per unit time. Others define flux only as per unit time. We

have used PPFD in this manual because we feel that it is better to be more complete and possibly redundant.

Sensors that measure PPFD are often called quantum sensors due to the quantized nature of radiation. A quantum

refers to the minimum quantity of radiation, one photon, involved in physical interactions (e.g., absorption by

photosynthetic pigments). In other words, one photon is a single quantum of radiation.

Typical applications of quantum sensors include incoming PPFD measurement over plant canopies in outdoor

environments or in greenhouses and growth chambers and reflected or under-canopy (transmitted) PPFD

measurement in the same environments.

Apogee Instruments SQ-100X series quantum sensors consist of a cast acrylic diffuser (filter), interference filter,

photodiode, and signal processing circuitry mounted in an anodized aluminum housing, and a cable to connect the

sensor to a measurement device. Sensors are potted solid with no internal air space and are designed for

continuous PPFD measurement in indoor or outdoor environments. The SQ-422X-SS model outputs a digital signal

using Modbus RTU communication protocol over RS-232 or RS-485.

SENSOR MODELS

This manual covers the Modbus RTU communication protocol, quantum sensor model SQ-422X. Additional models

are covered in their respective manuals.

Model

Signal

SQ-422X

Modbus

SQ-100X

Self-powered

SQ-202X

0-2.5 V

SQ-204X

4-20 mA

SQ-205X

0-5 V

SQ-420X

USB

SQ-421X

SDI-12

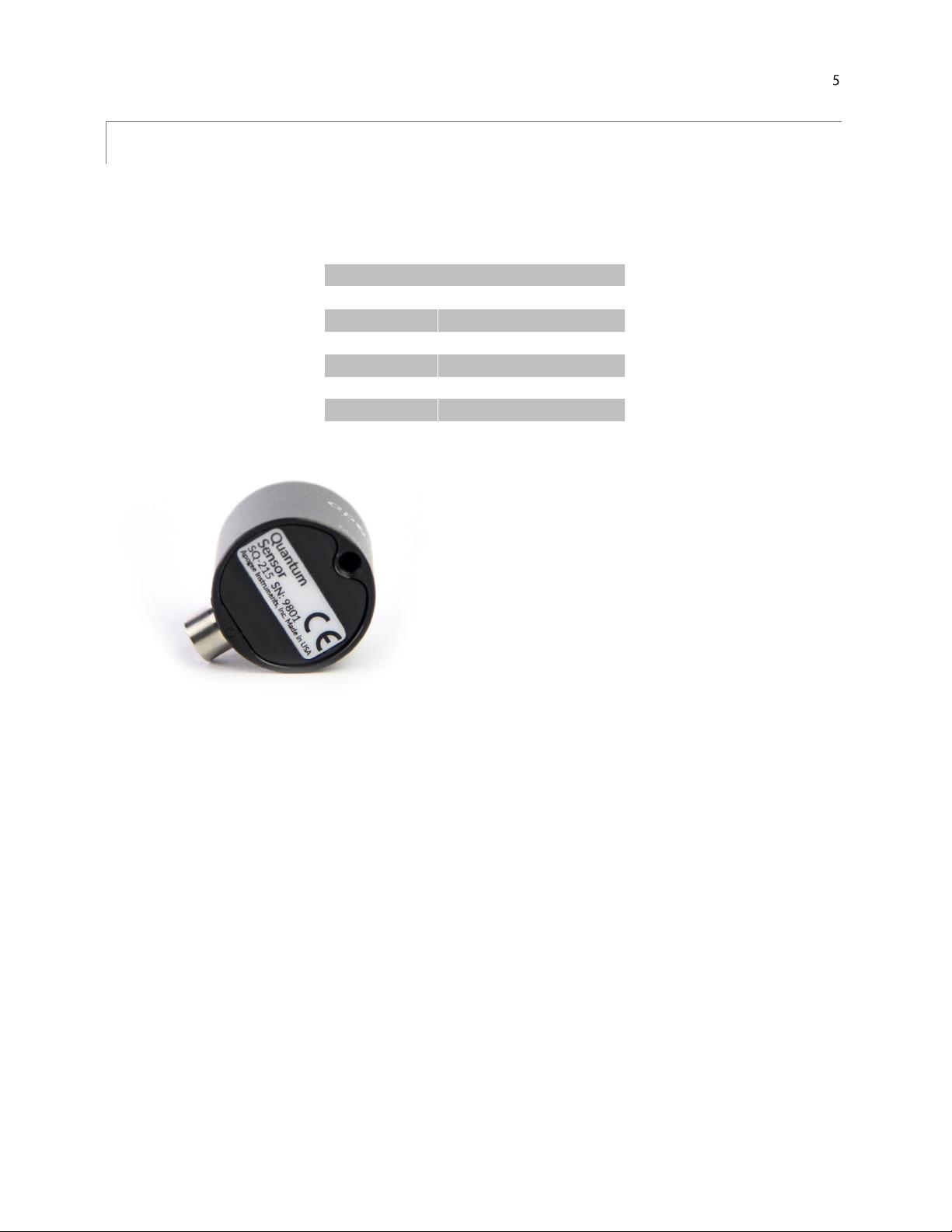

A sensor’s model number and serial number

are located on the bottom of the sensor. If you

need the manufacturing date of your sensor,

please contact Apogee Instruments with the

serial number of your sensor.

SPECIFICATIONS

Calibration Traceability

Apogee SQX series quantum sensors are calibrated through side-by-side comparison to the mean of transfer

standard quantum sensors under a reference lamp. The reference quantum sensors are recalibrated with a 200 W

quartz halogen lamp traceable to the National Institute of Standards and Technology (NIST).

SQ-422X-SS

Input Voltage Requirement

5.5 to 24 V DC

Average Max Current Draw

RS-232 37 mA;

RS-485 quiescent 37, active 42 mA

Calibration Uncertainty

± 5 % (see Calibration Traceability below)

Measurement Repeatability

Less than 1 %

Long-term Drift

(Non-stability)

Less than 2 % per year

Non-linearity

Less than 1 % (up to 2500 µmol m-2 s-1)

Field of View

180°

Spectral Range

370 to 650 nm (wavelengths where response is greater than 50 % of maximum; see

Spectral Response below)

Directional (Cosine) Response

± 5 % at 75° zenith angle (see Cosine Response below)

Temperature Response

Less than 0.5 % from -20 to 50 C

Operating Environment

-20 to 60 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m

Dimensions

30.5 mm diameter, 37 mm diameter

Mass (with 5 m of cable)

140 g

Cable

5 m of two conductor, shielded, twisted-pair wire; TPR jacket (high water resistance, high

UV stability, flexibility in cold conditions); pigtail lead wires; stainless steel (316), M8

connector

Spectral Response

Mean spectral response of four SQ-100X

series quantum sensors compared to PPFD

weighting function. Spectral response

measurements were made at 10 nm

increments across a wavelength range of

350 to 800 nm in a monochromator with an

attached electric light source. Measured

spectral data from each quantum sensor

were normalized by the measured spectral

response of the monochromator/electric

light combination, which was measured

with a spectroradiometer.

Cosine Response

Directional (cosine) response is defined as the

measurement error at a specific angle of

radiation incidence. Error for Apogee SQ-100x

series quantum sensors is approximately ± 2

% and ± 5 % at solar zenith angles of 45° and

75°, respectively.

Mean cosine response of five SQ-

100X series quantum sensors.

Cosine response measurements

were made by direct side-by-side

comparison to the mean of seven

reference SQ-500 quantum

sensors.

DEPLOYMENT AND INSTALLATION

Mount the sensor to a solid surface with the nylon mounting screw provided. To accurately measure PPFD incident

on a horizontal surface, the sensor must be level. An Apogee Instruments model AL-100 Leveling Plate is

recommended to level the sensor when used on a flat surface or being mounted to surfaces such as wood. To

facilitate mounting on a mast or pipe, the Apogee Instruments model AL-120 Solar Mounting Bracket with Leveling

Plate is recommended.

To minimize azimuth error, the sensor should be mounted with the cable pointing toward true north in the

northern hemisphere or true south in the southern hemisphere. Azimuth error is typically less than 1 %, but it is

easy to minimize by proper cable orientation.

In addition to orienting the cable to point toward the nearest pole, the sensor should also be mounted such that

obstructions (e.g., weather station tripod/tower or other instrumentation) do not shade the sensor. Once

mounted, the blue cap should be removed from the sensor. The green cap can be used as a protective covering

for the sensor when it is not in use.

Nylon Screw: 10-32x3/8

Model AL-100

Model AL-120

Important: Only use the nylon screw provided

when mounting to insulate the non-anodized

threads of the aluminum sensor head from the

base to help prevent galvanic corrosion. For

extended submersion applications, more insulation

may be necessary. Contact Apogee tech support for

details.

CABLE CONNECTORS

Apogee sensors offer cable connectors to simplify

the process of removing sensors from weather

stations for calibration (the entire cable does not

have to be removed from the station and shipped

with the sensor).

The ruggedized M8 connectors are rated IP68, made

of corrosion-resistant marine-grade stainless-steel,

and designed for extended use in harsh

environmental conditions.

Cable connectors are attached directly to the head.

Instructions

Pins and Wiring Colors: All Apogee

connectors have six pins, but not all pins are

used for every sensor. There may also be

unused wire colors inside the cable. To

simplify datalogger connection, we remove

the unused pigtail lead colors at the

datalogger end of the cable.

If a replacement cable is required, please

contact Apogee directly to ensure ordering

the proper pigtail configuration.

Alignment: When reconnecting a sensor,

arrows on the connector jacket and an

aligning notch ensure proper orientation.

Disconnection for extended periods: When

disconnecting the sensor for an extended

period of time from a station, protect the

remaining half of the connector still on the

station from water and dirt with electrical

tape or other method.

A reference notch inside the connector ensures

proper alignment before tightening.

When sending sensors in for calibration, only send the sensor head.

Tightening: Connectors are designed to be

firmly finger-tightened only. There is an o-

ring inside the connector that can be overly

compressed if a wrench is used. Pay

attention to thread alignment to avoid

cross-threading. When fully tightened, 1-2

threads may still be visible.

WARNING: Do not tighten the connector by

twisting the black cable or sensor head, only

twist the metal connector (blue arrows).

Finger-tighten firmly

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de Apogee Instruments

Apogee Instruments

Apogee Instruments SQ-626 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-612 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-610 Manual de usuario

Apogee Instruments

Apogee Instruments S2-431 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-214 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-514 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-600 Series Manual de usuario

Apogee Instruments

Apogee Instruments PAR-FAR Manual de usuario

Apogee Instruments

Apogee Instruments SQ-624-SS Manual de usuario

Apogee Instruments

Apogee Instruments S2-432 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-624 Manual de usuario

Apogee Instruments

Apogee Instruments S2-441 Manual de usuario

Apogee Instruments

Apogee Instruments SP-522 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-420X Manual de usuario

Apogee Instruments

Apogee Instruments SU-300-SS Manual de usuario

Apogee Instruments

Apogee Instruments SQ-640 Manual de usuario

Apogee Instruments

Apogee Instruments S2-411 Manual de usuario

Apogee Instruments

Apogee Instruments S2-111 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-642 Manual de usuario

Apogee Instruments

Apogee Instruments SU-200 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-646 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-212 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-500 Manual de usuario

Apogee Instruments

Apogee Instruments SQ-421 Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
