AOpen MX3S-U Hoja de datos

PS/2 Mouse

Connecto

PS/2 Keyboard

Connecto

USB Port

SPP/EPP/ECP

Parallel Port

COM 1 Port

MIDI/Game Port

MIC-In

Line-In

Speaker Out

Onboard AC’97 CODEC

MODEM-CN Connecto

CNR Expansion Slot

32-bit PCI Expansion Slot x 3

Front Audio Connecto

JPX2

IrDA Connecto

Front Panel Connecto

CD-IN Connecto

Resettable Fuse

1500/2200μF Low ESR Capacitors

TX Power Connecto

GP 4x Expansion Slot

370-pin CPU Socket

with Voltage & Frequency Auto-detection

supports Intel®Pentium™ III & Celeron

533MHz~1.2GHz+ CPU

(Both Coppermine & Tualatin

are supported)

CPU Fan Connector with

H/W Monitoring Function

PC-100/133 DIMM Slot x3

supports maximum up to 512MB

FDD Connector

TA/100 IDE Connector x2

JP14 CMOS Clear Jumper

Intel®i815E B-Step / i815EP B-Step Chipset with

enlarged Aluminum Heatsink

2nd USB connector

RJ-45 LAN

Connector

VGA Connector

(MX3S-U only)

JPX1 Onboard LAN Enable/Disable

COM2

PC99 Colored Back Panel

2Mbit Flash ROM

Virus Protection

Wake on Time

1. JP14 Clear CMOS

Everything you need to boot this

motherboard is included in this

Easy Installation Guide. For more

information, a complete Online

User's Manual can be found in the

Bonus Pack CD Disc. Thanks for

the help of saving our earth.

PART NO: 49.88A02.001 DOC. NO: MX3SPU-EG-E0109B

80-wire IDE Cable x1

Floppy Cable x1

Bonus Pack CD x1

This Easy Installation Guide x1

You can clear CMOS to restore system default setting. To

clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

Normal Operation

(default)

Clear CMOS

Pin 1

2. JPX1 Onboard LAN Enable/Disable Jumper

This motherboard provides onboard LAN enable/disable function. You can use the JPX1 to enable or

disable this function.

Enable

(Default) Disable

JPX1

LAN Select Jumper

Pin 1

1. Pull up the CPU socket lever and up to

90-degree angle.

2. Locate Pin 1 in the socket and look for a

(golden) cut edge on the CPU upper interface.

Match Pin 1 and cut edge. Then insert the

CPU into the socket.

3. Press down the CPU socket lever and finish

CPU installation.

CPU CPU Core Frequency FSB Clock Ratio

Celeron 533 533MHz 66MHz 8x

Celeron 566 566MHz 66MHz 8.5x

Celeron 600 600MHz 66MHz 9x

Celeron 700 700MHz 66MHz 10.5x

Celeron 800 800MHz 100MHz 8x

Celeron 900 900MHz 100MHz 9x

Celeron 1.2G 1.2GHz 100MHz 12x

Pentium III 800E 800MHz 100MHz 8x

Pentium III 850E 850MHz 100MHz 8.5x

Pentium III 533EB 533MHz 133MHz 4x

Pentium III 600EB 600MHz 133MHz 4.5x

Pentium III 667EB 667MHz 133MHz 5x

Pentium III 733EB 733MHz 133MHz 5.5

Pentium III 800EB 800MHz 133MHz 6x

Pentium III 866EB 866MHz 133MHz 6.5

Pentium III 933EB 933MHz 133MHz 7x

Pentium III 1G 1GHz 133MHz 7.5x

Pentium III 1.13G 1.13GHz 133MHz 8.5x

Pentium III 1.2G 1.2GHz 133MHz 9x

This jumper is used to activate either the EEPROM chipset on CNR card or the onboard

EEPROM chipset. With onboard LAN equipped on this motherboard, you may short pins

1-2 to enable the onboard EEPROM for running onboard LAN. However, if you were to

use CNR card to run LAN, you may short pins 2-3 to disable the onboard EEPROM

chipset.

5. Setting CPU Voltage & Frequency

Setting CPU Core Voltage

This motherboard supports CPU VID function. The CPU core voltage will be automatically

detected and the range is from 1.05V to 1.825V.

Setting CPU Frequency

CPU frequency can be set through the BIOS setup.

BIOS Setup > Frequency / Voltage Control > CPU Speed Setting

Core Frequency = CPU FSB Clock * CPU Ratio

CPU Ratio 3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x, 8x, 8.5x, 9x, 9.5x, 10x, 10.5x, 11x,

11.5x, and 12x

CPU FSB (By BIOS table) 66, 67, 68, 70, 75, 80, 83, 100, 103, 110, 115, 133, 137, 140, 145, 150, 160, and

166 MHz

3. Installing CPU

Note: If you do not match the CPU

socket Pin 1 and CPU cut edge well, it

may damage the CPU.

CPU socket lever

CPU Pin 1 and cut edge

Warning: Intel®815E B-Step /

815EP B-Step chipset supports

maximum 133MHz FSB and

66MHz AGP clock, higher clock

setting may cause serious

system damage.

Warning: To avoid possible CPU damage caused by overheating, an automatic

shutdown of system had been especially designed on this motherboard. System

would be automatically power off when this motherboard with implementation of

THERMTRIP circuit detected a CPU temperature above 135 degree for 4 seconds.

Enable

(Default) Disable

Pin 1

4. JPX2 EEPROM Select Jumper

Pin 1

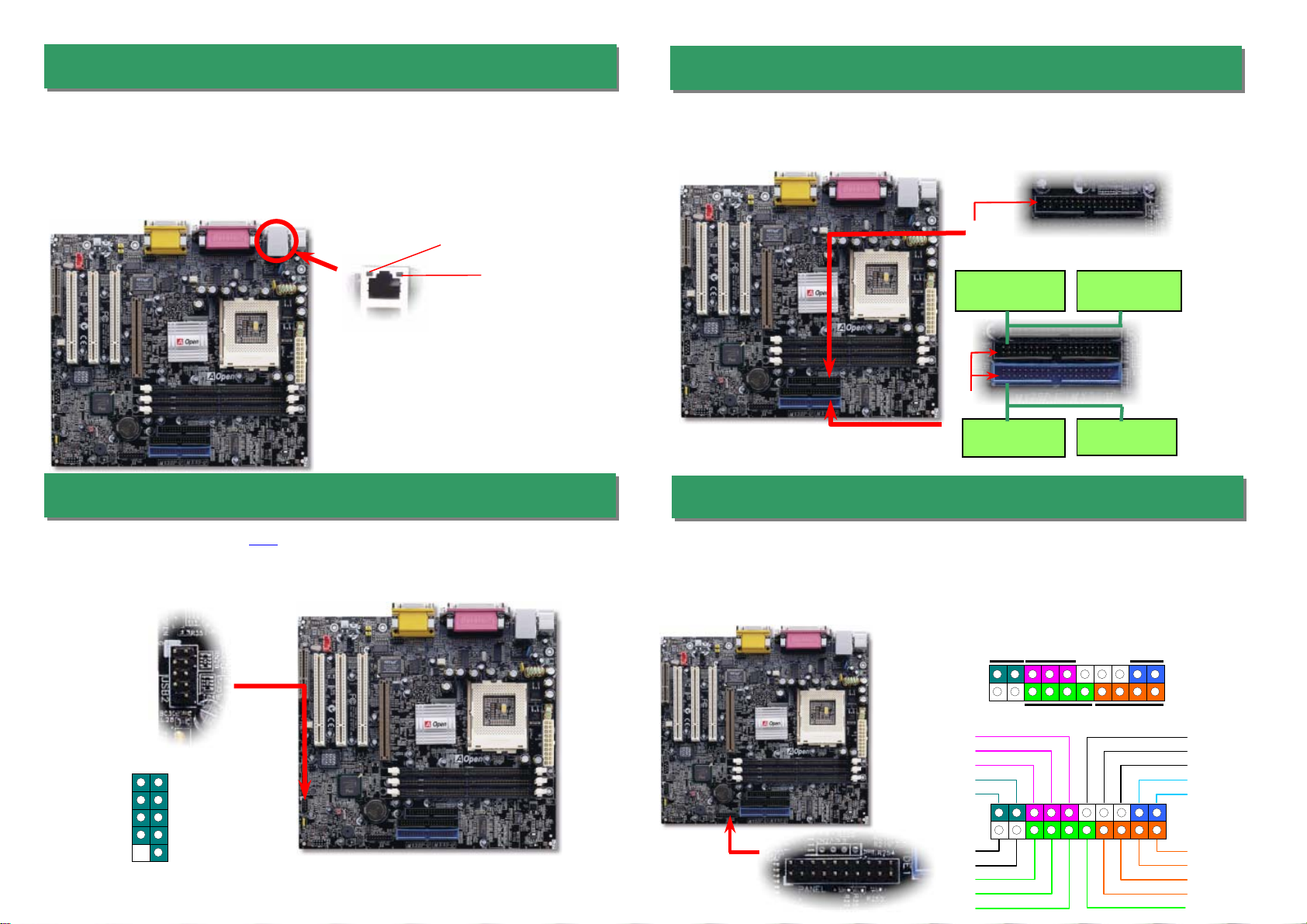

7. Support 2nd USB Port

6. Support 10/100 Mbps LAN onboard 8. Connecting IDE and Floppy Cables

9. Connecting Front Panel Cable

This motherboard provides four USB connectors to connect USB devices, such as mouse,

keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You

can use proper cable to connect the other USB connector to the back panel or front panel

of chassis.

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE

connector. Be careful of the pin1 orientation. Wrong orientation may cause system

damage.

Pin 1 ATA 33/66/100

IDE Connector

ttach the power LED, Keylock, speaker, and reset switch connectors to the corresponding

pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep

flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is 2-pin female connector from the

housin

front

anel. Plu

this connector to the soft-

ower switch connector marked SPWR.

FDD Connector

IDE 1 (Primary)

IDE 2 (Secondary)

Pin 1

Master (3rd)

Slave (2nd)Master (1st)

Slave (4th)

Green (ACT)

ellow (Speed)

Intel 815E B-Step/815EP B-Step (Solano Series) includes a fast Ethernet controller on

chip. On the strength of Intel 82562ET/EM PHY on board, which is a highly-integrated

Platform LAN Connect device, it provides 10/100M bps Ethernet for office and home use,

the Ethernet RJ45 connector is located on top of USB connectors. The green LED

indicate the link mode, it lights when linking to network; and the yellow LED indicates the

transfer mode, it lights when transferring data in 100Mbps mode.

Power

Switch

CPI &

Power LED RESET

SPEAKERIDE LED

GND

RESET

GND

SPEAKER

GND

+5V

ACPILED

GND

ACPILED-

GND

SPWR

+5V

LED

+5V

SBD3-

SBD3+

GND

+5V

SBD2-

SBD2+

GND

USB2 Connector

Connector Pin1 Pin2 Pin3 Pin4

CD-IN Left GND GND Right

MODEM-CN Mono In GND GND Mic Out

12. Connecting CD / MODEM / AUX Connector

13. Installing LAN Driver

10. Connect IrDA Connector

The IrDA connector can be configured to support wireless infrared module, with this

module and application software such as Laplink or Windows 95 Direct Cable Connection,

the user can transfer files to or from laptops, notebooks, PDA devices and printers. This

connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from

BIOS Setup, UART mode select, make sure to have the correct orientation when you plug

in the IrDA connector.

The CD-IN connector is used to connect CD Audio cable from CDROM or DVD drive to

onboard sound. The MODEM-CN connector is used to connect Mono In/ Mic Out cable from

internal modem card to onboard sound circuit.

MODEM-CN (Red) CD-IN (Black)

Pin 1

The South Bridge in Intel i815E B-Step/i815EP B-Step (Solano Series) integrates a total

communication solution including 10/100Mb Fast Ethernet for Office requirement. You can install

LAN Driver under Windows95/98/ME, WindowsNT & Windows2000 by following steps.

Manually Adding an Adapter in Windows 95 / 98 / ME / NT4 / 2000

=====================================

LOCATION OF DRIVER: \Driver\Lan\E100BNT5.SYS (NDIS 5.0)

LOCATION OF SETUP FILE: \Driver\Lan\NET82557.INF

1. From the Control Panel, double-click the “Add Hardware” icon.

2. Double-click Other Devices or NetworkAdapters in the list area.

3. Double-click a PCI Ethernet Controller.

4. Click the Driver tab, then click Update Driver.

5. Click Next at the Update Device Driver Wizard.

6. Select "Display a list of all the drivers..." and click Next.

7. Insert the AOpen Bonus CD and click Have Disk.

8. Enter the appropriate drive for your disk media

(for example: D:\) ,and click OK.

9. Click OK at the Select Device dialog box.

10. The Update Wizard displays the message that it has found

the driver. Click Next.

11. Click Finish and restart your computer when prompted.

Note: If the Ne

Hardware Found dialo

box does not appear a

startup and you canno

connect to the network,

check the Device

Manager list to see if the

new adapter is present.

If it is not,

lease instal

the LAN driver manually.

11. Front Audio Connector

If the housing has been designed with an audio port on the front panel, you’ll be able to

connect onboard audio to front panel through this connector. By the way, please remove

5-6 and 9-10 jumper caps from the Front Audio Connector before connecting the cable.

Please do not remove these 5-6 and 9-10 yellow jumper caps if there’s no audio port on

the front panel.

GND

IR RX

IR TX +5V

PHONE_L

PHONE_R

FP_VREF

FP_MIC

JS1

+5V

GND

Front Audio

Connector

fter you finish the setting of jumpers and connect correct cables. Power on

and enter the BIOS Setup, press <Del> during POST (Power On Self Test).

Choose "Load Setup Defaults" for recommended optimal performance.

14. Power-on and Load BIOS Setup

15. AOpen Bonus Pack CD 17. BIOS Upgrade

Open Easy Flash is more use

-friendly than traditional flash method. The BIOS binary

file and flash routine are combined together and you simply run a single file to complete

the flash process.

1. Download new BIOS upgrade zipped file from AOpen's web site. For example,

MX3SPU102.ZIP.

2. Run shareware PKUNZIP (http://www.pkware.com) which supports

miscellaneous operation systems to extract the binary BIOS file and the flash

utility. Or Winzip (http://www.winzip.com/) in Windows environment.

3. Save the unzipped file into a bootable floppy disk.

For example, MX3SPU102.BIN & MX3SPU102.EXE

4. Reboot the system to DOS mode without loading any memory handler (such as

EMM386) or device driver. It needs around 520K free memory space.

5. Execute A:> MX3SPU102 and the program will do the rest of it.

DO NOT turn off the power during FLASH PROCESS until you are asked to!!

6. Reboot system and press <Del> to enter BIOS Setup, Choose "Load Setup

Defaults", then “Save & Exit Setup” and finish the BIOS upgrade.

Warning: The upgrade of new BIOS will permanently replace your original BIOS

content after flashing. The original BIOS setting and Win95/Win98 PnP information

will be refreshed and

robabl

need to re

confi

ure

our s

stem.

16. Installing Onboard Sound Driver

You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select

model name.

Del

Warning: Please avoid of using "Load

Turbo Defaults", unless you are sure

our system components (CPU, DRAM,

HDD, etc.) are good enough for turbo

settin

This motherboard comes with an AD 1885 AC97 CODEC, you can find the audio drive

from the Bonus Pack CD disc auto-run menu.

Note: Before you start installing

the onboard sound chip driver,

lease make sure your system

had been installed Microsoft

DirectX 5 or later version. You

can find DirectX setup program

in AOpen Bonus Pack CD

auto-run menu.

If you encounter any trouble to boot you system, follow the procedures

accordingly to resolve the problem.

Part Number and Serial Number

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on ISA/CPU slot or on component side of PCB.

For example:

Model name and BIOS version

MX3SPU R1.00 Feb. 01. 2001 AOpen Inc.

ward Plug and Play BIOS Extension v1.0A

Model name and BIOS version can be found on upper left corner of first boot screen

(POST screen). For example:

MX3SPU is model name of motherboard; R1.00 is BIOS version

Make sure if the jumper settings for CPU and DRAMs are correct.

Clear CMOS.

Install the VGA card. Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reselle

or local distributor for repairing.

Perhaps your VGA card or monito

is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

Turn off the power and unplug the AC power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

End

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Part No. Serial No.

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact

us. With your help, we can then continue to provide the best quality service to

more customers.

Thanks very much for your understanding!

Open Technical Supporting Team

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com.tw/tech/download/manual/default.htm

Test Report: We recommend to choose board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com.tw/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://www.aopen.com.tw/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com.tw/tech/download/default.htm

News Group: Your problem probably had been answered by our support

engineer or professional users on the news group.

http://www.aopen.com.tw/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and

should be able to solve your problem more efficien n important reference for

you if next time you want to buy something else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Web Site: www.aopen.com

E-mail: Send us email by going through the contact form below.

English http://www.aopen.com.tw/tech/contact/techusa.htm

Japanese http://aojp.aopen.com.tw/tech/contact/techjp.htm

Chinese http://w3.aopen.com.tw/tech/contact/techtw.htm

German http://www.aopencom.de/tech/contact/techde.htm

French http://aofr.aopen.com.tw/tech/contact/techfr.htm

Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

Pacific Rim

Open Inc.

Tel: 886-2-2696-1333

Fax: 886-2-8691-2233

merica

Open America Inc.

Tel: 1-510-498-8928

Fax: 1-408-922-2935, 1-408-432-0496

Europe

Open Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Germany

Open Computer GmbH.

Tel: 49-2102-157700

Fax: 49-2102-157799

China

艾尔鹏国际上海(股)

有限公司

Tel: 49-2102-157700

Fax: 49-2102-157799

Otros manuales para MX3S-U

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de AOpen

AOpen

AOpen AP57 Manual de usuario

AOpen

AOpen MX4GE Guía de configuración

AOpen

AOpen AX6L Manual de usuario

AOpen

AOpen AK79D-400VN Guía de configuración

AOpen

AOpen AX4S-U Manual de usuario

AOpen

AOpen AX4G Guía de configuración

AOpen

AOpen MK77M-8XN Hoja de datos

AOpen

AOpen MX3W Pro Guía de configuración

AOpen

AOpen AX45H-8X Max Guía de configuración

AOpen

AOpen AK77-600N Manual de usuario

AOpen

AOpen AX4SG-U Hoja de datos

AOpen

AOpen MX46-800N Guía de configuración

AOpen

AOpen AX4GEFM Manual de usuario

AOpen

AOpen DX34R-U Guía de configuración

AOpen

AOpen MX46 U2 Guía de configuración

AOpen

AOpen Fortress 9500 Manual de usuario

AOpen

AOpen AX33 Guía de configuración

AOpen

AOpen AX45 PRO-533 Guía de configuración

AOpen

AOpen VKM400AM-S Manual de usuario

AOpen

AOpen AK79G TUBE Guía de configuración

AOpen

AOpen AX4GE Tube-G Guía de configuración

AOpen

AOpen AX3SP Pro-U Guía de configuración

AOpen

AOpen AX4B-533 Plus Hoja de datos

AOpen

AOpen s661FXm-S Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
