AOpen AX4B Max Hoja de datos

PS/2 Mouse

Connector SPP/EPP/ECP Parallel Port MIDI/Game Port

MIC-In

Line-In

Speaker Out

PS/2 Keyboard

Connector USB Port COM 1 Port COM 2 Port

SYSFAN3 Connecto

JP15 & 16 Dr. Voice Language

Select Jumper (AX4B Pro only)

CD-IN Connecto

CNR Expansion Slot

IrDA Connecto

Front Panel Connecto

FDD Connecto

Supports 2nd USB Connecto

JP14 CMOS Clear Jumpe

4Mbit Flash ROM

Resetable Fuse

478-pin CPU socket with Voltage and

Frequency Auto-detection that supports

Intel®Pentium®4 1.4~2.4GHz+ CPU

AGP 4x Expansion Slot

(for 1.5V AGP card)

32-bit PCI Expansion Slot x5

CPUFAN1 Connector with H/W

Monitoring Function

184-pin DIMM Socket x3 supports

PC-200/266 DDR SDRAM

maximum up to 2 GB

Intel

845 chipset (Brookdale)

2200μF Low ESR Capacitors

ATX Power Connector

Green: AUX-IN Connecto

Red: MODEM-CN Connecto

4-pin 12V.ATX Power Connector

Dr. LED Connecto

JP30 Die Hard BIOS

Select jumpe

(AX4B Pro only, User Upgrade optional)

Onboard AC’97 CODEC

Chassis Intrusion Connecto

Front Audio Connecto

BIOS

(AX4B Pro only, User Upgrade optional)

GPO1 Connector

WOL Connecto

WOM Connecto

JP28 Keyboard/Mouse Wakeup

Enable/Disable Jumper

ATA/33/66/100 IDE Connector x2

SYSFAN2 Connector

JP2 Jumper (speaker)

JP1 Jumper (Buzzer)

This motherboard comes with a 20-pin and 4-pin ATX power connector as shown below. Make sure you plug

in the right direction. We strongly recommend you to insert the 4-pin connector before connecting the 20-pin

connector.

Normal

(

default

)

Clear CMOS

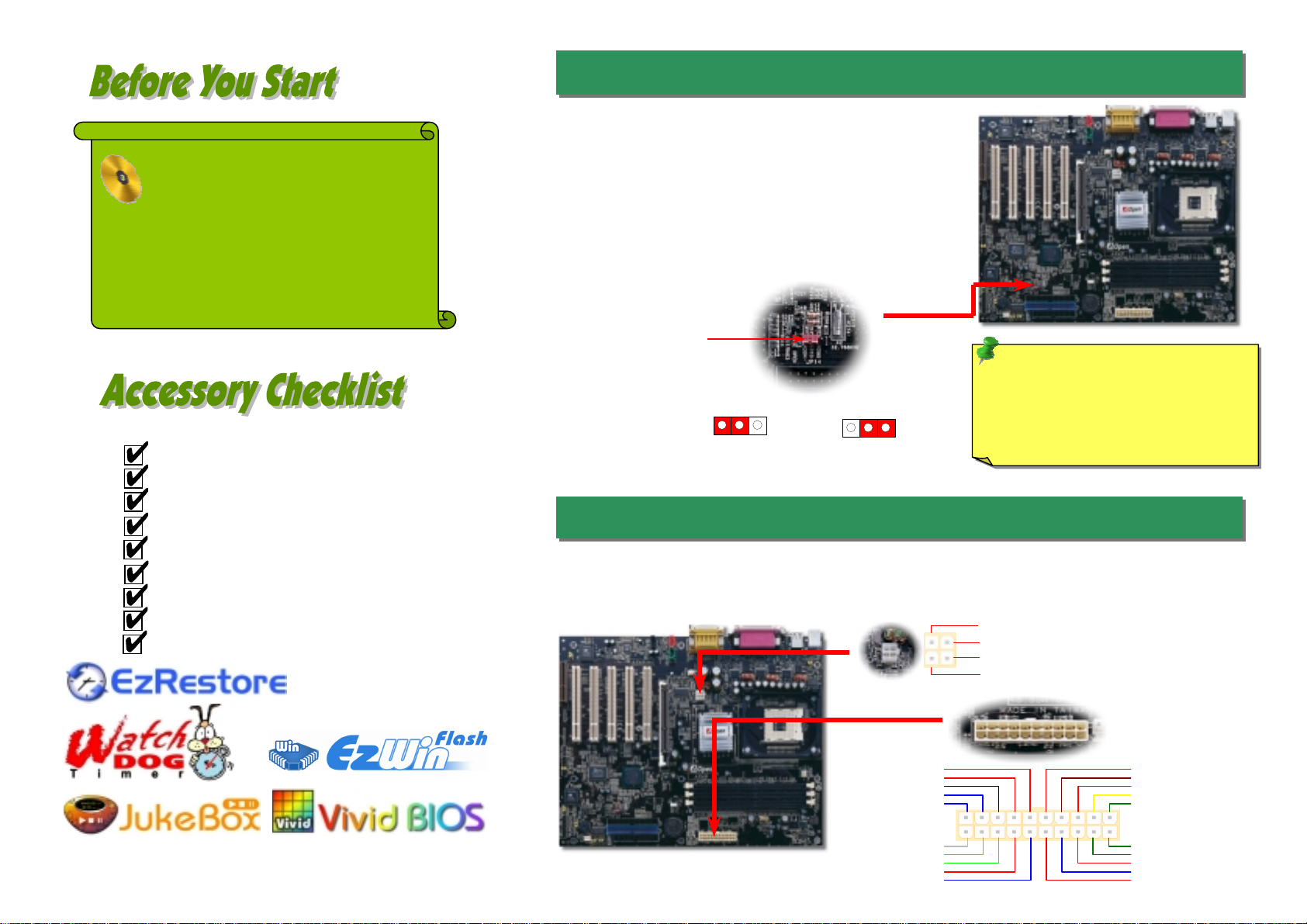

1. JP14 Clear CMOS

Everything you need to boot this

motherboard is included in this

Easy Installation Guide. For more

information, a complete Online

User's Manual can be found in the

Bonus Pack CD Disc. Thanks for

the help of saving our earth.

PART NO: 49.89R01.E02(M) DOC. NO:AX4BP-EG-E0208C

You can clear CMOS to restore system default setting. To

clear the CMOS, follow the procedure below.

1. Turn off the system and unplug theAC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

2. Connecting ATX Power Connector

This Motherboard x1

This Easy Installation Guide x1

User Manual x 1 (AX4B Pro only)

40-wire IDE Cable x1 (AX4B Pro only)

80-wire IDE Cable x1

Floppy Disk Drive Cable x1

Retention Module x1

Bonus Pack CD x1

NORTON AntiVirus CD x1

Pin 1

Ground

12V

Ground

COM

-5

+12

5VSB

PO-O

COM

PS-ON

COM

-12V

+3.3V

COM

+5V

COM

1. Pull up the CPU socket lever and up to

90-degree angle.

2. Locate Pin 1 in the socket and look fo

a (golden) cut edge on the CPU uppe

interface. Match Pin 1 and cut edge.

Then insert the CPU into the socket.

3. Press down the CPU socket lever and

finish CPU installation.

Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you

can also plug it on SYSFAN2 (FAN2) or SYSFAN3 (AUX Fan) connector.

CPU Ratio 8x, 9x, 10x… 21x, 22x, 23x, 24x

CPU FSB 100~248MHz

Northwood CPU CPU Core Frequency FSB Clock System Bus Ratio

Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4 1.6G 1600MHz 133MHz 533MHz 12x

Pentium 4 1.7G 1700MHz 133MHz 533MHz 13x

Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

Pentium 4 2.2G 2200MHz 100MHz 400MHz 22x

Pentium 4 2.4G 2400MHz 100MHz 400MHz 24x

Pentium 4 2.4G 2400MHz 133MHz 533MHz 18x

Willamette CPU CPU Core Frequency FSB Clock System Bus Ratio

Pentium 4 1.5G 1500MHz 100MHz 400MHz 15x

Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4 1.7G 1700MHz 100MHz 400MHz 17x

Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4 1.9G 1900MHz 100MHz 400MHz 19x

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

Celeron CPU CPU Core Frequency FSB Clock System Bus Ratio

1.7G 1700MHz 100MHz 400MHz 17x

1.8G 1800MHz 100MHz 400MHz 18x

5. Setting CPU Voltage & Frequency

Setting CPU Core Voltage

This motherboard supports CPU VID function. The CPU core voltage will be automaticall

detected and the range is from 1.05V to 1.825V. It is not necessary to set CPU core

voltage.

Setting CPU Frequency

This motherboard is CPU jumper-less design, you can set CPU frequency through the

BIOS setup, and no jumpers or switches are needed.

BIOS Setup > Frequency / Voltage Control > CPU Speed Setting

Core Frequency = CPU FSB Clock * CPU Ratio

3. Installing Processor

Note: If you do not match the CPU

socket Pin 1 and CPU cut edge well, it

may damage the CPU.

CPU socket lever

CPU Pin 1 and cut edge

Note: Some CPU fans do not have

sensor pin so they cannot support fan

monitoring.

CPUFAN1 Connector

4. Installing CPU & System Fan

SYSFAN2 Connector

This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package

developed by Intel. Other forms of CPU package are impossible to be fitted in.

GND

+12V

SENSOR

SYSFAN3 Connector

GND

+12V

SENSOR

GND

+12V

SENSOR

Warning: Intel®845 chipset supports maximum 400MHz

(100MHz*4) system bus and 66MHz AGP clock; higher clock

setting may cause serious system damage.

Secondary

Master (3rd)

Secondary

Slave (4th)

Pin 1

Primary

Slave (2nd) Primary

Master (1st)

USBPWR0

USB_FP_P0-

USB_FP_P0+

GND

KEY

USBPWR0

USB_FP_P1-

USB_FP_P1+

GND

USB_FP_OC0

1 2

8. Connecting IDE and Floppy Cables

9. Connecting Front Panel Cable

7. Connect IrDA Connector

The IrDA connector can be configured to support wireless infrared module, with this

module and application software such as Laplink or Windows 95 Direct Cable

Connection, the user can transfer files to or from laptops, notebooks, PDA devices and

printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from

BIOS Setup, UART mode select, make sure to have the correct orientation when you plug

in the IrDA connector.

Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and

IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause system

damage.

Pin 1

ATA 33/66/100

IDE Connector

ttach the power LED, speaker, and reset switch connectors to

the corresponding pins. If you enable “Suspend Mode” item in

BIOS Setup, the ACPI & Power LED will keep flashing while the

system is in suspend mode.

Locate the power switch cable from your ATX housing. It is

2-pin female connector from the housing front panel. Plug this

connector to the soft-power switch connector marked SPWR.

FDD Connector

IDE 1 (Primary)

IDE 2 (Secondary)

6. Support 2nd USB Port

This motherboard provides four USB connectors to connect USB devices, such as mouse,

keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You

can use proper cable to connect the other USB connector to the back panel or front panel

of chassis.

USB2 Connector

Pin 1

IrDA Connector

+5V

IR_TX

IR_RX

GND

KEY

Pin 1

CPI & PWR

LED

Speaker

IDE LED

SPWR

Reset

5VSB

SPWR

ACPI LED-

GND

ACPILED

GND

RESET

GND

+5V

IDE LED

+5V

GND

SPEAKER

Connector Pin1 Pin2 Pin3 Pin4

CD-IN Left GND GND Right

MODEM-CN Mono In GND GND Mic Out

AUX-IN Left GND GND Right

12. Connecting CD / MODEM / AUX Connector

10. Front Audio Connector

If the housing has been designed with an audio port on the front panel, you’ll be able to

connect onboard audio to front panel through this connector. By the way, please remove

the jumper cap from the Front Audio Connector before you connect the cable. Do no

remove this yellow jumper cap if housing without an audio port on the front panel.

The AUX-IN connector is used to connect MPEG

Audio cable from MPEG card to onboard sound.

The MODEM-CN connector is used to connect

Mono In/ Mic Out cable from internal modem card to

onboard sound circuit.

The CD-IN connector is used to connect CDAudio

cable from CDROM or DVD drive to onboard sound.

-IN (Green)

CD-IN (Black)

MODEM-CN (Red)

Pin 1

13. Die-Hard BIOS (AX4B Pro only, User Upgrade

tiona

)

11. Dr. Voice (AX4B Pro only)

The Dr. Voice is a great feature of AX4B Pro motherboard, which can identifies what kind of

problems had occurred in the operating system. It can even clearly “tell” whether there is a

component issue or an installed issue, such as CPU, memory module, VGA, PCI add-on

card, FDD, HDD or keyboard by voice. The Dr. Voice provides four kinds of language

versions, English, German, Japanese and Chinese for your choosing. You can select

preferred language version by JP15 & JP16 jumpers. However, if you want to disable this

function, you may also set JP1 and JP2 to pin 2-3 to disable to buzzer and speaker from

making out voices respectively.

AUD_MIC

AUD_FPOUT_R

AUD_FROUT_L

AUD_GND

AUD_VCC

AUD_RET_R

KEY

9 10

1 2

JP15

Pin 1

JP16

Pin 1

Recently, many viruses have been found that they may destroy bios code and data area.

Therefore, this motherboard implements a very effective hardware protection method that does

not involve any software or BIOS coding, hence it is 100% virus free. You may restore the

originally mounted BIOS with 2nd BIOS ROM by setting JP30 to pin 2-3 if it fails to act normally.

This motherboard comes with one BIOS ROM, you may contact our local distributor or reseller

for purchasing the extra BIOS ROM. Please visit our website: english.aopen.com.tw for details.

normal

rescue

BIOS

ROM

Rescue

ROM

JP30

JP2

JP1

JP15

Pin 1

JP16

Pin 1 English

(Default) Chinese Japanese

German

fter you finish the setting of jumpers and connect correct cables. Power on

and enter the BIOS Setup, press <Del> during POST (Power On Self Test).

Choose "Load Setup Defaults" for recommended optimal performance.

Warning: The upgrade of new BIOS will permanently replace your original BIOS

content after flashing. The original BIOS setting and Win95/Win98 PnP information

will be refreshed and you probably need to re-configure your system.

14. Power-on and Load BIOS Setup

15. AOpen Bonus Pack CD

16. Installing Onboard Sound Driver

You can use the autorun menu of Bonus CD disc. Choose the utility and driver and selec

model name.

Del

Warning: Please avoid of using "Load

Turbo Defaults", unless you are sure

our system components (CPU, DRAM,

HDD, etc.) are good enough for turbo

settin

This motherboard comes with AD1885 AC97 CODEC, you can find the audio driver from

the Bonus Pack CD disc auto-run menu.

17. BIOS Upgrade under Windows Environment

You may accomplish BIOS upgrade procedure with EzWinFlash by the following steps,

and it’s STRONGLY RECOMMMANDED to close all the applications before you start the

upgrading.

1. Download the new version of BIOS package zip file from AOpen official web site.

(ex: http://english.aopen.com.tw)

2. Unzip the download BIOS package (ex: WAX4BP102.ZIP) with WinZip

(http://www.winzip.com) in Windows environment.

3. Save the unzipped files into a folder, for example, WAX4BP102.EXE &

WAX4BP102.BIN.

4. Double click on the WAX4BP102.EXE, EzWinFlash will detect the model name and

BIOS version of your motherboard. If you had got the wrong BIOS, you will not be

allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to star

the BIOS upgrade procedure.

6. EzWinFlash will complete all the process automatically, and a dialogue box will pop

up to ask you to restart Windows. You may click [YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup, choose "Load Setup Defaults", then

“Save & Exit Setup”. Done!

If you encounter any trouble to boot you system, follow the procedures

accordingly to resolve the problem.

Part Number and Serial Number

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, or on component side of PCB. For example:

Model name and BIOS version

AX4B Pro R1.02 Aug. 01. 2002 AOpen Inc.

Award Plug and Play BIOS Extension v1.0A

Model name and BIOS version can be found on upper left corner of first boot screen

(POST screen). For example:

AX4B Pro is model name of motherboard; R1.02 is BIOS version

Make sure if the jumper settings for CPU and DRAMs are correct.

Clear CMOS.

Install the VGA card. Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reselle

or local distributor for repairing.

Perhaps your VGA card or monito

is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

Turn off the power and unplug the AC power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

End

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Part No. Serial No.

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact

us. With your help, we can then continue to provide the best quality service to

more customers.

Thanks very much for your understanding!

Open Technical Supporting Team

Pacific Rim

AOpen Inc.

Tel: 886-2-3789-5888

Fax: 886-2-3789-5899

America

AOpen America Inc.

Tel: 1-510-489-8928

Fax: 1-510-489-1998

Europe

AOpen Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Germany

AOpen Computer GmbH.

Tel: 49-1805-559191

Fax: 49-2102-157799

China

艾爾鵬國際貿易(上海)有限公

司

Tel: 86-21-6225-8622

Fax: 86-21-6225-7926

Japan

AOpen Japan Inc.

Tel: 81-048-290-1800

Fax: 81-048-290-1820

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://english.aopen.com.tw/tech/download/manual/default.htm

Test Report: We recommend choosing board/card/device from the

compatibility test reports for assembling your PC.

http://english.aopen.com.tw/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://english.aopen.com.tw/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://english.aopen.com.tw/tech/download/default.htm

News Group: News posted by computer experts, you are welcome to join

any discussion and learning from it.

http://english.aopen.com.tw/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and

should be able to solve your problem efficiently and provide important

reference for you if next time you want to buy something else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Web Site: www.aopen.com

E-mail: Send us email by going through the contact form below.

English http://english.aopen.com.tw/tech/default.htm

Japanese http://www.aopen.co.jp/tech/default.htm

Chinese http://www.aopen.com.tw/tech/default.htm

German http://www.aopencom.de/tech/default.htm

Simplified Chinese http://www.aopen.com.cn/tech/default.htm

Otros manuales para AX4B Max

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de AOpen

AOpen

AOpen AK77-333 Guía de configuración

AOpen

AOpen AX33 Guía de configuración

AOpen

AOpen AX3S Max Manual de usuario

AOpen

AOpen Fortress 1100 Hoja de datos

AOpen

AOpen X59PRO Manual de usuario

AOpen

AOpen AX63PRO Manual de usuario

AOpen

AOpen AX6BC PROII Hoja de datos

AOpen

AOpen AX37 PRO Guía de configuración

AOpen

AOpen MX3W-E2 Guía de configuración

AOpen

AOpen MX4SGI-4DN Guía de configuración

AOpen

AOpen i945GTm-VHL Hoja de datos

AOpen

AOpen i975Xa- YDG Manual de usuario

AOpen

AOpen AX4BR-U Manual de usuario

AOpen

AOpen AX45S-533 Guía de configuración

AOpen

AOpen AK77-333 Hoja de datos

AOpen

AOpen AX4SP-G Guía de configuración

AOpen

AOpen MK77 Manual de usuario

AOpen

AOpen s661FXm-7US Manual de usuario

AOpen

AOpen i915Ga-HFS Manual de usuario

AOpen

AOpen AX4SGnWLAN Manual de usuario

AOpen

AOpen MX3S-T Guía de configuración

AOpen

AOpen AX4PE Tube-G Manual de usuario

AOpen

AOpen AX34II Manual de usuario

AOpen

AOpen MX34 Guía de configuración

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
