AOpen AX4B-533 Tube Hoja de datos

PS/2 Mouse

Connector SPP/EPP/ECP Parallel Port MIDI/Game Port

MIC-In

Line-In

Speaker Out

PS/2 Keyboard

Connector USB2.0 Port

COM 1 Port COM 2 Port

FAN3 Connecto

JP15 & 16 Dr. Voice II Languages

Select Jumper

(Volume adjustable through speaker)

CD-IN Connecto

IrDA Connecto

Front Panel Connecto

FDD Connecto

2nd and 3rd USB2.0 Connecto

JP14 CMOS Clear Jumpe

4Mbit Flash ROM

Resetable Fuse

478-pin CPU socket with Voltage and

Frequency Auto-detection that supports

Intel®Pentium®4 1.4~2.4GHz+ CPU

GP 4x Expansion Slot

(for 1.5V AGP card)

32-bit PCI Expansion Slot x3

CPU Fan Connector with H/W

Monitoring Function

184-pin DIMM Socket x3 supports

PC-200/266 DDR SDRAM

maximum up to 2 GB

Intel

845E chipset (Brookdale)

With 400/533 FSB

2200μF Low ESR Capacitors

ATX Power Connector

AUX-IN Connecto

4-pin 12V. ATX Power Connector

Onboard AC’97 CODEC

Chassis Intrusion Sensor Connecto

Front Audio Connecto

WOL Connecto

WOM Connecto

JP28 Keyboard/Mouse Wakeup

Enable/Disable Jumper

ATA/33/66/100 IDE Connector x2

FAN2 Connector

JP1 (Buzzer) & JP2 (speaker)

RJ45 LAN Port

JP3 Tube Power Jumpe

Tube

udio Connecto

(Line-in and RCA/Headphone/S/PDIF)

MultiCap Hi-End Audio Grade Capacito

Sovtek 6922 Dual Triode Tube

& Tube Base

Maxim 668 DC-DC Converte

Vishay Resisto

BOOT LED

STBY LED

GP LED

This motherboard provides keyboard / mouse wake-up function. You can use JP28 to enable or disable this

function, which could resume your system from suspend mode with keyboard or mouse installed. The factor

default setting is set to “Disable”(1-2), and you may enable this function by setting the jumper to 2-3.

1. JP14 Clear CMOS

Everything you need to boot this

motherboard is included in this

Easy Installation Guide. For more

information, a complete Online

User's Manual can be found in the

Bonus Pack CD Disc. Thanks for

the help of saving our earth.

PART NO: 49.8A210.E01 DOC. NO: AX4B533Tube-EG-E0206A

You can clear CMOS to restore system default setting. To

clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

2. JP28 Keyboard/Mouse Wakeup Enable/Disable Jumper

This Motherboard x1

This Easy Installation Guide x1

User Manual x 1

40-wire IDE Cable x1

80-wire IDE Cable x1

Floppy Disk Drive Cable x1

Retention Module x1

Bonus Pack CD x1

Sovtek 6922 dual Triode tube x1

Cardas hyper copper wire x1 (User Upgrade Optional)

Tube Audio Card x1 (User Upgrade Optional)

Pin 1

Normal Operation

(default) Clear CMOS

1 1

Enable

Disable

(Default)

Pin 1

Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you

can also plug it on System Fan (FAN2) or FAN3 (AUX Fan) connector.

CPU Ratio 8x, 9x, 10x… 21x, 22x, 23x, 24x

CPU FSB 100~248MHz

Northwood CPU CPU Core

Frequenc FSB Clock System Bus Ratio

Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

Pentium 4 2.2G 2200MHz 100MHz 400MHz 22x

Pentium 4 2.4G 2400MHz 100MHz 400MHz 24x

Willamette CPU CPU Core

Frequenc FSB Clock System Bus Ratio

Pentium 4 1.5G 1500MHz 100MHz 400MHz 15x

Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4 1.7G 1700MHz 100MHz 400MHz 17x

Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4 1.9G 1900MHz 100MHz 400MHz 19x

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

5. Setting CPU Voltage & Frequency

Setting CPU Core Voltage

This motherboard supports CPU VID function. The CPU core voltage will be automatically

detected and the range is from 1.10V to 1.85V. It is not necessary to set CPU core voltage.

Setting CPU Frequency

This motherboard is CPU jumper-less design, you can set CPU frequency through the

BIOS setup, and no jumpers or switches are needed.

BIOS Setup > Frequency / Voltage Control > CPU Speed Setting

Core Frequency = CPU FSB Clock * CPU Ratio

Note: Some CPU fans do not have

sensor pin so they cannot support fan

monitoring.

CPU Fan Connector

Warning: Intel®845E chipset supports maximum 400/533MHz

(100/133MHz*4) system bus and 66MHz AGP clock; higher clock

setting may cause serious system damage.

3. Installing CPU & System Fan

FAN3 Connector

GND

+12V

SENSOR

FAN2 Connector

GND

+12V

SENSOR

4. Connecting Front Panel Cable

Attach the power LED, speaker, and reset switch connectors to

the corresponding pins. If you enable “Suspend Mode” item in

BIOS Setup, the ACPI & Power LED will keep flashing while the

system is in suspend mode.

Locate the power switch cable from your ATX housing. It is

2-pin female connector from the housing front panel. Plug this

connector to the soft-power switch connector marked SPWR.

CPI & PWR

LED

Speaker

IDE LED

SPWR

Reset

5VSB

SPWR

ACPI LED-

GND

ACPILED

GND

RESET

GND

+5V

IDE LED

+5V

GND

SPEAKER

Note: Since the latest processor, Northwood, would detect the

clock ratio automatically, you may not be able to adjust the clock

ratio in BIOS manually.

Pin 1

Secondary

Master (3rd)

Secondary

Slave (4th)

Pin 1

Primary

Slave (2nd) Primary

Master (1st)

USBPWR0

USB_FP_P0-

USB_FP_P0+

GND

KEY

USBPWR0

USB_FP_P1-

USB_FP_P1+

GND

USB_FP_OC0

1 2

8. Connecting IDE and Floppy Cables

Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and

IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause system

damage.

Pin 1

ATA 33/66/100

IDE Connector FDD Connector

IDE 1 (Primary)

IDE 2 (Secondary)

9. Support Six USB2.0 Connectors

Compared to traditional USB 1.0/1.1 with the speed of 12Mbps, USB 2.0 has a fancy

speed up to 480Mbps, which is 40 times faster than the traditional one. Except for the

speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering

impressive and even better compatibility to customers. On this motherboard, all USB

connectors support USB 2.0 function. To connect those two headers, you have to use

proper USB cables and connect them to any USB models.

USB2 Connector

Pin 1

7. Front Audio Connector

If the housing has been designed with an audio port on the front panel, you’ll be able to

connect onboard audio to front panel through this connector. By the way, please remove

5-6 and 9-10 jumper caps from the Front Audio Connector before connecting the cable.

Please do not remove these 5-6 and 9-10 yellow jumper caps if there’s no audio port on

the front panel.

Pin 1

UD_MIC

UD_FPOUT_

UD_FROUT_L

AUD_GND

AUD_VCC

AUD_RET_R

KEY

9 10

1 2

6. JP3 Tube Power Jumper

This JP3 jumper allows you to switch on/off power supply for Vacuum Tube. You may switch

the power off whenever you are not using Tube as your audio output in order to save the

power.

(Default) OFF

Pin 1

Note: For details of Vacuum Tube, please refer to our specially made Tube Manual.

JP3

owe

Connector Pin1 Pin2 Pin3 Pin4

CD-IN Left GND GND Right

AUX-IN Left GND GND Right

13. Connect IrDA Connector

The IrDA connector can be configured to support wireless infrared module, with this module

and application software such as Laplink or Windows 95 Direct Cable Connection, the use

can transfer files to or from laptops, notebooks, PDA devices and printers. This connecto

supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from BIOS

Setup, UART mode select, make sure to have the correct orientation when you plug in the

IrDA connector. Pin 1

12. Connecting CD and AUX Connector

The AUX-IN connector is used to connect MPEG

Audio cable from MPEG card to onboard sound.

The CD-IN connector is used to connect CDAudio

cable from CDROM or DVD drive to onboard sound.

-IN (Green) CD-IN (Black)

11. Dr. Voice II (Volume Adjustable)

The Dr. Voice is a great feature of this motherboard, which can identifies what kind of

problems had occurred in the operating system. It can even clearly “tell” whether there is a

component issue or an installed issue, such as CPU, memory module, VGA, PCI add-on

card, FDD, HDD or keyboard by voice. The Dr. Voice provides four kinds of language

versions, English, German, Japanese and Chinese for your choosing. You can select

preferred language version by JP15 & JP16 jumpers. However, if you want to disable this

function, you may also set JP1 and JP2 to pin 2-3 to disable to buzzer and speaker from

making out voices respectively.

JP15

Pin 1

JP15

Pin 1 JP16

Pin 1

English

(Default) Chinese Japanese German

JP2

JP1

JP16

Pin 1

KEY

GND

IR_RX

IR_T

IrDA Connector

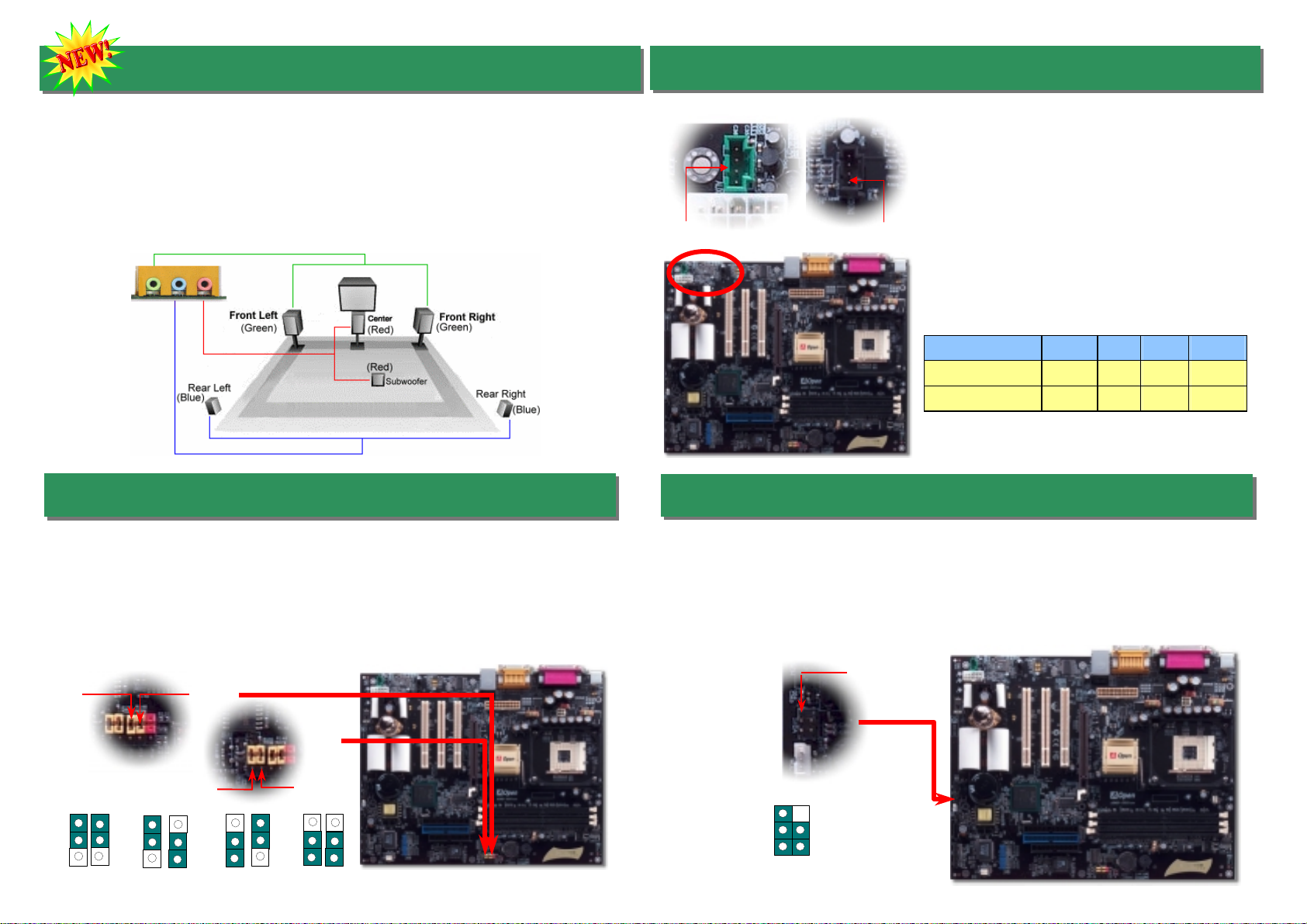

10. Super 5.1 Channel Audio Effect

This motherboard comes with an ALC650 CODEC, which supports high quality of 5.1 Channel

audio effects, bringing you a brand new audio experience. On the strength of the innovative

design of ALC650, you're able to use standard line-jacks for surround audio output withou

connecting any external module. To apply this function, you have to install the audio driver in

the Bonus Pack CD as well as an audio application supporting 5.1 Channel. Picture bello

represents the standard location of all speakers in 5.1 Channel sound track. Please connec

the plug of your front speakers to the green “Speaker out” port, rear speakers’ plug to the blue

“Line in” port and both of the center and subwoofer speakers to the red “MIC in” port.

After you finish the setting of jumpers and connect correct cables. Power on

and enter the BIOS Setup, press <Del> during POST (Power On Self Test).

Choose "Load Setup Defaults" for recommended optimal performance.

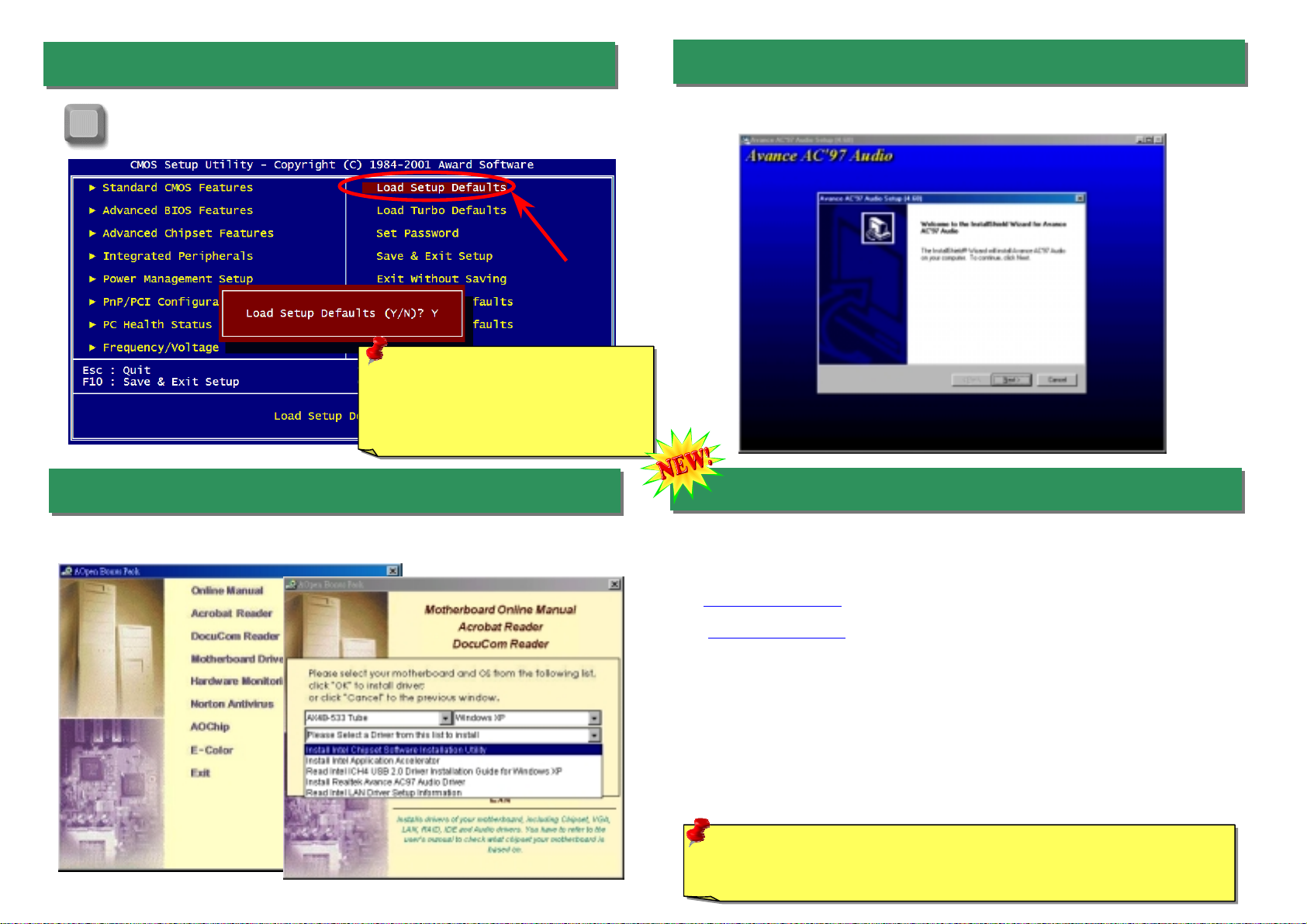

14. Power-on and Load BIOS Setup

15. AOpen Bonus Pack CD 17. BIOS Upgrade under Windows Environment

You can use the autorun menu of Bonus CD disc. Choose the utility and driver and selec

model name.

Del

Warning: Please avoid of using "Load

Turbo Defaults", unless you are sure

our system components (CPU, DRAM,

HDD, etc.) are good enough for turbo

settin

You may accomplish BIOS upgrade procedure with EZWinFlash by the following steps,

and it’s STRONGLY RECOMMMANDED to close all the applications before you start the

upgrading.

1. Download the new version of BIOS package zip file from AOpen official web site. (ex:

http://www.aopen.com)

2. Unzip the download BIOS package (ex: WAX4B533Tube102.ZIP) with WinZip

(http://www.winzip.com) in Windows environment.

3. Save the unzipped files into a folder, for example, WAX4B533Tube102.EXE &

WAX4B533Tube102.BIN.

4. Double click on the WAX4B533Tube.EXE, EZWinFlash will detect the model name

and BIOS version of your motherboard. If you had got the wrong BIOS, you will no

be allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to star

the BIOS upgrade procedure.

6. EZWinFlash will complete all the process automatically, and a dialogue box will pop

up to ask you to restart Windows. You may click [YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup, choose "Load Setup Defaults", then

“Save & Exit Setup”. Done!

Warning: The upgrade of new BIOS will permanently replace your original BIOS

content after flashing. The original BIOS setting and Win95/Win98 PnP

information will be refreshed and you probably need to re-configure your system.

16. Installing Onboard Sound Driver

This motherboard comes with AC97 CODEC, you can find the audio driver from the

Bonus Pack CD disc auto-run menu.

If you encounter any trouble to boot you system, follow the procedures

accordingly to resolve the problem.

Part Number and Serial Number

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on ISA/CPU slot or on component side of PCB.

For example:

Model name and BIOS version

AX4B –533 Tube R1.02 May. 01. 2002 AOpen Inc.

Award Plug and Play BIOS Extension v1.0A

Model name and BIOS version can be found on upper left corner of first boot screen

(POST screen). For example:

AX4B-533 Tube is model name of motherboard; R1.02 is BIOS version

Make sure if the jumper settings for CPU and DRAMs are correct.

Clear CMOS.

Install the VGA card. Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reselle

or local distributor for repairing.

Perhaps your VGA card or monito

is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

Turn off the power and unplug the AC power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

End

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Part No. Serial No.

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact

us. With your help, we can then continue to provide the best quality service to

more customers.

Thanks very much for your understanding!

Open Technical Supporting Team

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com/tech/download/manual/default.htm

Test Report: We recommend to choose board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://www.aopen.com/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com/tech/download/default.htm

News Group: News posted by computer experts, you are welcome to join

any discussion and learning from it.

http://www.aopen.com/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and

should be able to solve your problem efficiently and provide important

reference for you if next time you want to buy something else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Web Site: www.aopen.com

E-mail: Send us email by going through the contact form below.

English http://www.aopen.com/tech/contact/techusa.htm

Japanese http://www.aopen.co.jp/tech/contact/techjp.htm

Chinese http://www.aopen.com.tw/tech/contact/techtw.htm

German http://www.aopencom.de/tech/contact/techde.htm

French http://france.aopen.com/tech/contact/techfr.htm

Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

Pacific Rim

AOpen Inc.

Tel: 886-2-3789-5888

Fax: 886-2-3789-5899

America

AOpen America Inc.

Tel: 1-408-922-2100

Fax: 1-408-922-2935

Europe

AOpen Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Germany

AOpen Computer GmbH.

Tel: 49-2102-157700

Fax: 49-2102-157799

China

艾爾鵬國際貿易(上海)有限公

司

Tel: 86-21-6225-8622

Fax: 86

6225

7926

Japan

AOpen Japan Inc.

Tel: 81-048-290-1800

Fax: 81-048-290-1820

Otros manuales para AX4B-533 Tube

Tabla de contenidos

Otros manuales de Placa madre de AOpen

AOpen

AOpen AK86-L Hoja de datos

AOpen

AOpen DXPL-U Guía de configuración

AOpen

AOpen MK33 Guía de configuración

AOpen

AOpen AX4B Pro-533 Guía de configuración

AOpen

AOpen AK33 M Guía de configuración

AOpen

AOpen DX37-U Manual de usuario

AOpen

AOpen AX45-8X Max Guía de configuración

AOpen

AOpen MX36 Guía de configuración

AOpen

AOpen MX46-800N Hoja de datos

AOpen

AOpen i915GMm-HFS Hoja de datos

AOpen

AOpen MK73LE-N Hoja de datos

AOpen

AOpen DX34R-U Guía de configuración

AOpen

AOpen MK73LE Guía de configuración

AOpen

AOpen AX45F-8X MAX Hoja de datos

AOpen

AOpen AX6BC PROII Manual de usuario

AOpen

AOpen AP57 Manual de usuario

AOpen

AOpen n250a-FR Manual de usuario

AOpen

AOpen AX45-4D MAX Hoja de datos

AOpen

AOpen AX34-U Hoja de datos

AOpen

AOpen MoDT i965GMt-LA Manual de usuario

AOpen

AOpen AK77-400 Guía de configuración

AOpen

AOpen AK75 Guía de configuración

AOpen

AOpen MX46L Hoja de datos

AOpen

AOpen AX6L Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
