ANYWAVE

TRN U2D DTV Transmitter

Quick Start Guide

Version 2.2 –September 25, 2019

TRN-U2D-C-FA Quick Start Guide

ACT-PA-U2D-QSG-DOC-V2.2, 09/25/2019 Page 2 of 16

No part of this publication may be reproduced, translated, transcribed, stored in a

retrieval system, or transmitted into any form or by any means, without the express

written permission of Anywave Communication Technologies, Inc.

FCC Compliance

This equipment complies with relevant portions of Parts 2, 73, & 74 of the FCC rules

governing LPTV operation.

Disclaimer

Information provided by Anywave Communication Technologies is believed to be

accurate and complete; however, no liability can be assumed for its use.

The manufacturer makes no representations or warranties, either expressed or implied,

by or with respect to anything in this manual, and shall not be liable for any implied

warranties of fitness for a particular purpose or for any indirect, special, or

consequential damages. Information in this document is subject to change without

notice and does not represent a commitment on the part of the manufacturer.

USE OF THIS PRODUCT IN A MANNER OTHER THAN DESCRIBED IN THIS

MANUAL MAY RESULT IN DAMAGE TO THE EQUIPMENT AND/OR

PERSONAL INJURY.

PLEASE READ THIS MANUAL IN ITS ENTIRETY BEFORE ATTEMPTING TO

INSTALL THE EQUIPMENT. CONTACT ANYWAVE WITH ANY QUESTIONS

OR CONCERNS YOU MAY HAVE.

Anywave Communication Technologies Inc.

300 Knightsbridge Parkway, Suite 150, Lincolnshire, IL 60069

Tel: (847) 415-2258

Fax: (847) 415-2112

http://www.anywavecom.net

TRN-U2D-C-FA Quick Start Guide

ACT-PA-U2D-QSG-DOC-V2.2, 09/25/2019 Page 3 of 16

Unpacking

Carefully unpack the equipment and perform a visual inspection to determine if any

apparent damage has occurred during shipment. Please notify the delivery carrier and

Anywave immediately if shipment damage has occurred. Retain all original shipping

materials.

Please locate and reference the Packing Check List to verify you have received all

components of your system. Retain the Packing Check List for future reference.

Also, please identify and remove all packing materials and supports (foam pads, etc.)

prior to the initial turn-on of the equipment.

Returns and Exchanges

Written approval and a Return Authorization Number (RAN) are required from

Anywave for all equipment returns. Please direct all return inquiries to the Anywave

Service Department at [email protected], providing the Sales Order

number and Serial Number(s) of the equipment. Complete details regarding the nature

and circumstances of your return must be included in your RAN request. Proper

handling and return shipping instructions will be provided with an approved RAN

number.

Technical Support

Technical support and troubleshooting assistance for Anywave Transmitters are

available through theAnywave Service Department during normal business hours (8:00

AM - 5:00 PM CST) at (847) 415-2258.Email questions to

[email protected].

Note: For all service and support requests, you will need to provide the Serial Number

of the equipment with your Sales Order number. For future reference, please record that

information here: ________________________________________

TRN-U2D-C-FA Quick Start Guide

ACT-PA-U2D-QSG-DOC-V2.2, 09/25/2019 Page 4 of 16

WARNING

THE VOLTAGES, CURRENTS, AND RF ENERGY IN THIS EQUIPMENT

ARE DANGEROUS. PERSONNEL MUST AT ALL TIMES OBSERVE ALL

SAFETY WARNINGS, INSTRUCTIONS, AND REGULATIONS.

IN THE CASE OF EMERGENCY, ENSURE THAT ALL POWER HAS BEEN

DISCONNECTED.

ALWAYS DISCONNECT POWER BEFORE REMOVING COVERS,

ENCLOSURES, OR SHIELDS. DO NOT PERFORM SERVICE ON THE

EQUIPMENT WHEN ALONE OR FATIGUED. KNOW YOUR EQUIPMENT

AND DO NOT TAKE RISKS.

This manual is provided as a general guide for trained and qualified personnel well

aware of the dangers inherent in handling potentially hazardous electrical transmission

equipment.

The installation, operation, maintenance, and service of this equipment involves risks

both to personnel and equipment, and must ONLY be performed by qualified personnel

exercising due care. Anywave Communication Technologies, Inc. shall not be

responsible for injury or damage resulting from improper handling or from the use of

improperly trained or inexperienced personnel performing such tasks.

All local building and electrical codes, as well as fire protection standards, must be

observed in the installation and operation of the equipment.

TRN-U2D-C-FA Quick Start Guide

ACT-PA-U2D-QSG-DOC-V2.2, 09/25/2019 Page 5 of 16

Contents

1Introduction ......................................................................................6

2Organization of Manual....................................................................6

3TX System Overview .......................................................................7

4TX System Interconnect...................................................................8

5Initial Turn On ..................................................................................9

TRN-U2D-C-FA Quick Start Guide

ACT-PA-U2D-QSG-DOC-V2.2, 09/25/2019 Page 6 of 16

1Introduction

This Quick Start Guide contains instructions to safely set up and turn on the

Anywave TRN U2D DTV Transmitter. Please note that trained and qualified personnel

are required to install, maintain, and service this transmission equipment.

2Organization of Manual

This Manual is broken up into several sections.

Section 3 - TX system Overview: Provides a general overview of the

TRN U2D Transmitter System

Section 4 –TX System Interconnect: Overview of interconnections of

the major subassemblies contained in the Transmitter system

Section 5 –Initial Turn On: How to safely turn on your Transmitter

TRN-U2D-C-FA Quick Start Guide

ACT-PA-U2D-QSG-DOC-V2.2, 09/25/2019 Page 7 of 16

3TX System Overview

Final assembly and test of each transmitter are performed at the Anywave factory.

The Exciter is set up on the desired channel frequency and the TX is tested with the

complete RF system (if purchased) at full power into a load. All TX operating

parameters are optimized and the Transmitter Forward and Reflected power meters are

properly calibrated. Linear and Nonlinear precorrection is performed and automatically

stored in non-volatile memory inside the Exciter. A Factory Test Report is completed

for each system, providing a record of full power operating parameters and performance.

The TX then goes through a final 24-hour burn-in period and check out before being

shut done and packed up for shipment.

In your shipment, you should receive a copy of the following documentation.

- Packing Checklist

- Transmitter Factory Test Report

- ACT TRN-U2D-C-FA Quick Start Guide

- ACT PA-U2D-C-FA PA User Manuals

Carefully unpack and inspect all your equipment and please review the Packing

Checklist when you receive your system to be certain you have received all your system

components. Also, please be sure to identify and remove all packing materials and

supports (foam pads, etc.) prior to initial turn-on of the equipment.

All Single PA TX systems ship with an AC power cord included with the Exciter

and PA. The PA shipment also includes an RS232 cable and an RS232-to-485 adapter,

for Exciter to PA communications, and a CAT5 Ethernet cable, for Exciter to PC built-

in web interface Remote Monitoring and Control.

TRN-U2D-C-FA Quick Start Guide

ACT-PA-U2D-QSG-DOC-V2.2, 09/25/2019 Page 8 of 16

4TX System Interconnect

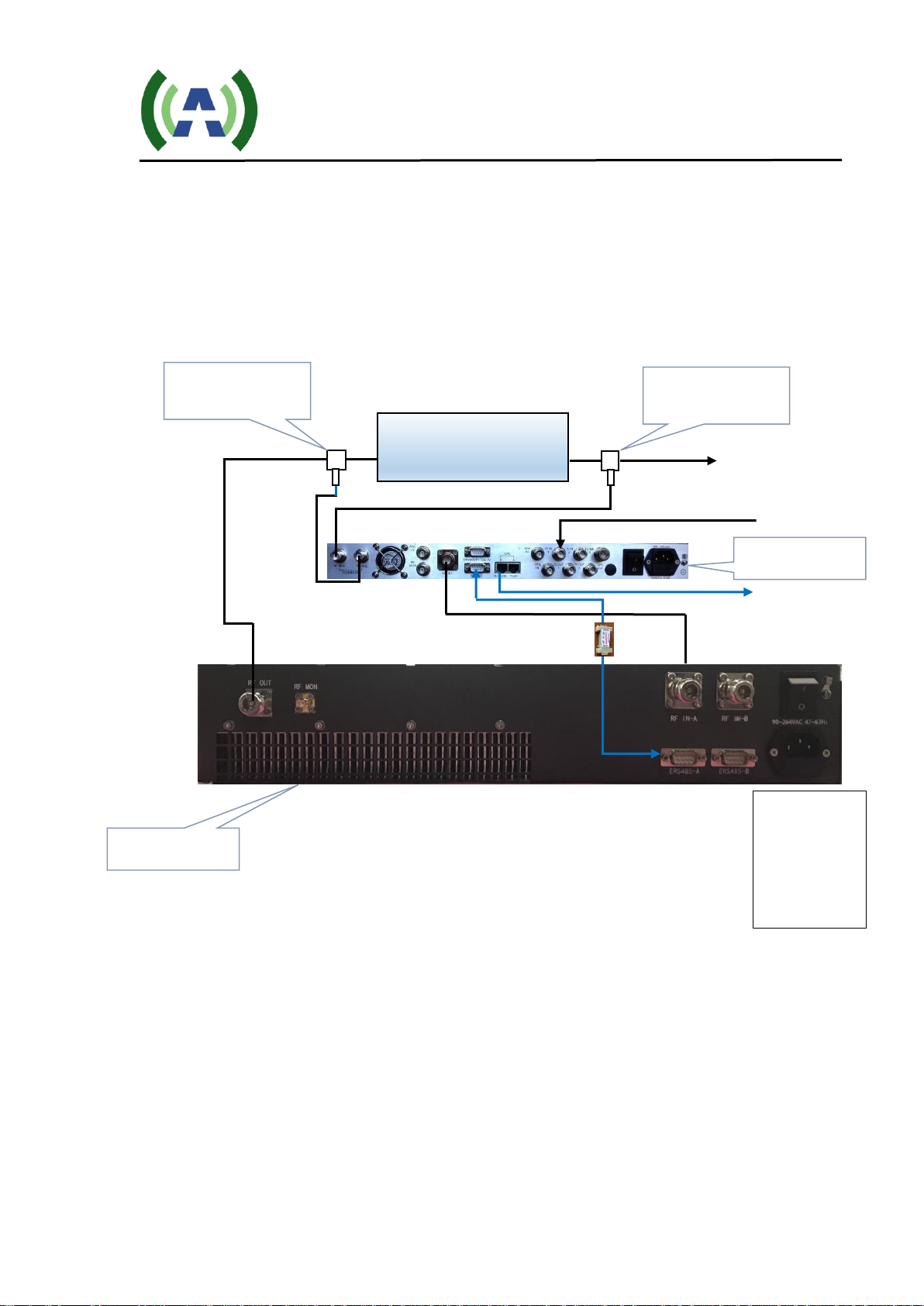

The Anywave TRN U2D DTV Transmitter consists of an Exciter, a PA-U2D-C-

FA PA, and a BPF (optional) with two additional single port couplers for Exciter

feedback samples (optional). The diagram below shows the overall system interconnect

between the system components.

To PC for EXC

Remote Ctrl

(192.168.1.143)

TS Input

PA-U2D-C-FA

Exciter

OUT

BPF

To Antenna feed

Before Filter Coupler

with 10dB attenuator

After Filter Coupler

with 10dB attenuator

Front Panel

LAN port

To PC for PA

Remote Ctrl

(192.168.1.210)

TRN-U2D-C-FA Quick Start Guide

ACT-PA-U2D-QSG-DOC-V2.2, 09/25/2019 Page 9 of 16

5Initial Turn On

Please locate and have handy for reference a copy of your ACT TRN-U2D-C-FA

Factory Test Report as well as the ACT TRN-U2D-C-FA Quick Start Guide, and PA-

U2D-C-FA PA and Exciter User Manuals.

1. With all equipment turned OFF, please make the cable connections according

to the System Interconnect Diagram of section 4. Make sure the BPF or PA

output is properly connected to your Antenna feed or a suitable station load

before proceeding further.

2. Turn ON the Exciter via its rear-panel AC switch.

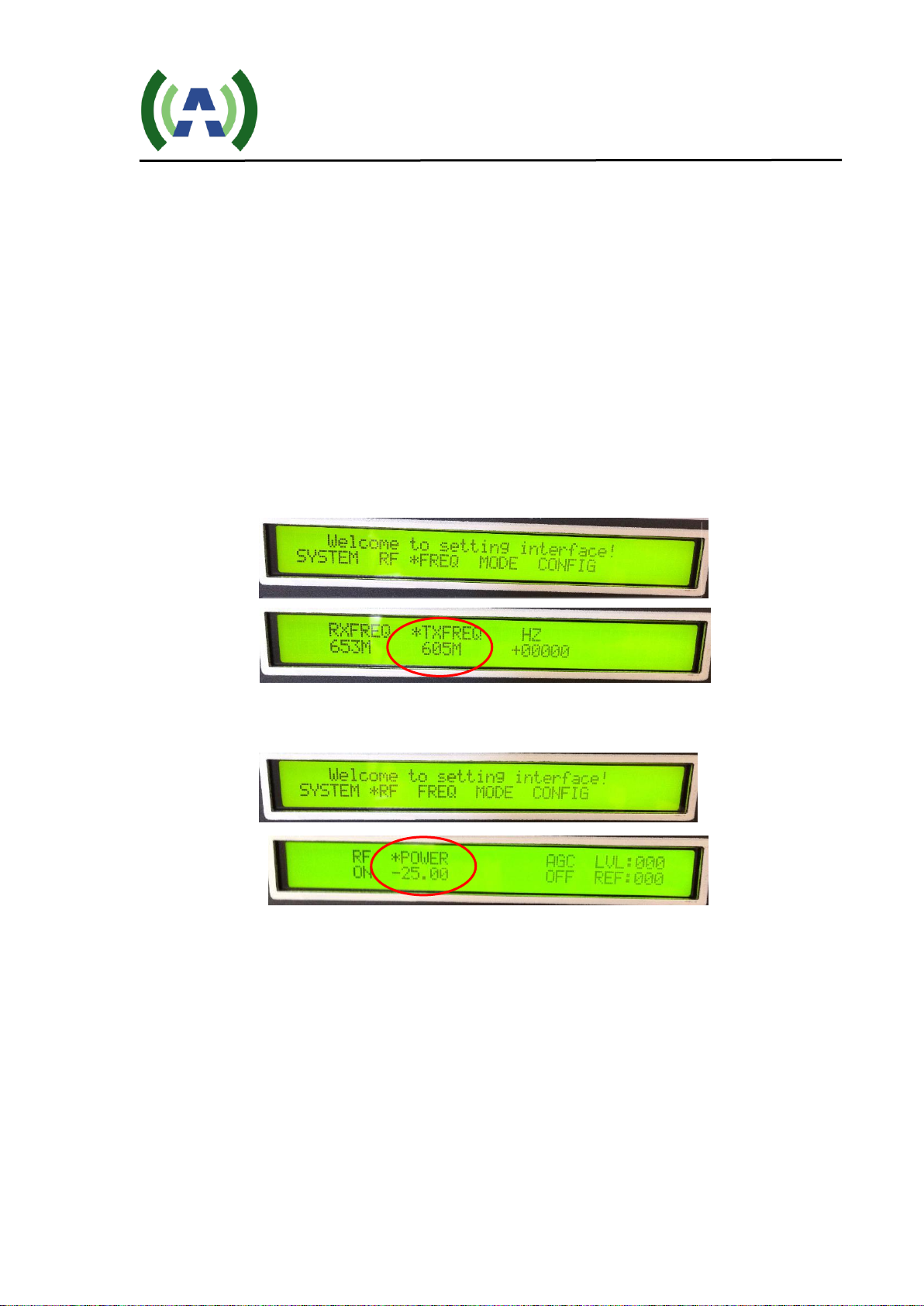

3. Check Exciter settings. Check the operating Frequency of the Exciter by

navigating to the Exciter FREQ submenu (simultaneously press Left and Right

buttons)

Check the Exciter drive level is set to -25dBm by navigating to the Exciter RF

submenu (from above, press ESC button then enter the RF submenu).

(Please refer to your Exciter User Manual for help with the detailed operation

of the Exciter).

4. Turn the PA ON via the PA rear panel breaker, which should turn BLUE when

ON.

5. The built-in FWD and REF power metering in your TX has already been

calibrated at the factory. The PA’s touchscreen and its Web interface both

contain the System Forward and Reflected power meter readings FWD-POW

and REFL-POW. Visit the PA’s touchscreen, or its Web interface and verify that

the current (Cur1_50) are showing real values and not all 0s.

TRN-U2D-C-FA Quick Start Guide

ACT-PA-U2D-QSG-DOC-V2.2, 09/25/2019 Page 10 of 16

6. You are now ready to bring the TX up to power. To accomplish this, slowly

increase the drive level out of the Exciter by increasing the POWER setting in

the Exciter RF submenu while watching the FWD-POW power increase

accordingly on the PA’s touchscreen, and its Web Interface.

Begin to slowly raise the FWD System power by using the UP button on the

Exciter, while monitoring the FWD-POW system power meter on the Controller

HOME screen as shown below.

Slowly increase

to raise FWD

SYS POWER
