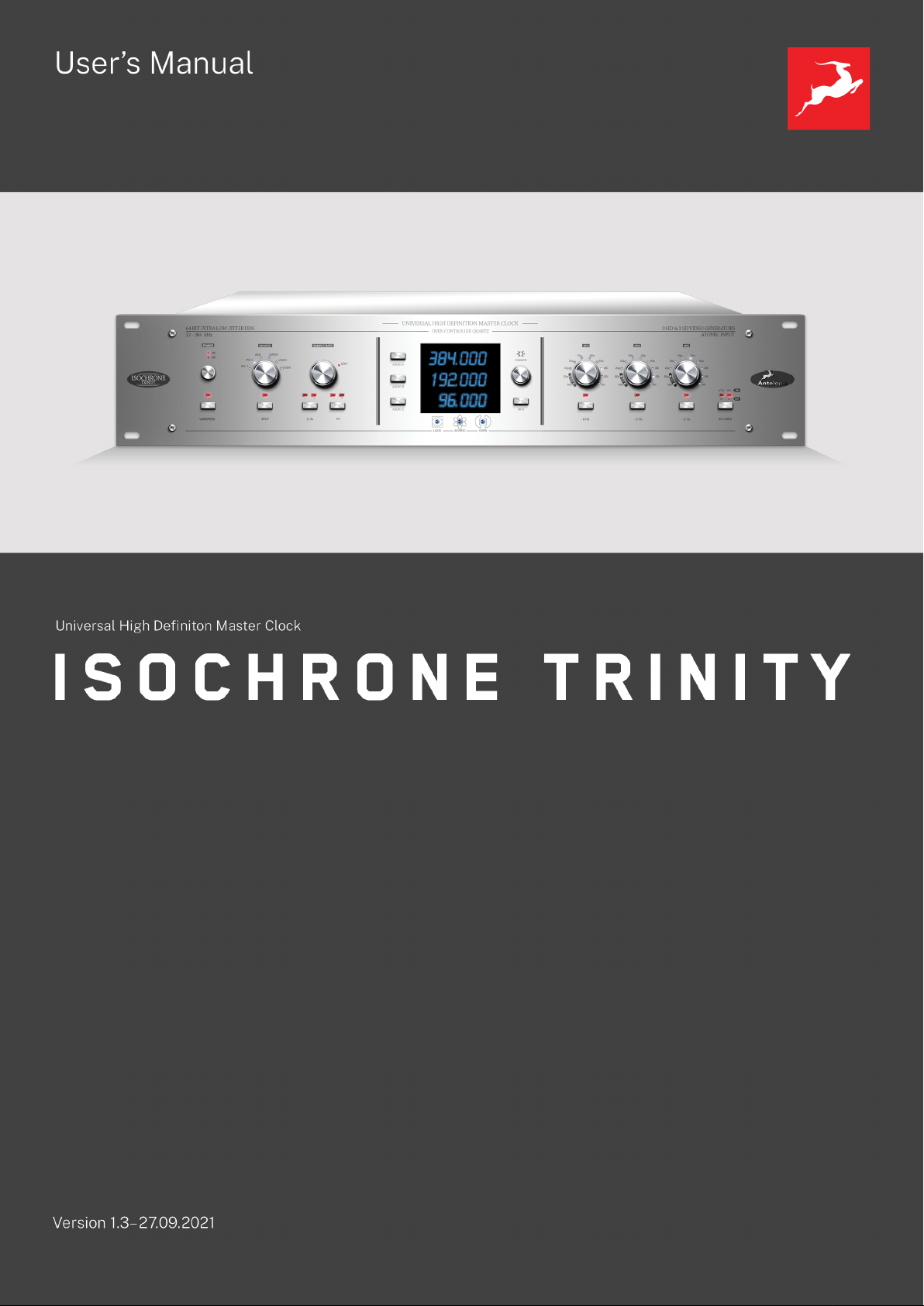

Antelope Isochrone Trinity Manual de usuario

Isochrone Trinity User Manual 2

CONTENTS

BEFORE YOU BEGIN 3

MANDATORY ONLINE ACTIVATION 4

ACTIVATE YOUR PRODUCT WARRANTY 7

SETTING UP 8

INSTALLATION PRECAUTIONS 10

FRONT PANEL EXPLAINED 11

REAR PANEL EXPLAINED 14

GEARBOXING MODE 17

CLOCK CALIBRATION 18

CUSTOMER SUPPORT INFORMATION 18

MY ANTELOPE AUDIO PRODUCT ISN’T WORKING. 19

LIMITED WARRANTY POLICY 21

SAFETY NOTES 27

TECHNICAL SPECIFICATIONS 28

APPENDIX A 31

APPENDIX B 31

APPENDIX C 32

Isochrone Trinity User Manual 3

BEFORE YOU BEGIN

Congratulations! You are now the proud owner of the latest generation of master clock

from the world's favorite clocking company. Based on years of research, Trinity is a brand

new design that is the most flexible, best sounding, most stable, and easiest to use master

clock available.

Based on Antelope's Oven Controlled Crystal Technology, Trinity has many new features

including 3 Independent Audio Generators up to 384kHz, with Varispeed control; 3

Independent SD Generators, simultaneously offering PAL and NTSC; 3 Independent HD

Generators, presenting a choice of 16 formats, and the latest revision of Antelope's

Acoustically Focused Clocking (AFC) technology - now in its 4th generation and employing

64-bit DSP. So, that's a mind-blowing 9 Independent and Simultaneous Audio/Video

Generators, all perfectly in sync.

The triple display shows the frequencies of the audio generators, varispeed values, source

information, pull-ups/pull-downs, and useful messages.

Temporarily lost sync from your source? Trinity will seamlessly free-wheel until the signal

returns, and then re-lock using the latest Antelope `GentleLock Technology`.

Trinity also maintains features from the OCX-V, such as the Antelope Jitter Management

Module, Black Burst Generator, Atomic Input for connection to the 10M Rubidium Atomic

Clock, and full Audio and Video Gearboxing with simultaneous 0.1% and 4% pull-ups/pull-

downs.

We encourage you to take some time to read through this manual and familiarize yourself

with everything that the Trinity has to offer.

Isochrone Trinity User Manual 4

Above all, we hope you enjoy your new Antelope device as much as we enjoyed designing

it.

Should you ever find yourself struggling, do not hesitate to contact our Customer

Support team over phone, live chat and our ticket system. You can also visit Antelope

Audio on YouTube and explore our video tutorials or join the Antelope Audio

Users Facebook group and ask for advice. The Knowledge Base is also a good source of

information.

Best wishes,

Team Antelope

MANDATORY ONLINE ACTIVATION

Please note that the mandatory device activation procedure requires an active Internet

connection on your computer. Activating an Antelope device offline is not possible.

Step 1: Getting Started

Connect the Isochrone Trinity to a power outlet using an AC power cable. Plug

in the device to your computer using a USB cable.

Step 2: Install the Isochrone Trinity Launcher/Control Panel (macOS & Win)

Download and install the Isochrone Trinity Launcher/Control Panel application for Windows

or macOS from here

(https://support.antelopeaudio.com/support/solutions/articles/42000017495-trinity-

download-section)

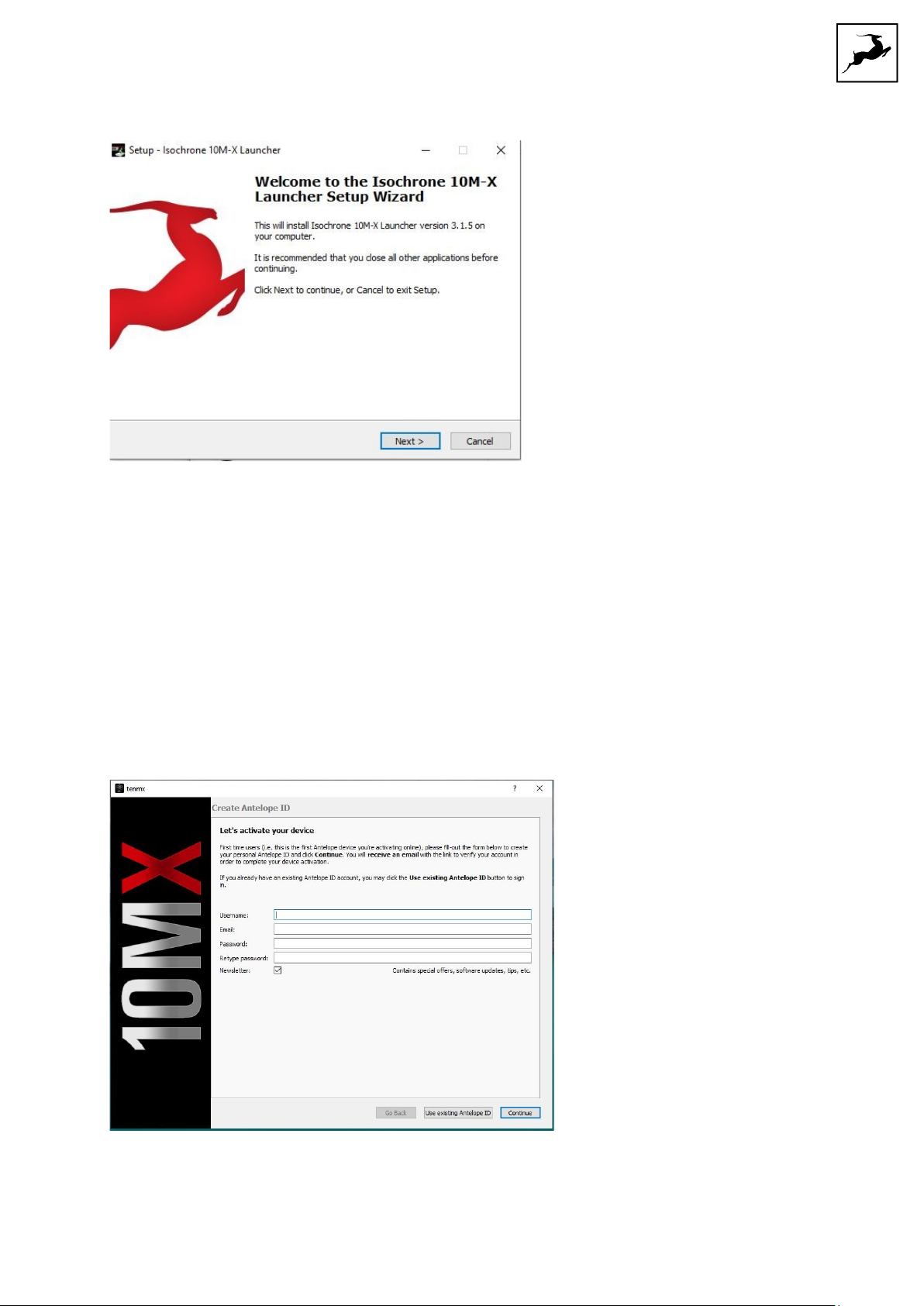

Open and install the Launcher/Control Panel by following the steps in the installation

wizard.

Isochrone Trinity User Manual 5

Step 3: Activate your Isochrone Trinity

Once the installation is completed, start the application. You will be prompted to create an

Antelope ID directly from the application. Fill out the necessary information and

click Continue. If you already have an active Antelope ID, click on Use existing Antelope

ID.

Bear in mind, that your Antelope ID is different and has no relation to your user profile on

antelopeaudio.com.

Isochrone Trinity User Manual 6

activate it using the link in the e-mail you have just received.

After successfully signing in your Antelope ID, you will be asked to fill

in additional information concerning your recent purchase.

Once you have filled in the required information, click Done. You can now begin using

your Isochrone Trinity.

Isochrone Trinity User Manual 7

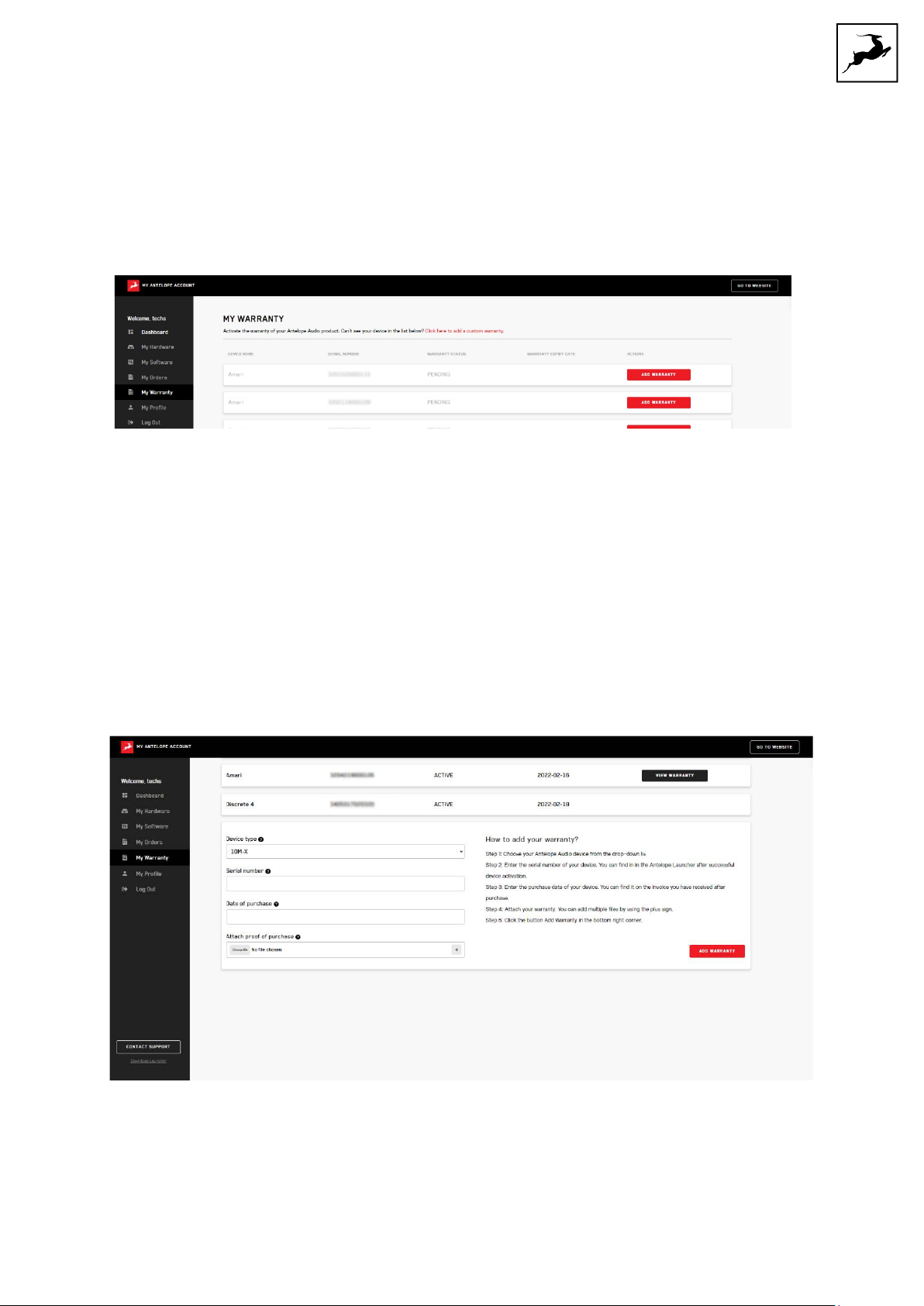

ACTIVATE YOUR PRODUCT WARRANTY

You will be required to activate your product warranty from the My Warranty tab in My

Antelope Account. To activate your product, click on the text that sends you to the page

where you can add a custom warranty.

On the following screen you will be asked to enter information about your new device and

to attach your warranty. Select your device from the list under Device type and add a

serial number. You can find it on the back side of your device’s rack ears. After entering the

serial number enter the date of purchase.

The last step is to attach your warranty. You can add multiple files (up to five) by using the

plus sign. Acceptable formats are .pdf, .jpg, .png, .jpeg, .heif, and the size limit is 7 MB per

file. Once you have completed the steps click Add Warranty.

Isochrone Trinity User Manual 8

After successfully completing the process, you can click on View Warranty to see if your

file has been uploaded correctly.

SETTING UP

Please look at the following images while reading the instructions and explanations below.

Isochrone Trinity User Manual 9

Connect Trinity to an AC or DC power source via rear panel connectors (18) or (19).

Power on from the front panel power button (1). To use the PC/Mac Control Panel

application (Windows 10/macOS 10.11-10.14), connect Trinity to your computer via USB

Type-B (35). Download and install the application from here.

To use Trinity's internal clock, set SOURCE knob (3) to OVEN, and press to confirm. If

slaving to an external source, connect the master sync device to an input on the rear panel,

and select the corresponding position with the SOURCE knob (3). Press to confirm.

Set sample rate: Press AUDIO A button (6) to allow the sample rate to be changed on

Audio channel A. Select desired sample rate with the SAMPLE RATE knob (4) and press to

confirm.

Notes:

●When using internal OVEN, there is a warmup period while the unit is first powered

on. Pressing the INFO button just after powering on will show the oven-controlled

crystal oscillator heating up. The correct operating temperature is reached when

the OVEN light remains lit.

●When making initial connections, it is advised to do so with the studio volume

turned down. Some devices may emit an unpleasant sound until properly

configured to accept incoming clock signal.

●The Control Panel application is not supported under macOS 10.15 Catalina.

Isochrone Trinity User Manual 10

INSTALLATION PRECAUTIONS

1. Before placing the device into its operating location, consider the following:

●To minimize frequency instabilities, the device should not be placed near equipment

generating strong magnetic fields, such as generators, transformers, etc.

●To prevent possible interference, observe a minimum distance of 5cm (2in)

between the cables of this device and any non-coaxial audio cables.

●It's okay to use the device outside of a rack, as long as the above conditions are

met. There is no requirement for the device to be leveled horizontally.

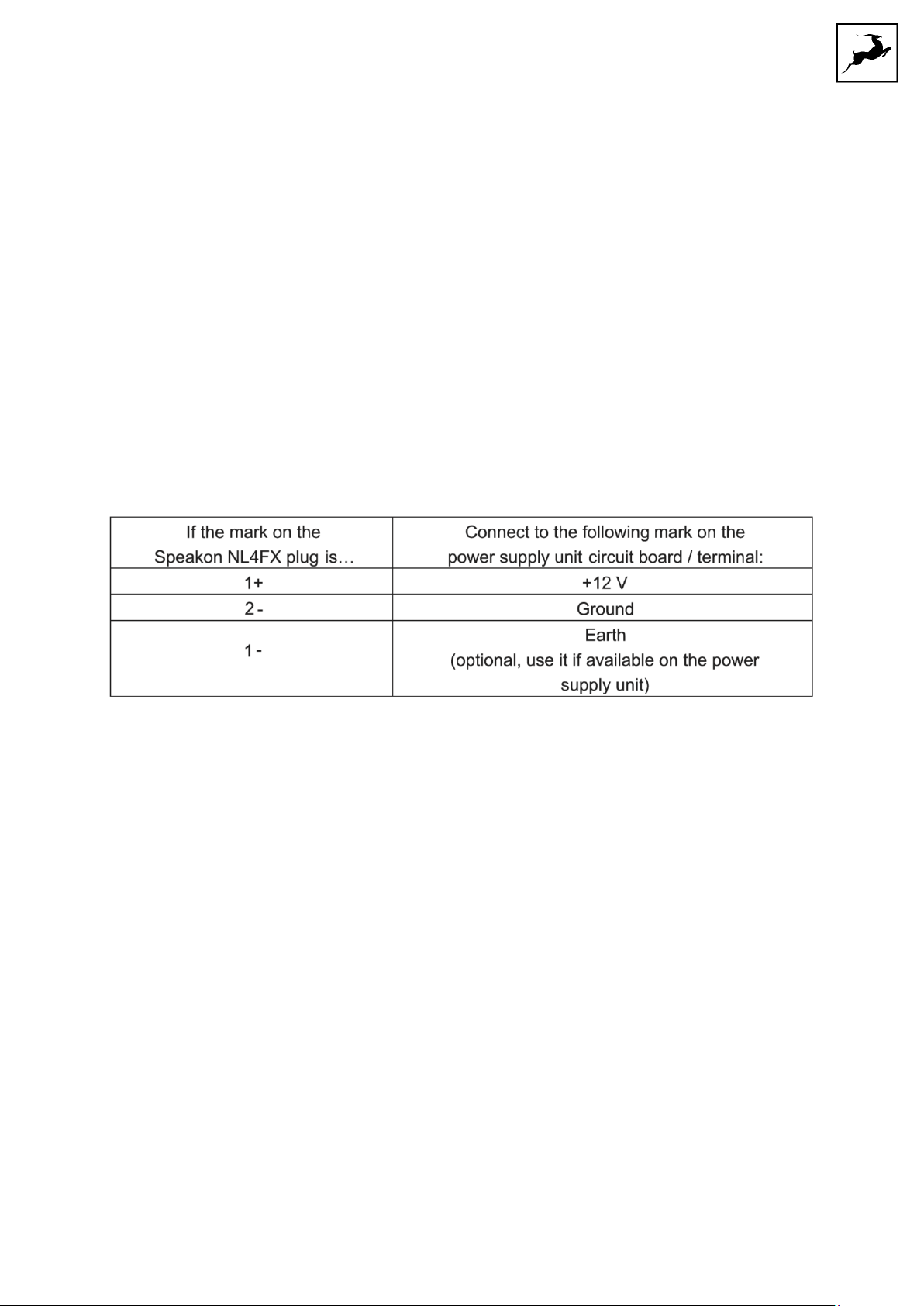

2. If the DC power connection (19) is to be used, make sure the power cable is wired

properly, as reversed polarity may damage the device. Refer to the table below for

information on how to make the connection.

3. Connect the AC Power Connection (18) and/or the DC Power Connection (19) to the

respective power outlet(s). When connecting devices, do so with the studio volume turned

down as some devices may emit an unpleasant sound until properly configured to accept

incoming clock signal.
