Congratulations on your purchase of the Antec Sonata IV

Antec presents the Sonata IV, built from the ground up for Quiet Computing™ to continue the legacy of its

predecessors. All of the features in the Sonata IV optimize the case’s uiet design, from the included 620-watt power

supply with silent 120 mm fan, to the redesigned case airflow that allows for maximum cooling with minimal fans, to the

vibration-reducing silicone grommets for hard drives. Sonata IV is also the most capable Sonata to date, offering a 2.5”

drive mount and front-panel USB 3.0.

At Antec, we continually refine and improve our products to ensure the highest uality. It’s possible that your new case

will differ slightly from the descriptions in this manual. This isn’t a problem; it’s simply an improvement. As of the date

of publication, all features, descriptions, and illustrations in this manual are correct.

Disclaimer

This manual is intended only as a guide for Antec’s computer enclosures. For more comprehensive

instructions on installing the motherboard and peripherals, please refer to the user’s manuals that come with

those components.

Table of Contents

Introduction

1.1 Quiet Computing™ Features .................................................................................... 3

1.2 Case Specifications .................................................................................................. 3

1.3 Diagram ................................................................................................................... 3

Hardware Installation Guide

2.1 Setting p ................................................................................................................ 4

2.2 Motherboard Installation......................................................................................... 5

2.3 Internal 2.5” Device Installation .............................................................................. 5

2.4 Internal 3.5” Device Installation .............................................................................. 6

2.5 External 3.5” Device Installation .............................................................................. 7

2.6 External 5.25” Device Installation ............................................................................ 7

2.7 Cable Organizer ........................................................................................................ 7

Connecting the Front I/O Ports

3.1 SB 2.0 Ports ........................................................................................................... 8

3.2 SB 3.0 Port ............................................................................................................ 8

3.3 AC’ 97 / HD Audio Ports ........................................................................................... 8

3.4 Power Switch / Reset Switch / Hard Disk Drive LED Connectors ............................. 9

3.5 Rewiring Motherboard Header Connectors ............................................................ 9

Cooling System

4.1 TriCool™ Fan ............................................................................................................ 10

4.2 Washable Air Filters ................................................................................................. 10

Introduction

1.1 Quiet Computing™ Features

The Sonata IV is designed with Quiet Computing™ in mind. Many unique design features help

make this case quiet and cool.

1. Solid steel structure (0.8 mm thick steel).

2. Multiple compartments dedicated for motherboard and hard disk drives.

3. Unique hard drive mounting system for maximum noise reduction.

4. Side intake vents designed to maximize passive airflow.

5. Quiet 120 mm TriCool™ rear exhaust fan.

6. Built-in cable management to tuck away extra cables behind the drive cage.

7. Included 620-watt power supply with 120 mm double ball bearing low noise cooling fan.

1.2 Case Specifications

Case Type Quiet Mini Tower

Color Piano Black

Dimensions 17.3” (H) x 8.2” (W) x 18.8” (D)

440 mm (H) x 208 mm (W) x 478 mm (D)

Weight 21.1 lbs / 9.6 kg

Cooling 1 x rear 120 mm TriCool™ fan

Drive Bays 8 Drive Bays:

- 3 x 5.25” external

- 4 x 3.5” internal

- 1 x 2.5” internal

- 1 x 3.5” external drive bay bracket (Optional)

Motherboard Size Mini-ITX, microATX, standard ATX

Front I/O Panel 2 x USB 2.0

1 x USB 3.0

AC’97 / HD Audio In und Out

1.2 Diagram

1. Rear 120 mm TriCool™ fan

2. Motherboard Mount: Mini-ITX,

microATX or standard ATX

3. 620W power supply

4. 3 x 5.25” external drive bays

5. 4 x 3.5” HDD trays

6. 1 x 2.5” SSD

7. Front I/O Panel

Hardware Installation Guide

2.1 Setting Up

1. Place the case upright on a flat, stable

surface.

2. Loosen the thumbscrews from the left side

panel. Remove by swinging panel out.

3. Loosen the thumbscrews from the right side

panel. Remove by swinging panel out.

Note: Do not use your fingernails to pry or lift

the panels.

4. Inside the case you should see a brown box

secured by a single screw. Inside the box

are parts and screws you may need during

installation. These parts and screws are as

follows:

A. Front panel keys (2)

B. 2.5” drive bay thumb screw (4)

C. Motherboard standoff (9; 6 preinstalled)

D. Motherboard / auxiliary screw (15)

E. Optical drive / 5.25”-to-3.5” adapter bracket screw / side filter screw (18)

2.2 Motherboard Installation

This manual does not cover CPU, RAM or expansion card installation. Please consult your

motherboard manual for specific mounting instructions and troubleshooting.

1. Make sure you have the correct I/O panel for your motherboard. If the panel provided

with the case isn’t suitable, please contact your motherboard manufacturer for the

correct I/O panel.

2. To remove the I/O panel, press the panel from the outside pushing towards the inside.

3. Line up your motherboard with the standoff holes, and remember which holes are lined

up. Not all motherboards will match with all the provided holes; this is normal, and will

not affect functionality.

4. Lift and remove motherboard.

5. Screw the brass standoffs into the threaded holes that line up with your motherboard. Do

not over-tighten the standoffs. Some standoffs may be preinstalled for your convenience.

6. Place your motherboard on the brass standoffs.

7. Fasten your motherboard to the standoffs with the provided Philips-head screws. Your

motherboard is now installed.

2.3

Internal 2.5” Device Installation

Note: If you are planning to install both 2.5” and 3.5” drives, you must install the 2.5” drive first.

Installing a 3.5” drive first will prevent you from installing the screws for a 2.5” drive.

To the left of the 3.5” hard drive cage is a space to mount a 2.5” drive. To utilize this drive

mount:

1. Place the drive and hold on top of the four raised mount points.

2. Locate the thumbscrews in the bag labeled “for 2.5 HDD”. Use these screws to secure the

drive.

2.4 Internal 3.5” Device Installation

This case offers a unique hard disk mounting system. There are two dedicated

hard disk compartments right under the external 5.25” drive cage. Each

compartment can hold two hard disk drives.

1. Open the side panel as described in Setting Up. You will find four metal

mounting rails with soft silicone grommets preinstalled inside each of the

HDD compartments. Each drive rail is fastened inside the compartment

with a thumb screw. You will need two mounting rails to mount a HDD. One

rail is fastened to the upper wall of the compartment and the

other rail is fastened to the lower wall of the compartment.

2. Remove both the upper and the lower mounting rails by

loosening the thumb screws.

3. Fasten the rails to the sides of the HDD through the silicone

grommets with the special screws provided.

Note: Don’t over-tighten. Over-tightening the screws will harm the

vibration and noise reduction qualities of the silicone grommets.

4. Slide the HDD assembly into the compartment.

5. The connectors of the drive must face the left side panel (away

from the intake vent).

6. Use the thumb screws to fasten the HDD assembly into the

case.

7. Find the appropriate power connector on the PSU and connect

the device.

8. Find the appropriate data cable and connect the hard drive to

the motherboard.

2.5

External 3.5” Device Installation

To install a floppy drive, card reader or other external 3.5” device using the 5.25” to 3.5”

adapter:

1. Locate the 5.25” to 3.5” adapter bracket.

2. Place the device in the adapter and fasten with the screws provided.

3. Install the drive rails to the adapter as described in the External 5.25” Device Installation

section.

4. Slide the drive into the drive bay until you hear a click.

Signal Names

SB Power 1

SB Power 2

Negative Signal 1

Negative Signal 2

Positive Signal 1

Positive Signal 2

3 4

Negatives Signal 2

Positives S

Ground 1

Ground 2

Key (No Connection)

Empty Pin

5. Connect the appropriate data and power cables from the device to the motherboard.

2.6 External 5.25” Device Installation

There are three external 5.25” drive bays.

1. Carefully remove the plastic cover and metal

plate covering the drive bay.

2. Make sure the clip on the end of the drive

rail is angled away from the device and

facing forward. Mount a plastic drive rail on each side of the 5.25” device.

3. Slide the device into the drive bay until you hear a click.

4. Connect the appropriate data and power cables from the device to the motherboard.

2.7

Cable Organizer

Instead of running all the power cables into the motherboard compartment, the cables can be

organized between the motherboard and right side panel.

1. Remove both side panels.

2. Choose the cables you would like to hide or pass through the organizer behind the

motherboard tray.

3. Run the cables to the organizer and use the cable ties to hold them in place.

Connecting the Front I/O Ports

3.1

USB 2.0 Ports

Connect the front I/O panel USB cable to the USB header pin on your motherboard. Check the

motherboard manual to ensure that it matches the table below:

1 2

9 10

Signal Names

(HDA)

Signal Names

(AC’97)

MIC2

MIC In

AGND

GND

MIC2

MIC Power

AVCC

FRO-R

Line

Out

(R)

MIC2_JD

Line

Out

(R)

F_IO_SEN

Key (no pin)

FRO-L

Line

Out

(L)

LINE2_JD

Line

Out

(L)

3.2

USB 3.0 Port

There is a pre-routed cable for the front-panel USB 3.0 port. Plug the back end of this cable into

an on-board USB 3.0 port on your motherboard to enable the front USB 3.0 port.

3.3

AC’97 / HD Audio Ports

There is an Intel® standard 10-pin AC’97 connector and an Intel® 10-pin HDA (High Definition

Audio) connector linked to the front panel of the case.

You can connect either the AC’97 or the HDA connector, depending on the model of the

motherboard. Locate the internal audio connectors from your motherboard or sound card and

connect the corresponding audio cable. Consult your motherboard or sound card manual for

the pin-out positions. Even if your system supports both audio standards, you may only use

one connector.

3.4

Power Switch / Reset Switch / Hard Disk Drive / Power LED Connectors

Connected to your front panel are LED and switch leads for power, reset, HDD and Power LED

activity. Attach these to the corresponding connectors on your motherboard. Consult your

motherboard manual for specific pin header locations. For LEDs, colored wires are positive ( + ).

White or black wires are negative ( – ). If the LED does not light up when the system is powered

on, try reversing the connection. For more information on connecting LEDs to your

motherboard, see your motherboard manual.

Note: Polarity (positive and negative) does not matter for switches.

3.5

Rewiring Motherboard Header Connectors

If a case connector does not have the same pin-out as the corresponding motherboard header,

it may need to be reconfigured. Examples could be for your USB header, audio input header, or

some other front panel connector such as the Power Button connector.

Before performing any work, please refer to your motherboard manual or your motherboard

manufacturer’s website to be sure of the pin-out needed for your connector. We strongly

recommend making a notated drawing before beginning work so that you can recover if your

work is disturbed.

1. Determine which wires you need to remove in order

to rewire your plug to match the USB pin-outs on

your motherboard (refer to your motherboard manual).

Working on one connector at a time, use a very small

flathead screwdriver or similar tool to lift up on the black

tab located beside the gold posts (squares). This will

allow you to easily slide out the pins from the USB plug.

2. Working carefully so as not to damage the wires,

connectors, or pins, slowly remove the pin from the

connector. Repeat these steps for each wire you need to change.

Slowly reinsert the pin into the correct slot of the connector, then snap closed the black

tab that was lifted in step 1. Repeat these steps for each wire you need to change.

Cooling System

4.1 TriCool™ Fan

There is one 120 x 25 mm TriCool™ fan pre-installed at the rear of the case. This fan is installed

so air will be blown out of the case. It has a 3-speed switch that lets you choose between quiet,

performance or maximum cooling. This switch is located at the rear of the case. The default fan

speed setting is low.

Size: 120 x 25 mm TriCool™ fan

Rated Voltage: DC 12V

Operating Voltage: 10.2V – 13.8V

Tabla de contenidos

Otros manuales de Recinto de Antec

Antec

Antec P183 Manual de usuario

Antec

Antec Solution SLK3700AMB Manual de usuario

Antec

Antec P190 Manual de usuario

Antec

Antec Dark Fleet DF-35 Manual de usuario

Antec

Antec KS-288 Manual de usuario

Antec

Antec Performance 1 Silent Manual de usuario

Antec

Antec Super LANBOY Manual de usuario

Antec

Antec VSK-1000 Manual de usuario

Antec

Antec Dark fleet DF-10 Manual de usuario

Antec

Antec ISK 300-65 Manual de usuario

Antec

Antec SOLO UCC 13# 0761345-08500-7 EU Manual de usuario

Antec

Antec GX300 Manual de usuario

Antec

Antec SLK1650-QE Manual de usuario

Antec

Antec PLUSView1000 AMG User’s Manual de usuario

Antec

Antec NINE HUNDRED TWO V3 User's Manual de usuario

Antec

Antec SONATA III 500 Manual de usuario

Antec

Antec Veris Fusion Remote Max Manual de usuario

Antec

Antec Signature Series Manual de usuario

Antec

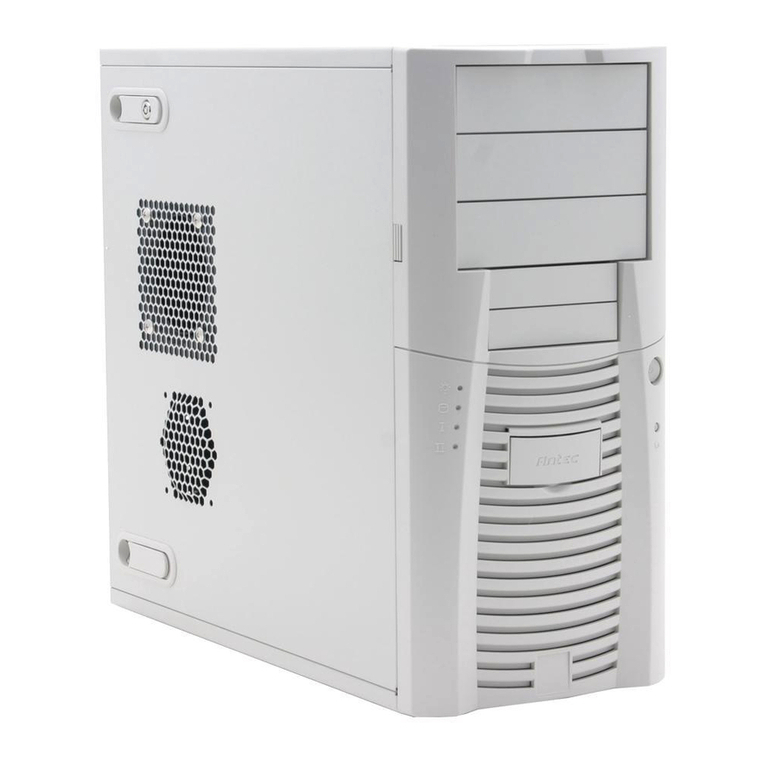

Antec Performance TX635 Manual de usuario

Antec

Antec Veris Fusion Remote Max Manual de usuario

Antec

Antec Mini P180 White Manual de usuario

Antec

Antec SX1240 Manual de usuario

Antec

Antec Veris Fusion Remote Max Guía de inicio rápido

Antec

Antec OVERTURE II Manual de usuario

Manuales populares de Recinto de otras marcas

SilentiumPC

SilentiumPC Armis AR5 Manual

Pulsar

Pulsar 17/TRP80/DSPR Manual de usuario

Thermaltake

Thermaltake V150 TG Manual de usuario

MSI

MSI MPG SEKIRA 500X Manual de usuario

Nexans

Nexans WTC05 Manual de usuario

Peavey

Peavey DS 1502 Manual de usuario

D-Link

D-Link ShareCenter Pro DNS-1550-04 Manual de usuario

Rosewill

Rosewill RX82-U(JBOD) Manual de usuario

QNAP

QNAP SAS JBOD CLI 1.0 Manual de usuario

GAMDIAS

GAMDIAS Talos P1 Manual de usuario

Auvs

Auvs KR615 Manual de usuario

Digitus

Digitus DA-71114 Manual de usuario

CommScope

CommScope FDH 3000 Manual de usuario

FS FHD-FWME4 Manual de usuario

JBL

JBL CS1215T Manual de usuario

Pulsar

Pulsar ARAD-S4 Manual de usuario

Pulsar

Pulsar AWO454 Manual de usuario

NewerTech

NewerTech Voyager S3 Manual de usuario
