Table of Contents

Introduction

1.1 Case Specifications………………...……………......………….....… 2

1.2 Diagram……………………………………………....…......…….....… 2

Hardware Installation Guide

2.1 Setting Up……….…......…….................................................. 3

2.2 Power Supply Installation.…………………......….…...............…. 3

2.3 Motherboard Installation……………………………….......….....…. 3

2.4 Flexi-Drive Bay System…………………..…............................... 4

2.5 Internal 3.5” Device Installation…………………….…......…........ 4

2.6 External 3.5” Device Installation………………...........…….....…. 5

2.7 External 5.25” Device Installation………………......……….....…. 5

2.8 Cable Management Compartment………….…….........…….…..... 6

2.9 Water Cooling Platform……….................……...............…....... 6

2.10 Three-Way NVIDIA™ SLI™ Configuration Option………............. 6

Connecting the Front I/O Ports

3.1 USB 2.0 Ports……………………………...……........……….....…… 6

3.2 eSATA Port………………………………...……......…..……….....… 7

3.3 AC’97 / HD Audio Ports………………….......………….…............. 7

3.4 Power Switch / Reset Switch / Hard Disk

Drive LED Connectors......…………..........................………...... 7

3.5 Rewiring Motherboard Header Connections........….............…... 8

Cooling System

4.1 Big Boy 200™ TriCool™ Fan.…….........…….......................…... 8

4.2 Front/Rear TriCool™ LED Fans…….....……………............…....... 9

4.3 Optional Fans…….....………………......................................... 10

4.4 Washable Air Filters…….....……………......................….......... 10

At Antec, we continually refine and improve our products to ensure the highest quality.

It’s possible that your new case will differ slightly from the descriptions in this manual.

This isn’t a problem; it’s simply an improvement. As of the date of publication, all features,

descriptions, and illustrations in this manual are correct.

Nine Hundred Two User’s Manual

The Nine Hundred Two comes without a power supply. Make sure you choose a power

supply that is compatible with your computer components and has a long enough power

harness to reach your motherboard and peripheral devices. We recommend our TruePower,

NeoPower or Signature Series power supplies for the latest ATX specification compliance,

broad compatibility, and power-saving capability.

Although care has been taken to prevent sharp edges in your Antec case, we strongly

recommend taking the appropriate time and care when working with it. Avoid hurried or

careless motions. Please use reasonable precaution.

Note: The Nine Hundred Two comes with a top storage area. Antec does not recommend

that users put any liquid-containing items (drinks, ice cream, candles, perfume dispensers,

etc.) in this area. It was designed to hold your personal media player, digital camera, keys,

coins, etc.

This manual is not designed to cover CPU, RAM, or expansion card installation.

Please consult your motherboard user’s manual for specific mounting instructions and

troubleshooting. Before proceeding, check the manual for your CPU cooler to find out if there

are steps you must take before installing the motherboard. While installing hardware, keep

your case on a flat, stable surface.

Disclaimer

This manual is intended only as a guide for Antec’s computer enclosures. For more

comprehensive instructions on installing the motherboard and peripherals, please

refer to the user’s manuals that come with those components.

1.1 Case Specifications

Case TypeColor Gaming Case

Color Black

Dimensions 19.3” (H) x 8.7” (W) x 18.5” (D)

490mm (H) x 220mm (W) x 470mm (D)

Weight 25.4 lbs / 11.5 kg

Cooling

1 x Top 200mm TriCool™ Blue LED 3-Speed Fan

2 x Front 120mm Blue LED Fan with Front Control Knobs

1 x Rear 120mm TriCool™ Blue LED 3-Speed Fan

1 x Side 120mm Fan Mount (Optional)

1 x Middle 120mm Fan Mount (Optional)

Drive Bays

9 Drive Bays:

- Up to 9 x External 5.25” Drive Bays

- Up to 6 x Internal 3.5” Drive Bays

- 1 x External 3.5” Drive Bay Bracket

Expansion Slots 8 expansion slots to support three-way NVIDIA™ SLI™ configuration

Motherboard Size Mini-ITX, microATX, Standard ATX

Front I/O Panel

2 x USB 2.0

1 x eSATA

AC’97/HD Audio In and Out

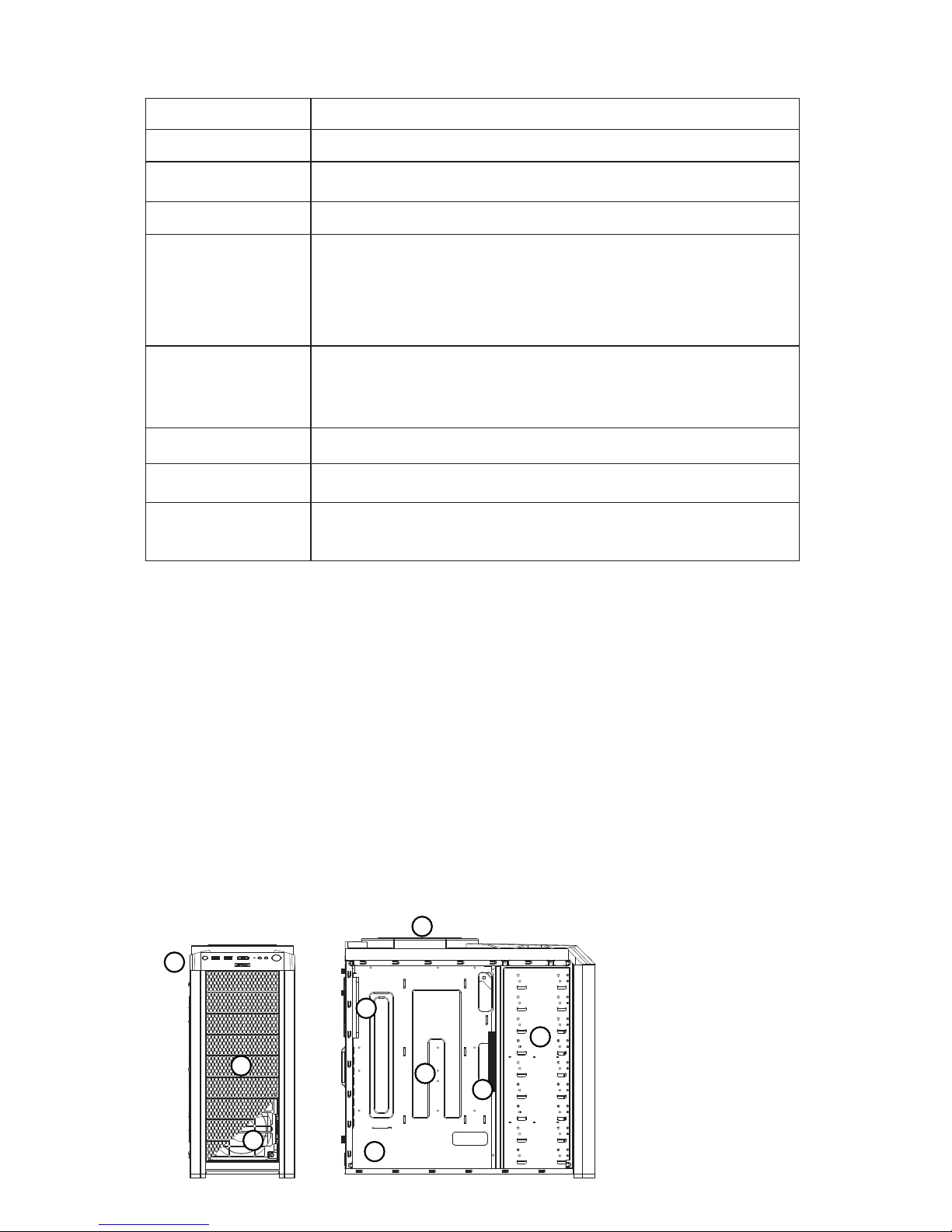

1.2 Diagram

1. 120mm rear TriCool™ exhaust fan

2. 200mm top TriCool™ exhaust fan

3. 2 front 120mm TriCool™ intake fans

4. 1 middle 120mm fan bracket

5. Washable air filters

6. Motherboard mount: Mini-ITX, microATX or Standard ATX

7. Power supply mount

8. 9 total 5.25” drive bays / 2 reconfigurable 3.5” drive cages

9. Front I/O panel

Hardware Installation Guide

2.1 Setting Up

1. Place the case upright on a flat, stable surface so that the rear panel (power supply and

expansion slots) is facing you.

2. Remove the panel thumbscrews from the side panel and open it by sliding it towards

you.Note: Place the panel thumbscrews carefully aside as they are NOT interchangeable

with the HDD cage thumbscrews.

3. Inside the case is the power supply mount at the lower rear of the case and the 5.25”

drive bay area with two HDD cages inside the bays. You will also find some wiring with

marked connectors (USB, PWR etc.), an installed I/O panel and a toolbox containing

more hardware (screws, brass standoffs, etc.).

Note: Don’t use your fingernails to pry or lift the panels.

2.2 Power Supply Installation

1. With the case upright, place the power supply on the

four silicone grommets on the bottom of the case.

Note: Power supplies will need to be mounted so

that the PSU fan is facing the top of the case. The

Nine Hundred Two provides mounting holes for

power supplies with standard mounting layouts to be

installed upside up or upside down.

2. Push the power supply to the back of the case and

align the mounting holes.

3. Attach the power supply to the case with the screws provided.

2.3 Motherboard Installation

1. Lay the case down so that the open side is up.

2. Make sure you have the appropriate I/O panel for the

motherboard. If the panel provided is not suitable for

the motherboard, please contact the motherboard

manufacturer for the correct I/O panel.

3. Line up the motherboard with the standoff holes.

Determine which holes line up and remember where

they are. Not all motherboards will match with all of

the provided screw holes,and this is not necessary

for proper functionality. Some standoffs may be

pre-installed for your convenience.

4. Lift up and remove the motherboard.

5. Screw in the brass standoffs to the threaded holes

that line up with the motherboard.

6. Place the motherboard on the brass standoffs.

Screw in the motherboard to the standoffs with the

provided Phillips-head screws.

2.4 Flexi-Drive Bay System

The Nine Hundred Two comes with nine 5.25” external drive bays at the front of the case.

There are two HDD cages pre-installed inside the bottom six 5.25” bays. Each HDD cage

occupies three consecutive 5.25” drive bays and can house three hard disk drives. For

maximum flexibility you can mount the HDD cage anywhere within the external drive bays

(i.e., you are not limited to the bottom six bays).

Possible drive bay combinations include but are not limited to:

• External 3 x 5.25” + internal 6 x HDD

• External 6 x 5.25” + internal 3 x HDD

• External 9 x 5.25”

There is a middle fan bracket pre-installed on one of the HDD cages. You can install a

120mm fan to the bracket so the air will be blown into the case to use the HDD cage as

a cooling duct to cool your graphics card or CPU. This will prevent the installation of hard

drives into this cage, however. Remove the middle fan bracket from the HDD cage if you

decide to mount your hard drives into this cage.

• External 3 x 5.25” + internal 3 x HDD + cooling duct

2.5 Internal 3.5” Device Installation

1. Remove both side panels per the instructions in Setting Up.

2. Remove the cage thumbscrews fastening the HDD cage to the frame.

3. Slide the HDD cage forward out of the front of the case.

4. Mount the hard drive in the drive cage and fasten it using the long screws provided.

5. Slide the HDD cage back into the case and fasten it with thumbscrews.

6. Connect the appropriate connector(s) from the power supply to the device(s). Leave

some slack in the connections so that you can easily access the fan filters for cleaning.

7. There is a 120mm fan pre-installed onto each cage. Connect the 4-pin connector to the

power supply.

Note: There is a middle fan bracket pre-installed on one of the HDD cages. Remove it

from the cage if you decide to mount your hard drives into this cage.

2.6 External 3.5” Device Installation

1. Remove both side panels per the instructions in

Setting Up.

2. Remove the drive bay cover from the drive bay you

wish to install an external 3.5” drive into.

3. Install your external 3.5” device into the adapter.

4. Slide the drive adapter/device assembly into the bay.

5. Screw the adapter to the drive cage.

6. Mount the faceplate and secure it with screws.

2.7 External 5.25” Device Installation

Note: The HDD cages each occupy three consecutive drive

bays, and will block installation of larger devices such as optical

drives, so please plan ahead before installing your drives.

1. Remove both side panels per the instructions in Setting Up.

2. Remove the screws fastening the appropriate metal drive

bay cover(s) to the sides of the case.

3. Remove the cover(s).

4. If necessary, please remove the HDD cage that is pre-

installed in the bay.

5. Slide the 5.25” device into the bay from the front of

the case.

6. Fasten the drive using the screws that came with your drive.

7. Connect the appropriate power and interface connectors

from the power supply and motherboard to the device.

Make sure that you leave some slack in the connections

so that you can easily access the fan filters for cleaning.

8. Mount the other devices accordingly.

2.8 Cable Management Compartment

There is a cable management compartment between the motherboard and right side panel.

You can tuck or route excess cables in this compartment.

1. Remove both side panels.

2. Choose the cables you would like to pass through the holes behind the motherboard

tray and pull them out of the power supply chamber towards the right side of

the case.

3. Use the cable ties provided to hold them in place.

4. Feed the cables back through the insertion point nearest the destination of the cable.

Connect the cable and then pull the slack back to the right side of the case.

2.9 Water Cooling Platform

This case comes with a 5.25” metal plate pre-installed in the 3rd 5.25” drive bay. This plate

is designed to allow you to easily mount components of a water-cooling kit such as a pump

or reservoir. The plate can be mounted in any of the nine 5.25” drive bays for maximum flexibility.

Note: The plate is not pre-drilled. You will need to drill the appropriate holes to be compatible

with your water-cooling kit.

2.10 Three-Way NVIDIA™ SLI™ Configuration Option

The Nine Hundred Two has eight expansion slots, making

it capable of supporting up to three graphics cards in triple-

NVIDIA™ SLI™ configuration. Consult your motherboard and

graphics cards manuals for more information.

Connecting the Front I/O Ports

3.1 USB 2.0

Connect the front I/O panel USB cable to the USB header pin on your motherboard. Check

the motherboard manual to ensure that it matches the table below:

Motherboard USB Pin Layout

109

Pin Signal Names Pin Signal Names

1USB Power 1 2USB Power 2

3Negative Signal 1 4Negative Signal 2

5Positive Signal 1 6Positive Signal 2

7Ground 1 8Ground 2

9Key (No Connection) 10 Empty Pin

3.2 eSATA

You will find a SATA connector on a cable attached to the front ports. This internal SATA

connector is designed to connect to a standard SATA connector on your motherboard. This

will allow high-speed external hard disk enclosures such as the Antec MX-1 to run at the

same speeds as internally installed hard disks.

3.3 AC’97/HD Audio Ports

There is an Intel® standard 10-pin AC’97 connector and an Intel® 10-pin HDA (High Definition

Audio) connector linked to the front panel of the case.

Pin Signal Names

(HDA) Pin Signal Names

(AC’97)

1 MIC2 L 1 MIC In

2 AGND 2 GND

3 MIC2 R 3 MIC Power

4 AVCC 4 NC

5 FRO-R 5 Line Out (R)

6 MIC2_JD 6 Line Out (R)

7 F_IO_SEN 7 NC

8 Key (no pin) 8 Key (no pin)

9 FRO-L 9 Line Out (L)

10 LINE2_JD 10 Line Out (L)

3579

You can connect either the AC’97 or the HDA connector, depending on the model of the

motherboard. Locate the internal audio connectors from your motherboard or sound card and

connect the corresponding audio cable. Consult your motherboard or sound card manual for

the pin-out positions. Even if your system supports both audio standards, you may only use

one connector.

3.4 Power Switch / Reset Switch / Hard Disk Drive LED Connectors

Connected to your front panel are LED and switch leads for

power,reset, and HDD LED activity. Attach these to the corresponding

connectors on your motherboard. Consult your motherboard manual

for specific pin header locations. For LEDs, colored wires are positive

(+ ). White or black wires are negative ( – ). If the LED does not light

up when the system is powered on, try reversing the connection. For

more information on connecting LEDs to your motherboard, see your

motherboard manual.

Note: Polarity (positive and negative) does not matter for switches.

There is also no Power LED in this case. The illuminated case fans will

turn on when there is power to the computer.

3.5 Rewiring Motherboard Header Connection

There may come a time when you need to reconfigure the

pin-out of a motherboard header connector. Examples could

be for your USB header, audio input header, or some other

front panel connector such as the Power Button connector.

Before performing any work, please refer to your

motherboard manual or your motherboard manufacturer’s

website to be sure of the pin-out needed for your connector.

And we strongly recommend making a notated drawing

before beginning work so that you can recover if your work

gets disturbed.

1. Determine which wires you need to remove in order

to rewire your plug to match the USB pin-outs on

your motherboard (refer to your motherboard manual).

Working on one connector at a time, use a very small

flathead screwdriver or similar tool to lift up on the

black tab located beside the gold posts (squares). This will

allow you to easily slide out the pins from the USB plug.

2. Working carefully so as not to damage the

wires,connectors, or pins, slowly remove the pin from

the connector. Repeat these steps for each wire you

need to change.

3. Working carefully so as not to damage the

wires,connectors or pins, slowly reinsert the pin into

the correct slot of the connector, then snap closed

the black tab that was lifted in step 1. Repeat these steps for each wire you need to

change.

Cooling System

4.1 Big Boy 200™ TriCool™ Blue LED Fan

The Nine Hundred Two comes with a Big Boy 200™ blue LED fan.

This fan has a three-speed switch that lets you choose the speed best

suited to your needs and a switch to turn on or off the blue LED. The

default fan speed setting is Low.

Size: 200mm x 30mm three-speed fan

Rated Voltage: 12V DC

Operating Voltage: 10.2V ~ 13.8V

Speed

(RPM)

Input

Current Air Flow Static Pressure Acoustical

Noise

Input

Power

High

800 0.30A 3.8 m³ / min(134

CFM)

0.7mm-H2O

(0.027inch- H2O) 30 dBA 3.6 W

Medium

600 0.17A 3.1 m³ / min

(108 CFM)

0.4mm- H2O

(0.016inch- H2O) 27 dBA 2.0 W

Low

400 0.08A 2.3 m³ / min

(82 CFM)

0.2mm- H2O

(0.008inch- H2O) 24 dBA 1.0 W

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Recinto de Antec

Antec

Antec Quiet Computing Mini Skeleton-90 Manual de usuario

Antec

Antec VSK-2450 Manual de usuario

Antec

Antec Solution SLK2600AMB User’s Manual de usuario

Antec

Antec NAK3480 Manual de usuario

Antec

Antec NINE HUNDRED TWO V3 User's Manual de usuario

Antec

Antec MINUET 300 Manual de usuario

Antec

Antec Nine Hundred Two Manual de usuario

Antec

Antec Sonata Designer UCC13# 0761345-08146-7 EC Manual de usuario

Antec

Antec Sonata Manual de usuario

Antec

Antec Super LANBOY Manual de usuario

Antec

Antec SLK1650-QE Manual de usuario

Antec

Antec Compact Notebook Cooler none Guía de inicio rápido

Antec

Antec AR300 Manual de usuario

Antec

Antec Veris Fusion Remote Max Manual de usuario

Antec

Antec Signature Series Manual de usuario

Antec

Antec Performance 1 Silent Manual de usuario

Antec

Antec Veris Fusion Remote Black Guía de inicio rápido

Antec

Antec Super LANBOY Manual de usuario

Antec

Antec Twelve Hundred Manual de usuario

Antec

Antec NSK6500 Manual de usuario

Antec

Antec Performance TX635 Manual de usuario

Antec

Antec Solution SLK1650 User's Manual de usuario

Antec

Antec Mini P180 White Manual de usuario

Antec

Antec SX1240 Manual de usuario

Manuales populares de Recinto de otras marcas

SilentiumPC

SilentiumPC Armis AR5 Manual

Pulsar

Pulsar 17/TRP80/DSPR Manual de usuario

Thermaltake

Thermaltake V150 TG Manual de usuario

MSI

MSI MPG SEKIRA 500X Manual de usuario

Nexans

Nexans WTC05 Manual de usuario

Peavey

Peavey DS 1502 Manual de usuario

D-Link

D-Link ShareCenter Pro DNS-1550-04 Manual de usuario

Rosewill

Rosewill RX82-U(JBOD) Manual de usuario

QNAP

QNAP SAS JBOD CLI 1.0 Manual de usuario

GAMDIAS

GAMDIAS Talos P1 Manual de usuario

Auvs

Auvs KR615 Manual de usuario

Digitus

Digitus DA-71114 Manual de usuario

CommScope

CommScope FDH 3000 Manual de usuario

FS FHD-FWME4 Manual de usuario

JBL

JBL CS1215T Manual de usuario

Pulsar

Pulsar ARAD-S4 Manual de usuario

Pulsar

Pulsar AWO454 Manual de usuario

NewerTech

NewerTech Voyager S3 Manual de usuario
