LMP-1204G-SFP Series User Manual V2.1

LMX-1002G-10G-SFP

10-PortIndustrial Light Layer 3ManagedEthernetSwitch, with 8*10/100/1000Tx Ports

and 2*1G/10G SFP+ Slots

Hardware Manual

Version 1.0

(February 2020)

Antaira Technologies - Industrial EthernetSwitches

LMX-1002G-10G-SFP Hardware Manual V1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are

the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC. may make improvements and/or changes to the product and/or specifications of the product described in

this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial EthernetSwitches

LMX-1002G-10G-SFP Hardware Manual V1.0

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment andreceiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switch

Industrial Grade Managed Ethernet Switch

Hardware Manual

Version 1.0 (February 2020)

This manual supports the following model:

•

LMX-1002G-10G-SFP

Antaira Technologies - Industrial EthernetSwitches

LMX-1002G-10G-SFP Hardware Manual V1.0

iv



Table of Contents
Introduction .................................................................1
1 Product Overview 1
2 Product Software Features 1
3 Product Hardware Features 2
4 Package Contents 3
5 Safety Precaution 3
Hardware Description .................................................4
1 Physical Dimensions 4
2 Front Panel 5
3 Top View 5
4 LED Indicators 6
5 Reset Button 7
6 Ethernet Ports 7
7 Cabling 8
8 Wiring the Power Inputs 8
9 Wiring the Fault Alarm Contact 9
10 Grounding Note 9
Mounting Installation.................................................10
1 DIN-Rail Mounting 10
2 Wall Mounting 11
Hardware Installation.................................................12
1 Installation Steps 12
2 Maintenance and Service 13
Technical Specifications ..........................................14

Antaira Technologies - Industrial EthernetSwitches

LMX-1002G-10G-SFP Hardware Manual V1.0

1. Introduction

All Antaira industrial managed switches come with a pre-installed “user-friendly” web console

interface, which allows users to easily configure and manage the units, whether one is using a serial

console and Command Line Interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or Simple

Network Management Protocols (SNMP).

1.1 Product Overview

Antaira Technologies’ LMX-1002G-10G-SFP

is a 10-port industrial Gigabit light layer 3 managed

Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports and 2*1G/10G dual rate SFP+ slots

for fiber connections. The LMX-1002G-10G-SFP is a fully manageable light layer 3 Ethernet switch

that is pre-loaded with a user-friendly web management console design. It supports the ring network

redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring

Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering

and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and

802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote

SCADA systems or control networks.

The LMX-1002G-10G-SFP is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD

protection for industrial networking applications, such as power/utility, water wastewater,

oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh

environment.

1.2 Product Software Features



Network Redundancy

➢

STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for

network redundancy



Network Management

➢

Web UI based management, SNMP v1/v2/v3, Serial Console

➢

Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,

broadcast storm control, DiffServ

➢

IEEE802.1q VLAN tagging, port-based VLAN support

Antaira Technologies - Industrial EthernetSwitches

LMX-1002G-10G-SFP Hardware Manual V1.0

➢

IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256group

➢

Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP,

HTTPS, SSH/SSL, TFTP

➢

MODBUS TCP for SCADA system integration



Port Configuration

➢

Status, statistics, mirroring, rate limiting, event syslog



Event Handling

➢

Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP

trap and Fault Alarm Relay Output



Software Upgrade via TFTP and HTTP



Configuration Backup –USB Port

1.3 Product Hardware Features



System Interface and Performance

•

All RJ-45 ports support Auto MDI Function

•

Embedded 8*10/100/1000Tx RJ45 Ports and 2*1G/10G SFP+ slots

•

Store-and-forward switching architecture

•

8K MAC address table

•

Power line EFT Protection: 2,000VDC; Ethernet ESD Protection:6,000VDC



Power Input

•

DC 12~48V redundant, with a 6-pin removal terminal block

•

The power input specification is compliant with the requirements of SELV (Safety Extra Low

Voltage), and the power supply should be complied with UL 61010-1 & UL 61010-2-201



Operating Temperature

•

-40°C to60°C



Case/Installation

•

IP-30 protection metal housing

•

DIN-Rail and wall mount design

Antaira Technologies - Industrial EthernetSwitches

LMX-1002G-10G-SFP Hardware Manual V1.0

1.4 Package Contents



1 –LMX-1002G-10G-SFP



1 –Quick Installation Guide



1 –Wall mounting bracket set with screws



1 –DC cable –18 AWG & DC jack 5.5 x 2.1mm



1 –RJ45 dust cover set



1 –RJ45 to DB9 serial console cable

1.5 Safety Precaution

Attention:

If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Warning Labels

The caution label means that you should check the certain information on user manual when working

with the device. (Shown in Figure 1.1)

Figure 1.1 - Caution Label

This warning label is on the device, and means that the surface of the device is hot. (Shown

in Figure 1.2)

Figure 1.2 - Hot Surface Warning Label

Antaira Technologies - Industrial EthernetSwitches

LMX-1002G-10G-SFP Hardware Manual V1.0

2. Hardware Description

2.1 Physical Dimensions

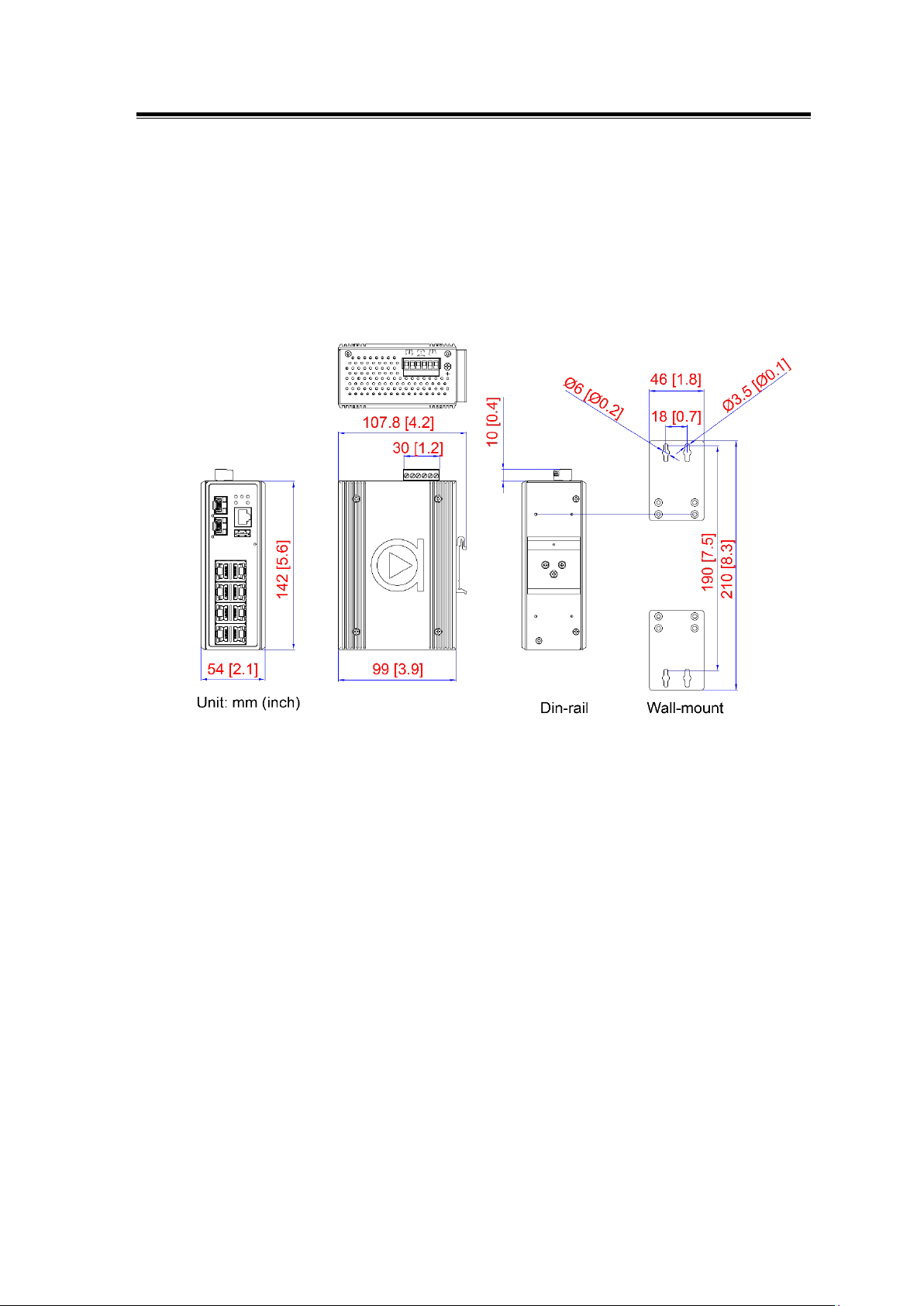

Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-1002G-10G-SFP:

54 x 142 x 99 mm

Figure 2.1

LMX-1002G-10G-SFP Physical Dimensions

Antaira Technologies - Industrial EthernetSwitches

LMX-1002G-10G-SFP Hardware Manual V1.0

2.2 Front Panel

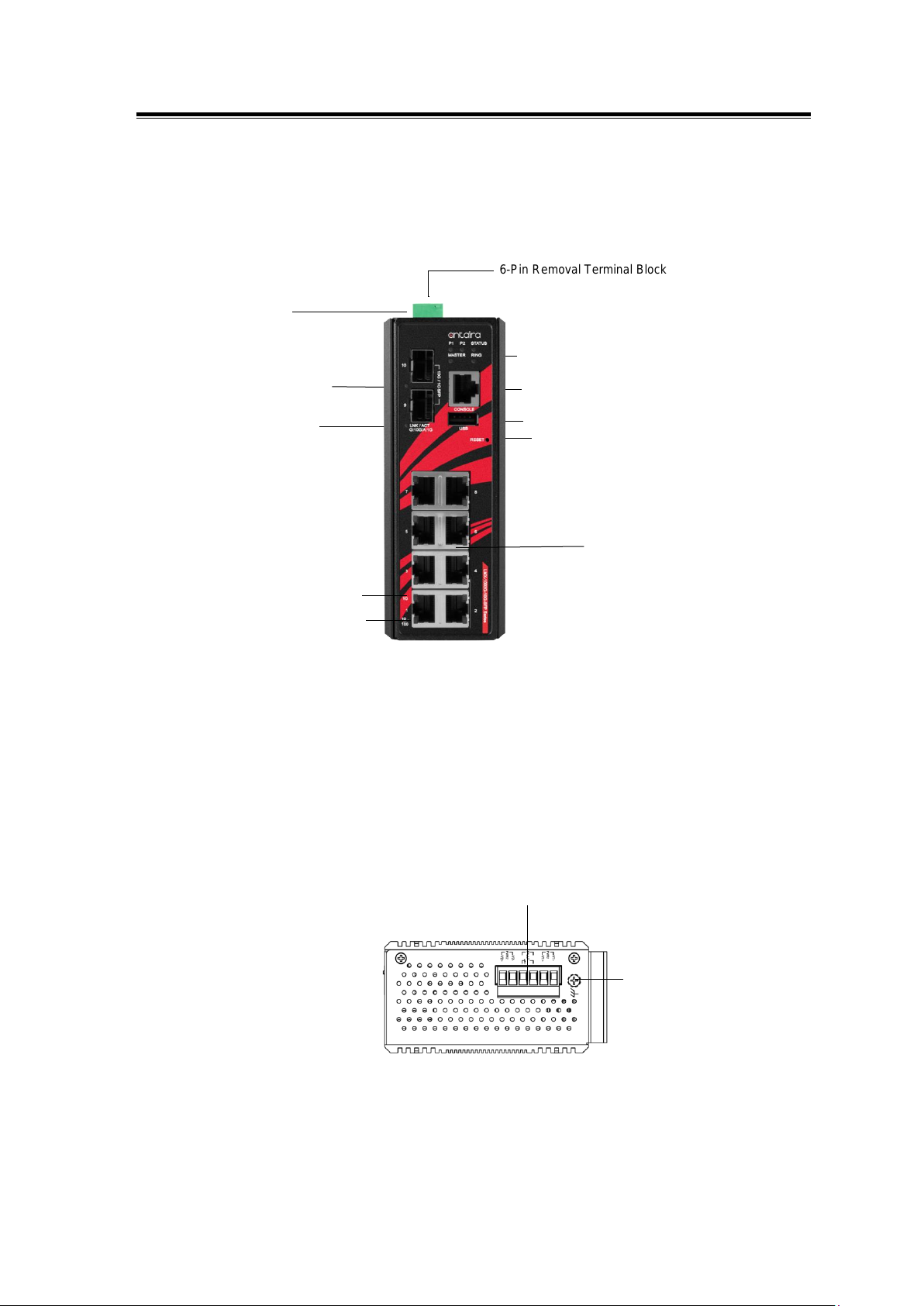

The front panel of the LMX-1002G-10G-SFP industrial gigabit light layer 3 Ethernet switch is

shown below in Figure 2.2.

Figure2.2

The Front Panel of LMX-1002G-10G-SFP

2.3 Top View

Figure 2.3, below, shows the top panel of the LMX-1002G-10G-SFP switch that is equipped with

one 6-pin removal terminal block connector (12~48VDC).

Figure2.3

Top Panel View of LMX-1002G-10G-SFP

6-Pin Removal Terminal Block

Grounding Screw

Reset Button

LAN# 1~8 LED for

Link/Activity Status

1000Mbps

LAN# 1~8 LED for

Link/Activity Status

10/100Mbps

LED for Power 1, Power 2, Fault, Master, and Ring

Console Port

USB for Configuration

SFP Port# 9~10 LED for

Link/Activity Status

1G/10G

LAN# 1~8 –10/100/1000Tx RJ45

SFP Port# 9~10 –1G/10G

Grounding Screw

6-Pin Removal Terminal Block

Antaira Technologies - Industrial EthernetSwitches

LMX-1002G-10G-SFP Hardware Manual V1.0

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch

that display the power status and network status. Each LED indicator has a different color

and has its own specific meaning, see below in Table 2.1.

LED

Color

Description

Power 1

Green

Power input 1 is active

Off

Power input 1 is inactive

Power 2

Green

Power input 2 is active

Off

Power input 2 is inactive

Status

Green

The system ready and work fine, and

there are no events occur

Red

System booting or an applied alarm (such

as port disconnect) has been triggered

Master

Green

ERPS Owner Mode (Ring Master) is ready

Off

ERPS Owner Mode is not active

Ring

Green

Ring Network is active

Off

Ring Network is not active

LAN Port

1~8

(Upper LED)

Green

Connected to network, 1000Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port

1~8

(Lower LED)

Green

Connected to network, 10/100Mbps

Flashing

Networking is active

Off

Not connected to network

LINK/ACT

(SFP Port

9~10)

Green

Connected to network, 10Gbps

Flashing

Networking is active

Off

Not connected to network

Amber

Connected to network, 1Gbps

Flashing

Networking is active

Off

Not connected to network

Table 2.1 - LED Indicators for LMX-1002G-10G-SFP

Caution: "P1" is the abbreviation for "Power 1", “P2”is for “Power 2”, “LNK”is for “Link”,

and "ACT" is for "Activity".

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de ANTAIRA

ANTAIRA

ANTAIRA LMP-1204G-SFP Series Manual de usuario

ANTAIRA

ANTAIRA LNP-0500-24 Series Manual de usuario

ANTAIRA

ANTAIRA LMX-0600-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LMP-0702G-SFP-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LMP-2004G-SFP Series Manual de usuario

ANTAIRA

ANTAIRA LNX-0601G-SFP Manual de usuario

ANTAIRA

ANTAIRA LMP-C602G-SFP-bt-V2 Series Manual de usuario

ANTAIRA

ANTAIRA USB-HUB4K Manual de usuario

ANTAIRA

ANTAIRA LNP-0800G Series Manual de usuario

ANTAIRA

ANTAIRA LNP-0800-60-24 Series Manual de usuario

ANTAIRA

ANTAIRA LNP-1002C-SFP-24 Series Manual de usuario

ANTAIRA

ANTAIRA LMP-1202M-SFP-24 Manual de usuario

ANTAIRA

ANTAIRA LMX-2004G-SFP Series Manual de usuario

ANTAIRA

ANTAIRA STW-611C Manual de usuario

ANTAIRA

ANTAIRA LMX-0702G-SFP-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LNP-1204G-10G-SFP Manual de usuario

ANTAIRA

ANTAIRA LNX-2012GN-SFP Manual de usuario

ANTAIRA

ANTAIRA LMX-1802G-M12-10G-SFP-67 Series Manual de usuario

ANTAIRA

ANTAIRA LNX-800AG Manual de usuario

ANTAIRA

ANTAIRA LNP-C800G Series Manual de usuario

ANTAIRA

ANTAIRA LMX-0702G-SFP-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LMX-1802G-M12-10G-SFP-67-110 Series Manual de usuario

ANTAIRA

ANTAIRA LMX-0501G-SFP-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LMP-2602G-SFP Series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
